Moonshine Details

PropertyValue
Rupture Count7,828
Ruptures Above Sect Min Mag7,825
Ruptures w/ Nonzero Rates187
Magnitude Range[6.78, 8.26]
Length Range[18, 477] km
Total Rate5.427252E-5 /yr
Multi-Fault Rate5.427252E-5 /yr (100.00%)
Directly-Connected Faults7
All Co-Rupturing Faults74

Table Of Contents

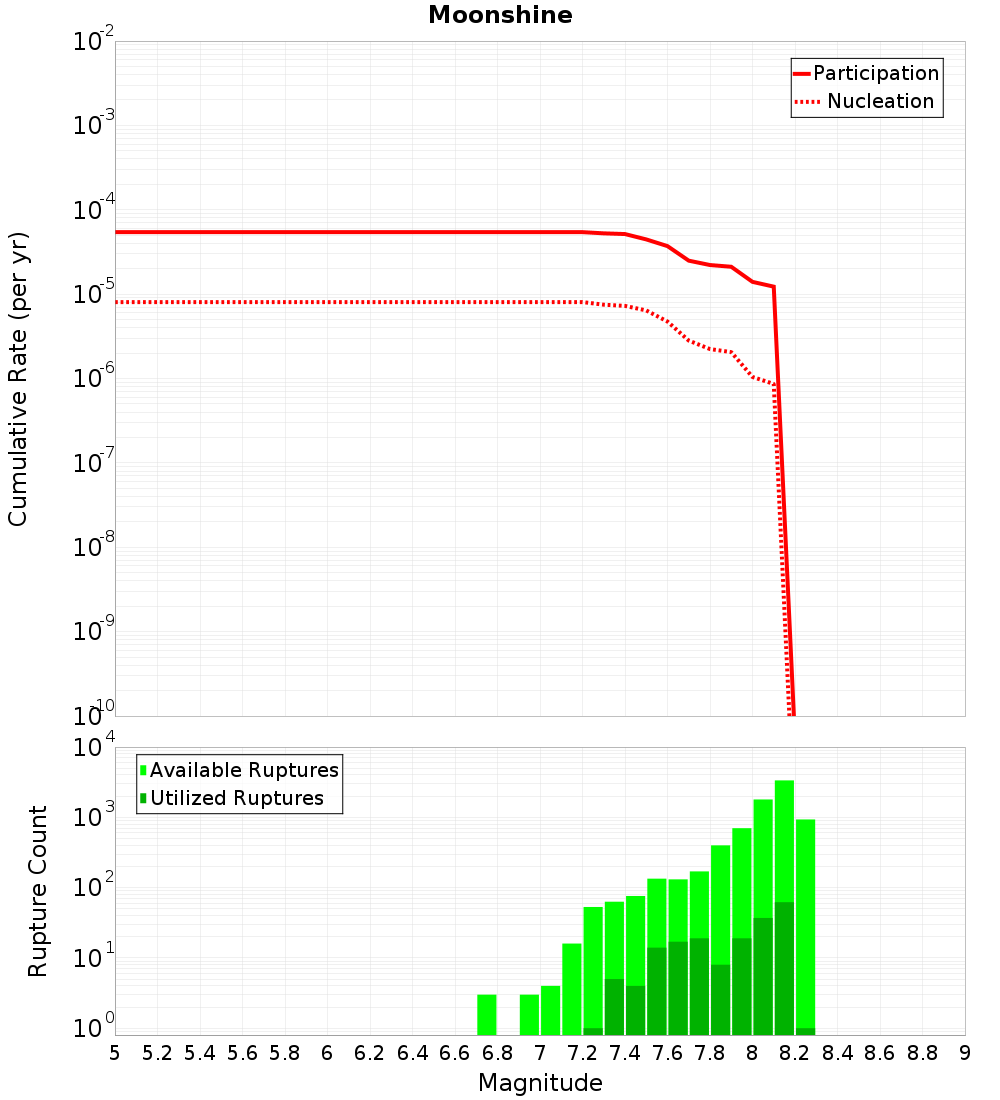

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

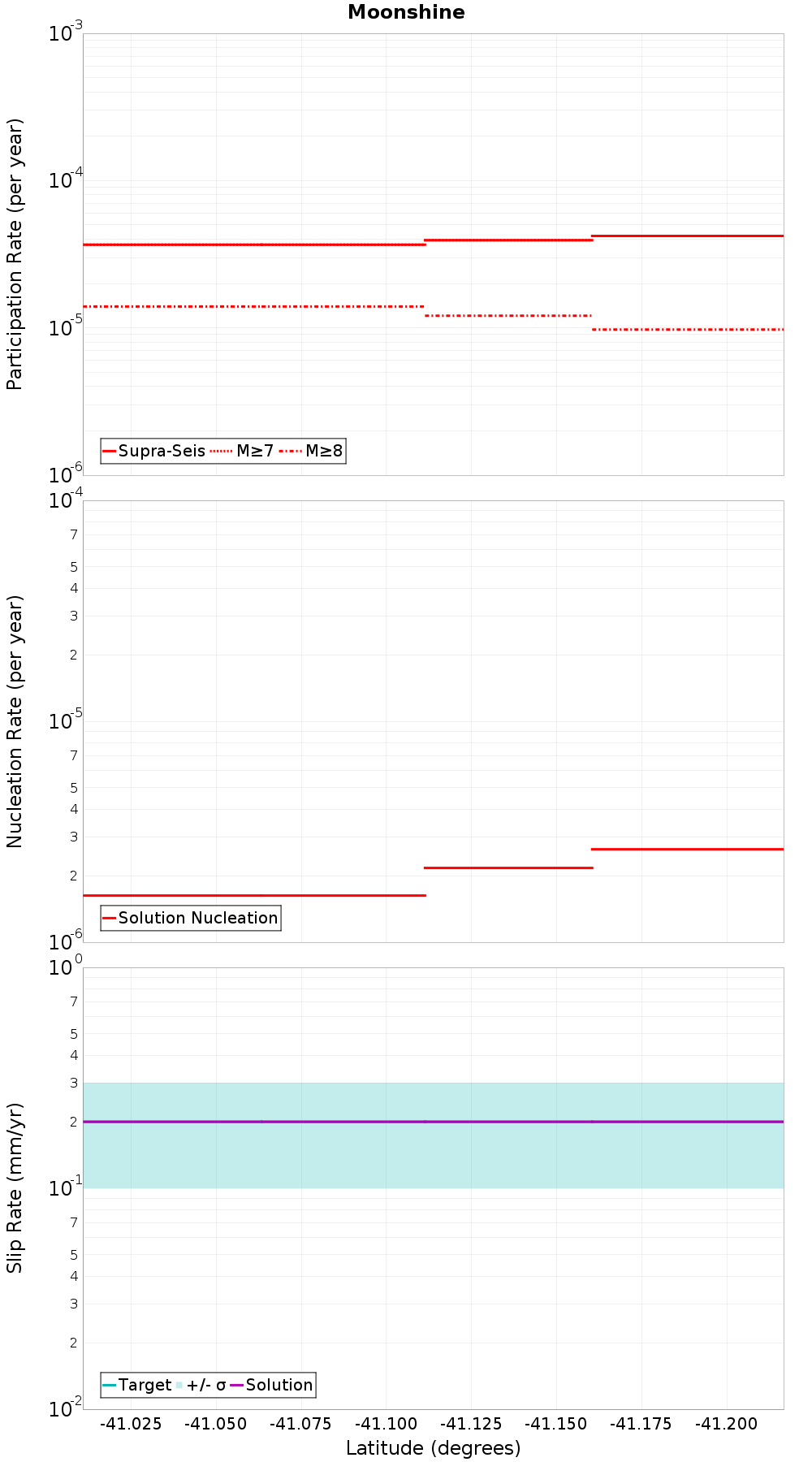

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

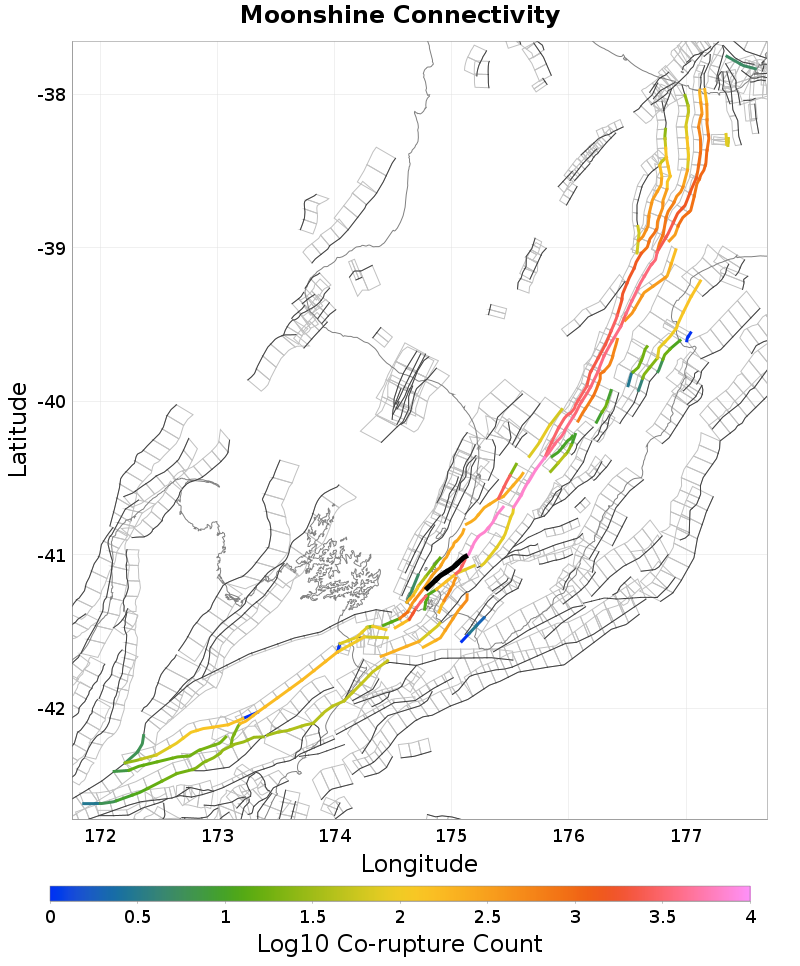

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Otaki Forks: 1, 0 km awayPukerua - Shepherds Gully: 2, 6.63 km away
Akatarawa, 0 km awayWellington: Tararua 2, 6.9 km away
Whitemans Valley, 0.2 km awayShepherds Gully - Mana, 9.63 km away
Ohariu, 2.04 km awayPukerua - Shepherds Gully: 1, 11.23 km away
Wellington Hutt Valley: 4, 4.31 km awayOtaheke South, 11.31 km away
Wellington Hutt Valley: 5, 4.9 km awayWairarapa: 1, 13.22 km away
Wharekauhau, 4.93 km awayWairarapa: 2, 13.37 km away
Wellington: Tararua 1, 5.02 km awayOkupe 1, 14.37 km away
Wellington Hutt Valley: 3, 5.8 km awayWellington Hutt Valley: 2, 16.33 km away
Pukerua - Shepherds Gully: 3, 5.97 km awayOtaki Forks: 2, 16.75 km away
Aotea - Evans Bay, 6.34 km awayFisherman 1, 19.14 km away

Otaki Forks: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count7,067
Co-rupture Rate3.581338E-5

Akatarawa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count2,780
Co-rupture Rate2.3070554E-9

Whitemans Valley, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count556
Co-rupture Rate5.420584E-10

Ohariu, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count659
Co-rupture Rate1.4209179E-5

Wellington Hutt Valley: 4, 4.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count155
Co-rupture Rate4.6472656E-12

Wellington Hutt Valley: 5, 4.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0

Wharekauhau, 4.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count479
Co-rupture Rate1.3999119E-5

Wellington: Tararua 1, 5.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 3, 5.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count2,911
Co-rupture Rate3.5549092E-5

Pukerua - Shepherds Gully: 3, 5.97 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count41
Co-rupture Rate3.6108875E-6

Aotea - Evans Bay, 6.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 2, 6.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count91
Co-rupture Rate8.488055E-11

Wellington: Tararua 2, 6.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count78
Co-rupture Rate0.0

Shepherds Gully - Mana, 9.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Pukerua - Shepherds Gully: 1, 11.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count213
Co-rupture Rate8.488055E-11

Otaheke South, 11.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 1, 13.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count65
Co-rupture Rate0.0

Wairarapa: 2, 13.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Okupe 1, 14.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 2, 16.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count1,755
Co-rupture Rate1.3606281E-5

Otaki Forks: 2, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count7,013
Co-rupture Rate3.434869E-5

Fisherman 1, 19.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
