Waiotahi: North Details

PropertyValue
Rupture Count8,147
Ruptures Above Sect Min Mag8,142
Ruptures w/ Nonzero Rates62
Magnitude Range[6.91, 8.43]
Length Range[22, 734] km
Total Rate3.5070465E-4 /yr
Multi-Fault Rate3.5070465E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults86

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

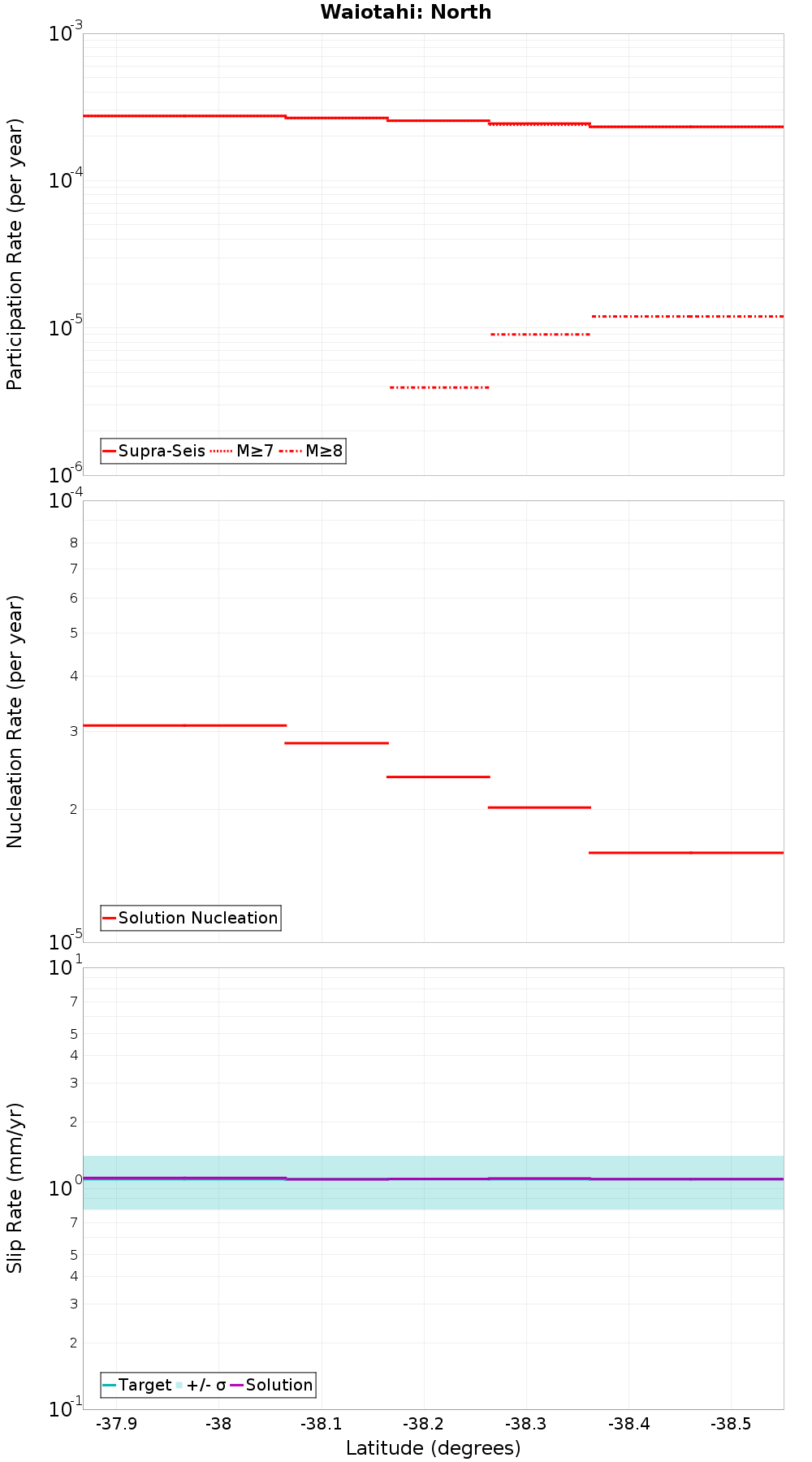

Along-Strike Values

(top)

Along-strike plot

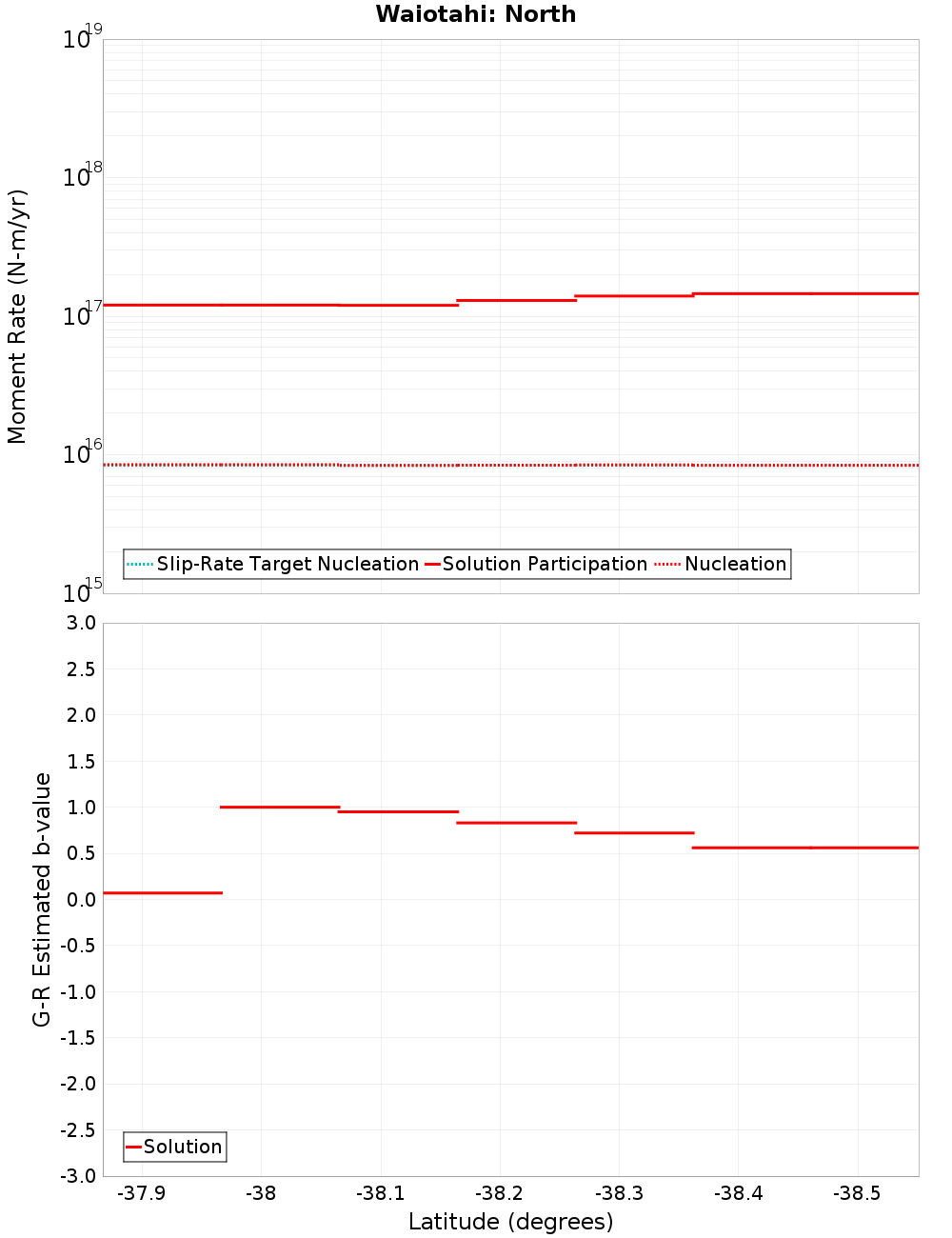

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiotahi: South, 0 km awayOhae 2, 12.28 km away
Waimanawa - Waikaremoana, 0.38 km awayWhite Island 2, 12.85 km away
Waimana: North, 1.8 km awayTirohanga, 13.3 km away
Waimana: South, 2.4 km awayRangitaiki 1, 13.71 km away
Opotiki 3, 3.94 km awayOtakiri, 13.76 km away
Wairata, 5.27 km awayOhiwa 1, 14.52 km away
Raukumara 9, 6.8 km awayRangitaiki 2, 14.87 km away
Ohae 1, 8.91 km awayKotare - Moutuhora, 16.72 km away
White Island 1, 9.79 km awayOpape 1, 17.76 km away
Whakatane: South, 10.09 km awayMatata, 18.33 km away
Opotiki 2, 10.14 km awayEdgecumbe Coastal, 18.75 km away
Whakatane: North, 10.4 km away

Waiotahi: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count4,015
Co-rupture Rate2.2772596E-4

Waimanawa - Waikaremoana, 0.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count188
Co-rupture Rate2.6186407E-4

Waimana: North, 1.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count634
Co-rupture Rate2.616035E-5

Waimana: South, 2.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count6,243
Co-rupture Rate4.18861E-6

Opotiki 3, 3.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count357
Co-rupture Rate1.7474385E-5

Wairata, 5.27 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count555
Co-rupture Rate6.198973E-5

Raukumara 9, 6.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count347
Co-rupture Rate8.325653E-6

Ohae 1, 8.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count83
Co-rupture Rate4.8181337E-6

White Island 1, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: South, 10.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate5.3041367E-5

Opotiki 2, 10.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate0.0

Whakatane: North, 10.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 12.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?true
Co-rupture Count100
Co-rupture Rate8.951161E-6

White Island 2, 12.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate0.0

Tirohanga, 13.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 1, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 13.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Ohiwa 1, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Rangitaiki 2, 14.87 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate0.0

Kotare - Moutuhora, 16.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Opape 1, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Matata, 18.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 18.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM3OTcuMGRwcEZ3
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
