Braemar Details

PropertyValue
Rupture Count40
Ruptures Above Sect Min Mag38
Ruptures w/ Nonzero Rates13
Magnitude Range[6.59, 7.00]
Length Range[14, 48] km
Total Rate0.0011819862 /yr
Multi-Fault Rate0.0011507904 /yr (97.36%)
Directly-Connected Faults6
All Co-Rupturing Faults10

Table Of Contents

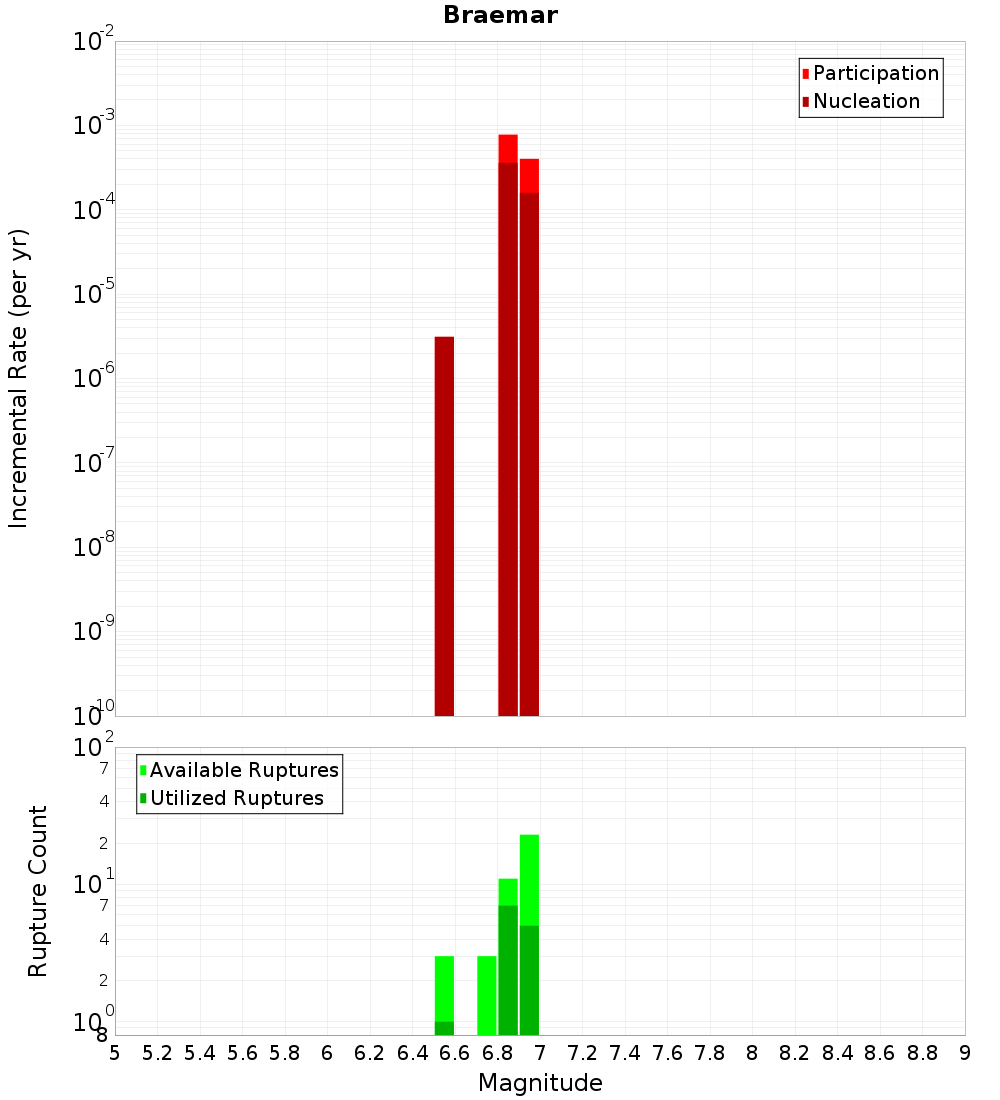

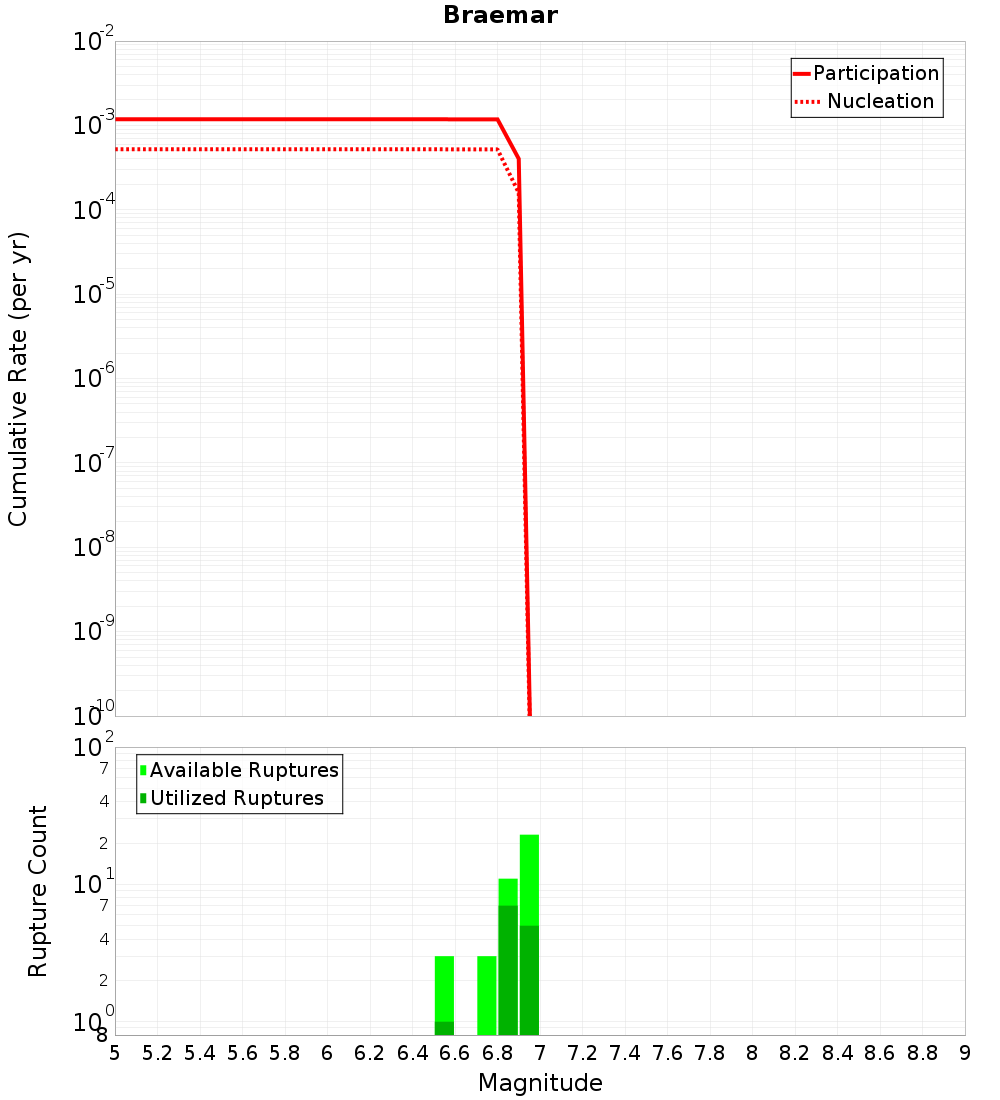

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

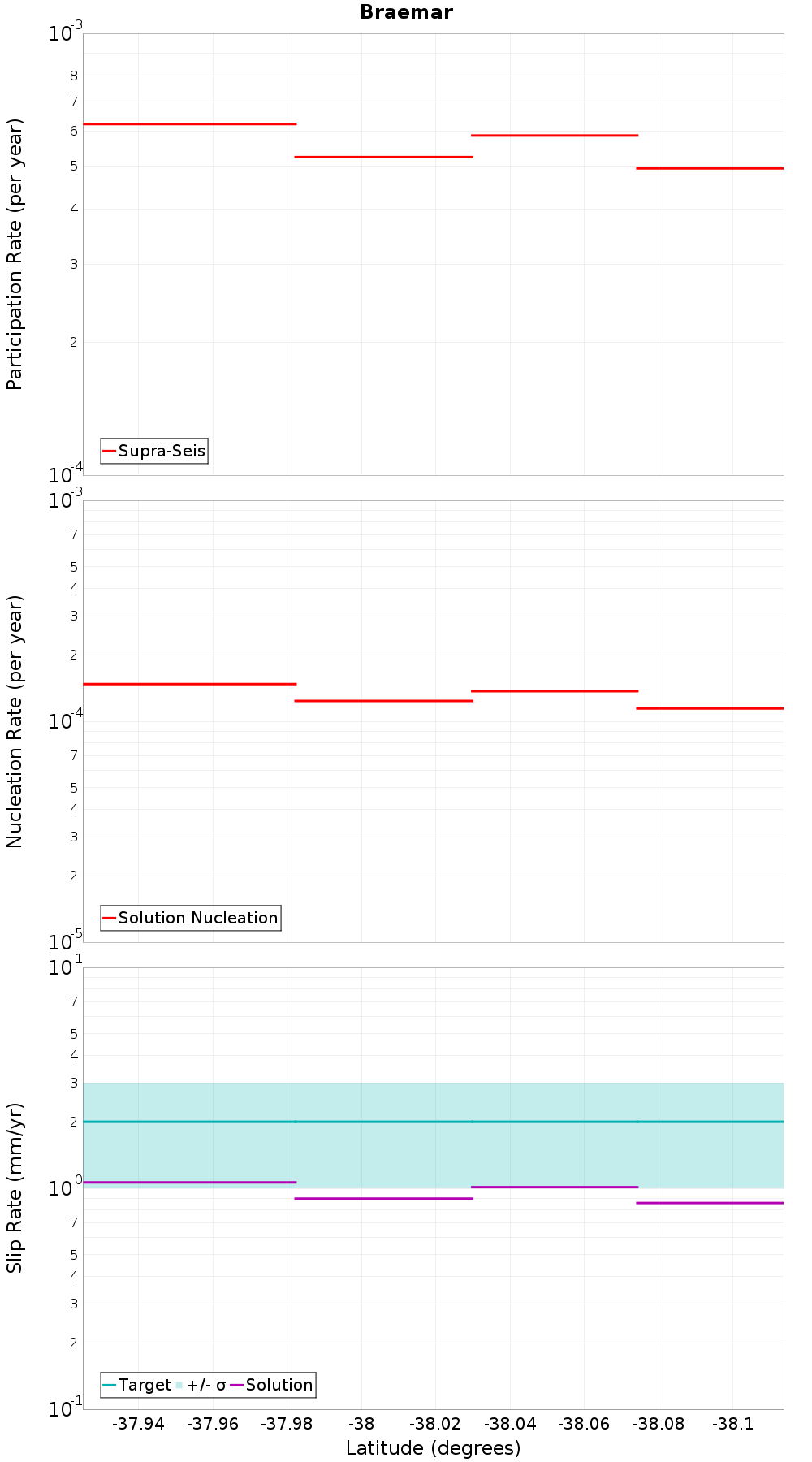

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

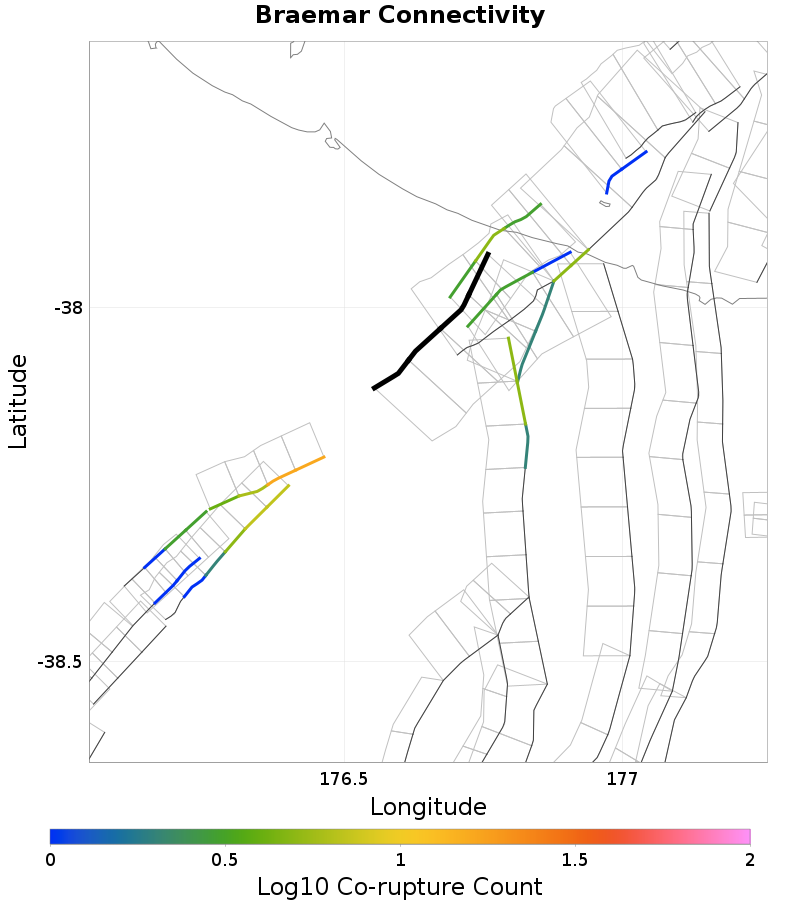

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate0.0

Waiohau: North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate2.289689E-4

Otakiri, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?true
Directly Connected?true
Co-rupture Count3
Co-rupture Rate2.5536437E-4

Edgecumbe 1987, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Matata, 0.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate1.6775177E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate2.639974E-4

Whakatane: North, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate4.6367684E-4

Waimana: North, 18.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjAuMG41TkZz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
