Whangamata West Details

PropertyValue
Rupture Count187
Ruptures Above Sect Min Mag184
Ruptures w/ Nonzero Rates10
Magnitude Range[6.29, 7.00]
Length Range[10, 56] km
Total Rate0.0011413057 /yr
Multi-Fault Rate0.0011413057 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults7

Table Of Contents

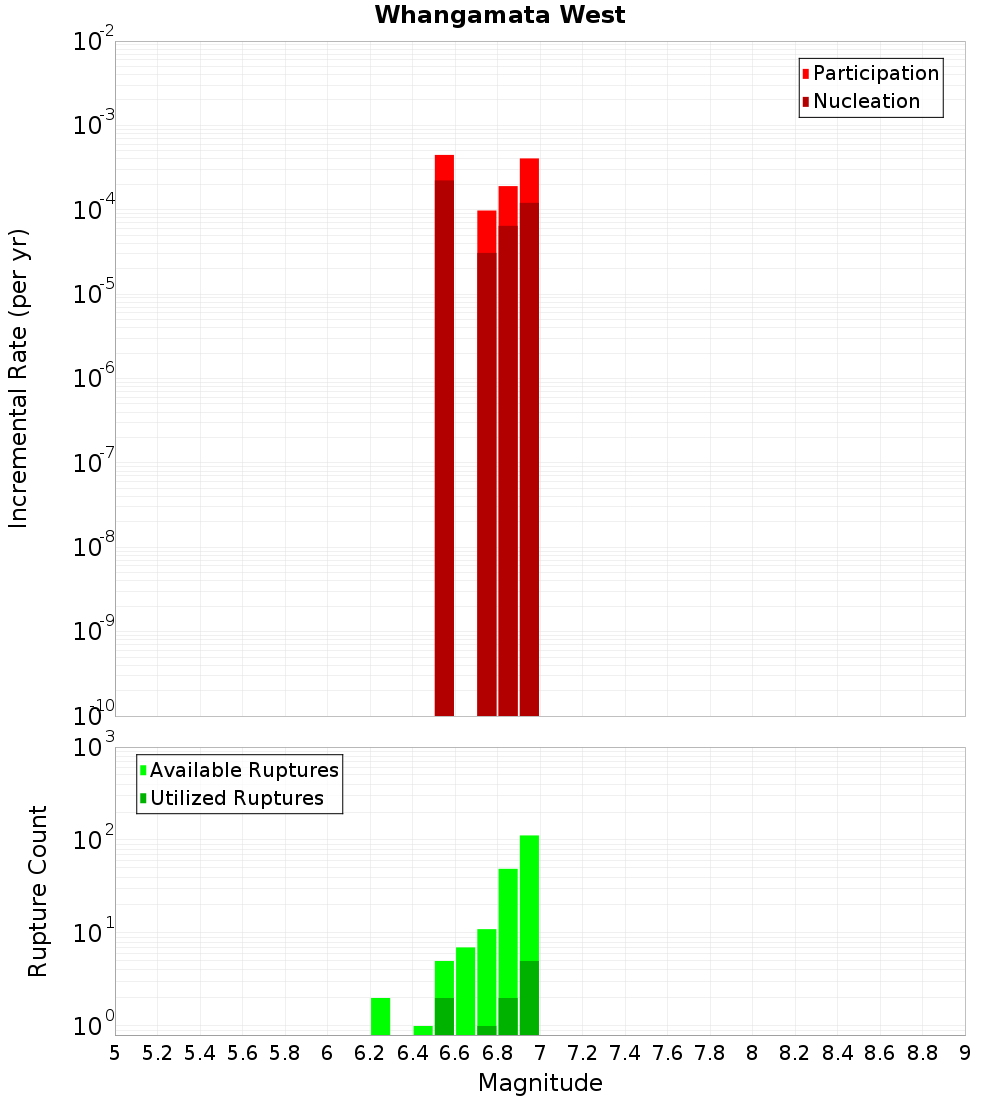

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

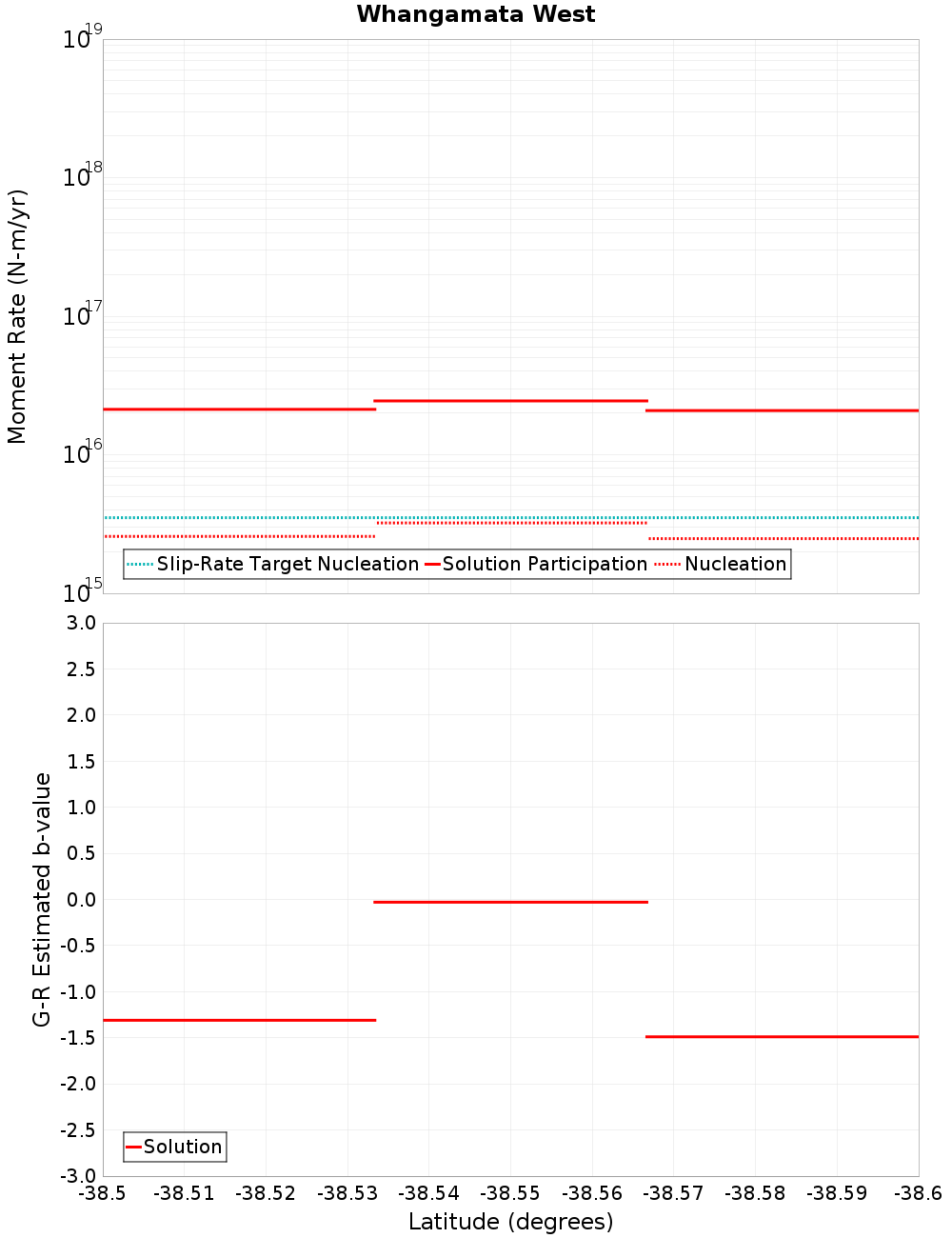

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.23 km away
Kaiapo, 0.25 km away
Puketerata North, 9.6 km away
Maleme, 12.98 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjUuMHltdWJV
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate3.508783E-4

Orakeikorako, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjUuMHltdWJV
Connected?true
Directly Connected?true
Co-rupture Count143
Co-rupture Rate3.4376784E-4

Kaiapo, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjUuMHltdWJV
Connected?true
Directly Connected?true
Co-rupture Count65
Co-rupture Rate4.899191E-4

Puketerata North, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjUuMHltdWJV
Connected?true
Directly Connected?false
Co-rupture Count88
Co-rupture Rate4.679278E-4

Maleme, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjUuMHltdWJV
Connected?true
Directly Connected?false
Co-rupture Count68
Co-rupture Rate5.1803835E-4

Paeroa, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MjUuMHltdWJV
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate1.7660782E-4
