Akatore Details

Property	Value
Rupture Count	42
Ruptures Above Sect Min Mag	41
Ruptures w/ Nonzero Rates	11
Magnitude Range	[7.18, 7.88]
Length Range	[27, 154] km
Total Rate	1.058E-4 /yr
Multi-Fault Rate	1.058E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

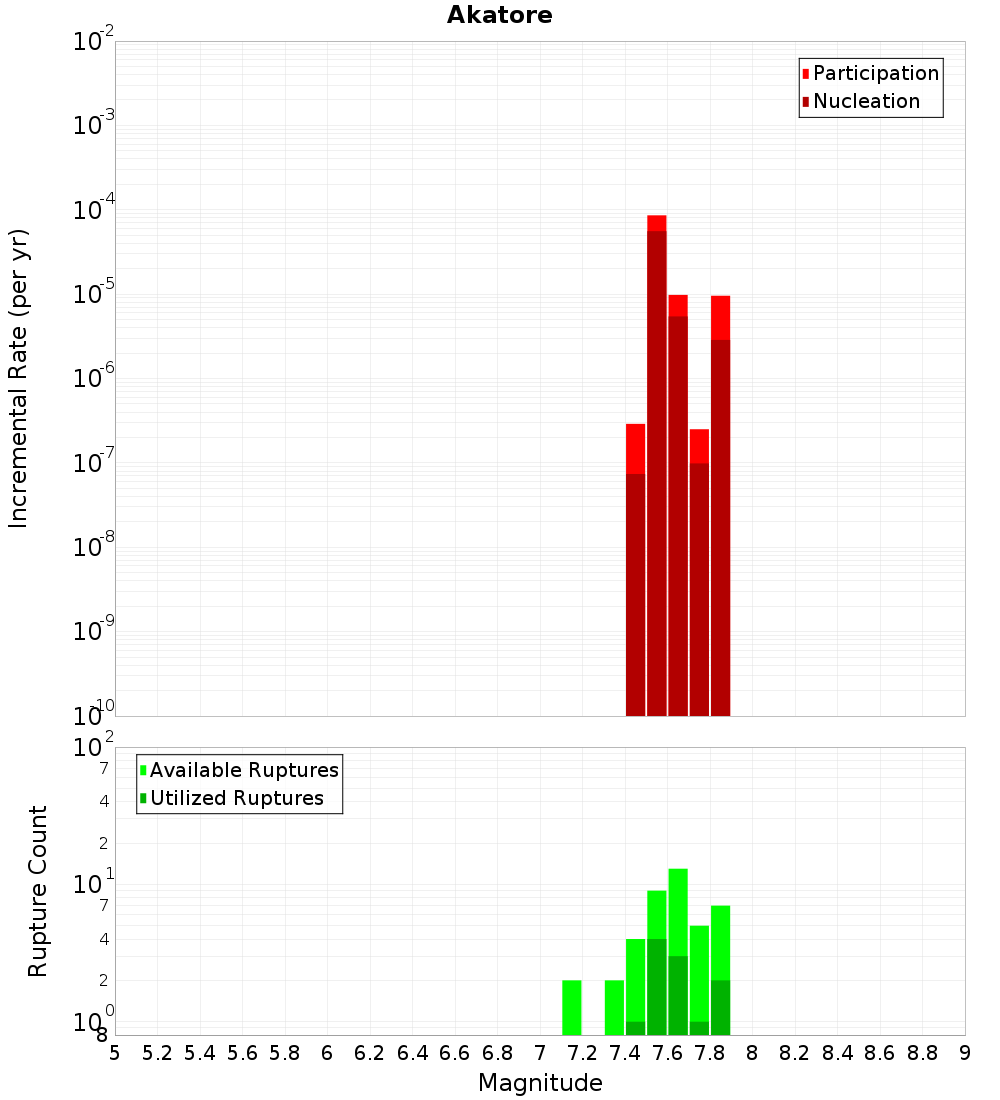

Magnitude-Frequency Distribution

Incremental	Cumulative

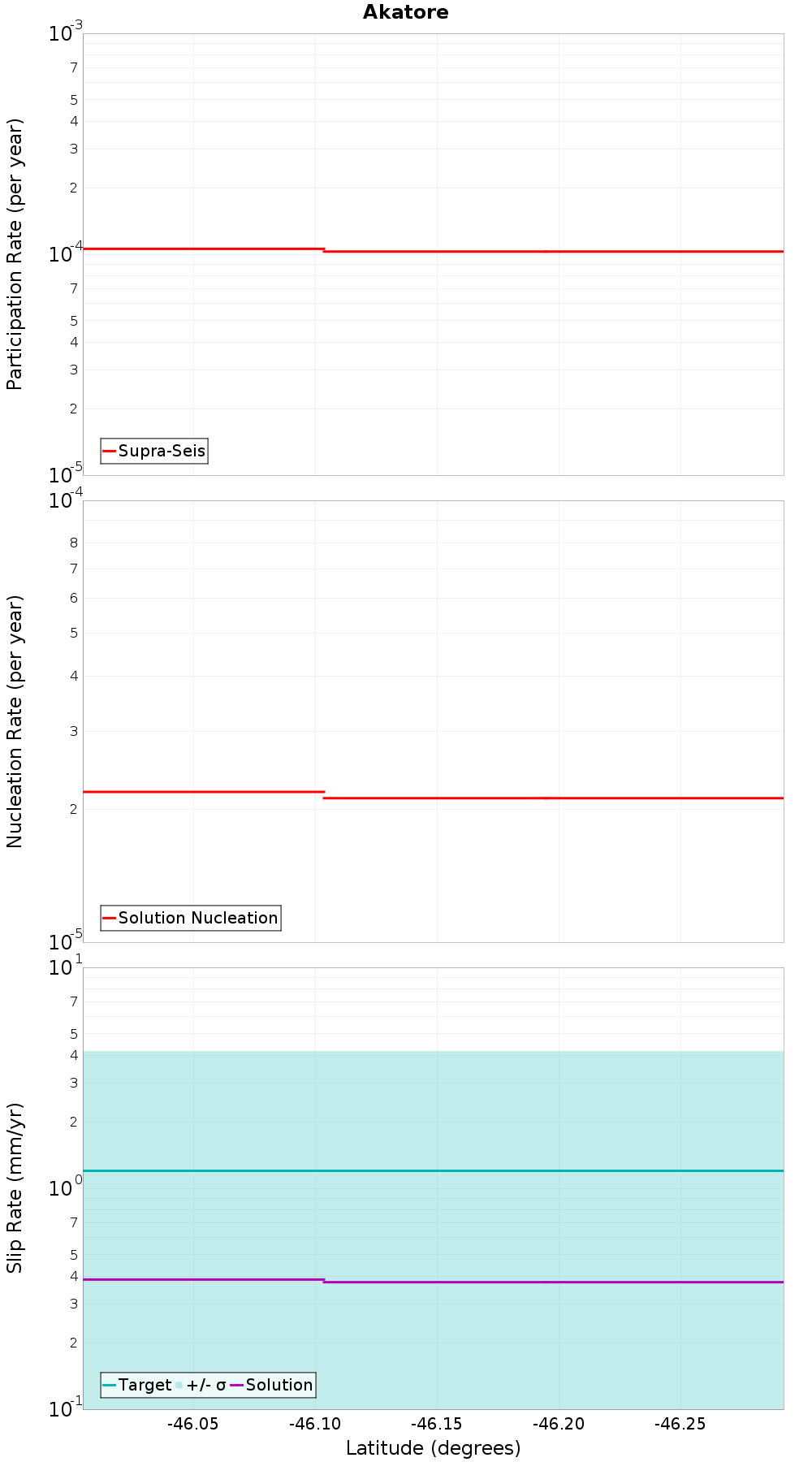

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Green Island, 0.19 km away
Titri South, 5.02 km away
Titri North, 5.06 km away
Titri Central, 5.5 km away
Kaikorai, 9.64 km away
Takapu, 12.82 km away
Otanomomo, 14.48 km away
Tuapeka, 14.57 km away
Maungatua - North Taieri, 15.44 km away
Waitahuna 1, 15.54 km away
Waitahuna 2, 16.32 km away
Little Hillfoot, 16.66 km away
Hillfoot, 18.87 km away
Sliver Stream - Merton, 19.3 km away

Green Island, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	6.748542E-5

Titri South, 5.02 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri North, 5.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	3.8314578E-5

Titri Central, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Kaikorai, 9.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	14
Co-rupture Rate	1.1764511E-5

Takapu, 12.82 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	12
Co-rupture Rate	5.9274503E-6

Otanomomo, 14.48 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuapeka, 14.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Maungatua - North Taieri, 15.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 1, 15.54 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waitahuna 2, 16.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Little Hillfoot, 16.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hillfoot, 18.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Sliver Stream - Merton, 19.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	22
Co-rupture Rate	9.9762365E-6
