EarthquakeFlat - Tumunui Details
| Property | Value |
|---|---|
| Rupture Count | 508 |
| Ruptures Above Sect Min Mag | 503 |
| Ruptures w/ Nonzero Rates | 18 |
| Magnitude Range | [6.26, 7.20] |
| Length Range | [10, 84] km |
| Total Rate | 0.0016720064 /yr |
| Multi-Fault Rate | 0.0016719997 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 14 |
Table Of Contents

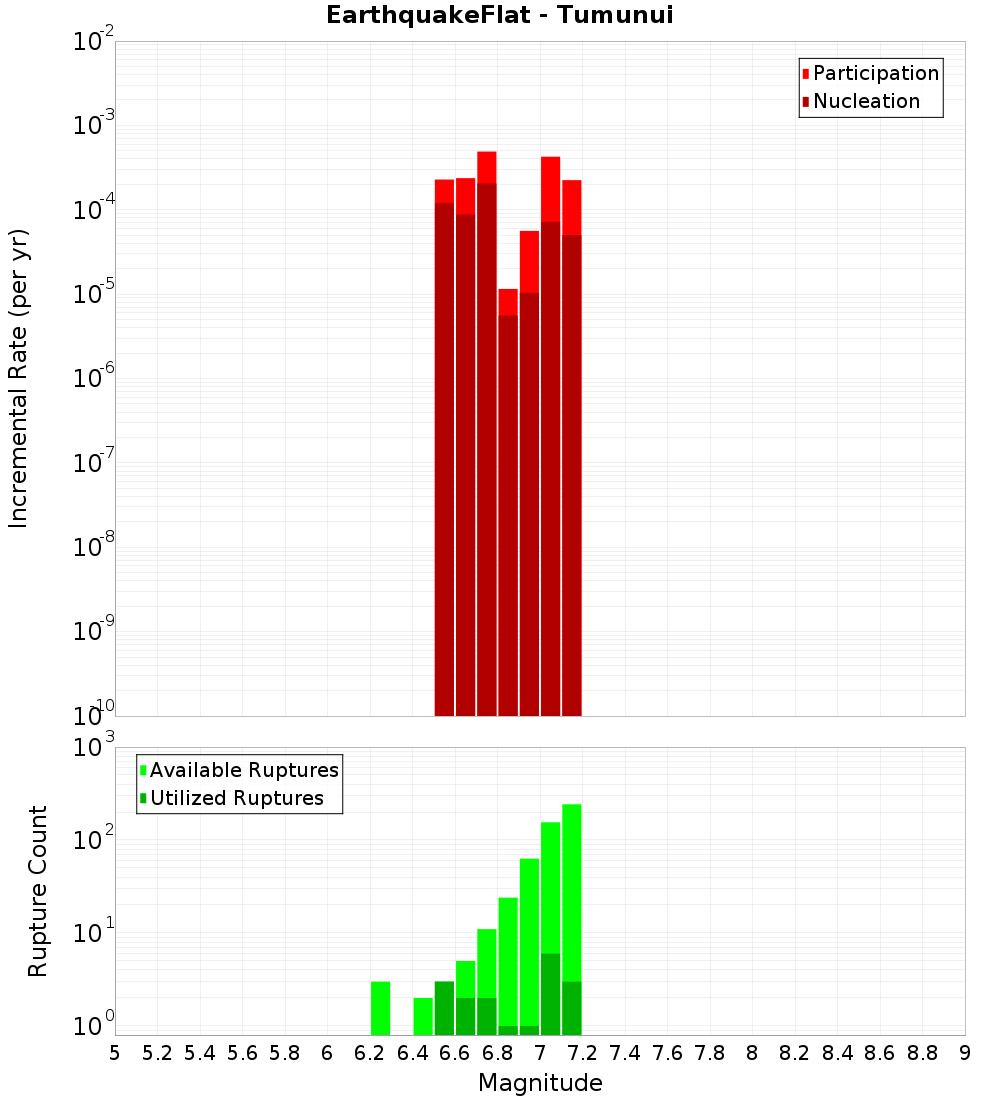

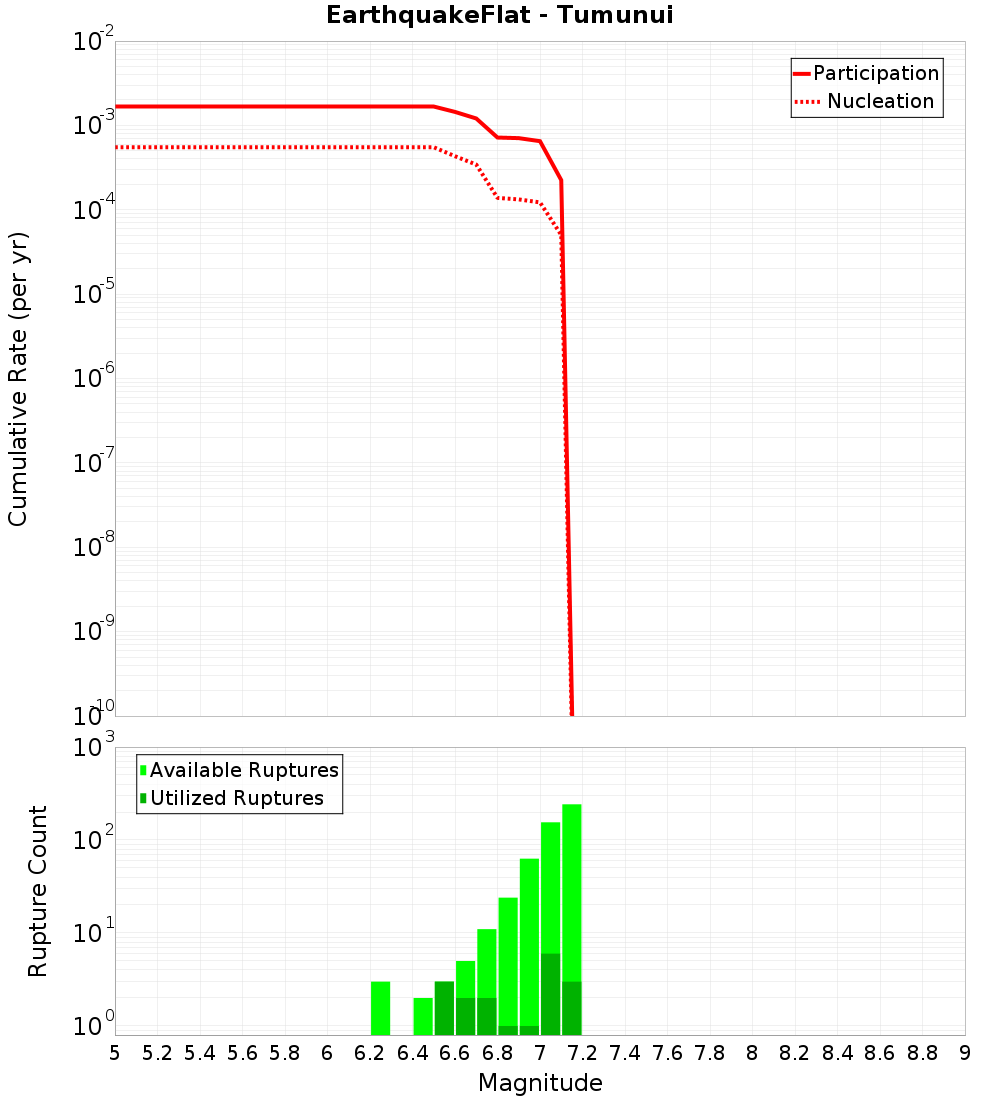

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

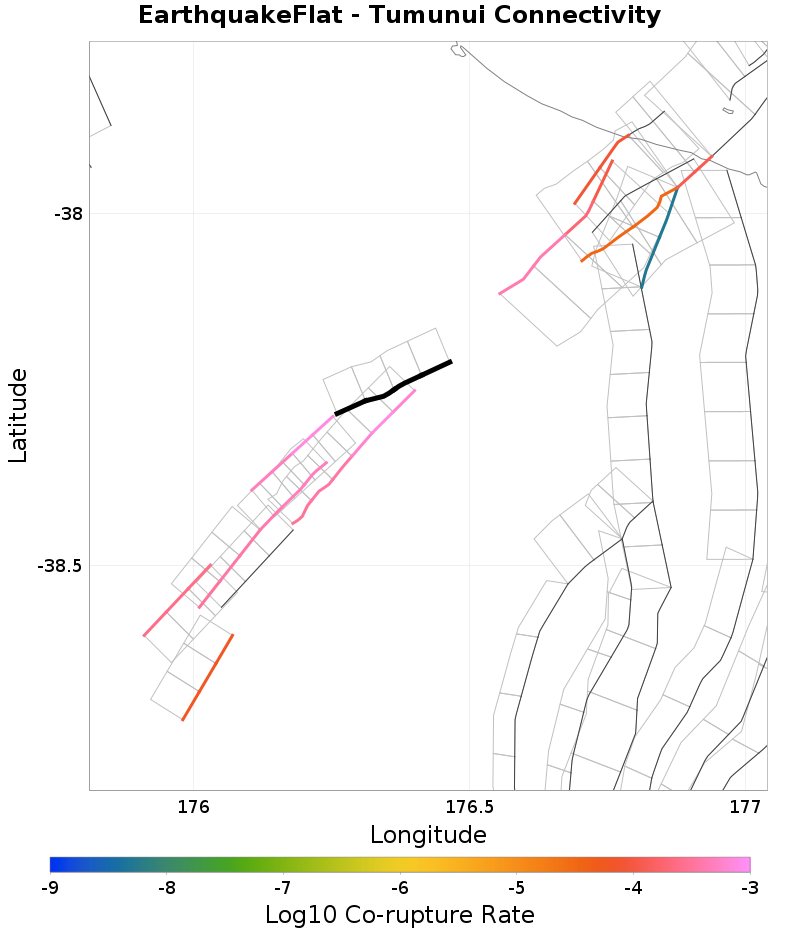

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Maleme, 0.79 km away |
| Paeroa, 1.55 km away |
| Puketerata North, 7.65 km away |
| Braemar, 12.8 km away |
| Orakeikorako, 19.27 km away |
Maleme, 0.79 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 310 |
| Co-rupture Rate | 7.499864E-4 |
Paeroa, 1.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 230 |
| Co-rupture Rate | 7.923675E-4 |
Puketerata North, 7.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 209 |
| Co-rupture Rate | 4.6981522E-4 |
Braemar, 12.8 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 216 |
| Co-rupture Rate | 4.1038624E-4 |
Orakeikorako, 19.27 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 235 |
| Co-rupture Rate | 0.0 |
