Kaiapo Details

Property	Value
Rupture Count	415
Ruptures Above Sect Min Mag	412
Ruptures w/ Nonzero Rates	28
Magnitude Range	[6.29, 7.19]
Length Range	[10, 84] km
Total Rate	9.844654E-4 /yr
Multi-Fault Rate	9.844654E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

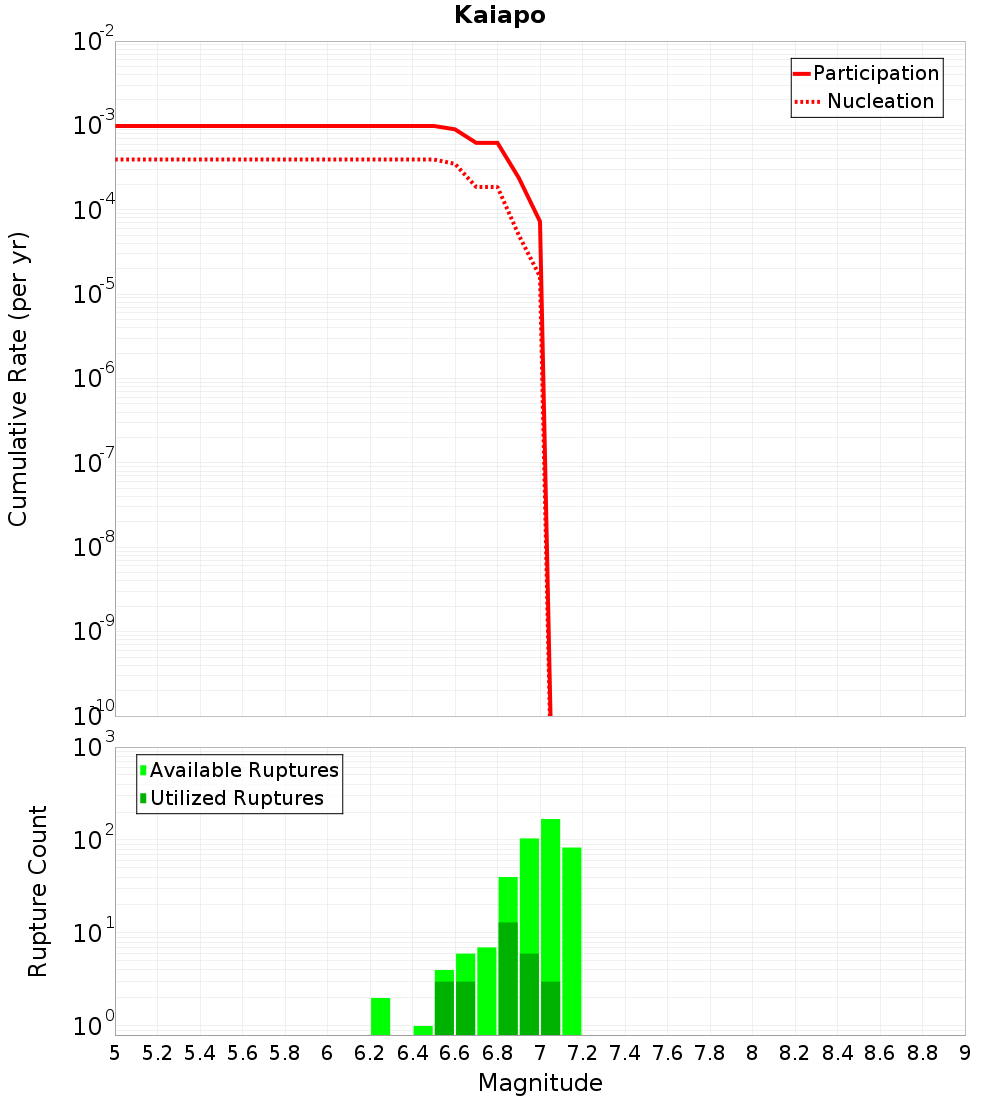

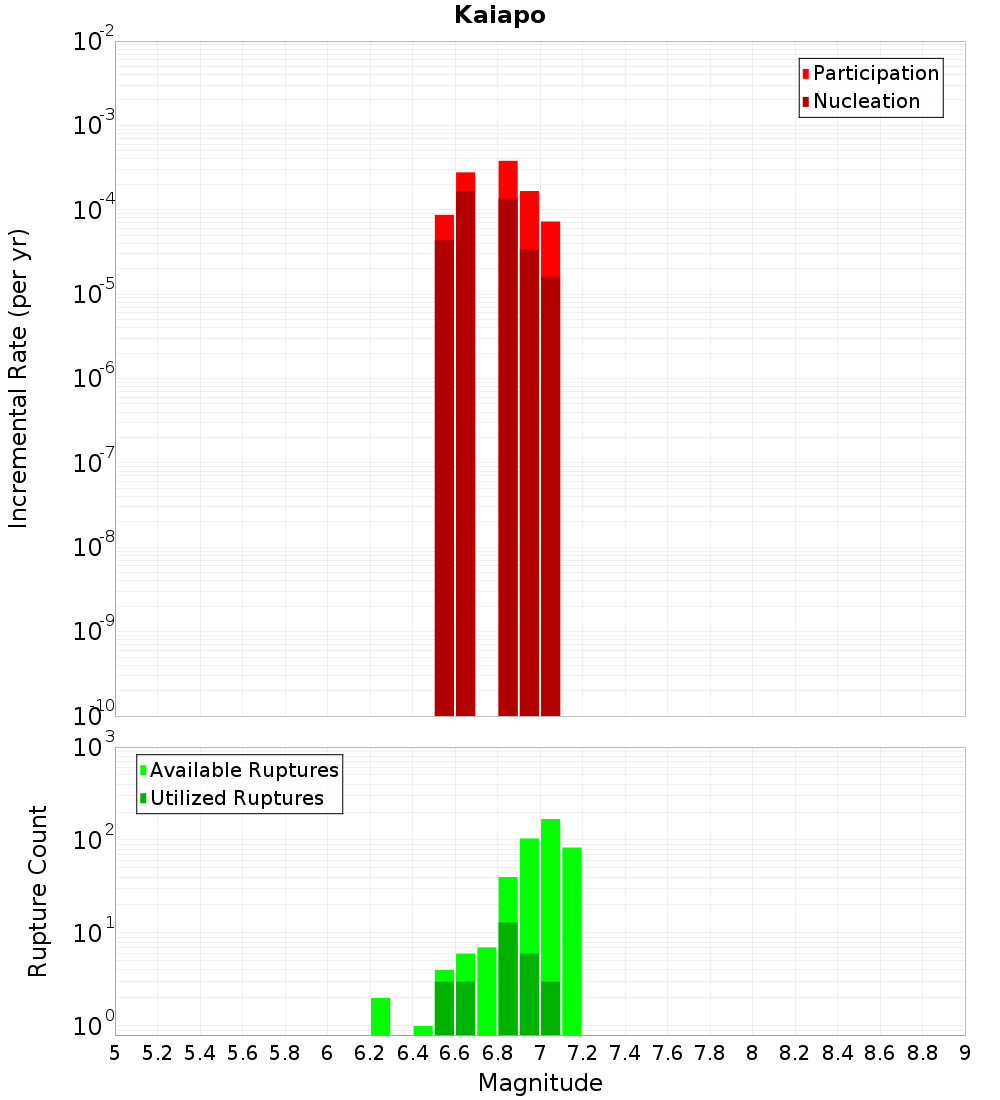

Magnitude-Frequency Distribution

Incremental	Cumulative

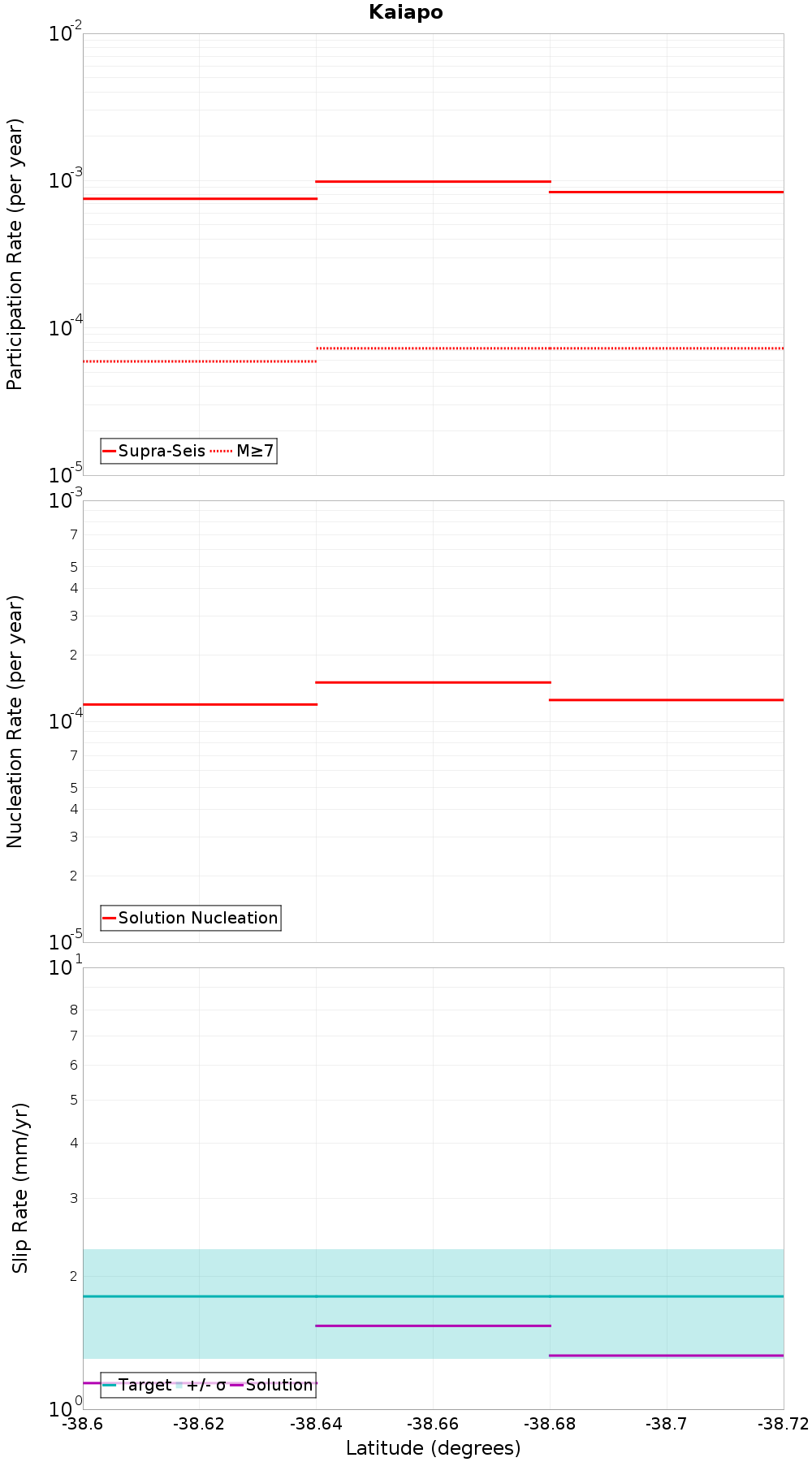

Along-Strike Values

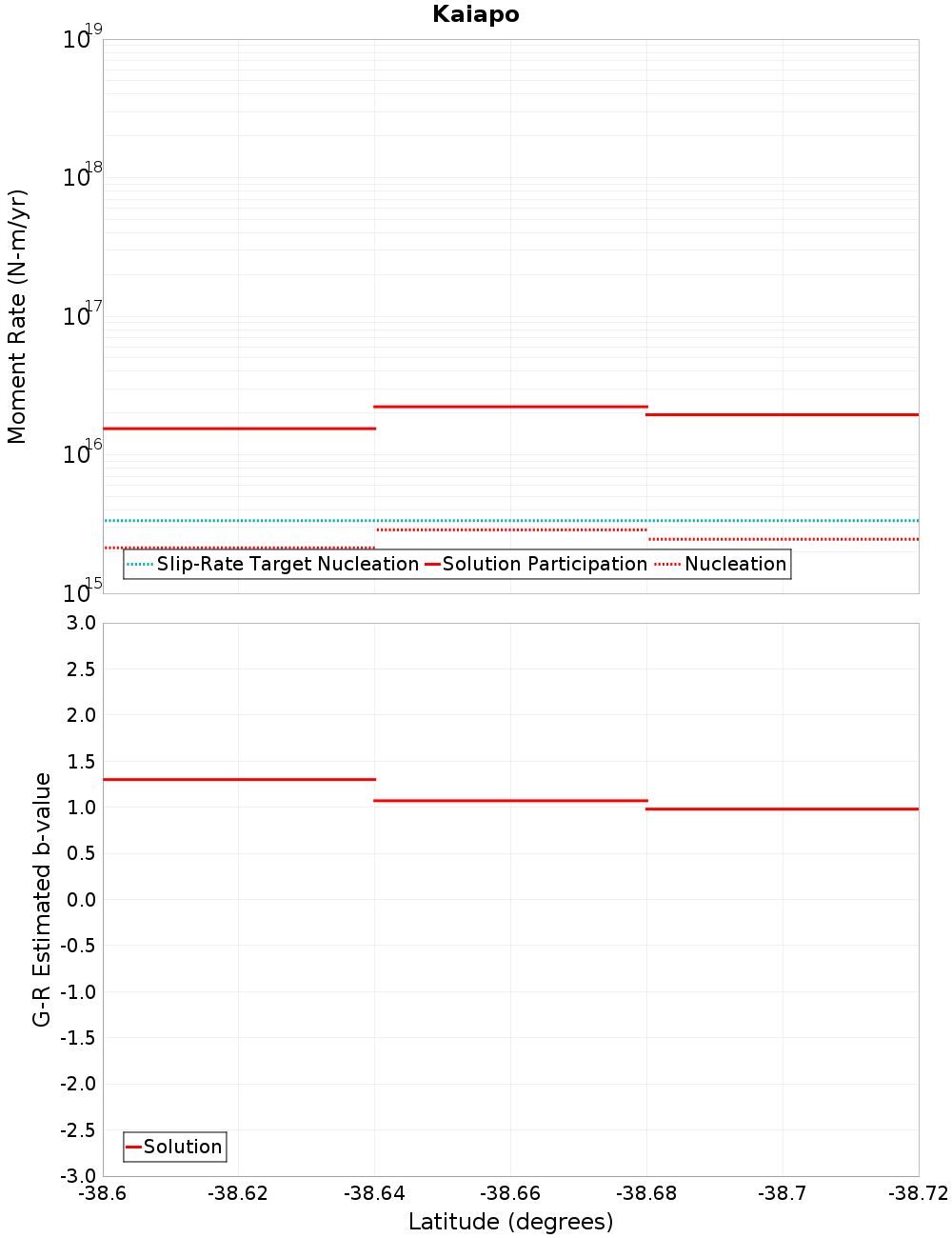

Moment-Rates and b-Values

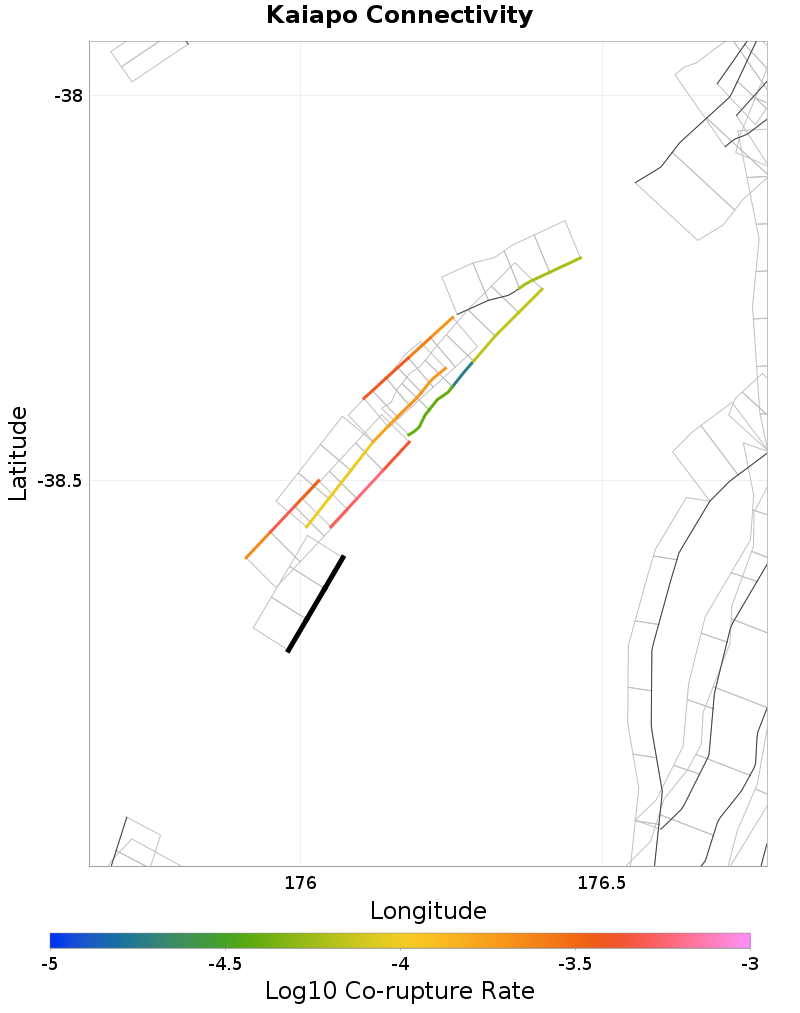

Connectivity

Nearby Sections

Fault Section
Whangamata West, 0.25 km away
Orakeikorako, 4.37 km away
Puketerata, 5.96 km away
Puketerata North, 17.13 km away
Maleme, 19.42 km away

Whangamata West, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	218
Co-rupture Rate	4.8768593E-4

Orakeikorako, 4.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	320
Co-rupture Rate	5.7971803E-4

Puketerata, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	136
Co-rupture Rate	9.554339E-5

Puketerata North, 17.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	214
Co-rupture Rate	2.019337E-4

Maleme, 19.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	213
Co-rupture Rate	4.2420902E-4
