Lyell Details
| Property | Value |
|---|---|
| Rupture Count | 58 |
| Ruptures Above Sect Min Mag | 57 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.88, 8.09] |
| Length Range | [20, 334] km |
| Total Rate | 1.1811129E-4 /yr |
| Multi-Fault Rate | 1.1811129E-4 /yr (100.00%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 13 |
Table Of Contents

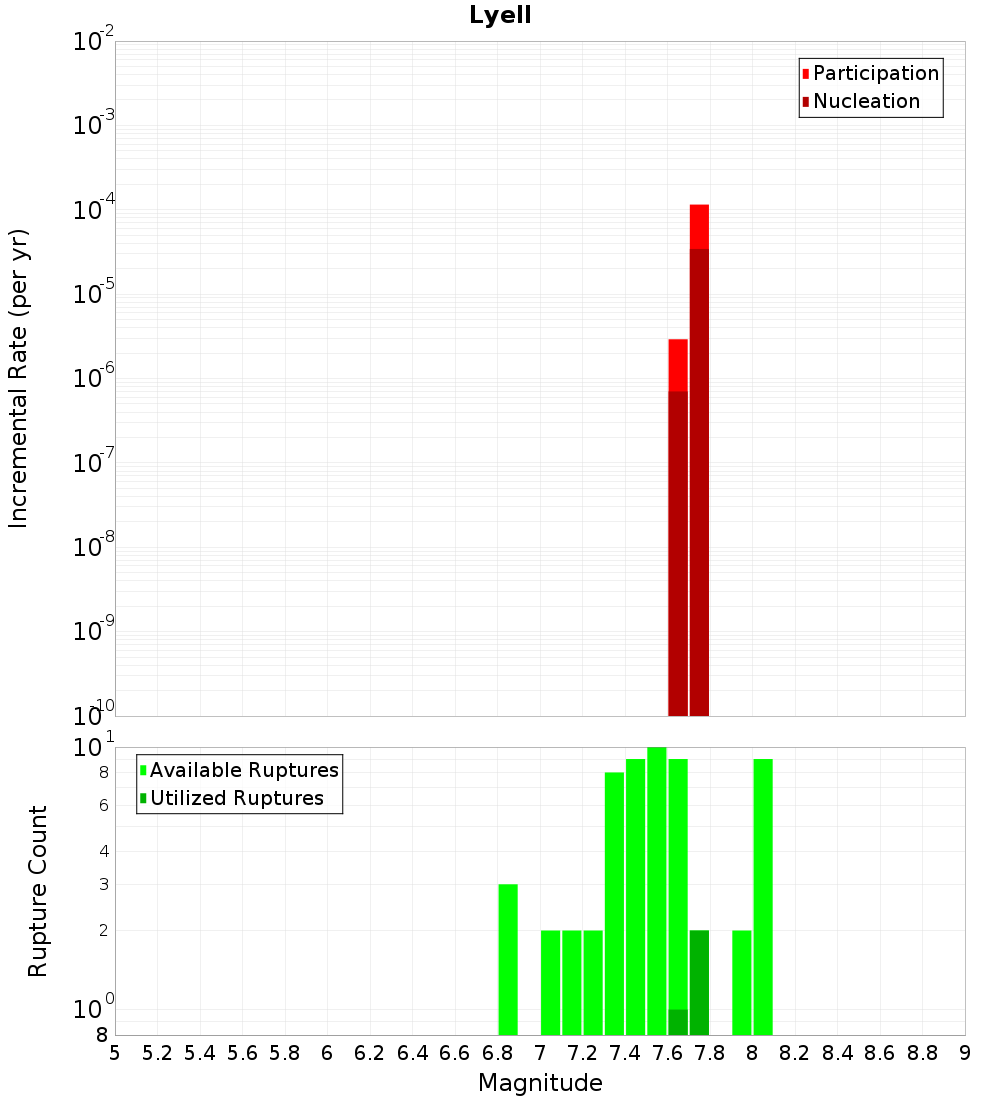

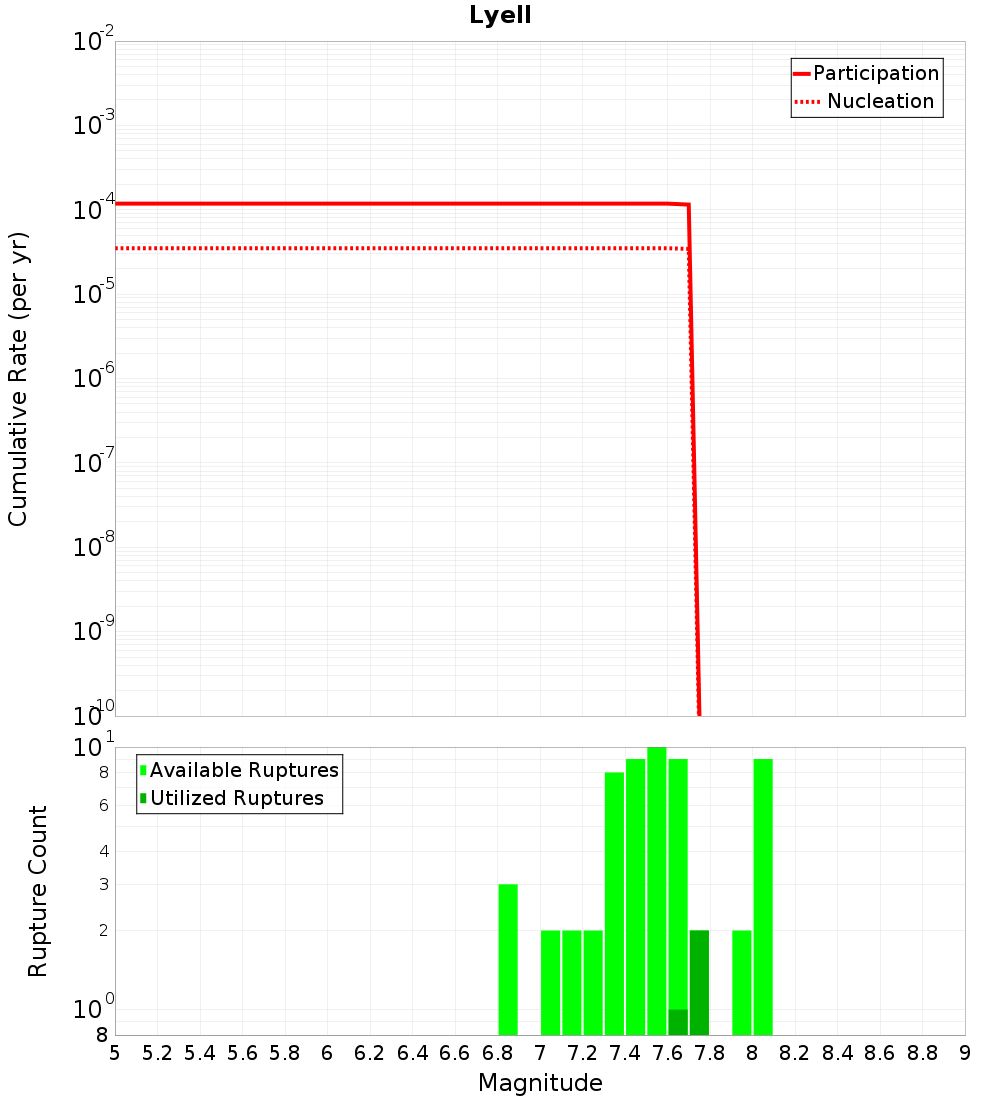

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values

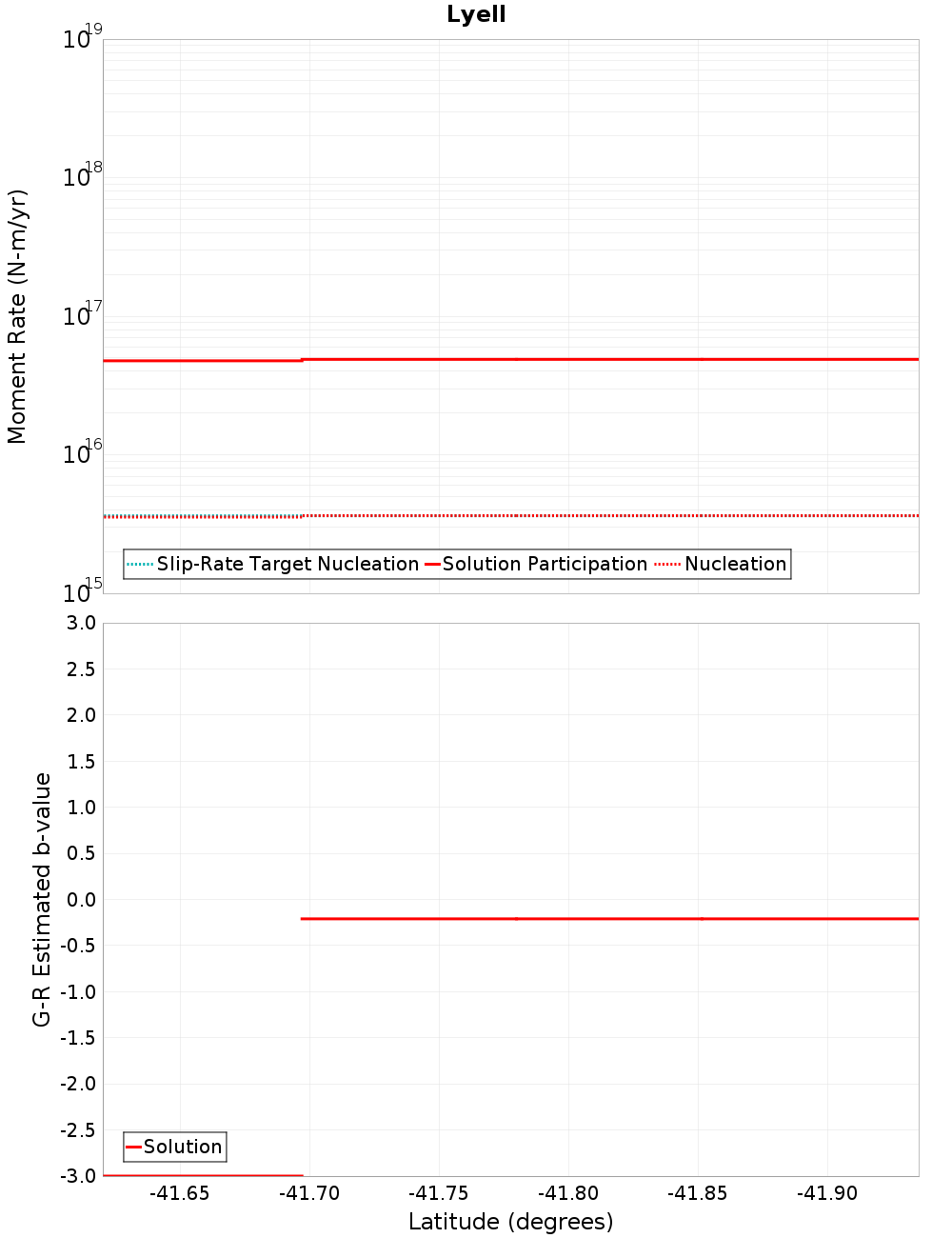

Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| White Creek, 0.23 km away |
| Lyell South, 1.51 km away |
| Inangahua, 5.51 km away |
| Maimai: North, 7.56 km away |
| Kohaihai South, 16.55 km away |
White Creek, 0.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Lyell South, 1.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 52 |
| Co-rupture Rate | 1.1811129E-4 |
Inangahua, 5.51 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maimai: North, 7.56 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 5 |
| Co-rupture Rate | 1.6888473E-5 |
Kohaihai South, 16.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6 | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
