Otakiri Details

Property	Value
Rupture Count	64
Ruptures Above Sect Min Mag	63
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.60, 7.20]
Length Range	[13, 62] km
Total Rate	7.299085E-4 /yr
Multi-Fault Rate	7.299085E-4 /yr (100.00%)
Directly-Connected Faults	7
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

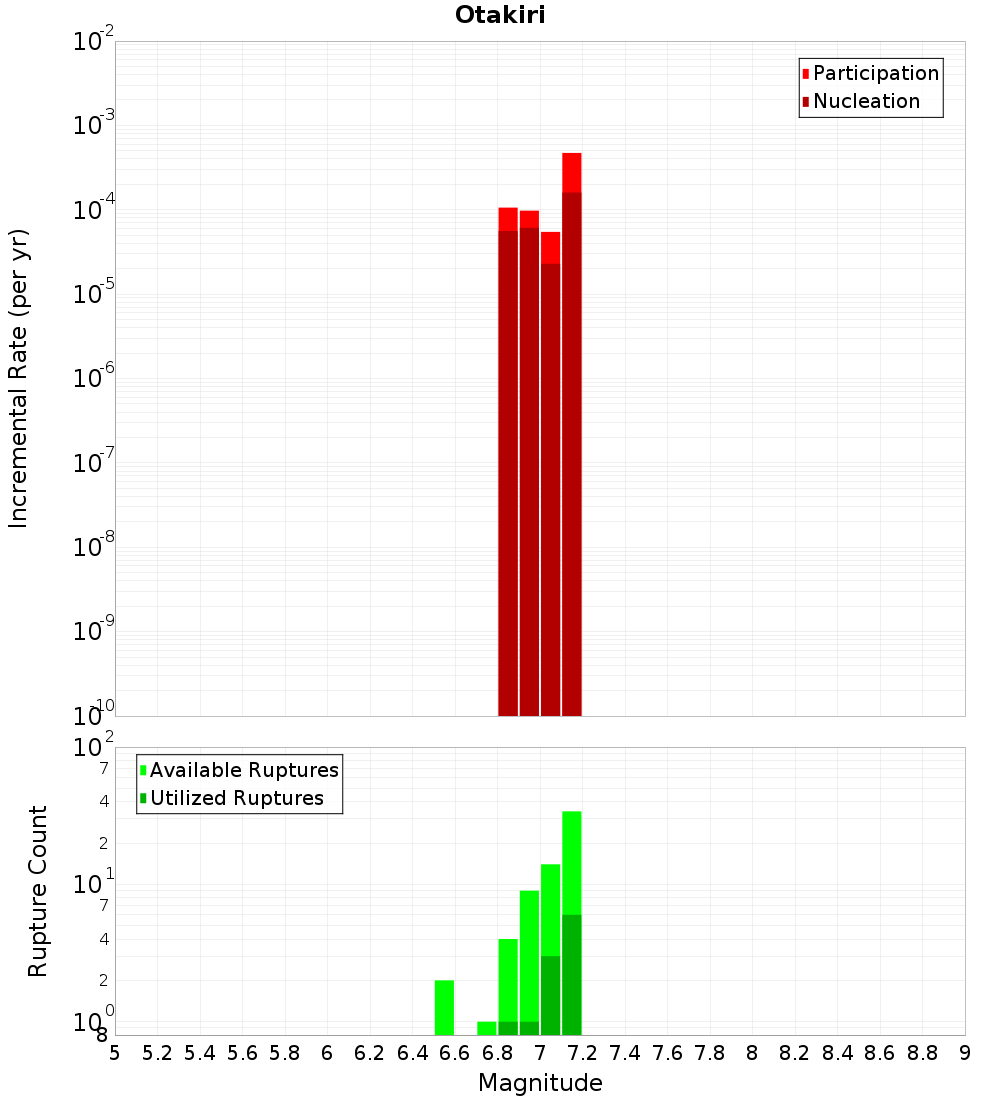

Magnitude-Frequency Distribution

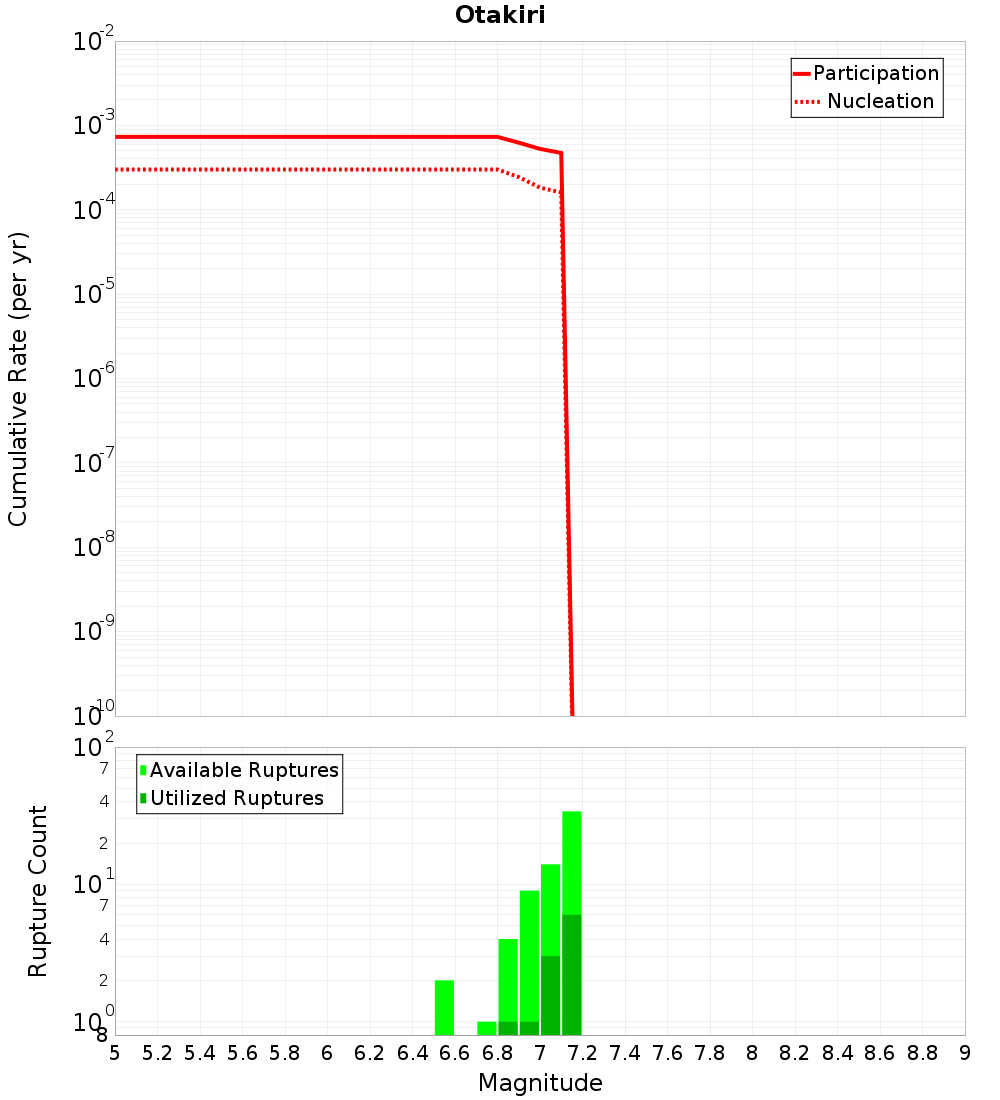

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.1 km away
Awakeri, 0.1 km away
Whakatane: North, 0.17 km away
Edgecumbe 1987, 0.19 km away
Braemar, 0.26 km away
Waiohau: North, 0.39 km away
White Island 1, 2.46 km away
Matata, 4.49 km away
Waimana: North, 8.24 km away
Rangitaiki 1, 10.94 km away
Waiotahi: North, 13.76 km away
Rangitaiki 2, 17.19 km away
Opotiki 3, 18.35 km away

Edgecumbe Coastal, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	3.6189547E-5

Awakeri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	0.0

Whakatane: North, 0.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Edgecumbe 1987, 0.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	3.6104433E-5

Braemar, 0.26 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	17
Co-rupture Rate	2.3708631E-4

Waiohau: North, 0.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	16
Co-rupture Rate	4.4217435E-5

White Island 1, 2.46 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	0.0

Matata, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	2.0365726E-4

Waimana: North, 8.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	true
Co-rupture Count	14
Co-rupture Rate	4.458443E-4

Rangitaiki 1, 10.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	8.5112454E-8

Waiotahi: North, 13.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Opotiki 3, 18.35 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMEs5SEt6
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
