Paeroa Details

PropertyValue
Rupture Count251
Ruptures Above Sect Min Mag242
Ruptures w/ Nonzero Rates23
Magnitude Range[6.22, 7.00]
Length Range[10, 56] km
Total Rate0.0012183137 /yr
Multi-Fault Rate0.001048426 /yr (86.06%)
Directly-Connected Faults5
All Co-Rupturing Faults8

Table Of Contents

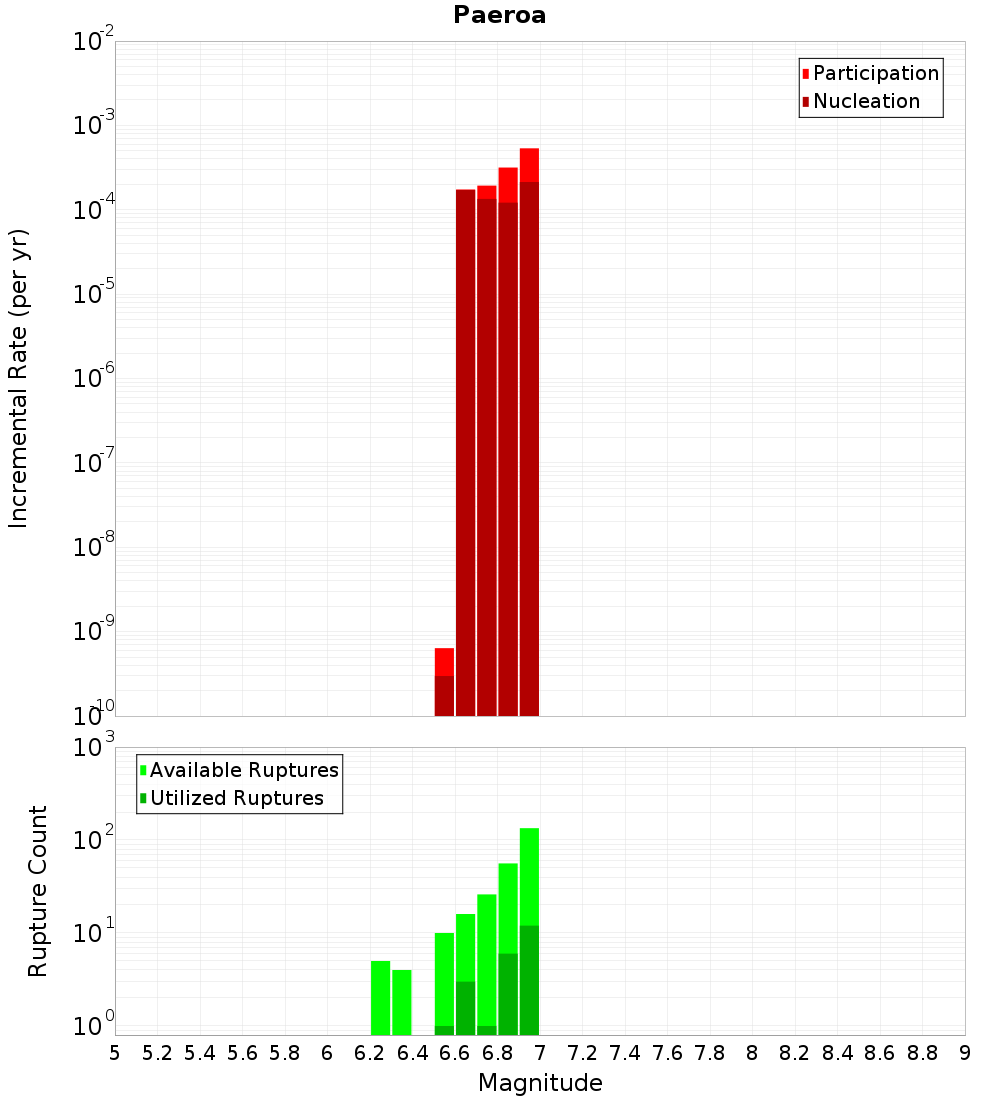

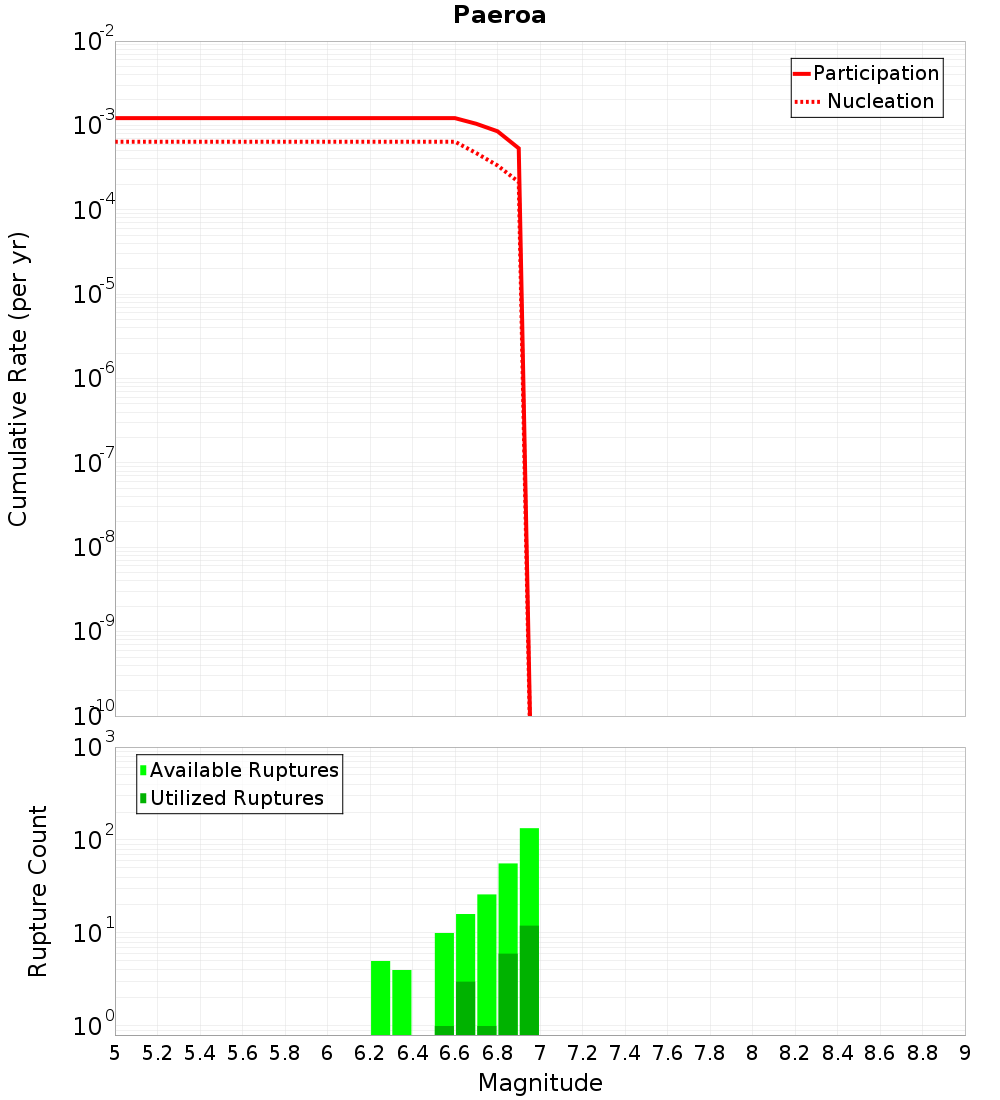

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

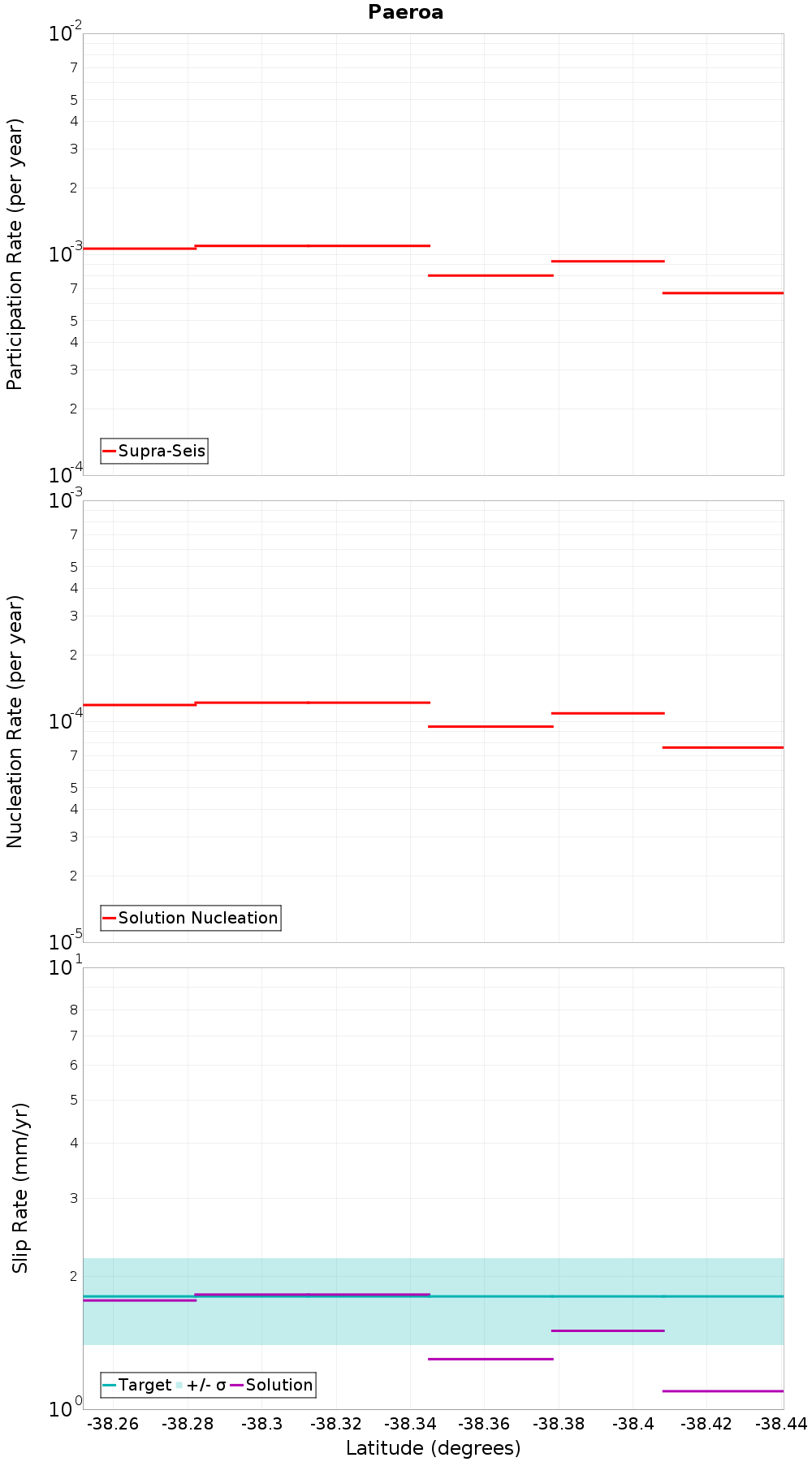

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

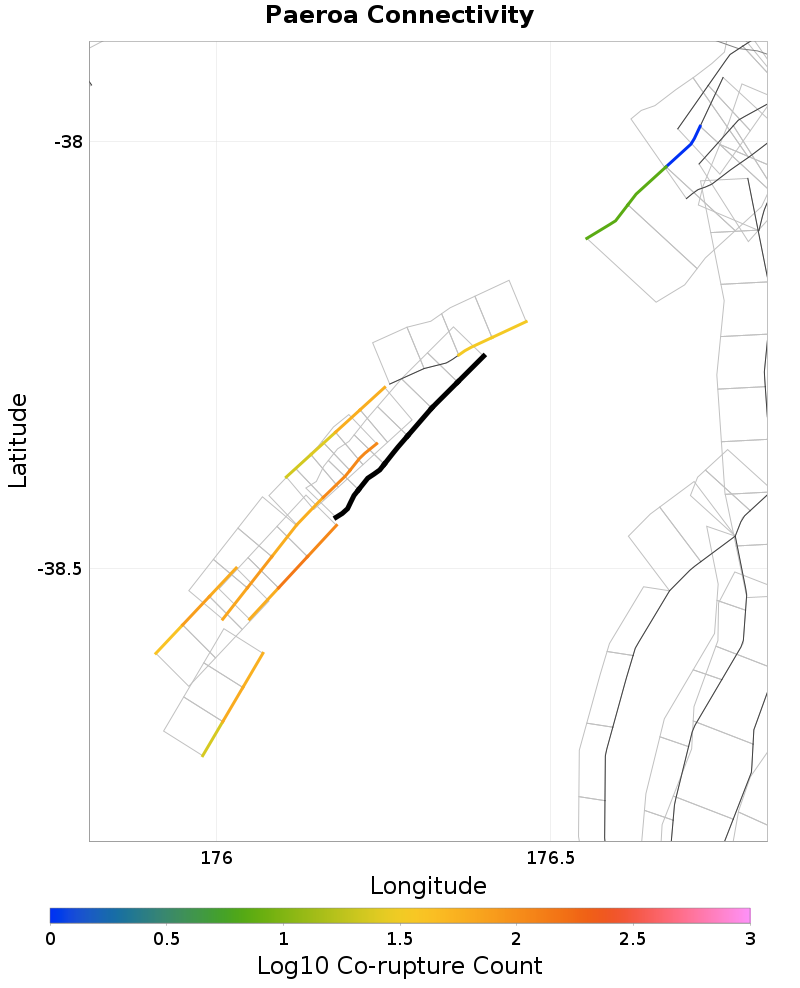

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Maleme, 0.39 km away
Orakeikorako, 0.93 km away
EarthquakeFlat - Tumunui, 1.55 km away
Puketerata North, 2.13 km away
Puketerata, 5.09 km away
Whangamata West, 13.84 km away

Maleme, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMGZmbURW
Connected?true
Directly Connected?true
Co-rupture Count58
Co-rupture Rate4.0415734E-6

Orakeikorako, 0.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMGZmbURW
Connected?true
Directly Connected?true
Co-rupture Count141
Co-rupture Rate3.2957637E-4

EarthquakeFlat - Tumunui, 1.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMGZmbURW
Connected?true
Directly Connected?true
Co-rupture Count34
Co-rupture Rate5.7036884E-4

Puketerata North, 2.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMGZmbURW
Connected?true
Directly Connected?true
Co-rupture Count110
Co-rupture Rate2.9007898E-4

Puketerata, 5.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMGZmbURW
Connected?true
Directly Connected?true
Co-rupture Count82
Co-rupture Rate3.5565213E-4

Whangamata West, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMGZmbURW
Connected?true
Directly Connected?false
Co-rupture Count77
Co-rupture Rate1.2864347E-4
