EarthquakeFlat - Tumunui Details

Property	Value
Rupture Count	508
Ruptures Above Sect Min Mag	503
Ruptures w/ Nonzero Rates	12
Magnitude Range	[6.26, 7.20]
Length Range	[10, 84] km
Total Rate	0.001965625 /yr
Multi-Fault Rate	0.001965625 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	14

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

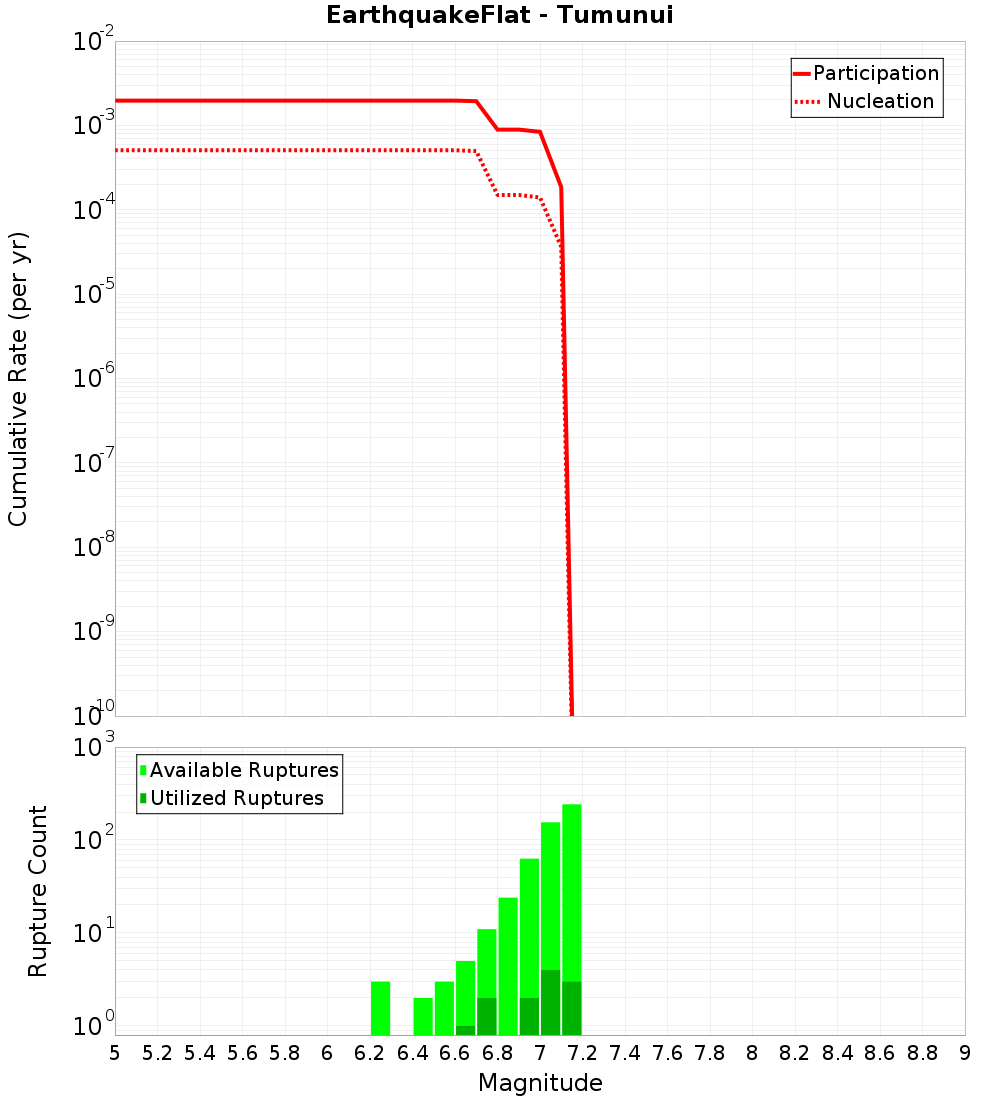

Magnitude-Frequency Distribution

Incremental	Cumulative

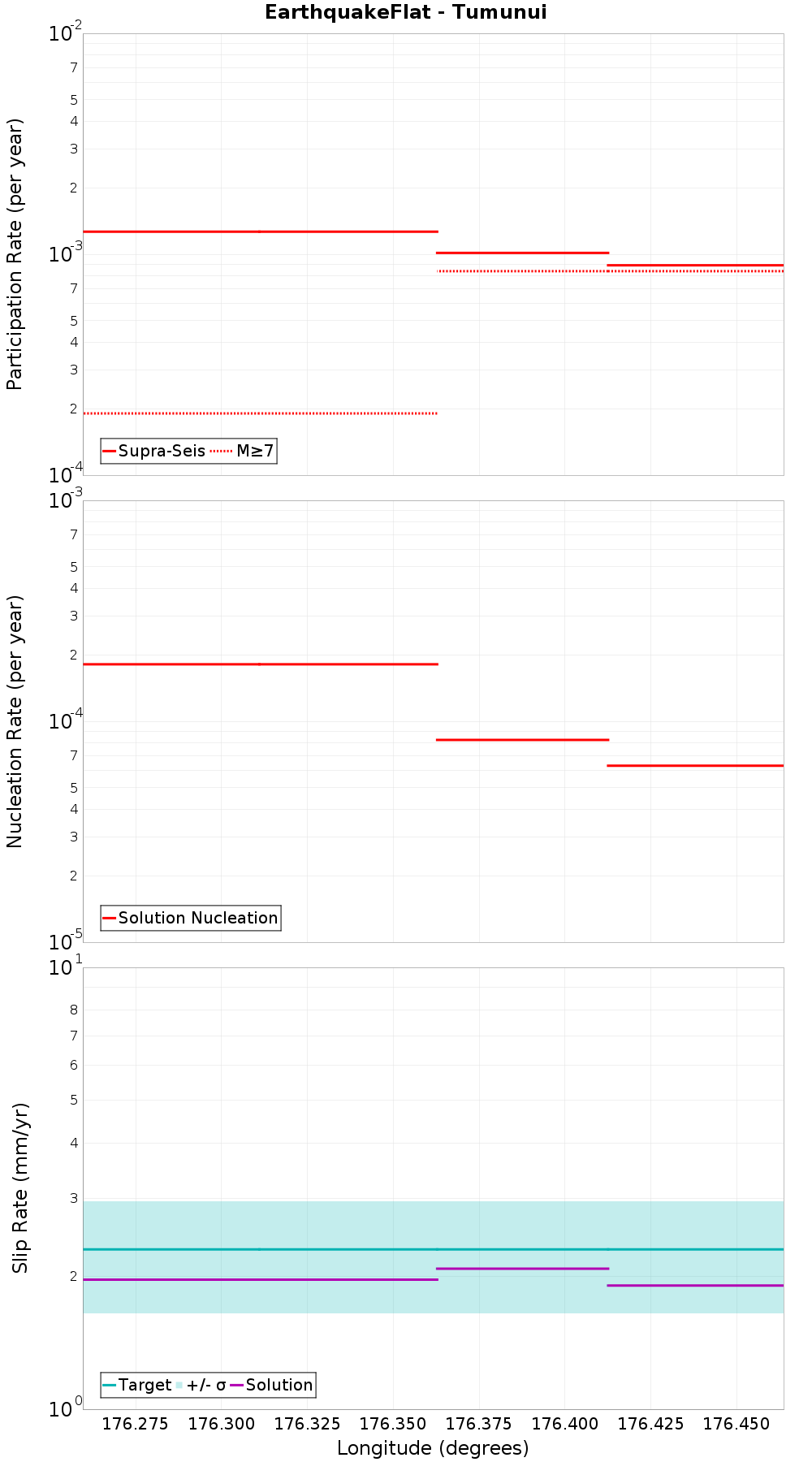

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Maleme, 0.79 km away
Paeroa, 1.55 km away
Puketerata North, 7.65 km away
Braemar, 12.8 km away
Orakeikorako, 19.27 km away

Maleme, 0.79 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	310
Co-rupture Rate	0.0011369984

Paeroa, 1.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	230
Co-rupture Rate	6.973152E-4

Puketerata North, 7.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	false
Co-rupture Count	209
Co-rupture Rate	9.385275E-4

Braemar, 12.8 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	216
Co-rupture Rate	3.249915E-4

Orakeikorako, 19.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	false
Co-rupture Count	235
Co-rupture Rate	0.0
