Ohiwa 1 Details
| Property | Value |
|---|---|
| Rupture Count | 16 |
| Ruptures Above Sect Min Mag | 16 |
| Ruptures w/ Nonzero Rates | 3 |
| Magnitude Range | [6.53, 7.19] |
| Length Range | [9, 42] km |
| Total Rate | 8.6813857E-4 /yr |
| Multi-Fault Rate | 4.1957543E-4 /yr (48.33%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 10 |
Table Of Contents

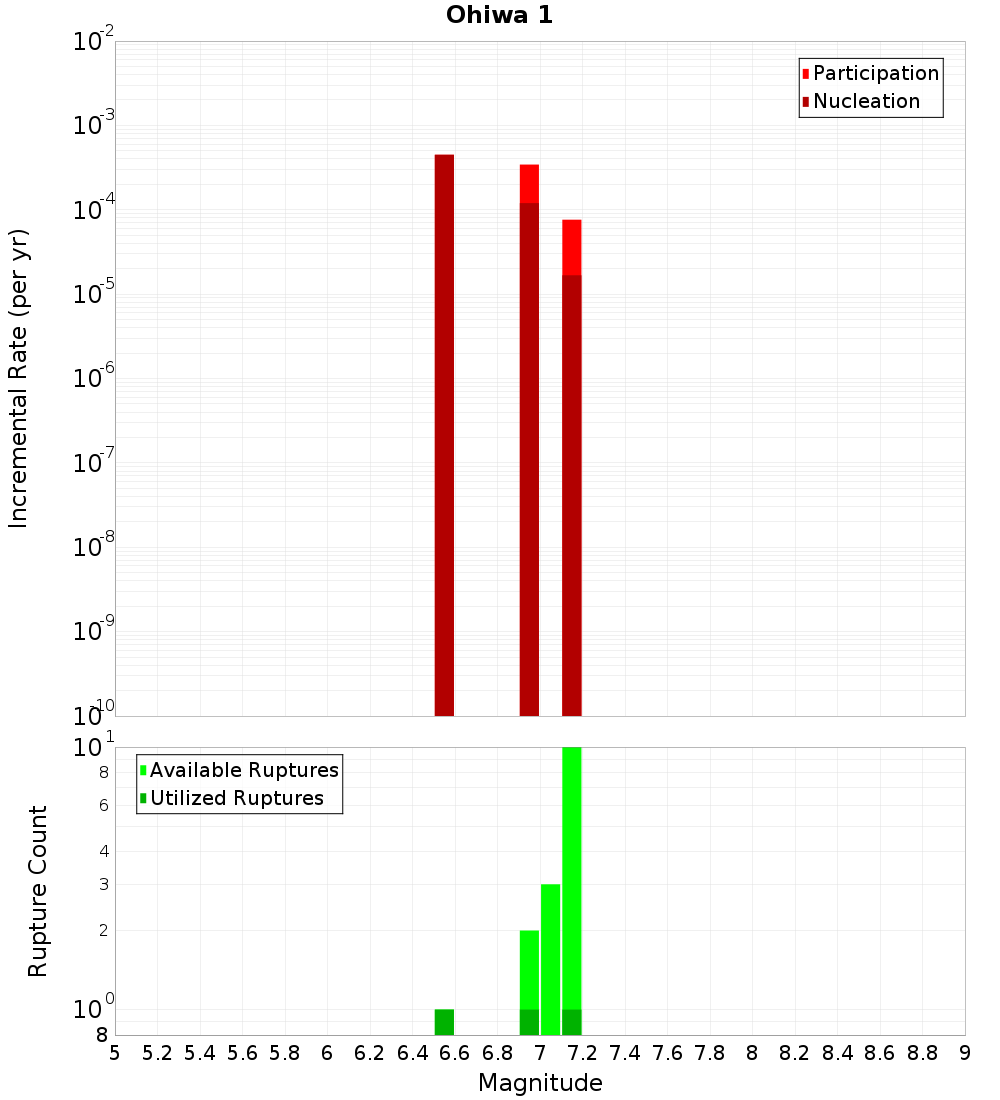

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

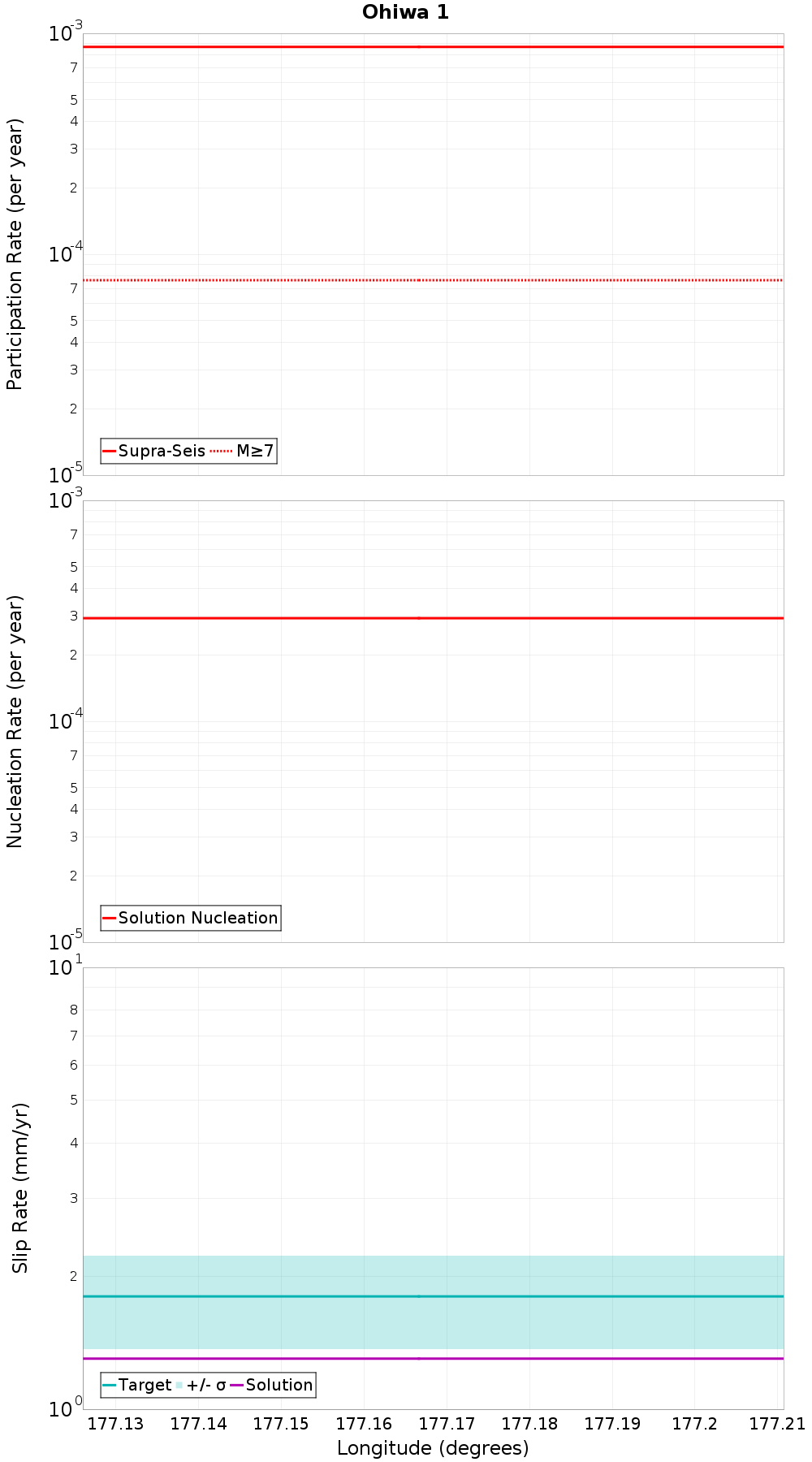

Along-Strike Values
Moment-Rates and b-Values

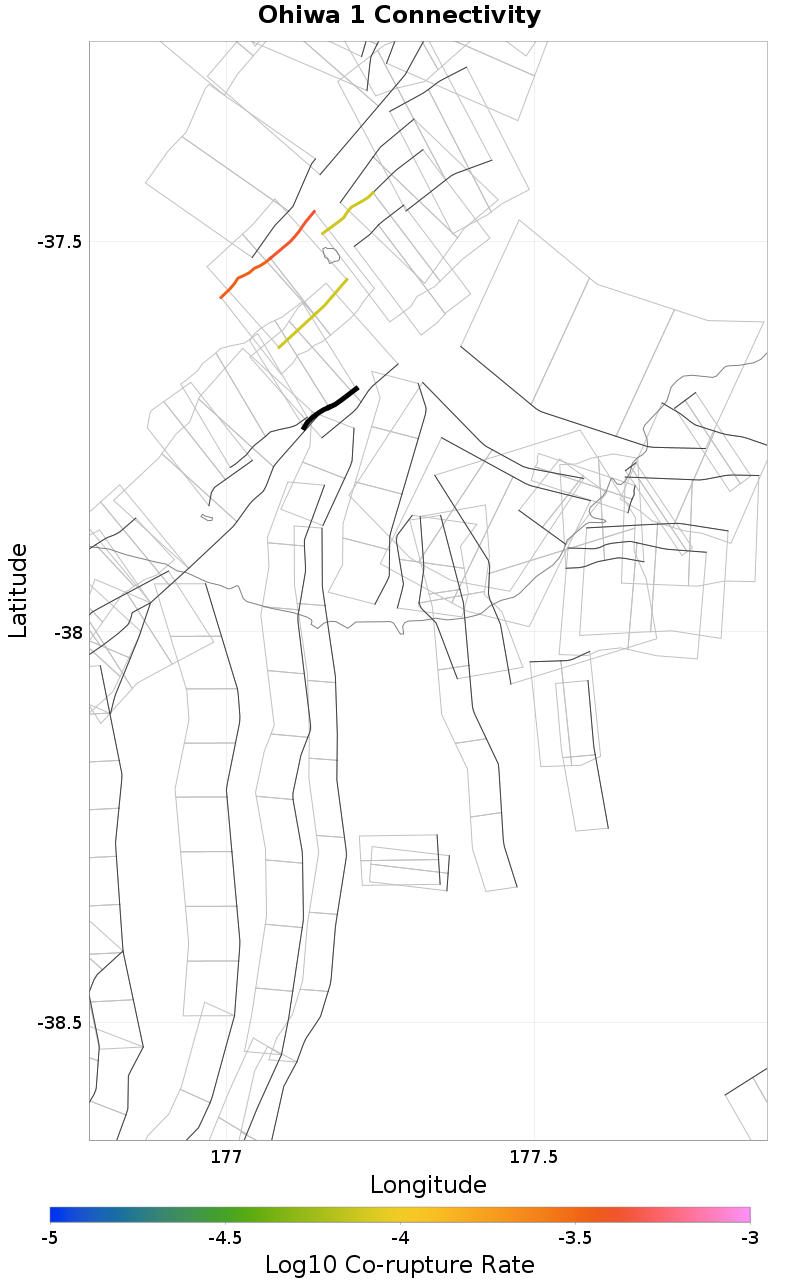

Connectivity
 |  |
|---|
Nearby Sections
Whakaari 4, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 8 |
| Co-rupture Rate | 4.1957543E-4 |
White Island 1, 0.17 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 4 |
| Co-rupture Rate | 0.0 |
Rangitaiki 2, 0.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 0.0 |
White Island 2, 0.88 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Waimanawa - Waikaremoana, 4.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Calypso 2, 8.32 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 7.625858E-5 |
Opotiki 3, 8.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 1, 8.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 7.625858E-5 |
Waimana: North, 8.65 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangitaiki 1, 8.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 2 |
| Co-rupture Rate | 0.0 |
Ohae 1, 8.74 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Tuatoru 1, 11.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Ohae 2, 14.04 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: North, 14.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Te Arawa 2, 14.95 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Hariki, 16.12 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opape 1, 16.67 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Volkner 3, 17.93 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Opotiki 2, 19.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
