Rangitaiki 1 Details

PropertyValue
Rupture Count36
Ruptures Above Sect Min Mag36
Ruptures w/ Nonzero Rates5
Magnitude Range[6.52, 7.20]
Length Range[9, 54] km
Total Rate8.783996E-4 /yr
Multi-Fault Rate8.783996E-4 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults13

Table Of Contents

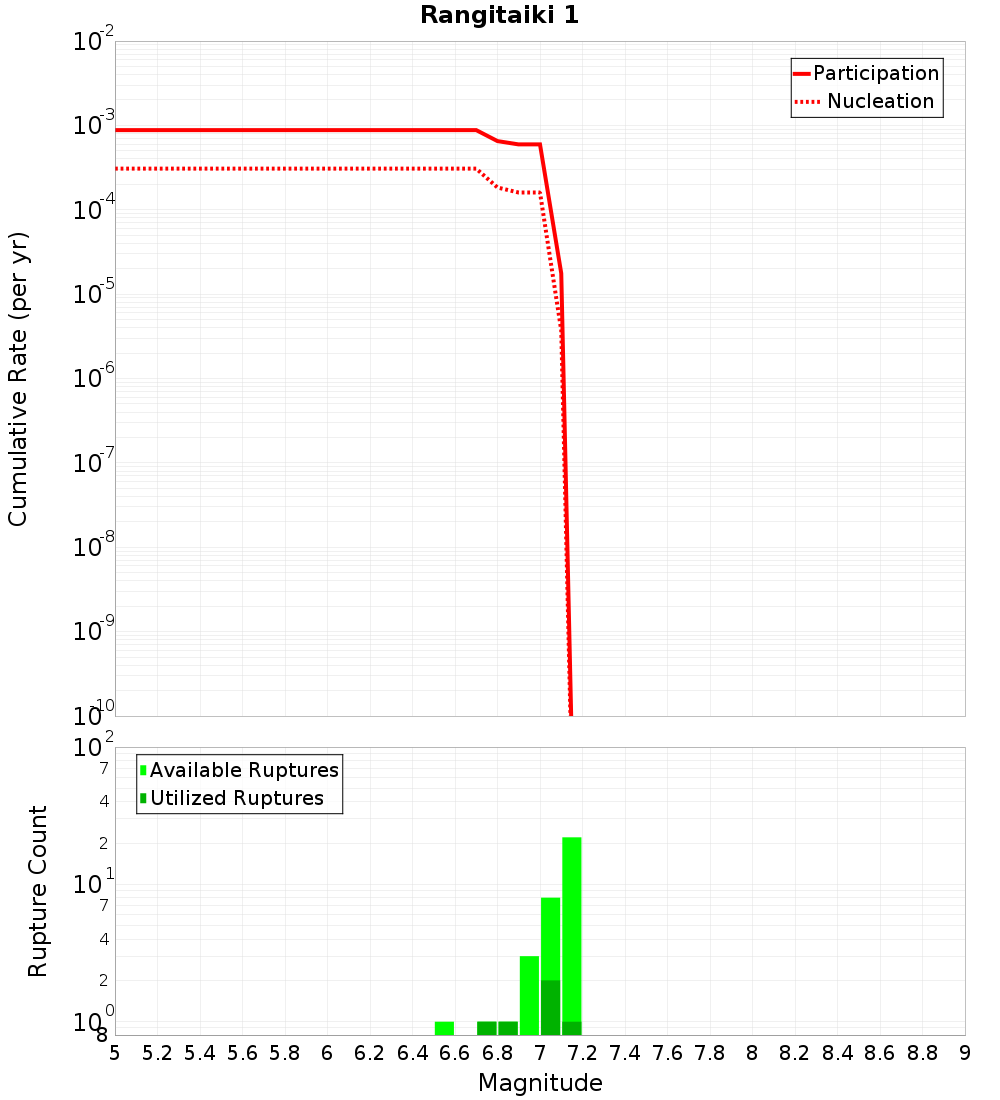

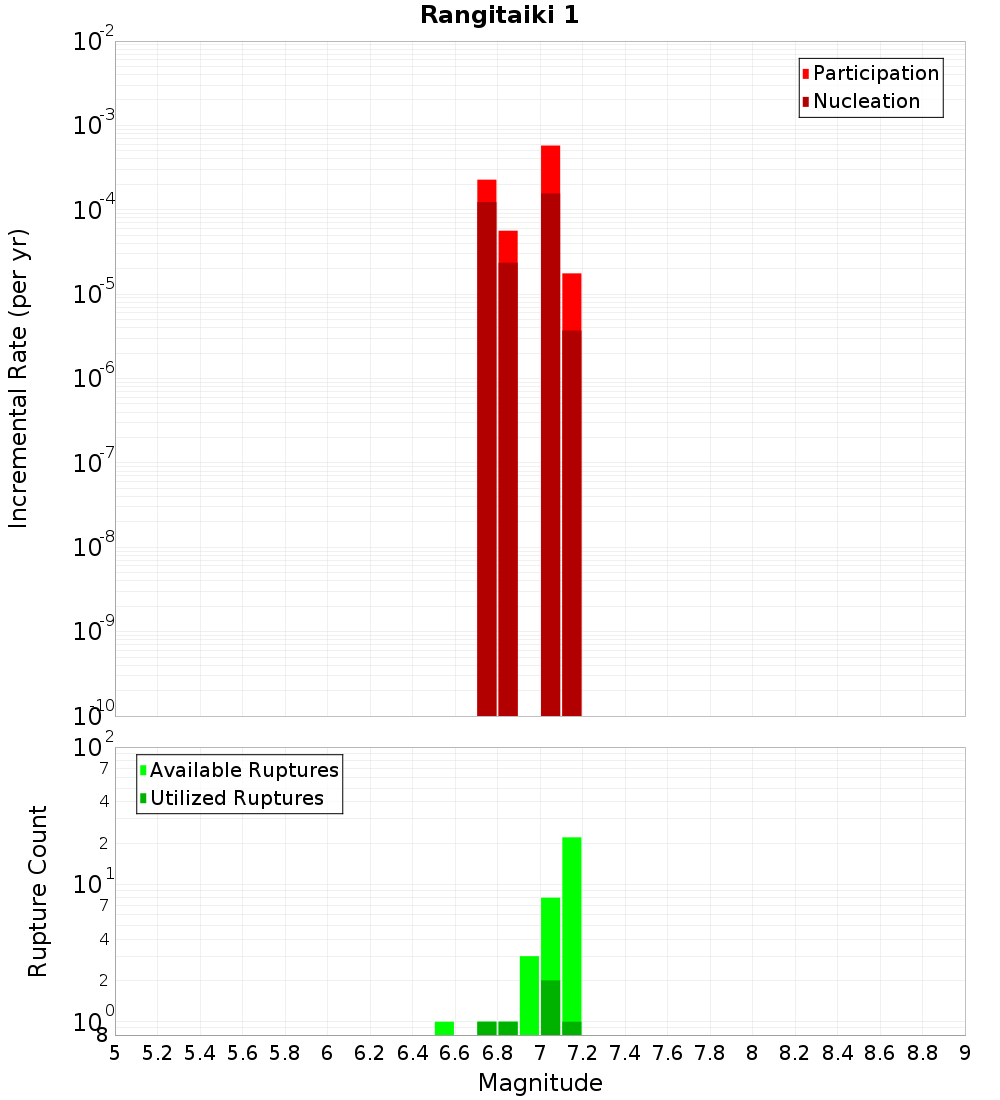

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

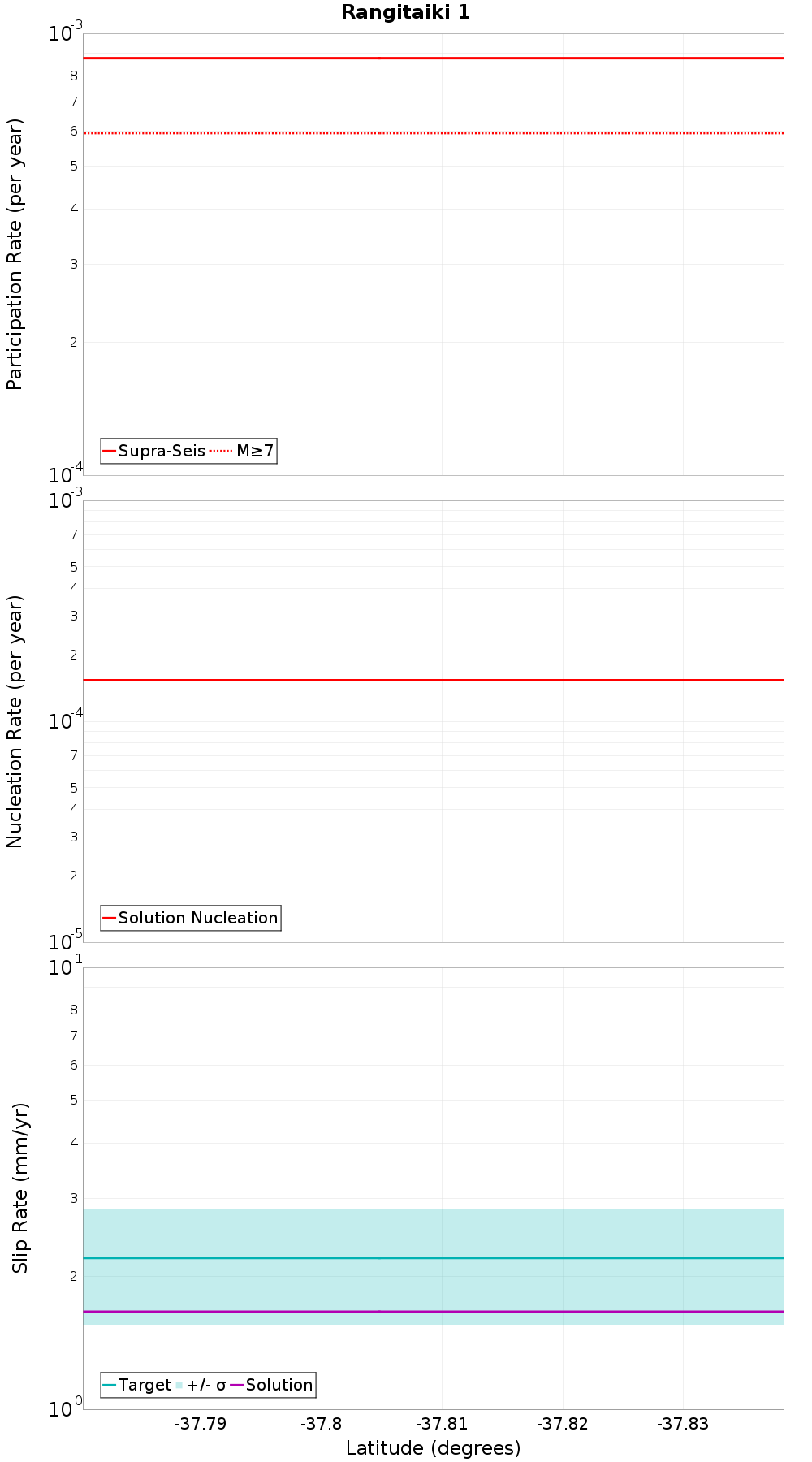

Along-Strike Values

(top)

Along-strike plot

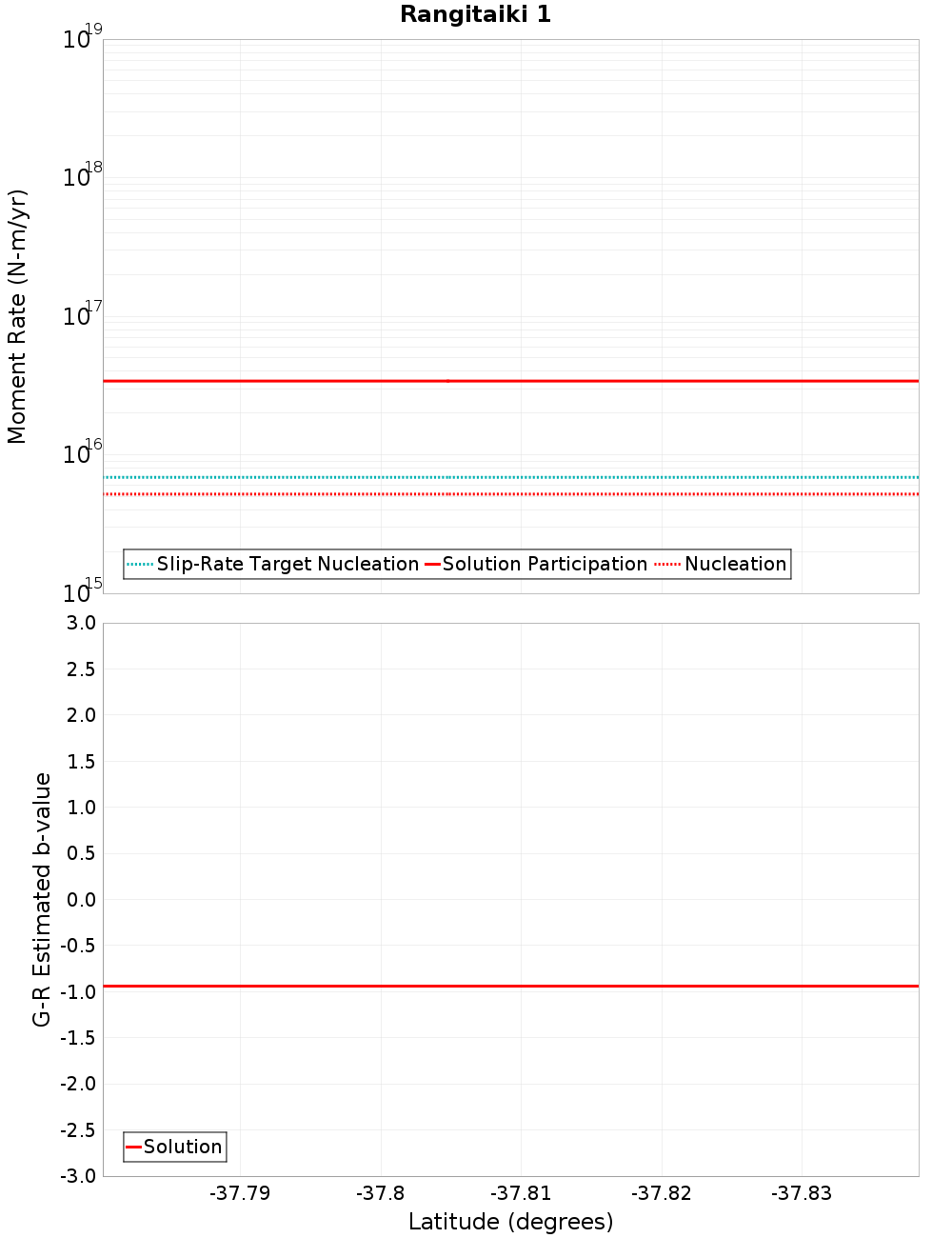

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Rangitaiki 2, 0.74 km away
White Island 1, 2 km away
Ohiwa 1, 8.72 km away
Edgecumbe Coastal, 8.81 km away
Matata, 9.11 km away
White Island 2, 9.3 km away
Waimana: North, 10.53 km away
Whakaari 4, 10.86 km away
Otakiri, 10.94 km away
Whakatane: North, 11.12 km away
Waimanawa - Waikaremoana, 12.26 km away
Waiotahi: North, 13.71 km away
Calypso 2, 14.65 km away
Edgecumbe 1987, 15.01 km away
Awakeri, 16.13 km away

Rangitaiki 2, 0.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate7.408315E-5

White Island 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohiwa 1, 8.72 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Edgecumbe Coastal, 8.81 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count30
Co-rupture Rate8.219463E-4

Matata, 9.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0

White Island 2, 9.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Waimana: North, 10.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakaari 4, 10.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Otakiri, 10.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate8.037039E-5

Whakatane: North, 11.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate1.7629847E-5

Waimanawa - Waikaremoana, 12.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiotahi: North, 13.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Calypso 2, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Edgecumbe 1987, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate4.9655273E-4

Awakeri, 16.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count6
Co-rupture Rate0.0
