Waiohau: North Details

PropertyValue
Rupture Count1,445
Ruptures Above Sect Min Mag1,432
Ruptures w/ Nonzero Rates16
Magnitude Range[6.50, 8.27]
Length Range[14, 521] km
Total Rate0.0010229166 /yr
Multi-Fault Rate7.2011555E-4 /yr (70.40%)
Directly-Connected Faults10
All Co-Rupturing Faults52

Table Of Contents

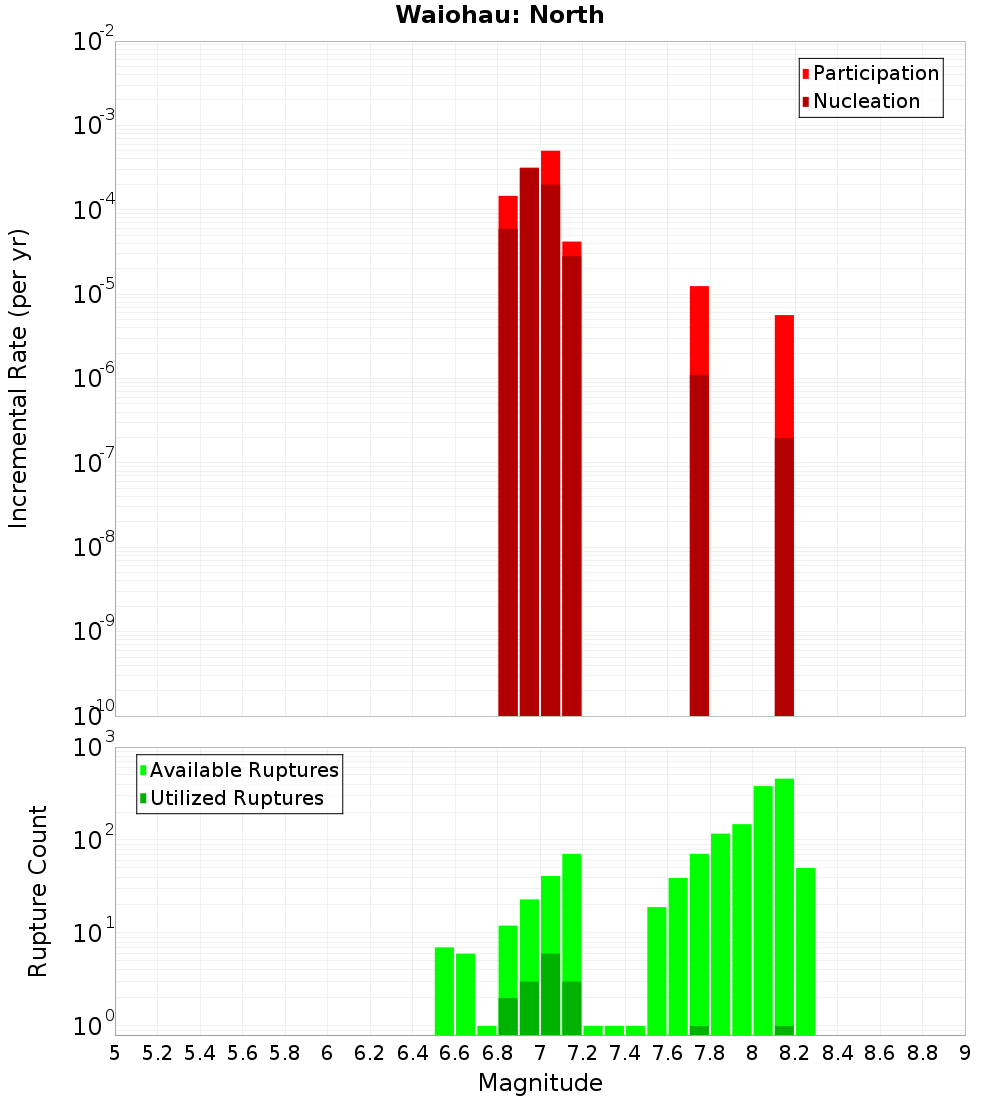

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

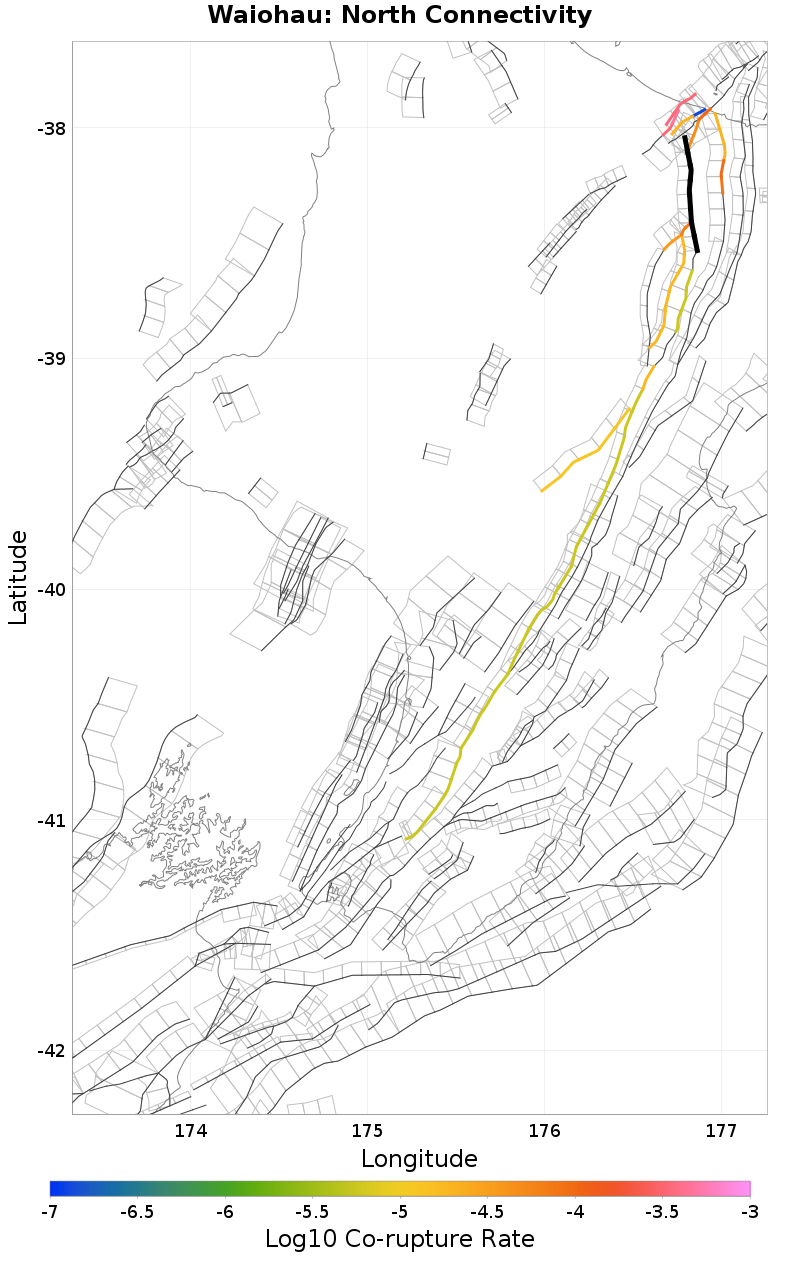

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayWheao: North, 2.44 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Te Whaiti North, 0.16 km awayEdgecumbe Coastal, 11.47 km away
Braemar, 0.22 km awayWheao: South, 11.7 km away
Otakiri, 0.39 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.94 km awayWaimana: South, 17.98 km away
Matata, 2.01 km awayWhite Island 1, 18.73 km away
Edgecumbe 1987, 2.18 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count637
Co-rupture Rate5.6433723E-6

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count22
Co-rupture Rate4.6710073E-5

Te Whaiti North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count73
Co-rupture Rate6.455558E-5

Braemar, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate4.3819696E-4

Otakiri, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count16
Co-rupture Rate1.9605837E-5

Te Whaiti South, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count802
Co-rupture Rate1.8084851E-5

Matata, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count29
Co-rupture Rate3.3792478E-4

Edgecumbe 1987, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count12
Co-rupture Rate0.0

Wheao: North, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count7
Co-rupture Rate3.5236848E-5

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count29
Co-rupture Rate1.0027216E-4

Wheao: South, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?true
Co-rupture Count19
Co-rupture Rate9.7725424E-5

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0
