White Island 2 Details

Property	Value
Rupture Count	11
Ruptures Above Sect Min Mag	11
Ruptures w/ Nonzero Rates	2
Magnitude Range	[6.76, 7.20]
Length Range	[15, 43] km
Total Rate	5.5837113E-4 /yr
Multi-Fault Rate	5.5837113E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	7

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

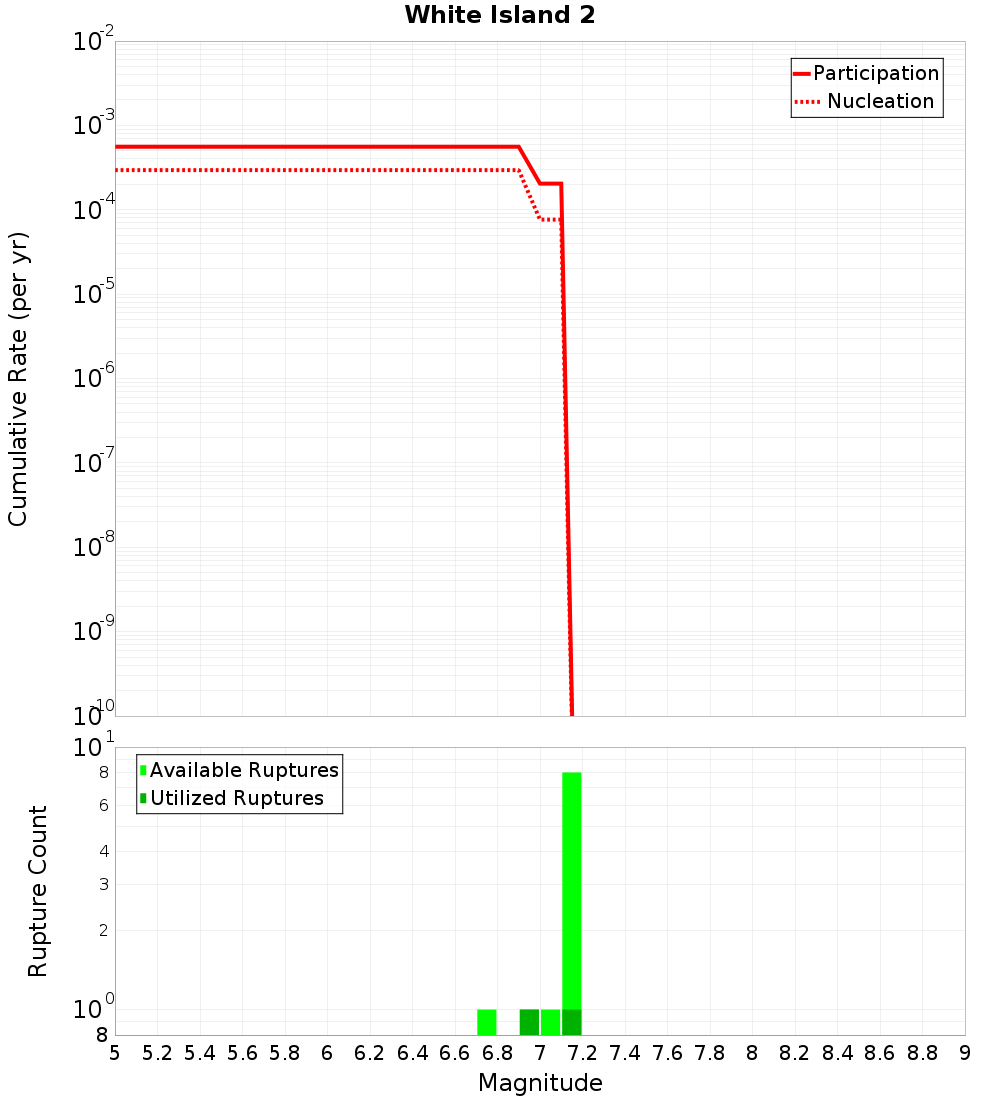

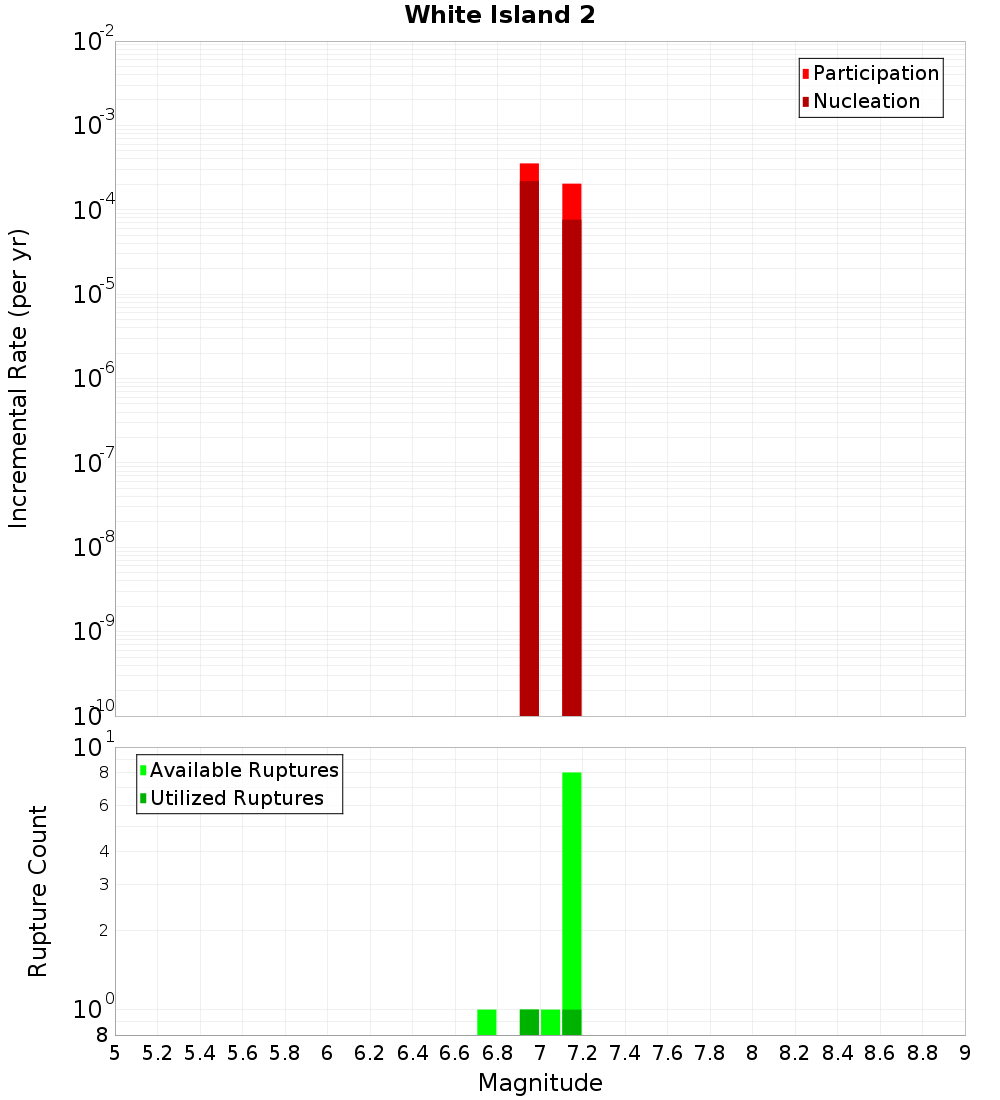

Magnitude-Frequency Distribution

Incremental	Cumulative

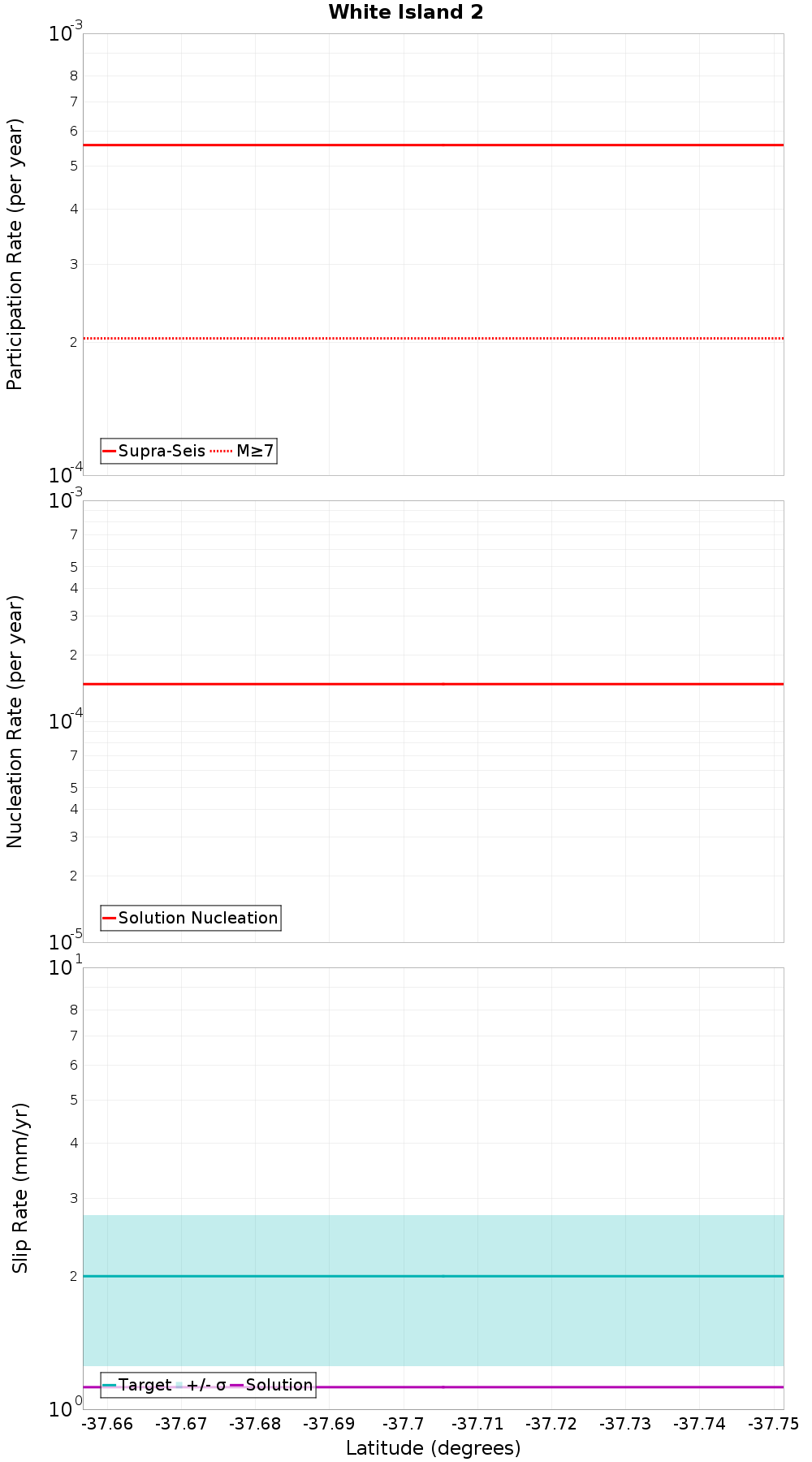

Along-Strike Values

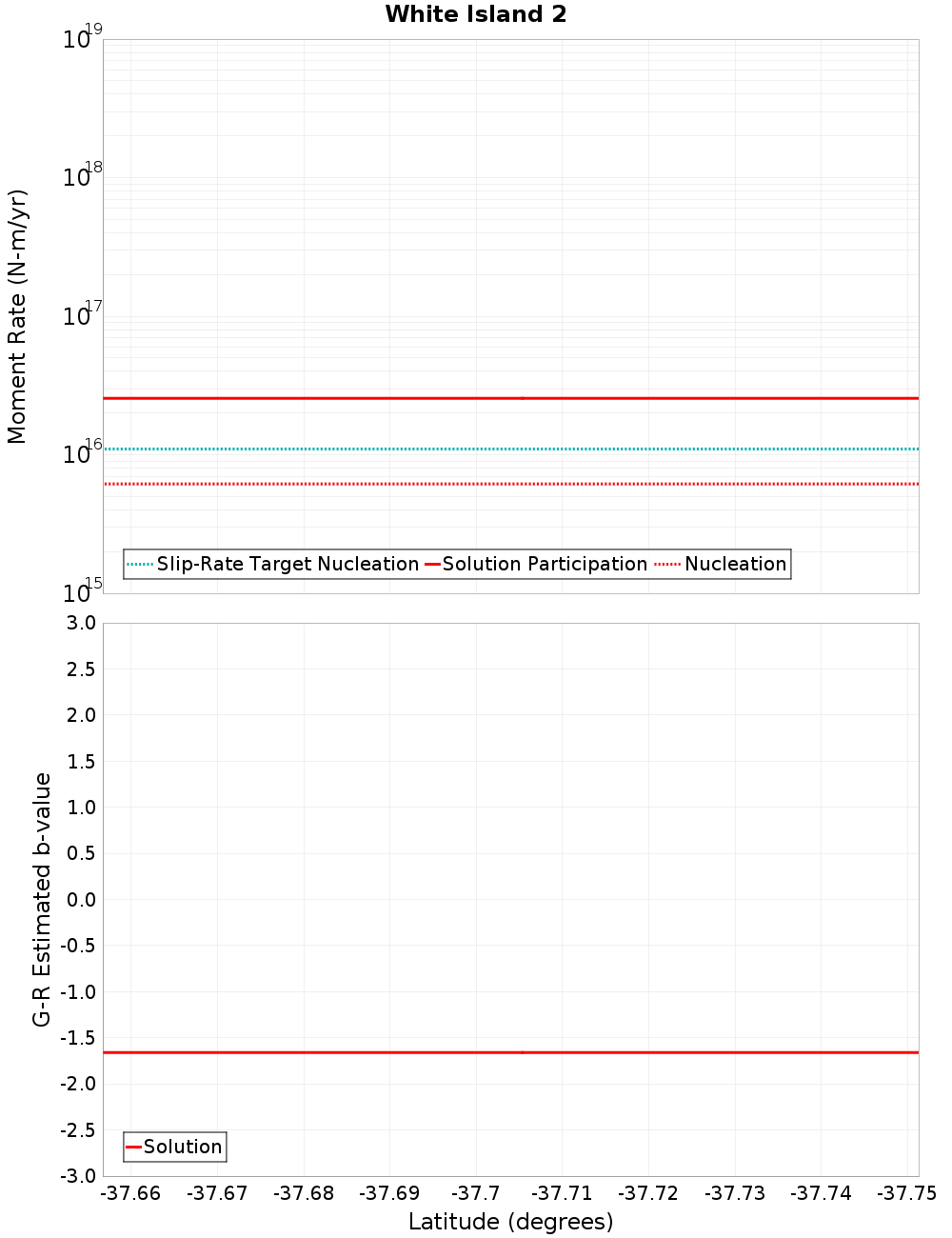

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section	Fault Section
Whakaari 4, 0.45 km away	Calypso 2, 10.04 km away
Ohiwa 1, 0.88 km away	Te Arawa 2, 10.07 km away
Waimanawa - Waikaremoana, 1.87 km away	Ohae 2, 12.01 km away
White Island 1, 1.95 km away	Waiotahi: North, 12.85 km away
Rangitaiki 2, 2.66 km away	Opape 1, 14.68 km away
Te Arawa 1, 3.53 km away	Opotiki 2, 16.72 km away
Opotiki 3, 3.83 km away	Tirohanga, 17.57 km away
Ohae 1, 4.4 km away	Kotare - Moutuhora, 19.23 km away
Tuatoru 1, 5.84 km away	Volkner 3, 19.24 km away
Waimana: North, 6.76 km away	Te Arawa 3, 19.34 km away
Rangitaiki 1, 9.3 km away	Tuatoru 2, 19.44 km away
Hariki, 9.31 km away

Whakaari 4, 0.45 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	2.0396746E-4

Ohiwa 1, 0.88 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Waimanawa - Waikaremoana, 1.87 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 1.95 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	2.0396746E-4

Rangitaiki 2, 2.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	0.0

Te Arawa 1, 3.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Opotiki 3, 3.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 4.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 1, 5.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	3.5440366E-4

Waimana: North, 6.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 9.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Hariki, 9.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Calypso 2, 10.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 2, 10.07 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 12.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 12.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 14.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 2, 16.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tirohanga, 17.57 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kotare - Moutuhora, 19.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Volkner 3, 19.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Te Arawa 3, 19.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Tuatoru 2, 19.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzMuMHpHR0pl
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
