Kaiapo Details
| Property | Value |
|---|---|
| Rupture Count | 164 |
| Ruptures Above Sect Min Mag | 161 |
| Ruptures w/ Nonzero Rates | 7 |
| Magnitude Range | [6.29, 7.00] |
| Length Range | [10, 56] km |
| Total Rate | 0.0011098251 /yr |
| Multi-Fault Rate | 0.0011098251 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 7 |
Table Of Contents

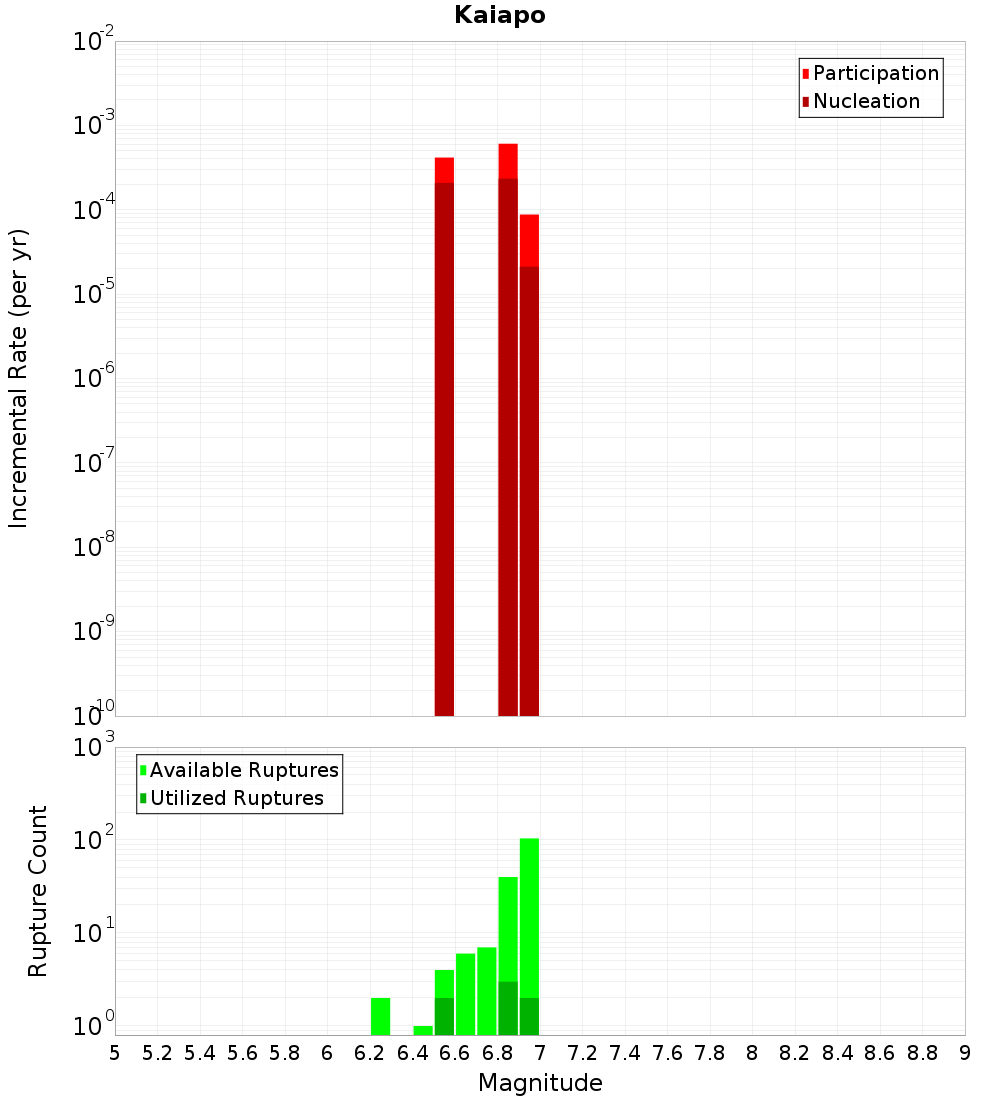

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

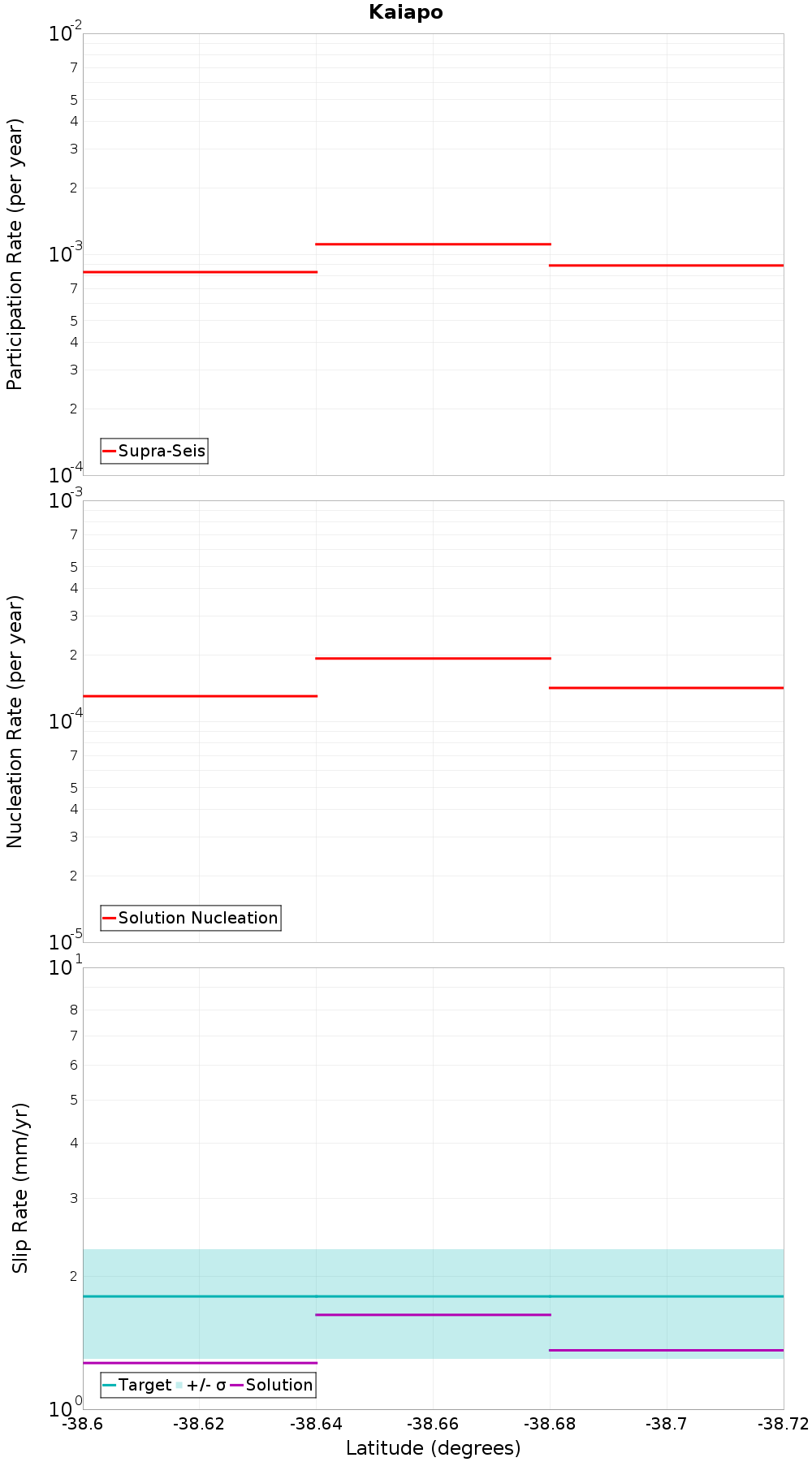

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Whangamata West, 0.25 km away |
| Orakeikorako, 4.37 km away |
| Puketerata, 5.96 km away |
| Puketerata North, 17.13 km away |
| Maleme, 19.42 km away |
Whangamata West, 0.25 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 65 |
| Co-rupture Rate | 4.65375E-4 |
Orakeikorako, 4.37 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 120 |
| Co-rupture Rate | 6.596635E-4 |
Puketerata, 5.96 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 56 |
| Co-rupture Rate | 3.4536028E-5 |
Puketerata North, 17.13 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 69 |
| Co-rupture Rate | 3.803319E-5 |
Maleme, 19.42 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 51 |
| Co-rupture Rate | 4.9055443E-4 |
