Matata Details
| Property | Value |
|---|---|
| Rupture Count | 17 |
| Ruptures Above Sect Min Mag | 16 |
| Ruptures w/ Nonzero Rates | 4 |
| Magnitude Range | [6.55, 7.00] |
| Length Range | [14, 41] km |
| Total Rate | 8.448581E-4 /yr |
| Multi-Fault Rate | 5.2353117E-4 /yr (61.97%) |
| Directly-Connected Faults | 4 |
| All Co-Rupturing Faults | 5 |
Table Of Contents

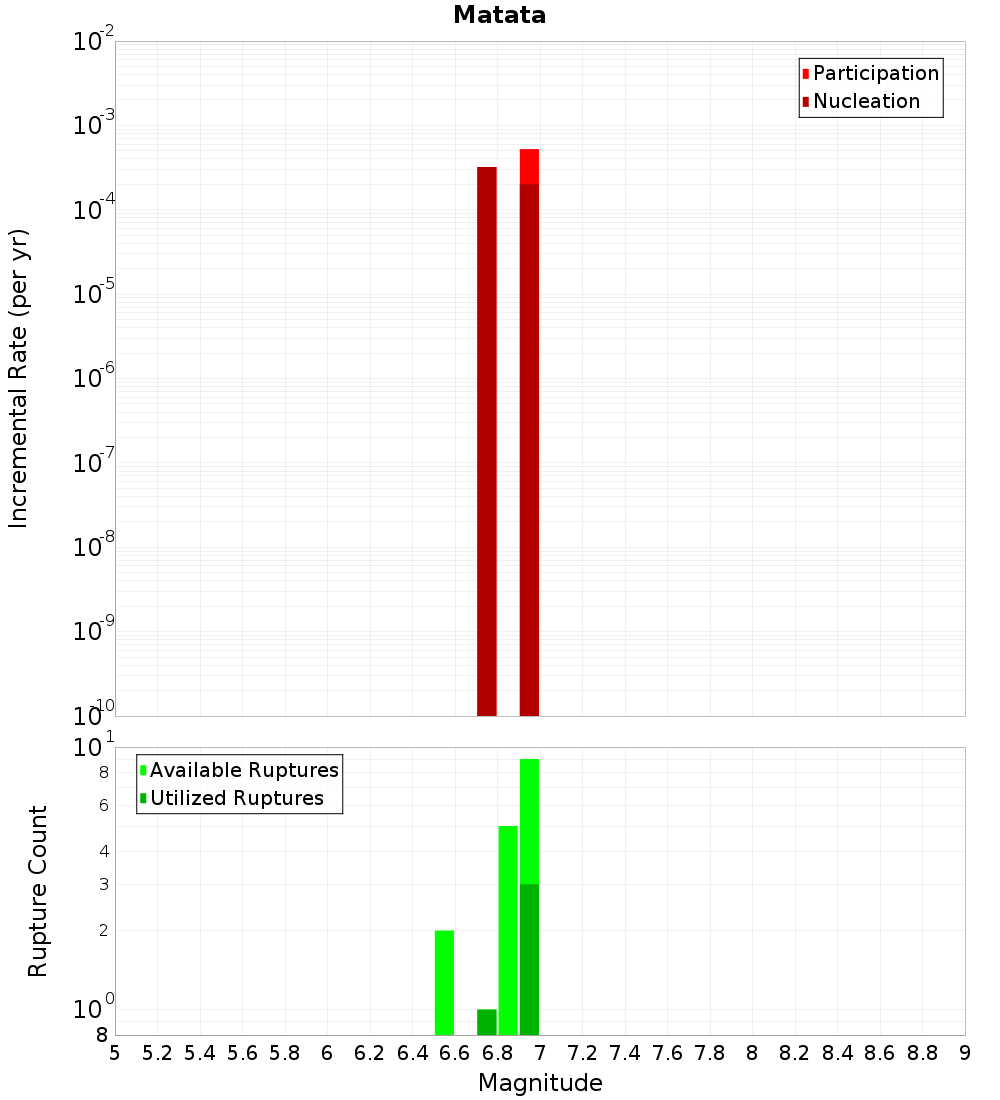

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |

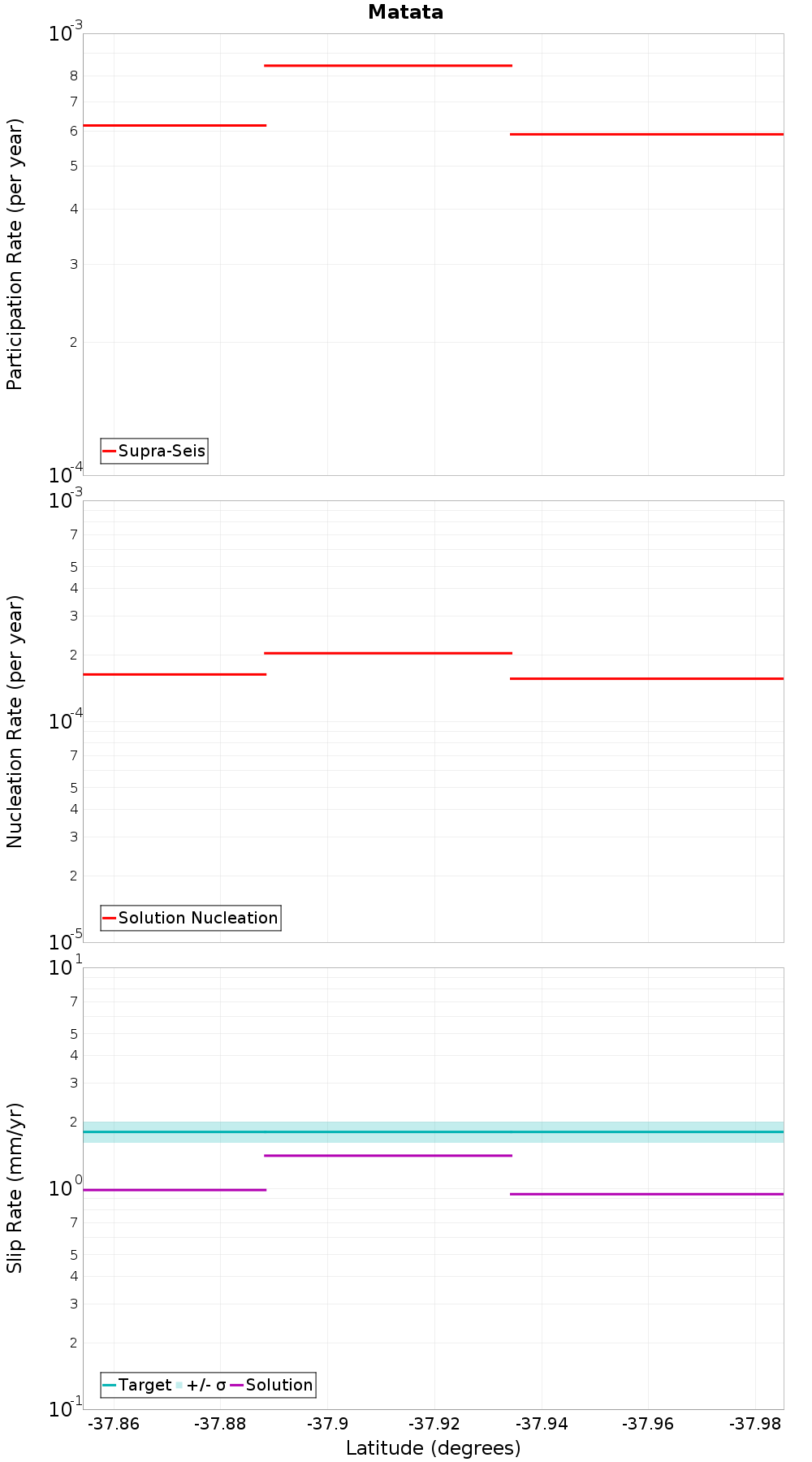

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Edgecumbe Coastal, 0.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 3 |
| Co-rupture Rate | 0.0 |
Awakeri, 0.16 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
White Island 1, 0.2 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Edgecumbe 1987, 0.29 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Braemar, 0.98 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 4.3270273E-5 |
Whakatane: North, 1.44 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiohau: North, 2.01 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 5 |
| Co-rupture Rate | 2.2619014E-4 |
Otakiri, 4.49 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 2.5407074E-4 |
Rangitaiki 1, 9.11 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | true |
| Directly Connected? | false |
| Co-rupture Count | 1 |
| Co-rupture Rate | 0.0 |
Waimana: North, 14.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Rangitaiki 2, 15.14 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waimanawa - Waikaremoana, 17.19 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waiotahi: North, 18.33 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEEyTlMz | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
