Braemar Details

PropertyValue
Rupture Count298
Ruptures Above Sect Min Mag296
Ruptures w/ Nonzero Rates21
Magnitude Range[6.59, 7.20]
Length Range[14, 80] km
Total Rate0.0010593145 /yr
Multi-Fault Rate9.905447E-4 /yr (93.51%)
Directly-Connected Faults7
All Co-Rupturing Faults18

Table Of Contents

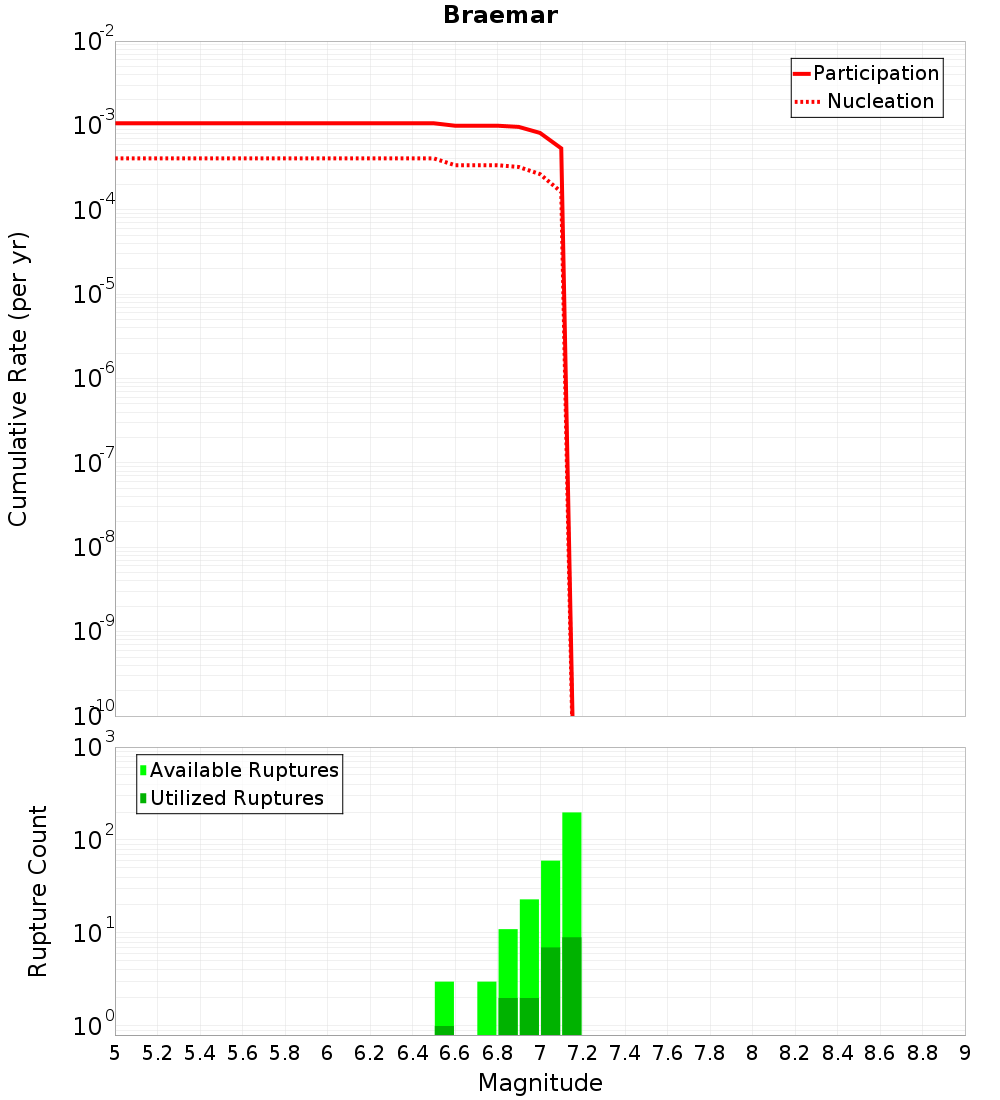

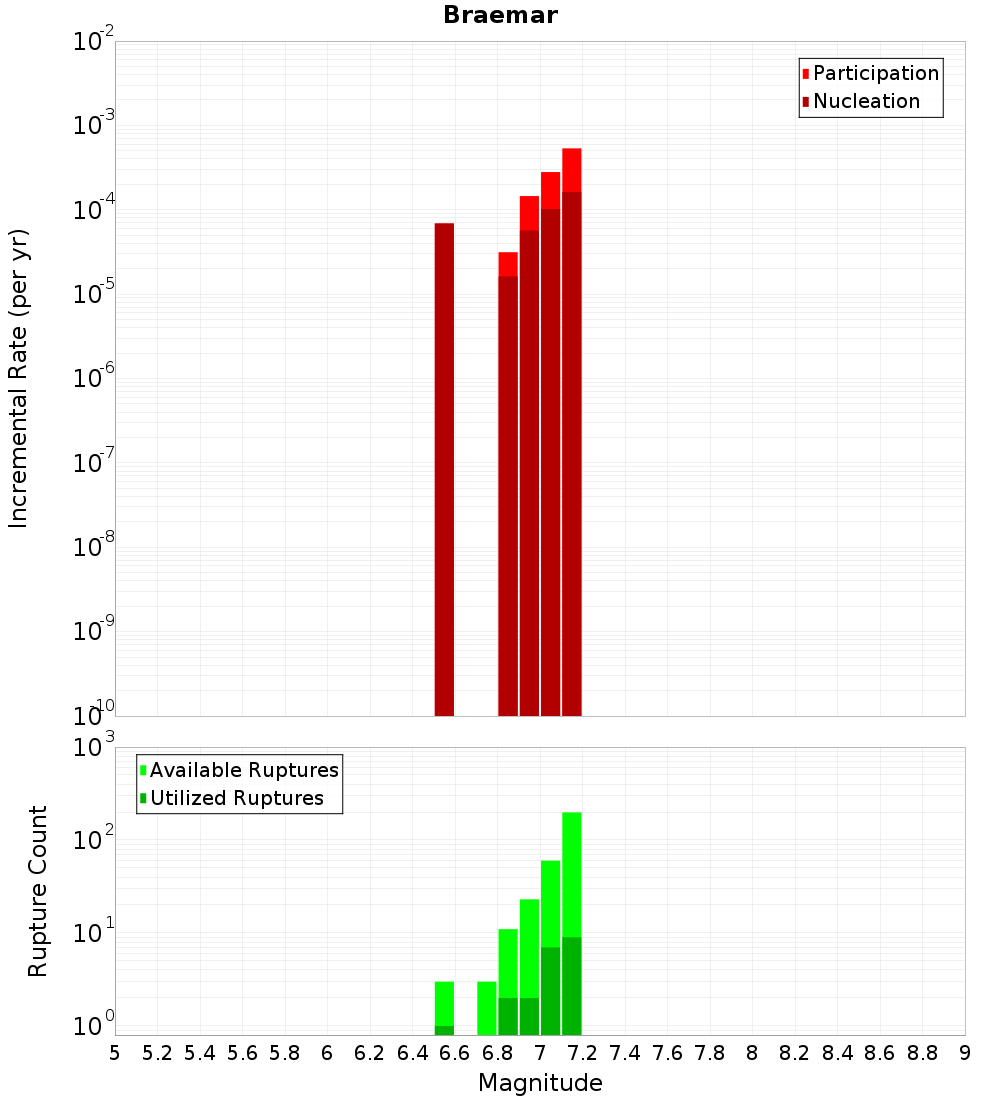

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

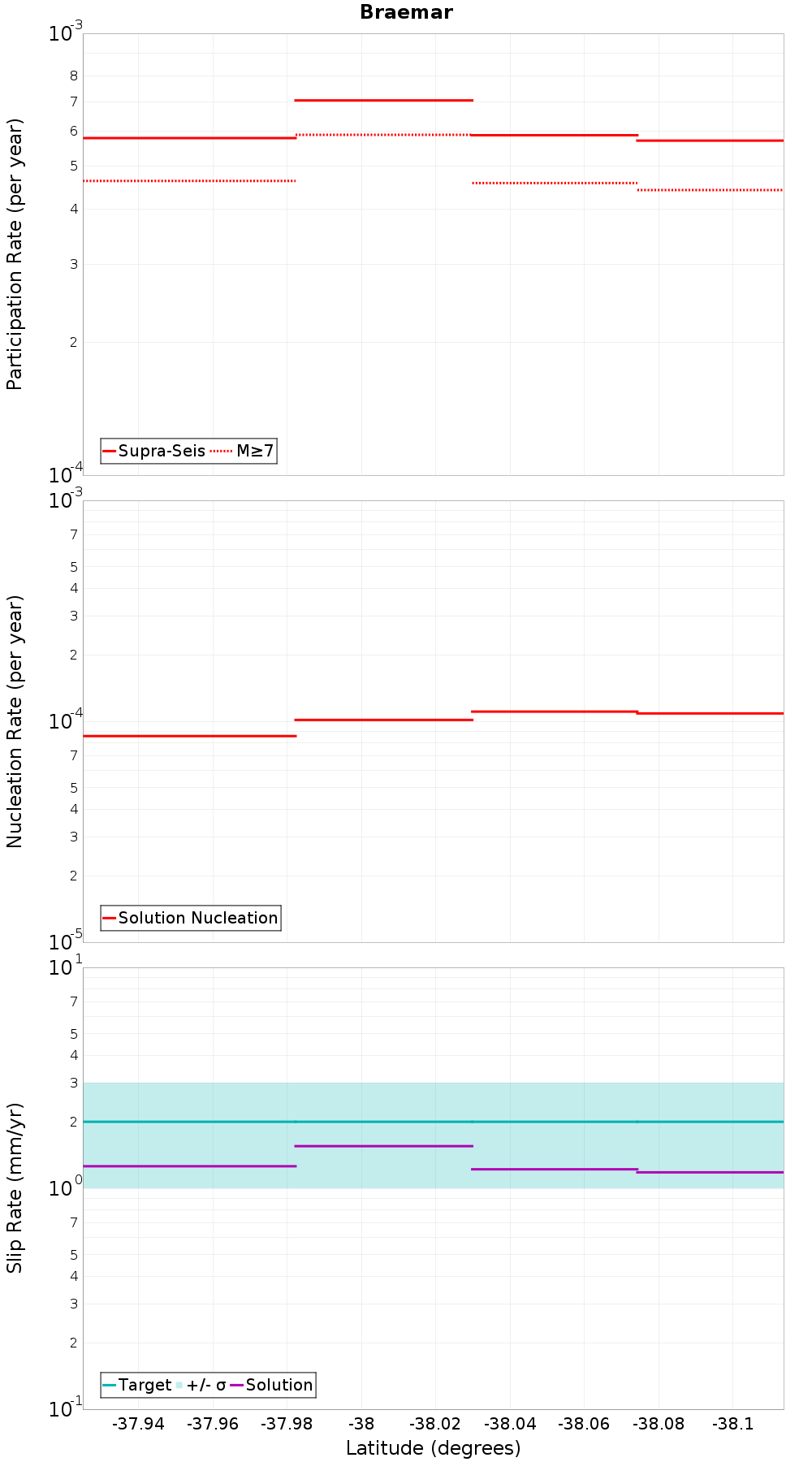

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

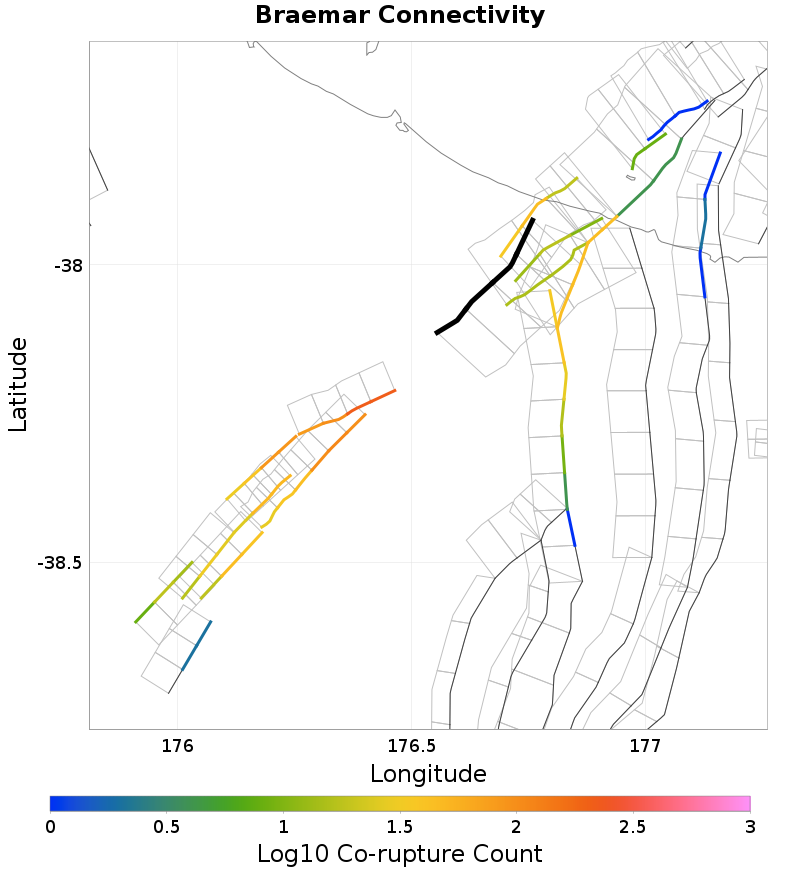

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0.1 km away
Waiohau: North, 0.22 km away
Otakiri, 0.26 km away
Edgecumbe 1987, 0.32 km away
Matata, 0.98 km away
Edgecumbe Coastal, 4.62 km away
Whakatane: North, 4.83 km away
White Island 1, 11.21 km away
EarthquakeFlat - Tumunui, 12.8 km away
Waimana: North, 18.49 km away

Awakeri, 0.1 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate2.701323E-5

Waiohau: North, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count40
Co-rupture Rate2.5509935E-4

Otakiri, 0.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate1.7705928E-4

Edgecumbe 1987, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count15
Co-rupture Rate1.19162076E-4

Matata, 0.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate3.429321E-4

Edgecumbe Coastal, 4.62 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count45
Co-rupture Rate3.6046622E-4

Whakatane: North, 4.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?false
Co-rupture Count4
Co-rupture Rate0.0

EarthquakeFlat - Tumunui, 12.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count216
Co-rupture Rate4.179826E-4

Waimana: North, 18.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate1.3835994E-4
