Fidget Details

PropertyValue
Rupture Count18,727
Ruptures Above Sect Min Mag18,724
Ruptures w/ Nonzero Rates15
Magnitude Range[6.76, 8.62]
Length Range[17, 1,201] km
Total Rate2.0315713E-4 /yr
Multi-Fault Rate2.0315713E-4 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults128

Table Of Contents

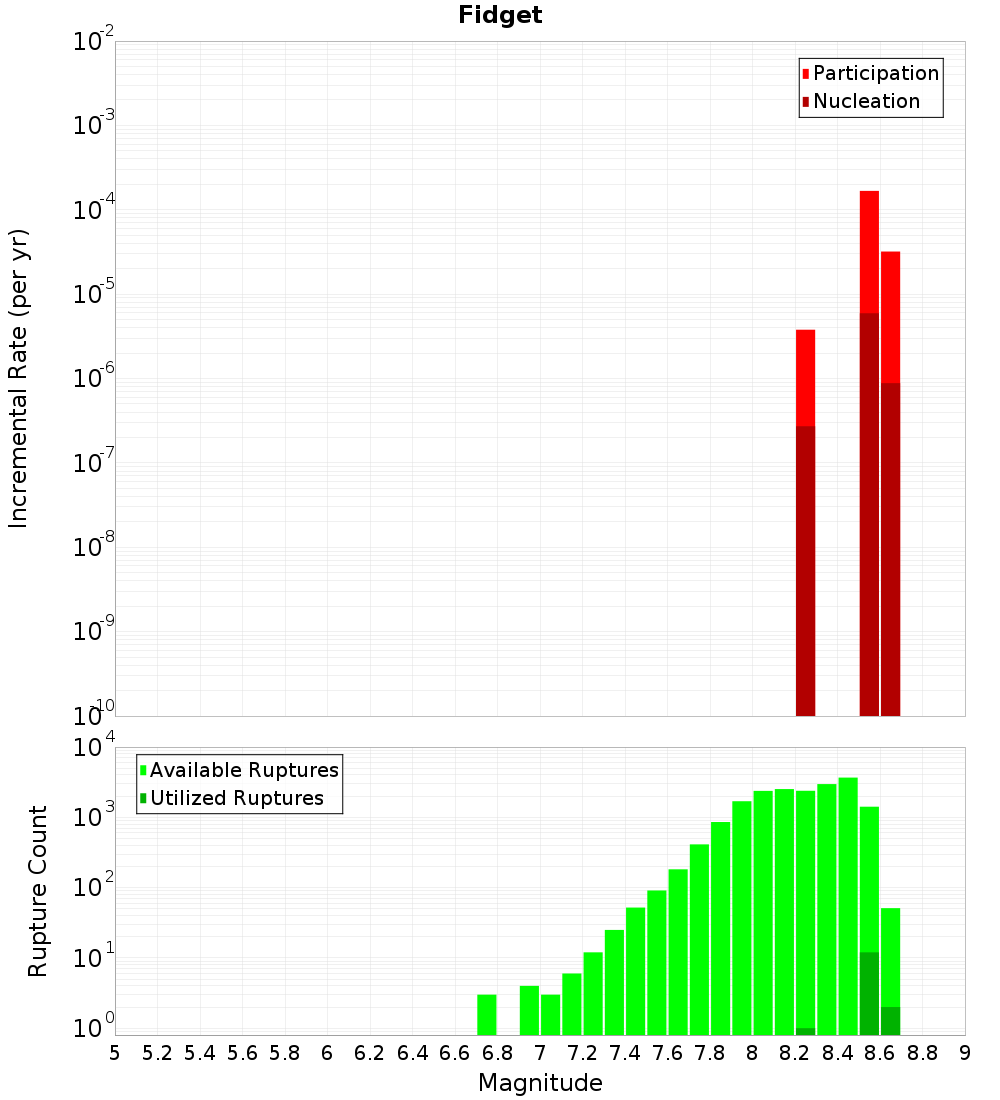

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

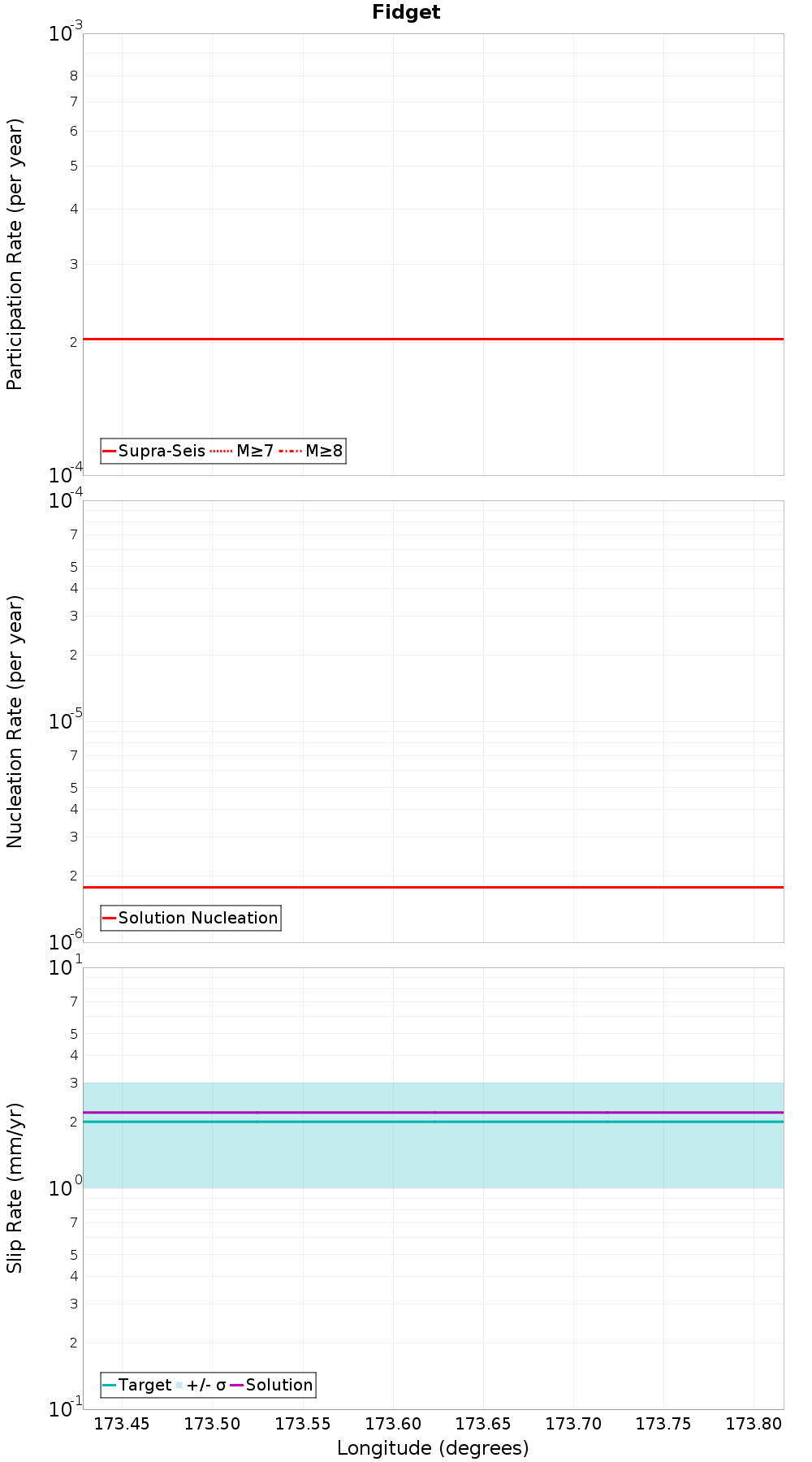

Along-Strike Values

(top)

Along-strike plot

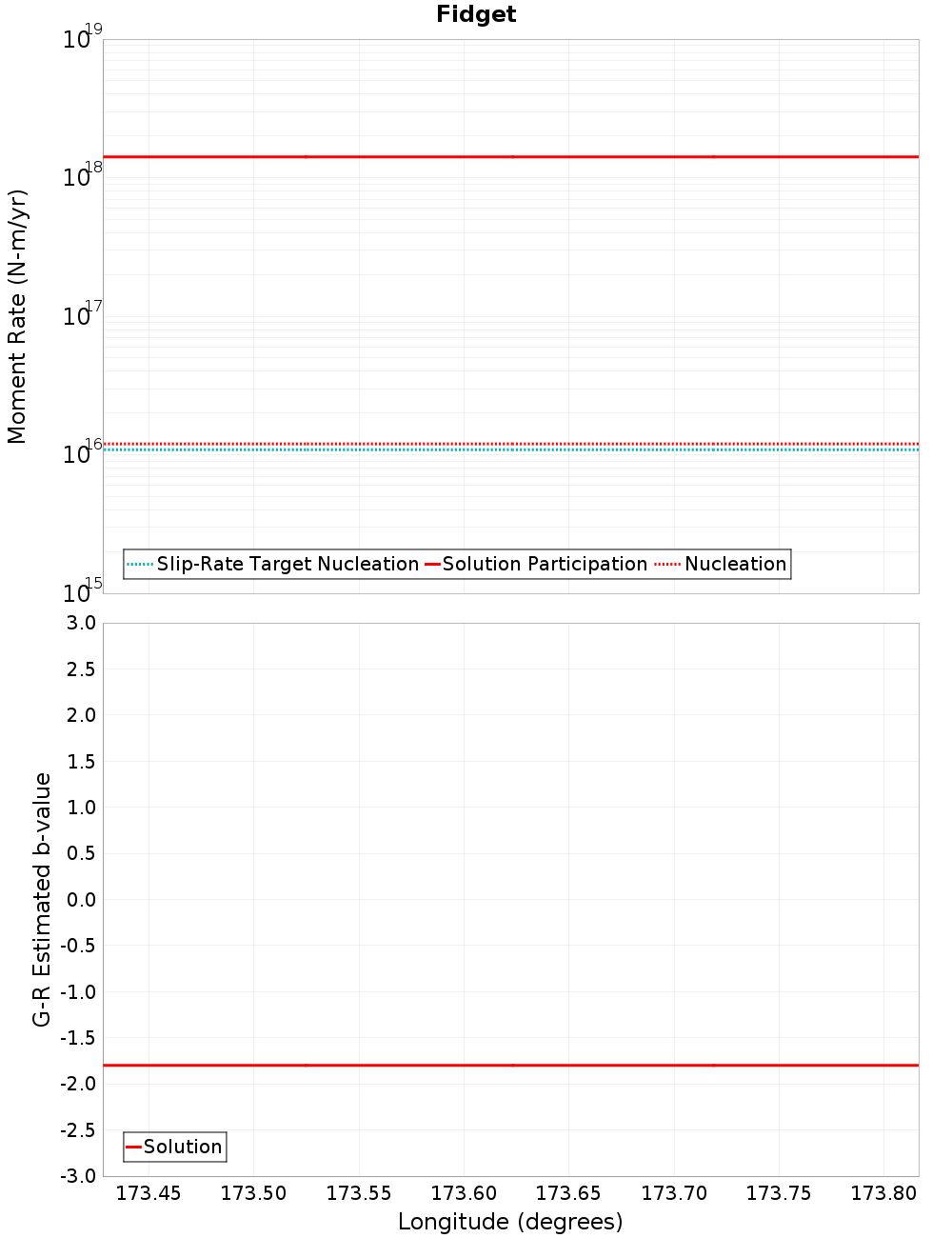

Moment-Rates and b-Values

(top)

Along-strike plot

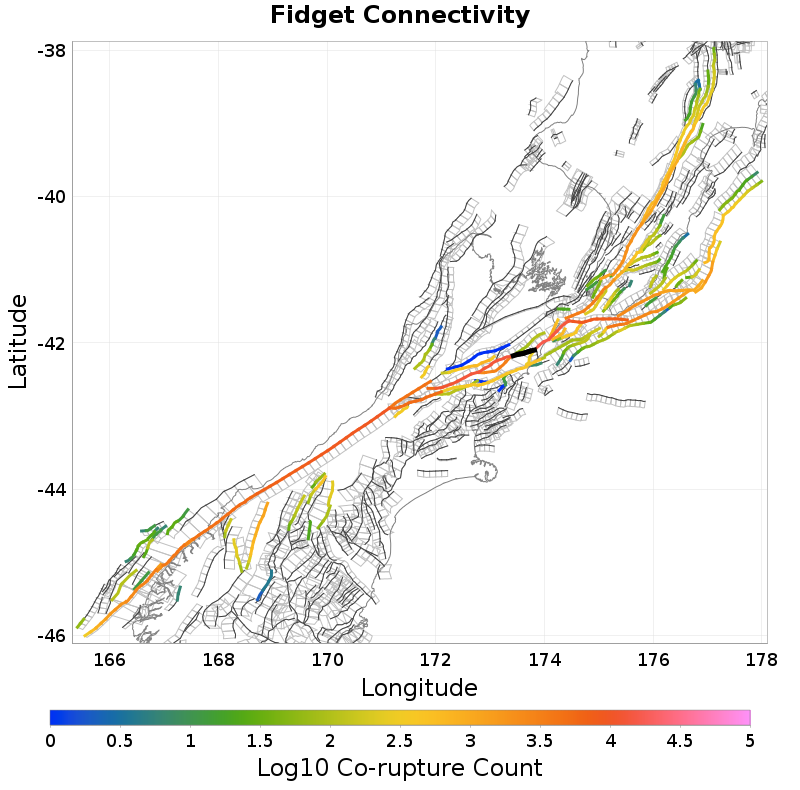

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Papatea, 0 km away
Kekerengu 1, 0 km away
Jordan, 0 km away
Clarence: Northeast, 0.64 km away
Elliott, 3.22 km away
Clarence: Central, 3.22 km away
Hope: Seaward, 13.67 km away
Hope: Te Rapa, 16.07 km away
Awatere: Northeast 1, 17.38 km away
Hope: Conway, 17.56 km away
Awatere: Southwest, 18 km away

Papatea, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kekerengu 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count16,470
Co-rupture Rate2.0315713E-4

Jordan, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count290
Co-rupture Rate0.0

Clarence: Northeast, 0.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?false
Co-rupture Count109
Co-rupture Rate0.0

Elliott, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count3,321
Co-rupture Rate3.7868804E-6

Clarence: Central, 3.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count13,476
Co-rupture Rate1.9937026E-4

Hope: Seaward, 13.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?true
Co-rupture Count539
Co-rupture Rate0.0

Hope: Te Rapa, 16.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?false
Co-rupture Count108
Co-rupture Rate0.0

Awatere: Northeast 1, 17.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Conway, 17.56 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?false
Co-rupture Count438
Co-rupture Rate0.0

Awatere: Southwest, 18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzQuMEI1VGJ1
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0
