Awakeri Details

Property	Value
Rupture Count	71
Ruptures Above Sect Min Mag	71
Ruptures w/ Nonzero Rates	5
Magnitude Range	[6.66, 7.20]
Length Range	[17, 72] km
Total Rate	1.1352176E-4 /yr
Multi-Fault Rate	1.1352176E-4 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

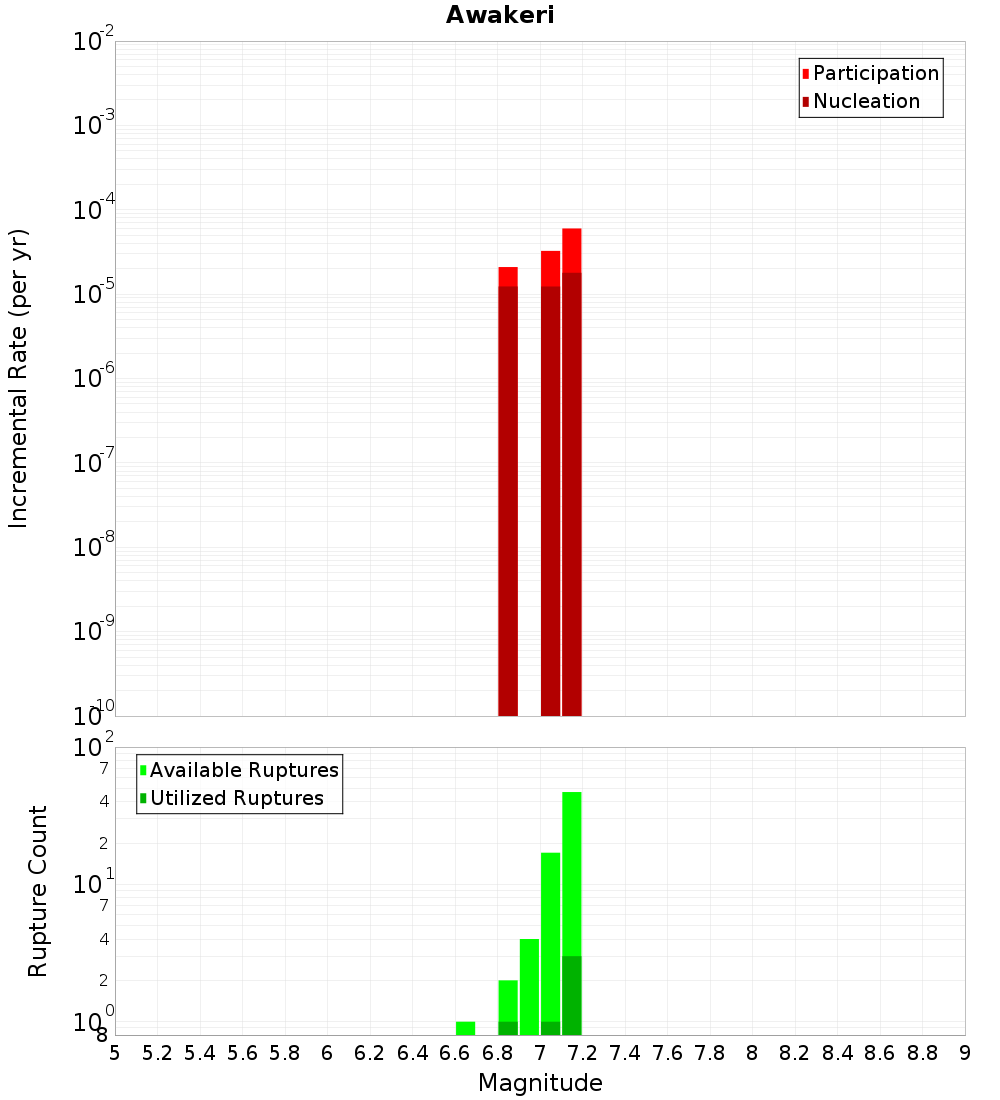

Magnitude-Frequency Distribution

Incremental	Cumulative

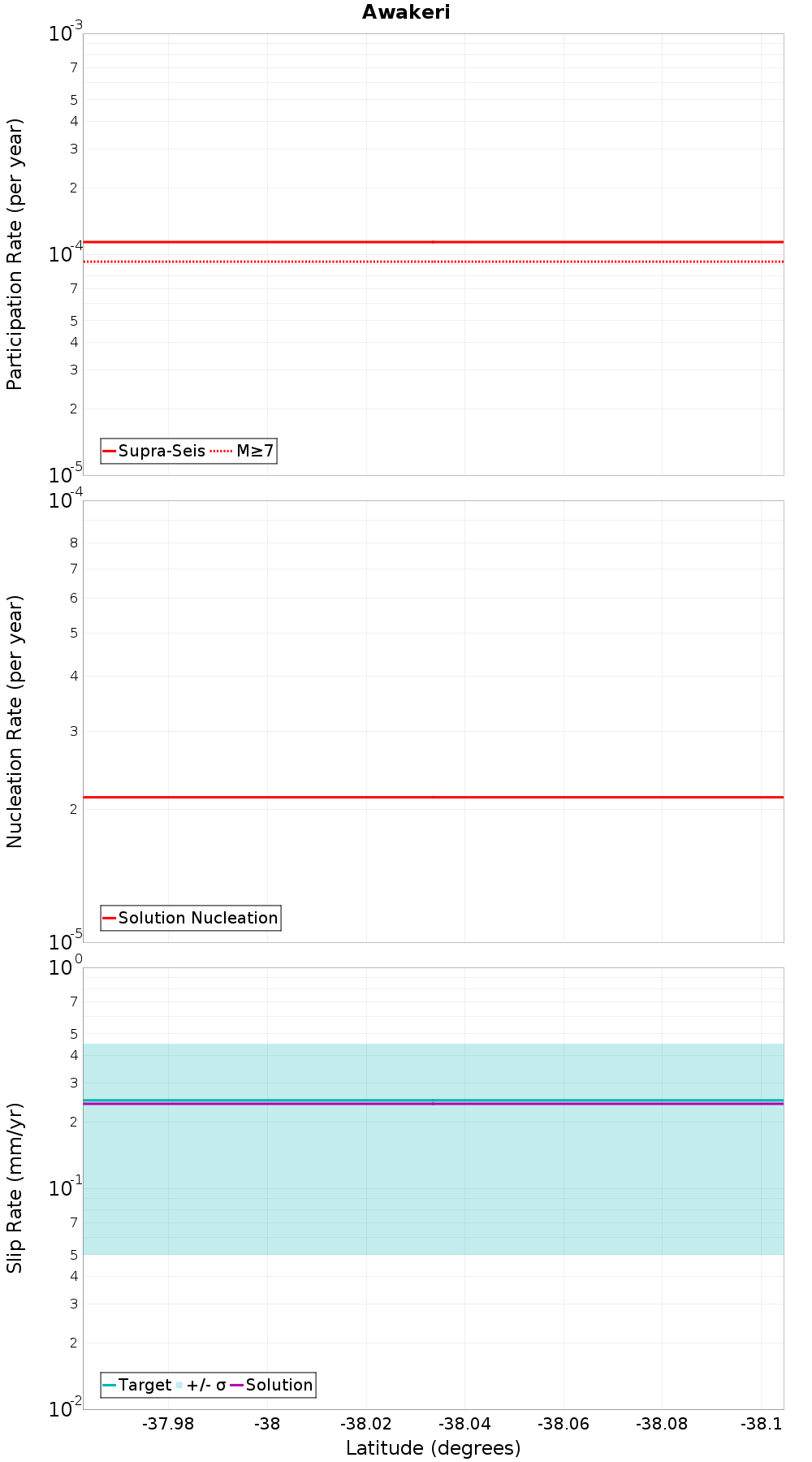

Along-Strike Values

Moment-Rates and b-Values

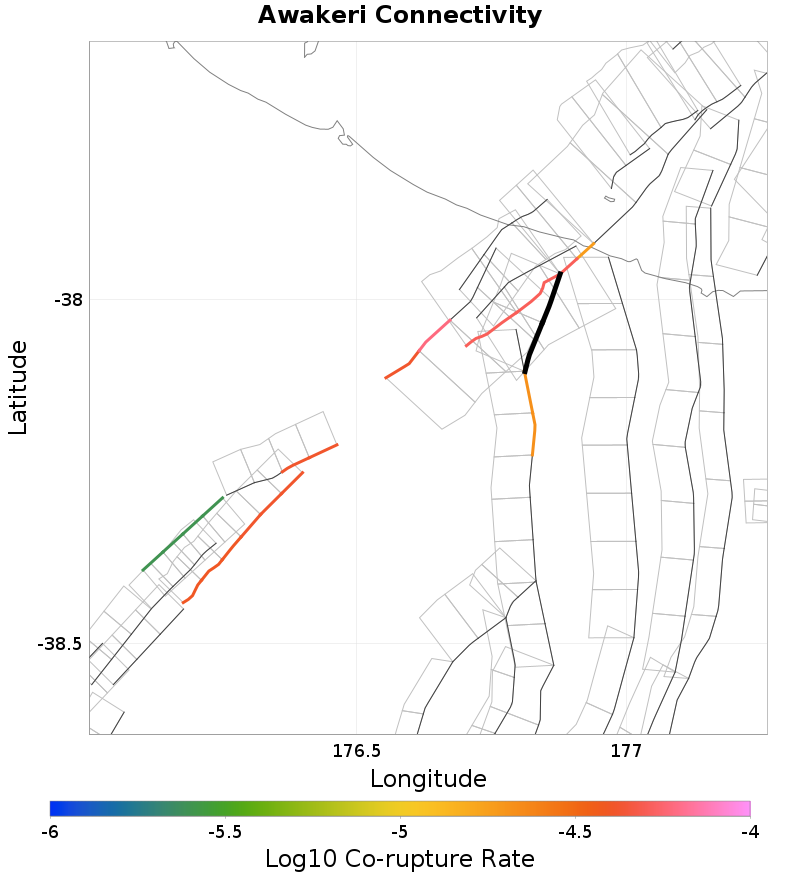

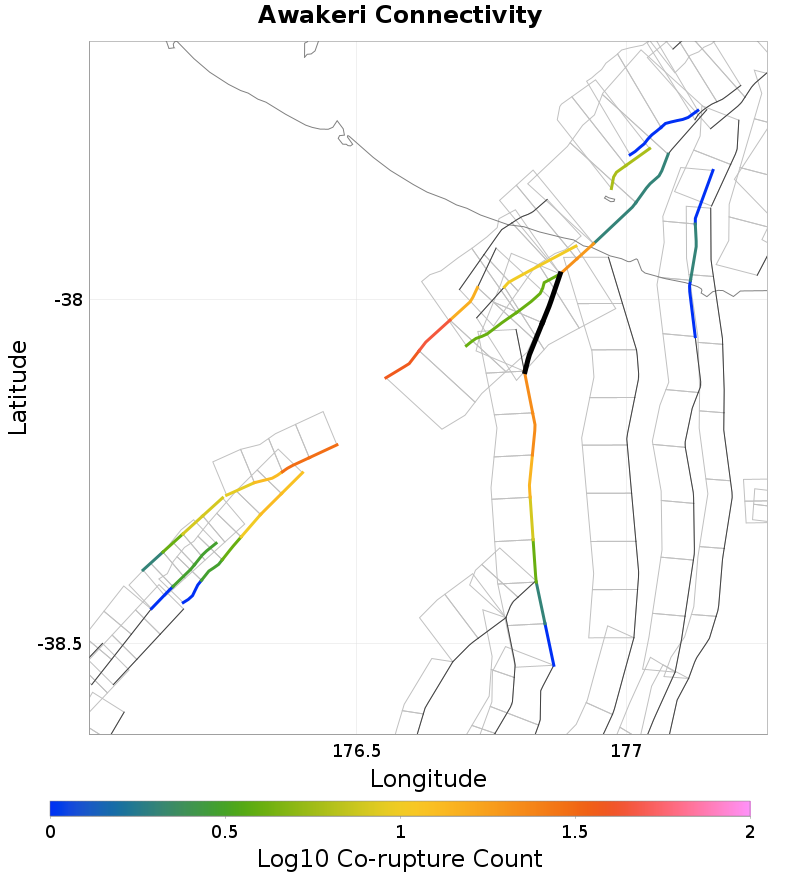

Connectivity

Nearby Sections

Fault Section
Edgecumbe 1987, 0 km away
Edgecumbe Coastal, 0 km away
Braemar, 0.1 km away
Otakiri, 0.1 km away
Waiohau: North, 0.13 km away
Matata, 0.16 km away
White Island 1, 7.32 km away
Whakatane: North, 7.56 km away
Rangitaiki 1, 16.13 km away

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	5.10492E-5

Edgecumbe Coastal, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	21
Co-rupture Rate	5.10492E-5

Braemar, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	45
Co-rupture Rate	6.0025082E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	10
Co-rupture Rate	0.0

Waiohau: North, 0.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	22
Co-rupture Rate	2.0941203E-5

Matata, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 7.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Whakatane: North, 7.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 1, 16.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	false
Co-rupture Count	6
Co-rupture Rate	0.0
