Whangamata West Details

Property	Value
Rupture Count	424
Ruptures Above Sect Min Mag	421
Ruptures w/ Nonzero Rates	8
Magnitude Range	[6.29, 7.19]
Length Range	[10, 84] km
Total Rate	9.316554E-4 /yr
Multi-Fault Rate	9.316554E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	8

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

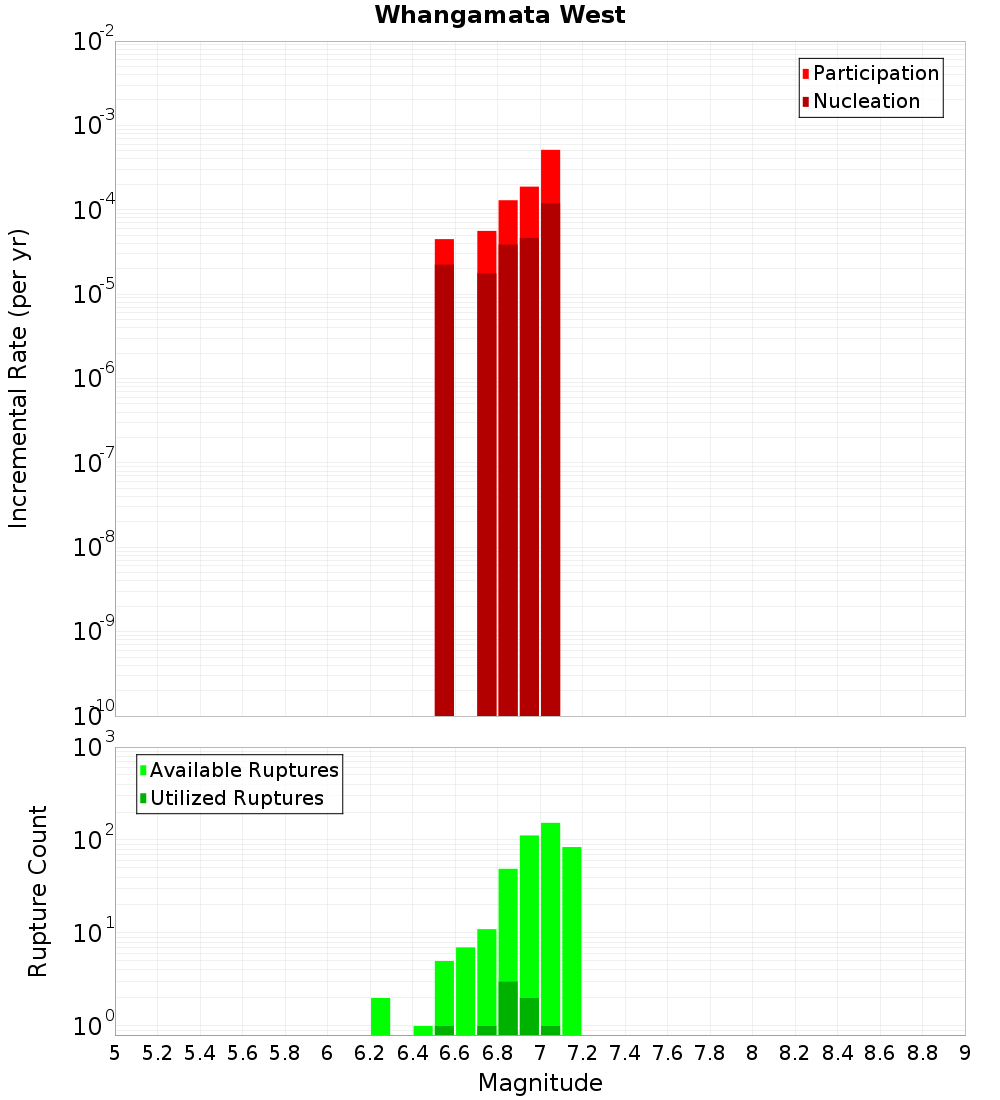

Magnitude-Frequency Distribution

Incremental	Cumulative

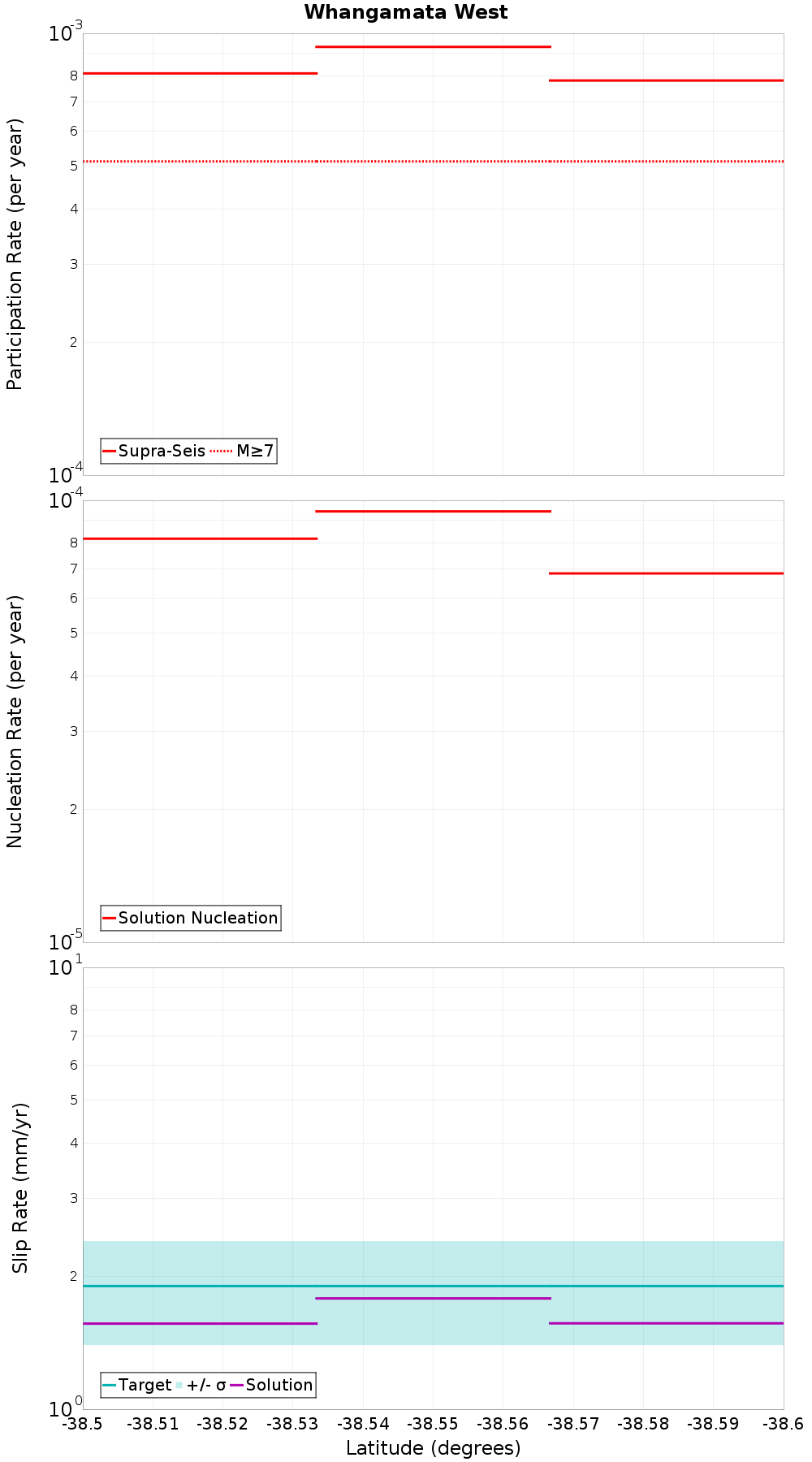

Along-Strike Values

Moment-Rates and b-Values

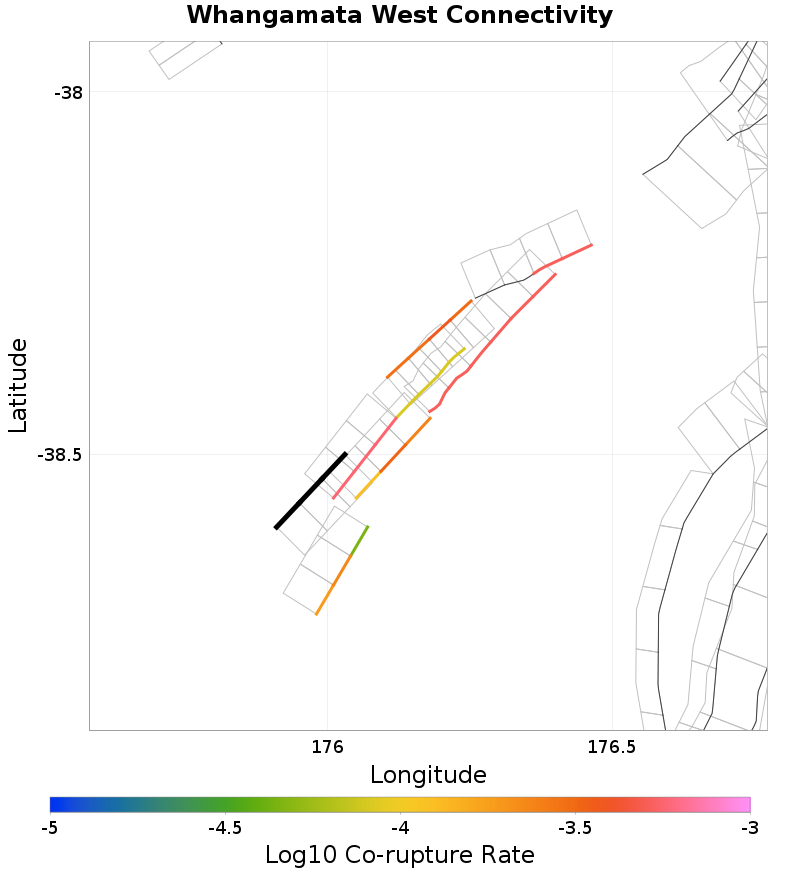

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.23 km away
Kaiapo, 0.25 km away
Puketerata North, 9.6 km away
Maleme, 12.98 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	91
Co-rupture Rate	5.616335E-4

Orakeikorako, 0.23 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	326
Co-rupture Rate	3.251664E-4

Kaiapo, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	true
Co-rupture Count	218
Co-rupture Rate	2.3282407E-4

Puketerata North, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	false
Co-rupture Count	223
Co-rupture Rate	8.103467E-5

Maleme, 12.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	false
Co-rupture Count	223
Co-rupture Rate	3.7383538E-4

Paeroa, 13.84 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4MzYuMFo3YkNR
Connected?	true
Directly Connected?	false
Co-rupture Count	230
Co-rupture Rate	5.129645E-4
