Ohariu Details

PropertyValue
Rupture Count12,143
Ruptures Above Sect Min Mag12,140
Ruptures w/ Nonzero Rates1,618
Magnitude Range[6.86, 8.50]
Length Range[21, 847] km
Total Rate0.0014673023 /yr
Multi-Fault Rate0.0014086077 /yr (96.00%)
Directly-Connected Faults17
All Co-Rupturing Faults81

Table Of Contents

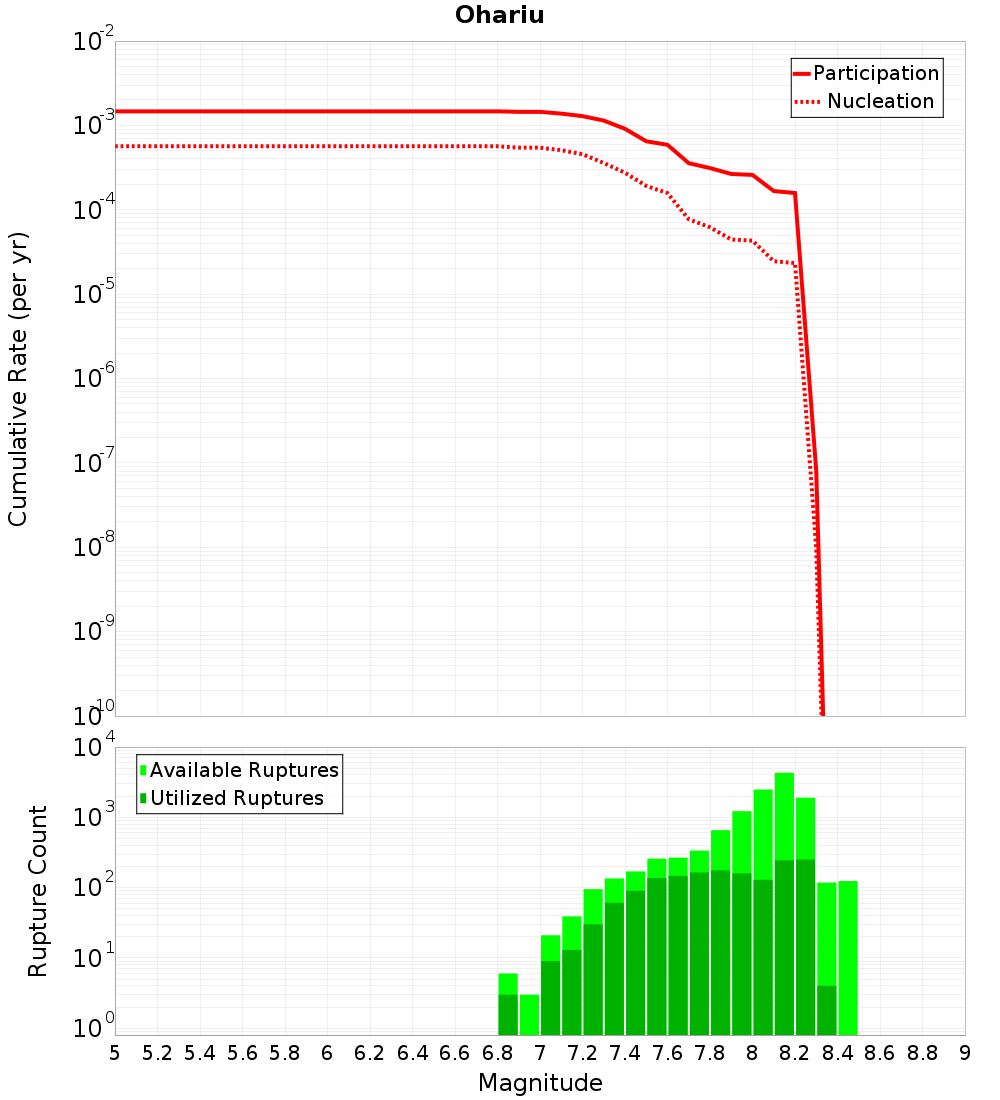

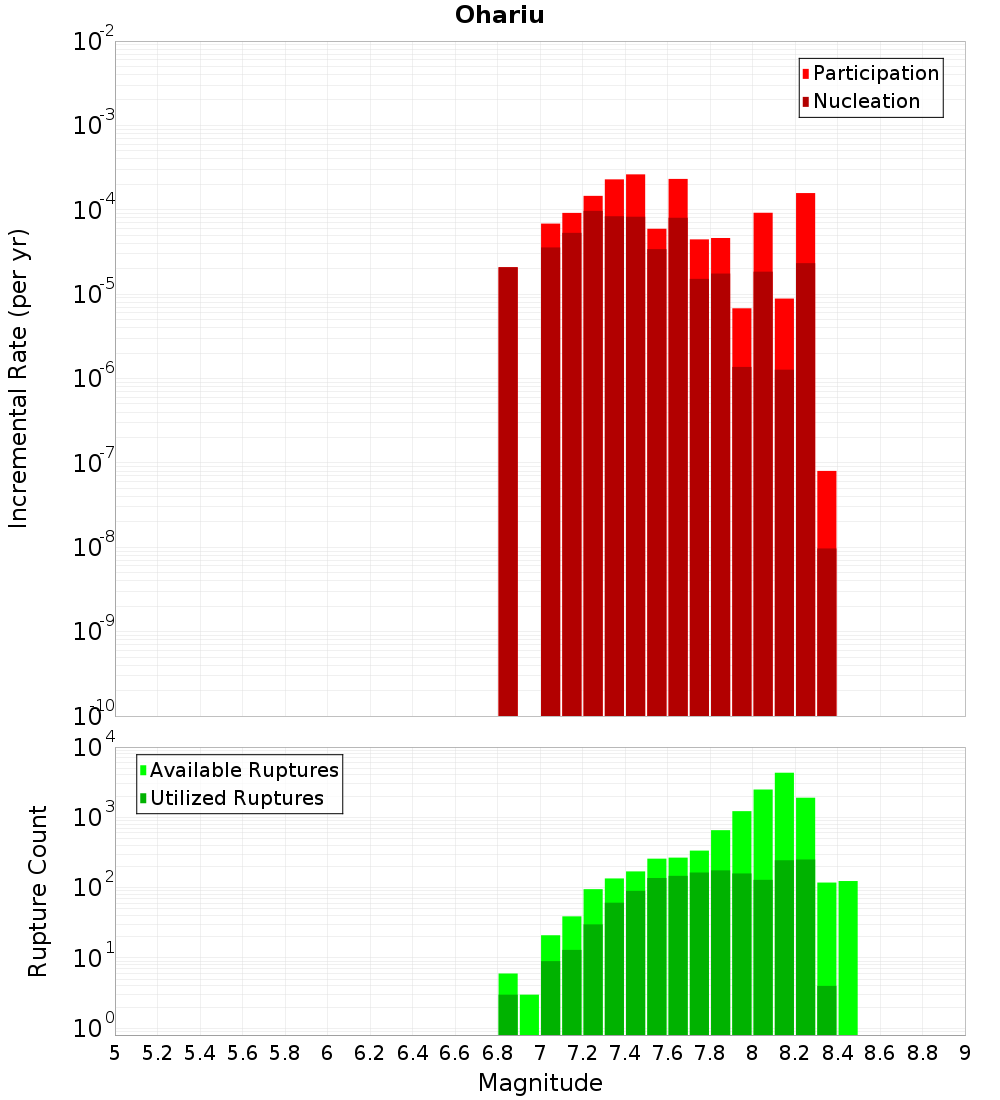

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

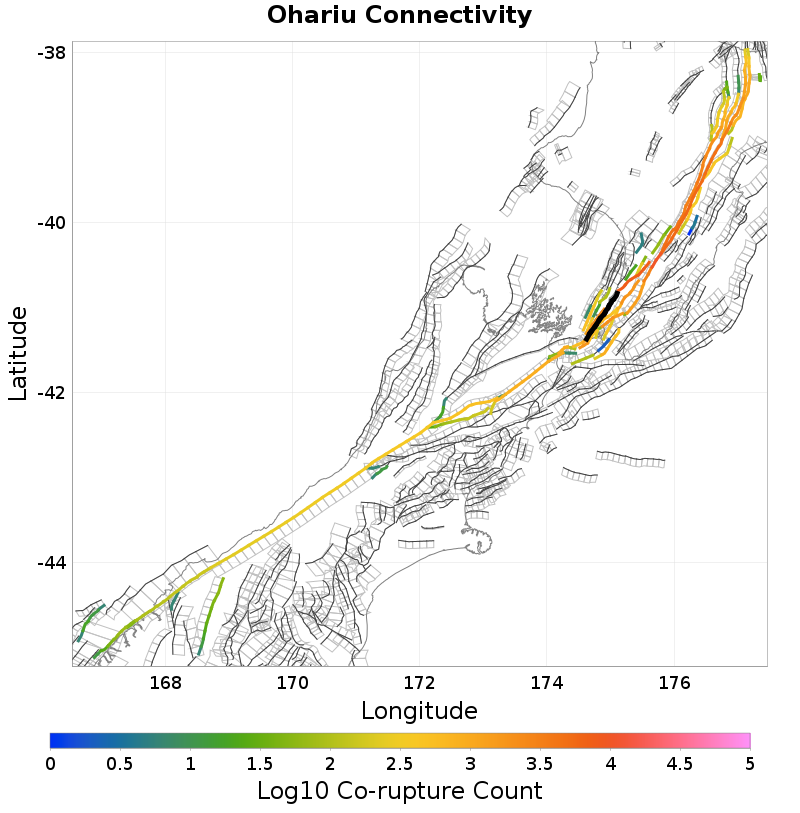

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault SectionFault Section
Ohariu South 2, 0 km awayOtaki Forks: 1, 5.13 km awayWairarapa: 1, 14.45 km away
Wellington Hutt Valley: 2, 0.3 km awayAotea - Evans Bay, 6 km awayOnepoto, 14.67 km away
Wellington Hutt Valley: 1, 1.65 km awayAkatarawa, 6.24 km awayWairarapa: Needles, 14.92 km away
Moonshine, 2.04 km awayOhariu South 1, 6.96 km awayWellington: Tararua 1, 16.12 km away
Whitemans Valley, 2.44 km awayOtaheke South, 8.6 km awayFisherman 1, 17.14 km away
Pukerua - Shepherds Gully: 1, 2.91 km awayOkupe 1, 9.22 km awayWellington: Tararua 3, 17.34 km away
Pukerua - Shepherds Gully: 2, 2.91 km awayWharekauhau, 10.05 km awayWellington: Tararua 2, 18.28 km away
Pukerua - Shepherds Gully: 3, 3.18 km awayPoroutawhao, 11.17 km awayFisherman 3, 18.64 km away
Shepherds Gully - Mana, 3.79 km awayWairau 3, 11.37 km awayMascarin, 19.22 km away
Wellington Hutt Valley: 3, 3.96 km awayOtaki Forks: 2, 11.39 km awayWairarapa: 2, 19.83 km away
Northern Ohariu, 4.32 km awayOtaheke North, 11.65 km awayFisherman 2, 19.84 km away
Wellington Hutt Valley: 4, 4.6 km awayWellington Hutt Valley: 5, 12.34 km away

Ohariu South 2, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count1,207
Co-rupture Rate6.912408E-5

Wellington Hutt Valley: 2, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count665
Co-rupture Rate7.854189E-5

Wellington Hutt Valley: 1, 1.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count1,730
Co-rupture Rate3.1885086E-4

Moonshine, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count657
Co-rupture Rate3.192338E-4

Whitemans Valley, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count441
Co-rupture Rate1.0924729E-4

Pukerua - Shepherds Gully: 1, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count1,498
Co-rupture Rate7.925131E-5

Pukerua - Shepherds Gully: 2, 2.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count1,643
Co-rupture Rate1.8895007E-4

Pukerua - Shepherds Gully: 3, 3.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count2,358
Co-rupture Rate1.7896439E-4

Shepherds Gully - Mana, 3.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count328
Co-rupture Rate1.743653E-6

Wellington Hutt Valley: 3, 3.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count523
Co-rupture Rate4.607425E-4

Northern Ohariu, 4.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count7,610
Co-rupture Rate3.736278E-4

Wellington Hutt Valley: 4, 4.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count2,013
Co-rupture Rate3.1148567E-5

Otaki Forks: 1, 5.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count1,861
Co-rupture Rate2.5876774E-5

Aotea - Evans Bay, 6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count206
Co-rupture Rate1.05790656E-4

Akatarawa, 6.24 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count460
Co-rupture Rate7.454902E-6

Ohariu South 1, 6.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count592
Co-rupture Rate4.006009E-5

Otaheke South, 8.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count99
Co-rupture Rate2.32839E-5

Okupe 1, 9.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count585
Co-rupture Rate4.810341E-6

Wharekauhau, 10.05 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?true
Co-rupture Count894
Co-rupture Rate3.1566902E-4

Poroutawhao, 11.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairau 3, 11.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otaki Forks: 2, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count1,694
Co-rupture Rate2.5121511E-5

Otaheke North, 11.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wellington Hutt Valley: 5, 12.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count1,450
Co-rupture Rate1.545408E-5

Wairarapa: 1, 14.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Onepoto, 14.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: Needles, 14.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count98
Co-rupture Rate6.046014E-5

Wellington: Tararua 1, 16.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count45
Co-rupture Rate3.7230782E-10

Fisherman 1, 17.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count7
Co-rupture Rate2.469013E-6

Wellington: Tararua 3, 17.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count1,342
Co-rupture Rate1.6530103E-5

Wellington: Tararua 2, 18.28 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?true
Directly Connected?false
Co-rupture Count1,380
Co-rupture Rate1.540361E-5

Fisherman 3, 18.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Mascarin, 19.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 2, 19.83 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Fisherman 2, 19.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NDkuMFZNZ3li
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
