Puketerata North Details

Property	Value
Rupture Count	1,012
Ruptures Above Sect Min Mag	1,009
Ruptures w/ Nonzero Rates	47
Magnitude Range	[6.22, 7.50]
Length Range	[10, 135] km
Total Rate	0.0010894905 /yr
Multi-Fault Rate	0.0010894905 /yr (100.00%)
Directly-Connected Faults	4
All Co-Rupturing Faults	18

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

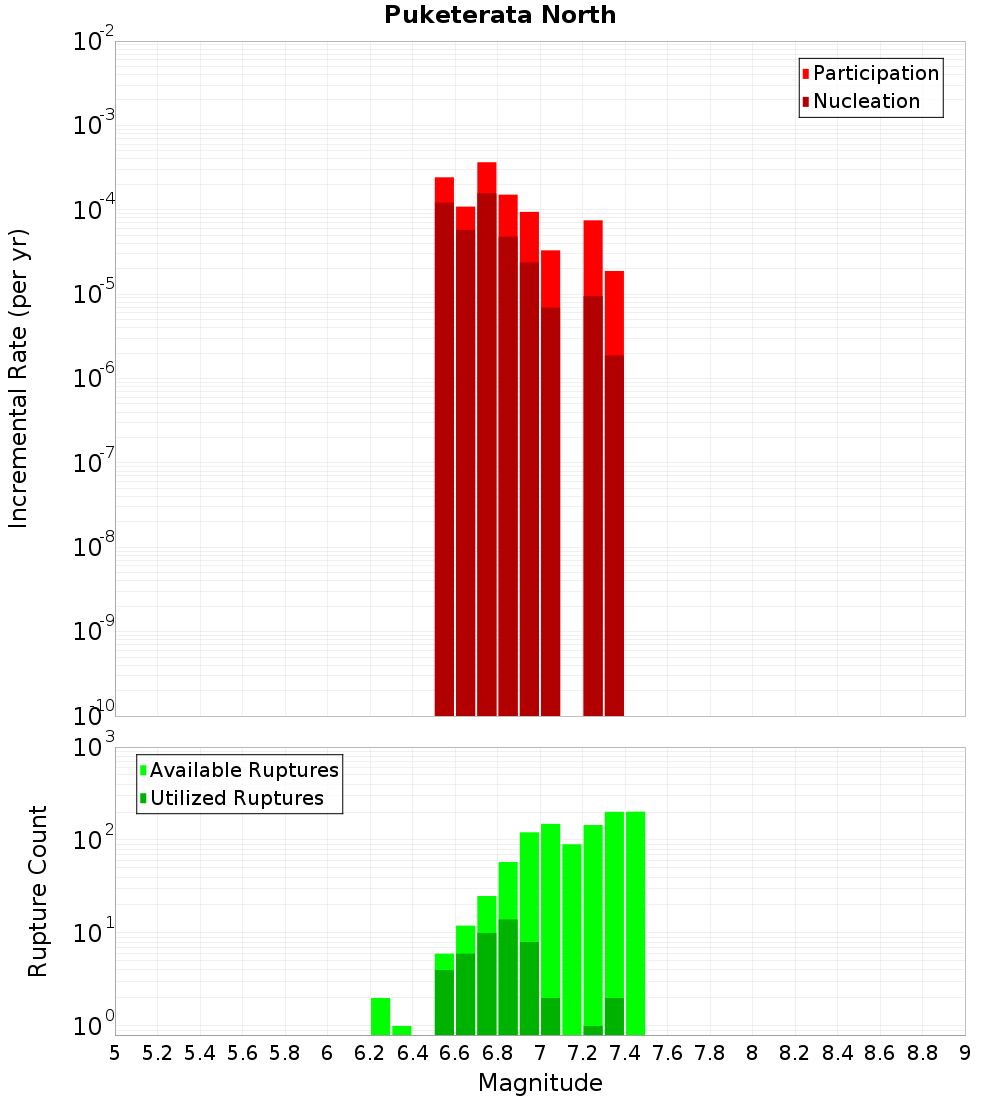

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

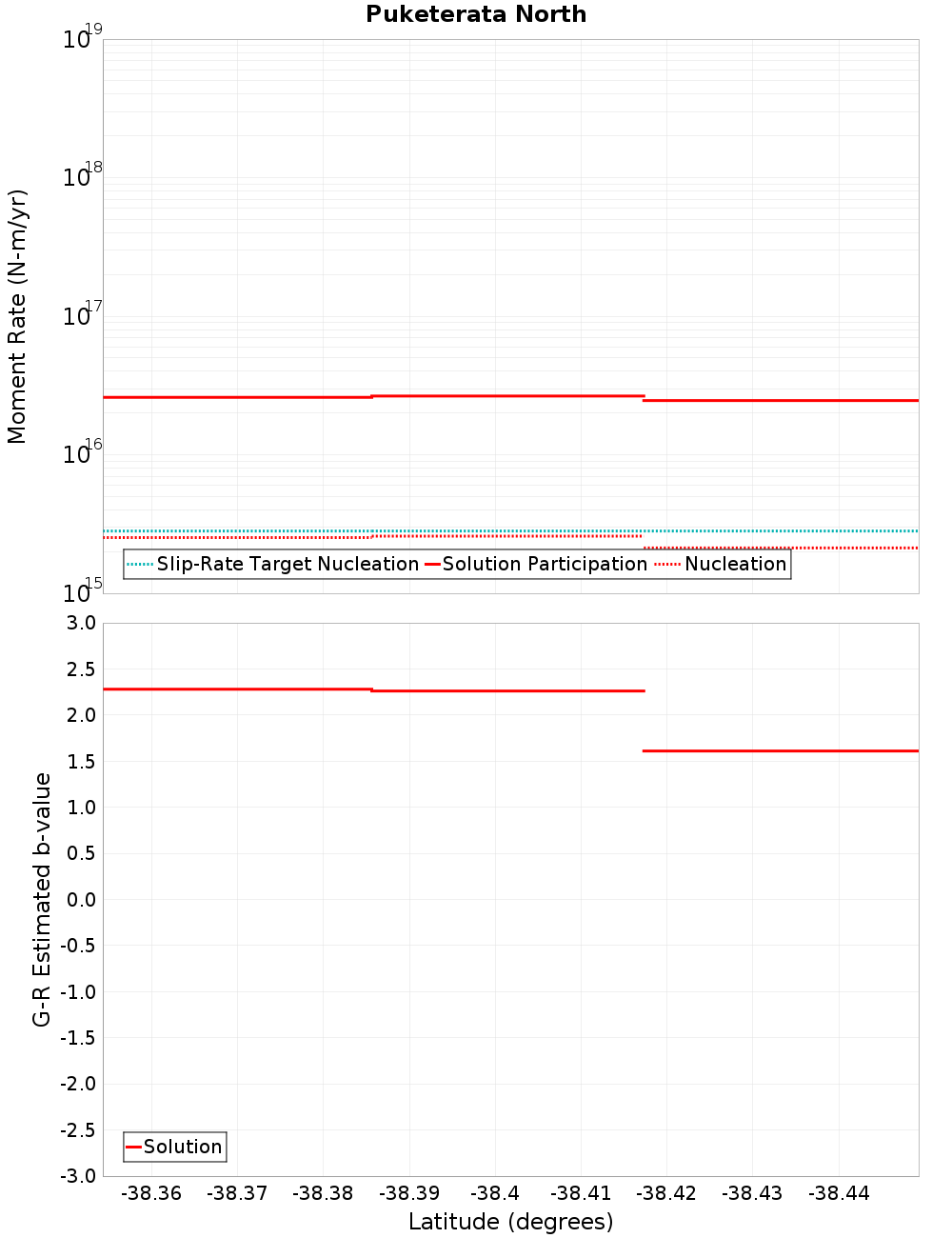

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata, 0.1 km away
Maleme, 0.15 km away
Paeroa, 2.13 km away
Orakeikorako, 3.3 km away
EarthquakeFlat - Tumunui, 7.65 km away
Whangamata West, 9.6 km away
Kaiapo, 17.13 km away

Puketerata, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	true
Co-rupture Count	351
Co-rupture Rate	2.1421087E-4

Maleme, 0.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	true
Co-rupture Count	739
Co-rupture Rate	5.158244E-4

Paeroa, 2.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	true
Co-rupture Count	481
Co-rupture Rate	4.29956E-4

Orakeikorako, 3.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	true
Co-rupture Count	508
Co-rupture Rate	2.183713E-4

EarthquakeFlat - Tumunui, 7.65 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	false
Co-rupture Count	757
Co-rupture Rate	3.352198E-4

Whangamata West, 9.6 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	false
Co-rupture Count	426
Co-rupture Rate	1.6988777E-4

Kaiapo, 17.13 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?	true
Directly Connected?	false
Co-rupture Count	291
Co-rupture Rate	1.3412113E-4
