White Island 1 Details

PropertyValue
Rupture Count2,317
Ruptures Above Sect Min Mag2,316
Ruptures w/ Nonzero Rates25
Magnitude Range[6.83, 7.50]
Length Range[19, 135] km
Total Rate5.8437575E-4 /yr
Multi-Fault Rate5.8437575E-4 /yr (100.00%)
Directly-Connected Faults9
All Co-Rupturing Faults36

Table Of Contents

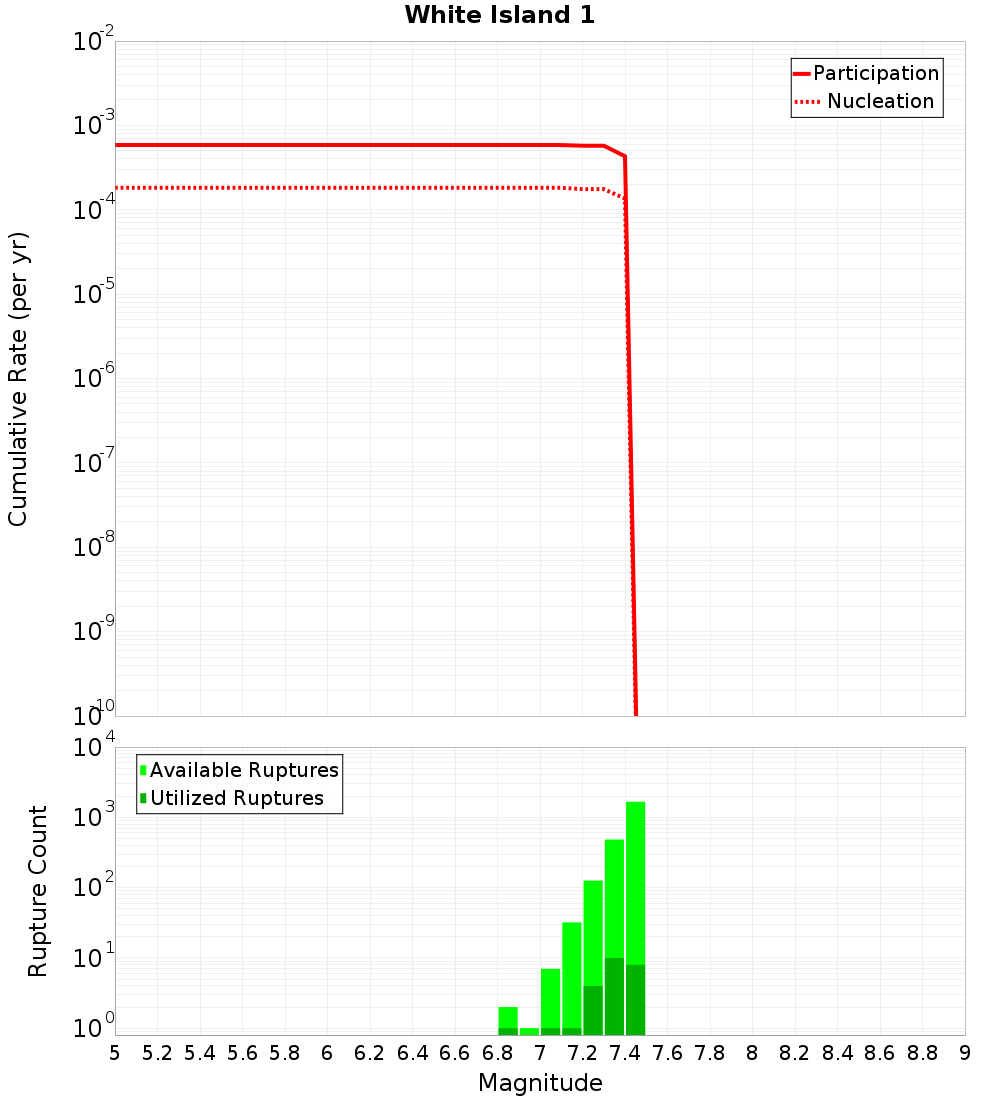

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

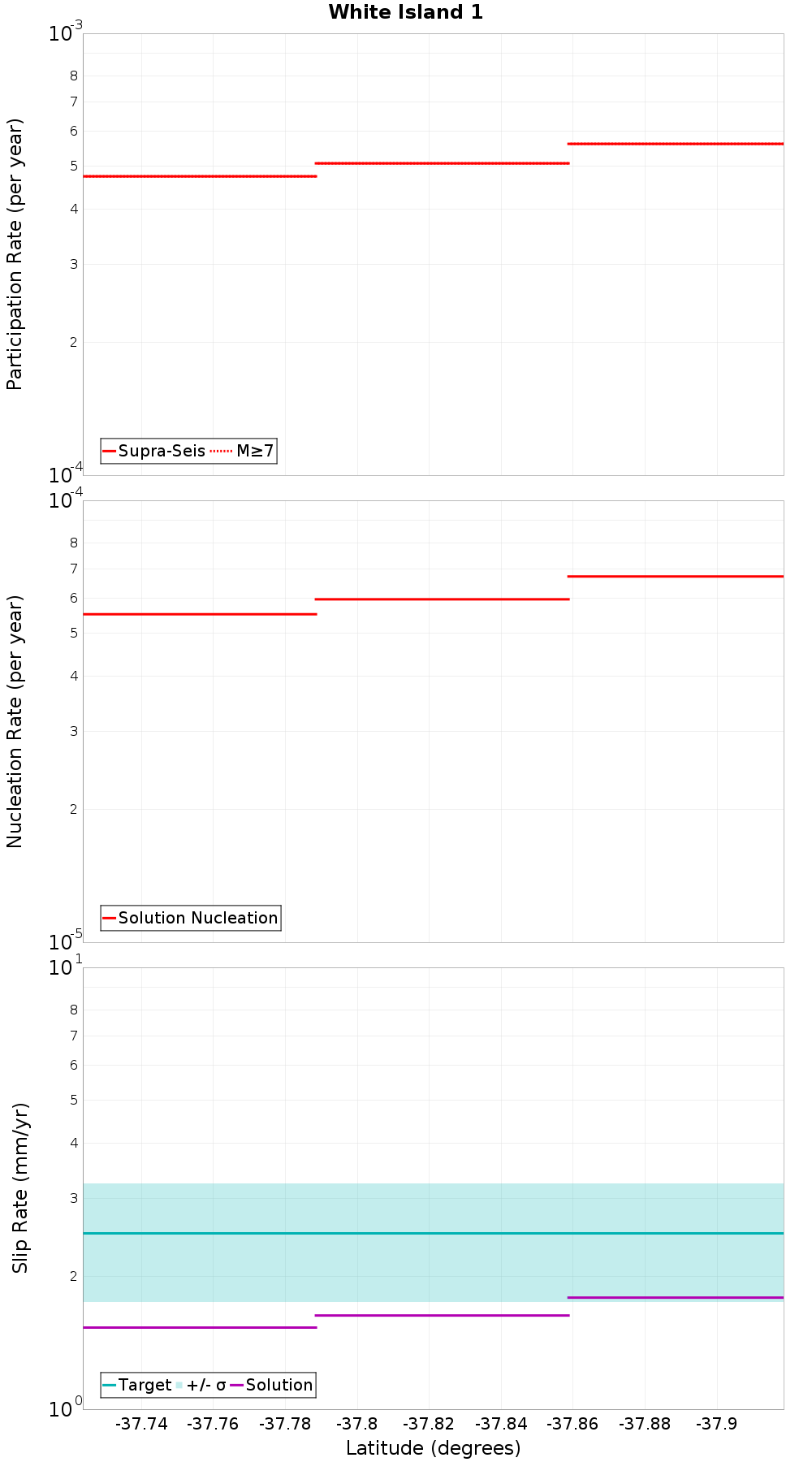

Along-Strike Values

(top)

Along-strike plot

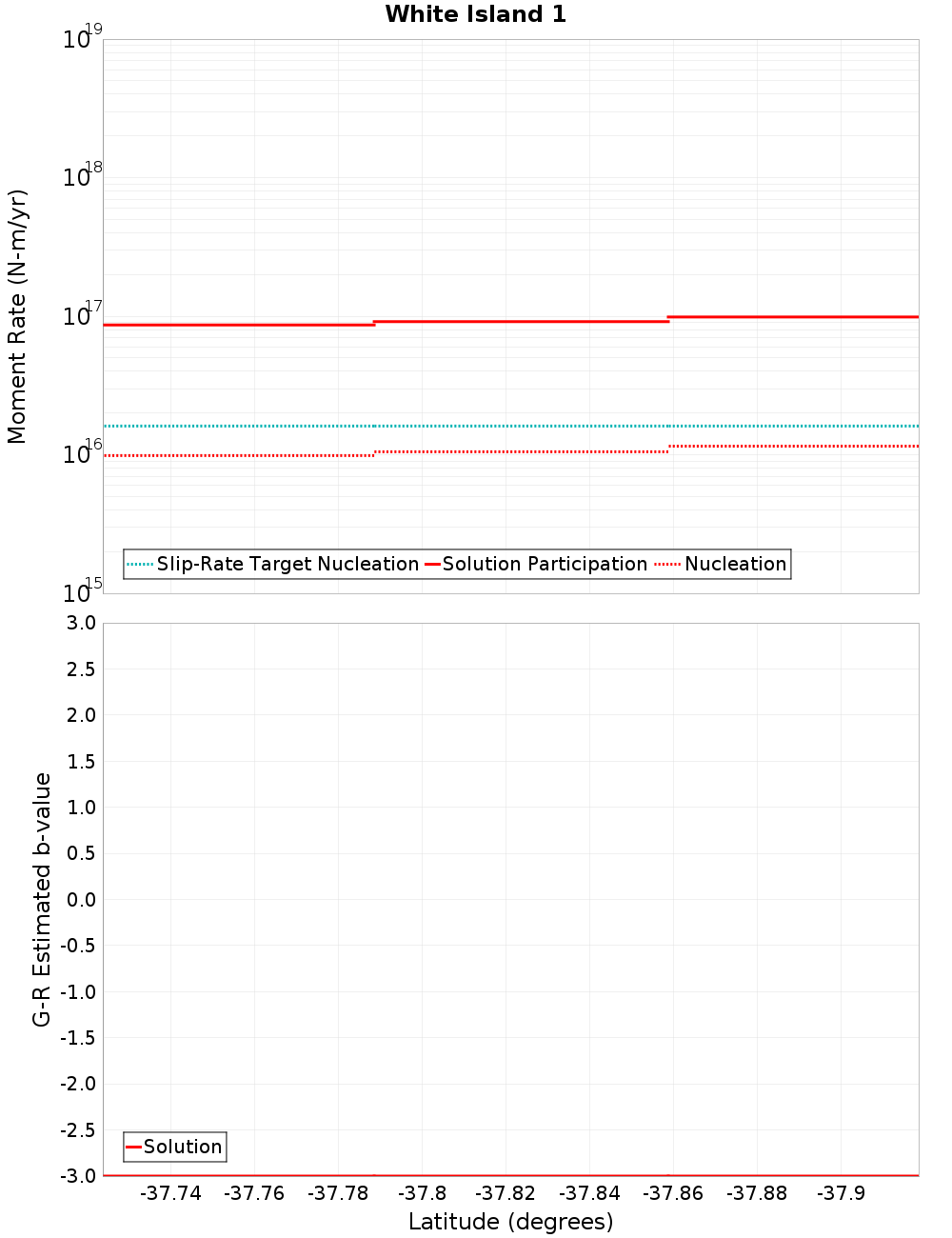

Moment-Rates and b-Values

(top)

Along-strike plot

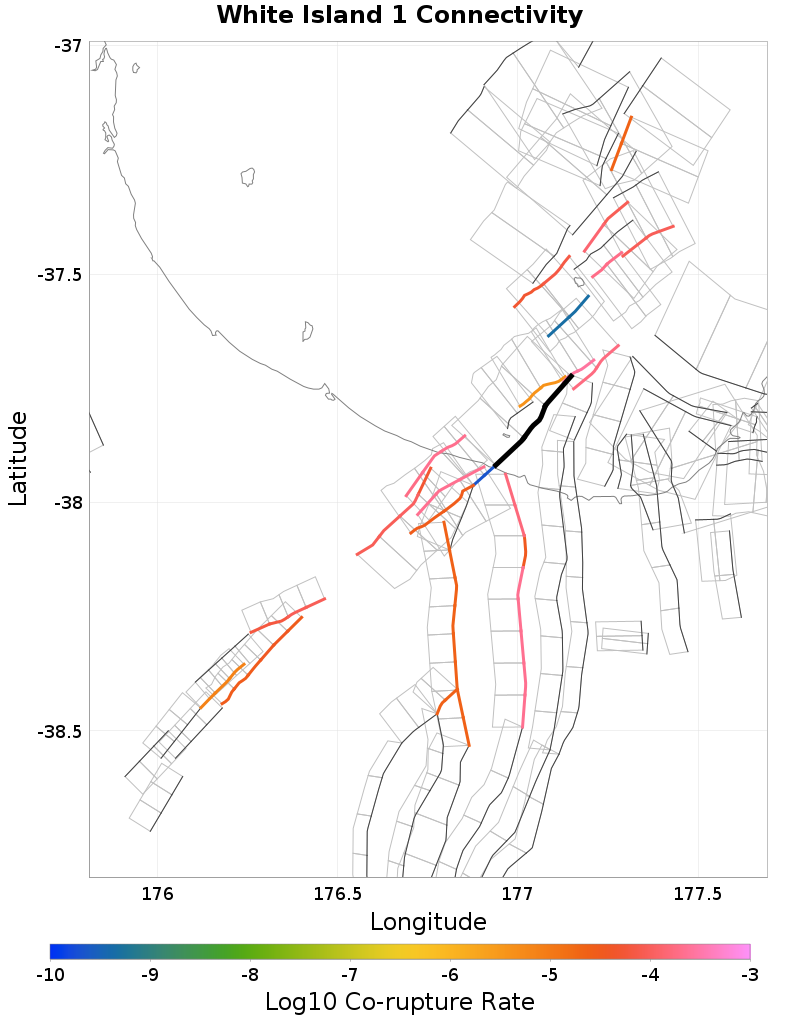

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Edgecumbe Coastal, 0 km awayAwakeri, 7.32 km away
Ohiwa 1, 0.17 km awayCalypso 2, 8.93 km away
Matata, 0.2 km awayWaiotahi: North, 9.79 km away
Rangitaiki 2, 0.77 km awayBraemar, 11.21 km away
Whakaari 4, 1.52 km awayOhae 1, 13.68 km away
White Island 2, 1.95 km awayOpotiki 3, 13.82 km away
Rangitaiki 1, 2 km awayOhae 2, 17.69 km away
Otakiri, 2.46 km awayTe Arawa 1, 18.12 km away
Whakatane: North, 3.09 km awayWaiohau: North, 18.73 km away
Edgecumbe 1987, 4.49 km awayOpape 1, 18.74 km away
Waimanawa - Waikaremoana, 5.15 km awayOpotiki 2, 19.47 km away
Waimana: North, 7.11 km awayVolkner 3, 19.53 km away

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count784
Co-rupture Rate2.146889E-10

Ohiwa 1, 0.17 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count498
Co-rupture Rate2.7316218E-4

Matata, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count764
Co-rupture Rate2.1237117E-4

Rangitaiki 2, 0.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count684
Co-rupture Rate3.840207E-6

Whakaari 4, 1.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count532
Co-rupture Rate7.0582406E-5

White Island 2, 1.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count416
Co-rupture Rate1.7161839E-4

Rangitaiki 1, 2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Otakiri, 2.46 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count426
Co-rupture Rate2.1622557E-4

Whakatane: North, 3.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count245
Co-rupture Rate3.7532081E-4

Edgecumbe 1987, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?true
Co-rupture Count438
Co-rupture Rate2.8641258E-5

Waimanawa - Waikaremoana, 5.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: North, 7.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Awakeri, 7.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count302
Co-rupture Rate0.0

Calypso 2, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count170
Co-rupture Rate4.5557552E-10

Waiotahi: North, 9.79 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Braemar, 11.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count1,126
Co-rupture Rate1.1603255E-4

Ohae 1, 13.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 13.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count25
Co-rupture Rate0.0

Ohae 2, 17.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 1, 18.12 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count207
Co-rupture Rate0.0

Waiohau: North, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count514
Co-rupture Rate2.3568526E-5

Opape 1, 18.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 19.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Volkner 3, 19.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTMuMHgyRVZj
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0
