Edgecumbe 1987 Details

PropertyValue
Rupture Count1,128
Ruptures Above Sect Min Mag1,128
Ruptures w/ Nonzero Rates213
Magnitude Range[6.79, 7.50]
Length Range[20, 136] km
Total Rate0.0022012969 /yr
Multi-Fault Rate0.0022012969 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults31

Table Of Contents

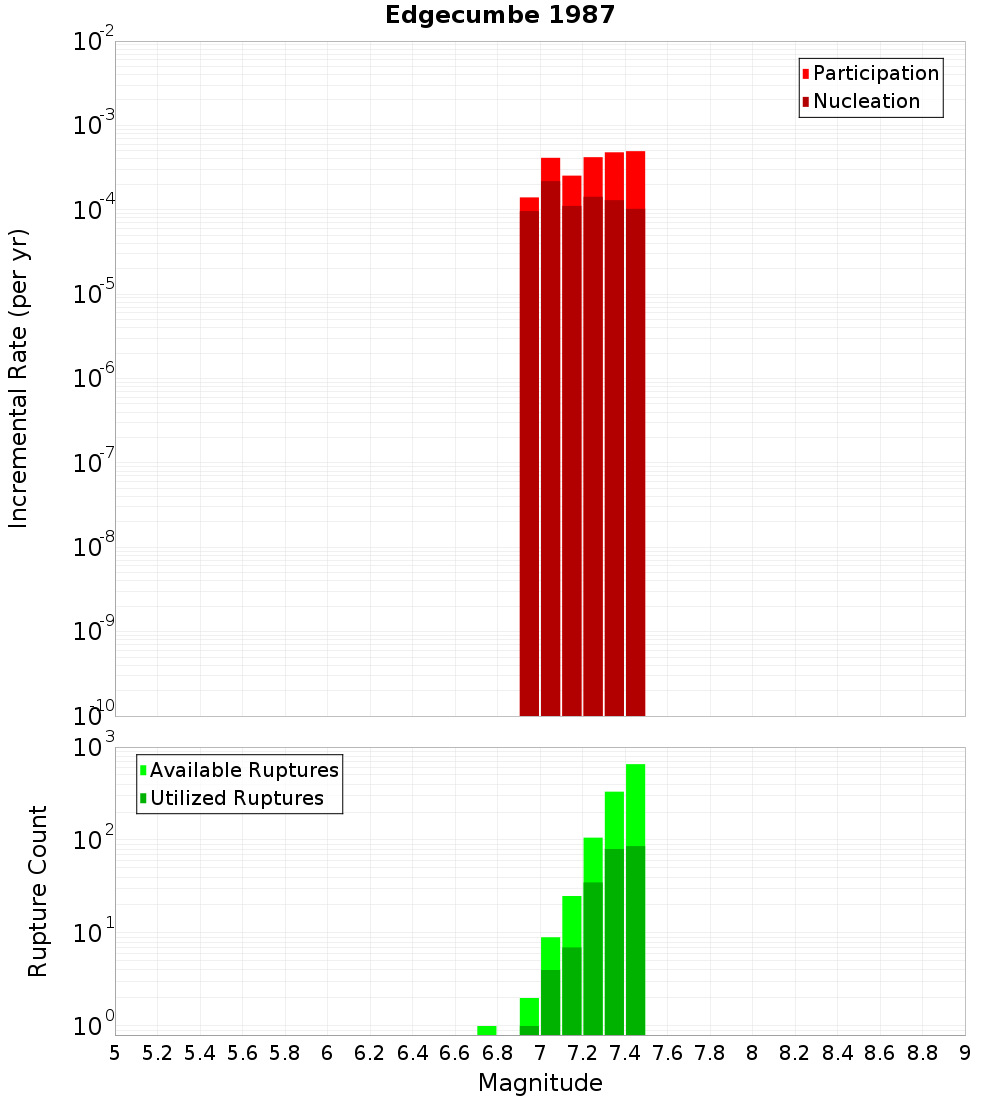

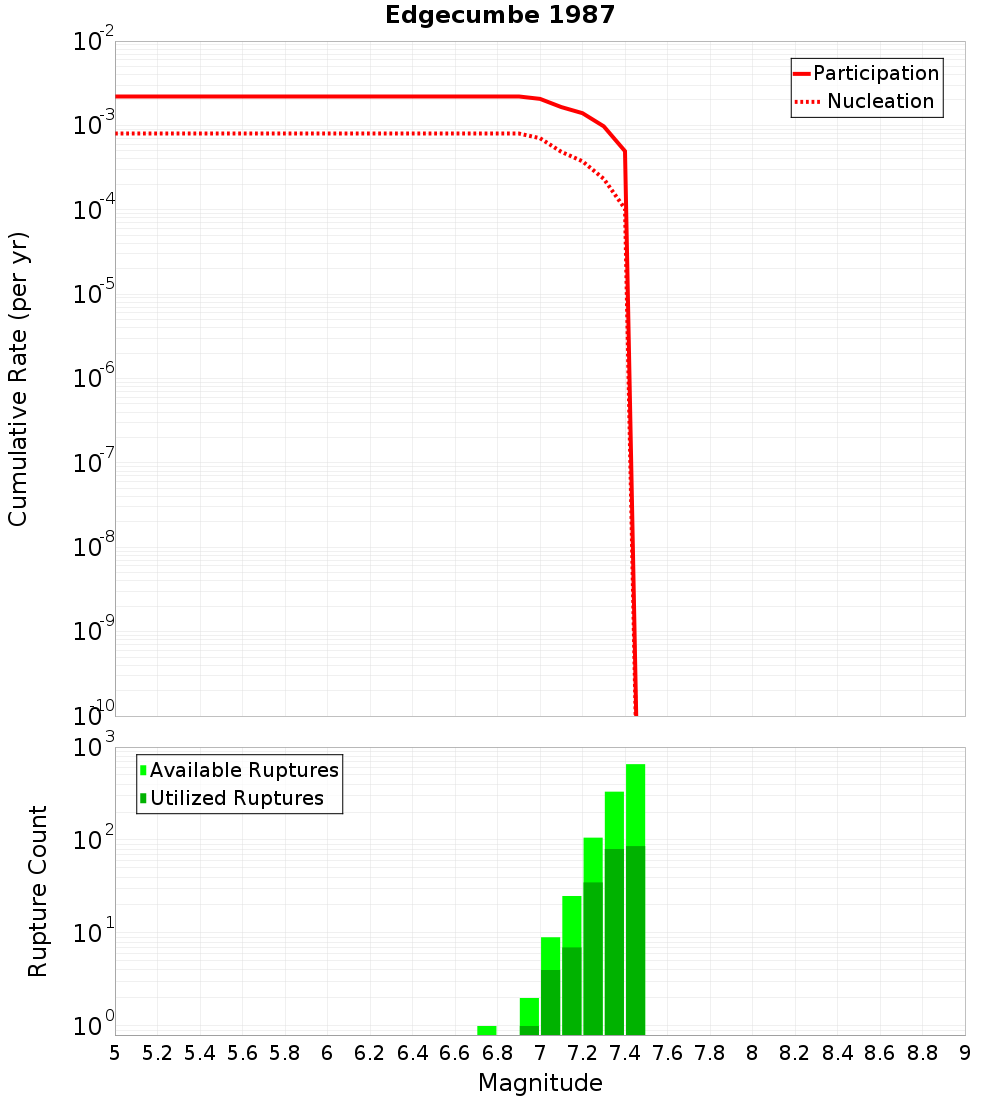

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

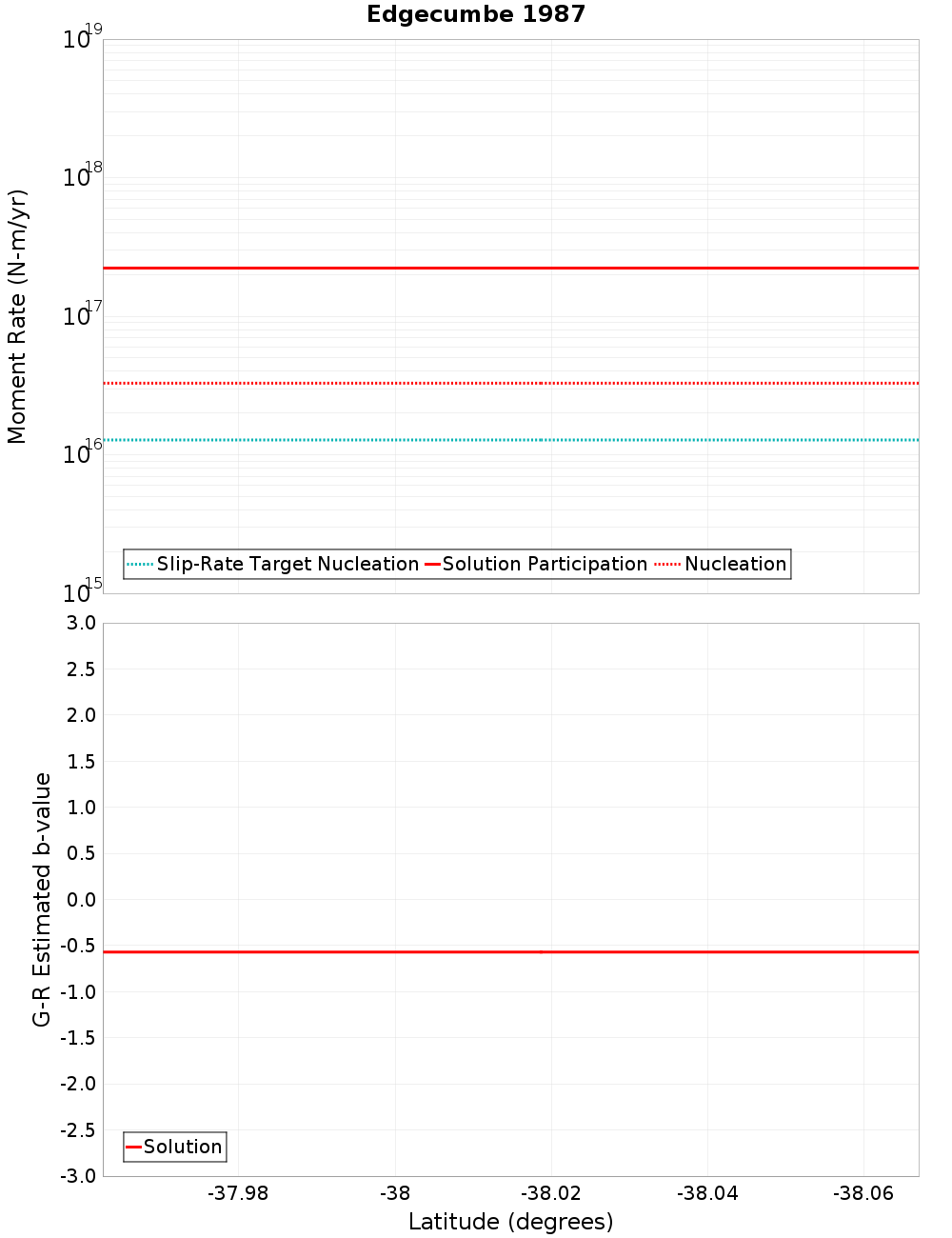

Moment-Rates and b-Values

(top)

Along-strike plot

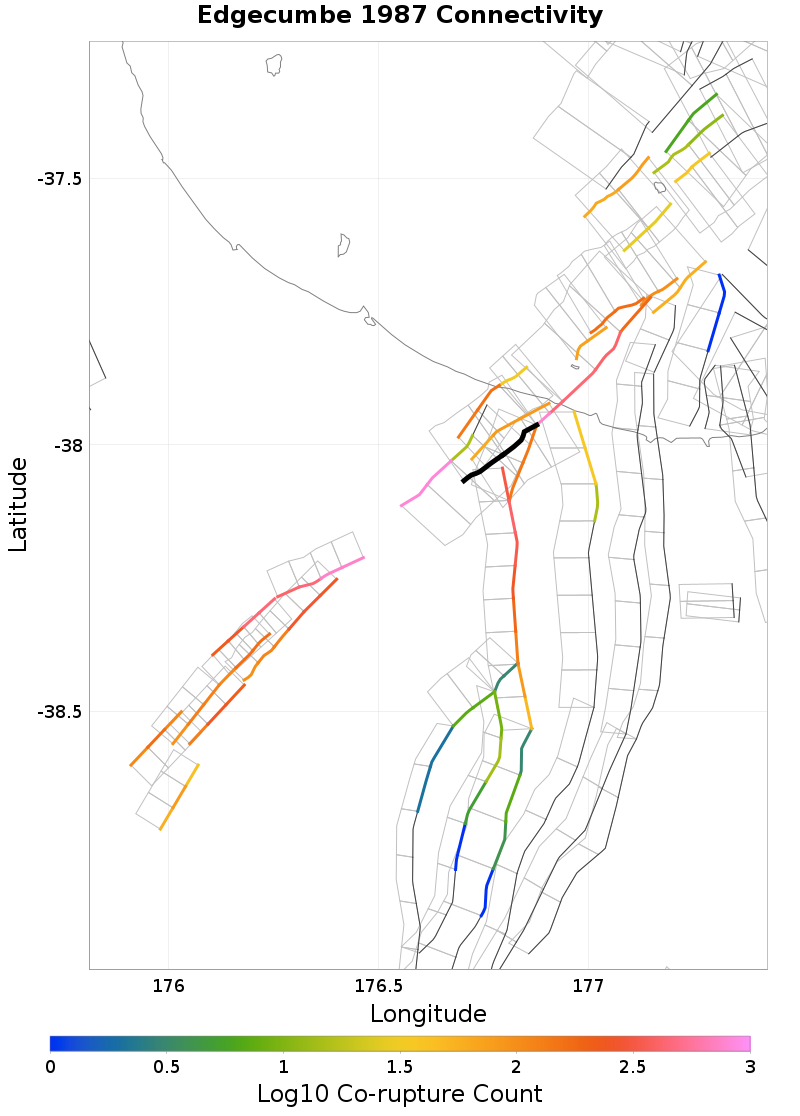

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?false
Co-rupture Count143
Co-rupture Rate1.1437415E-4

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?true
Co-rupture Count762
Co-rupture Rate0.0014824779

Otakiri, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?false
Co-rupture Count82
Co-rupture Rate2.3256041E-4

Matata, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?false
Co-rupture Count158
Co-rupture Rate2.6128333E-4

Braemar, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?true
Co-rupture Count819
Co-rupture Rate5.593929E-4

Waiohau: North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?true
Co-rupture Count420
Co-rupture Rate3.3329325E-4

White Island 1, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?true
Co-rupture Count438
Co-rupture Rate7.3074235E-4

Whakatane: North, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?false
Co-rupture Count35
Co-rupture Rate1.06900436E-4

Rangitaiki 1, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTQuMEFQekJ1
Connected?true
Directly Connected?false
Co-rupture Count72
Co-rupture Rate5.5602373E-4
