Calypso 2 Details

PropertyValue
Rupture Count267
Ruptures Above Sect Min Mag267
Ruptures w/ Nonzero Rates13
Magnitude Range[6.72, 7.50]
Length Range[14, 108] km
Total Rate5.7136716E-4 /yr
Multi-Fault Rate5.446342E-4 /yr (95.32%)
Directly-Connected Faults3
All Co-Rupturing Faults21

Table Of Contents

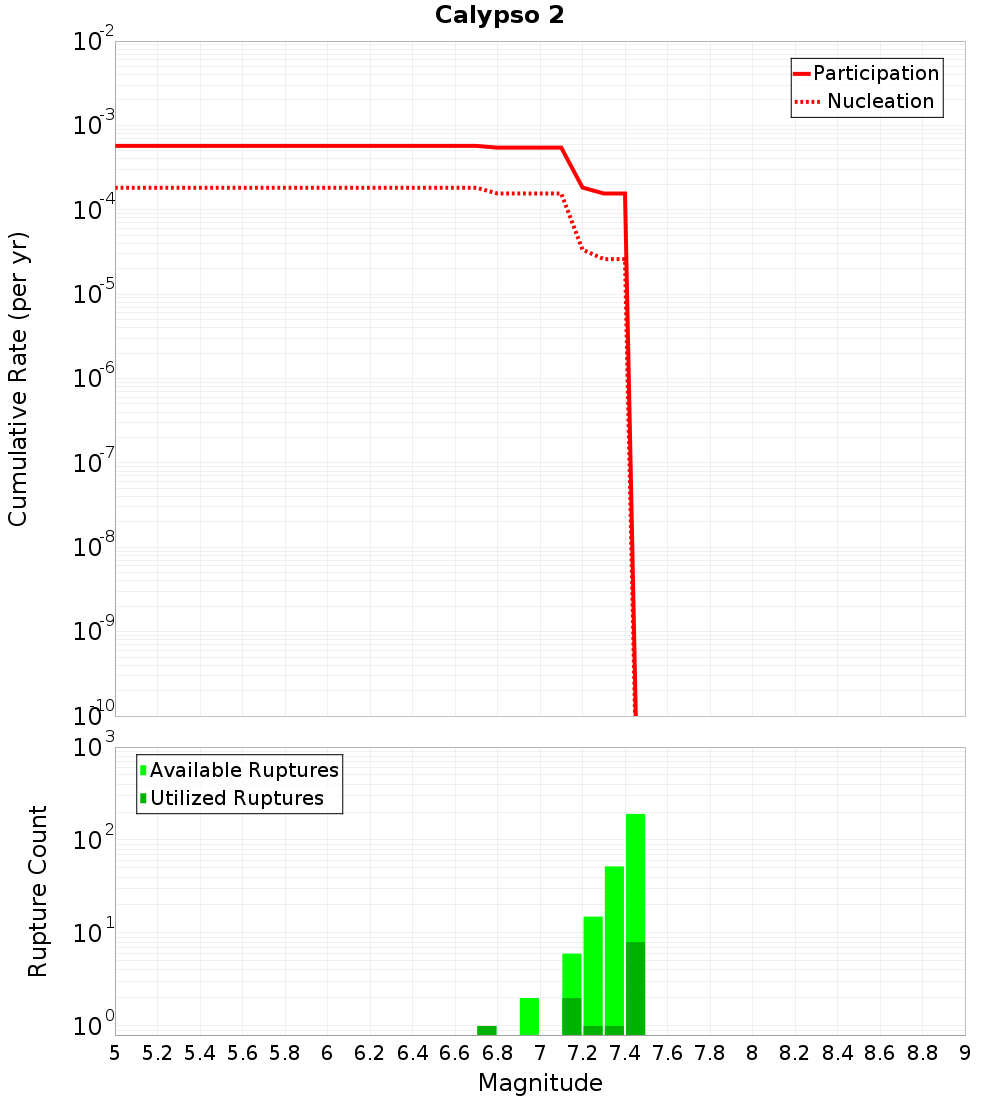

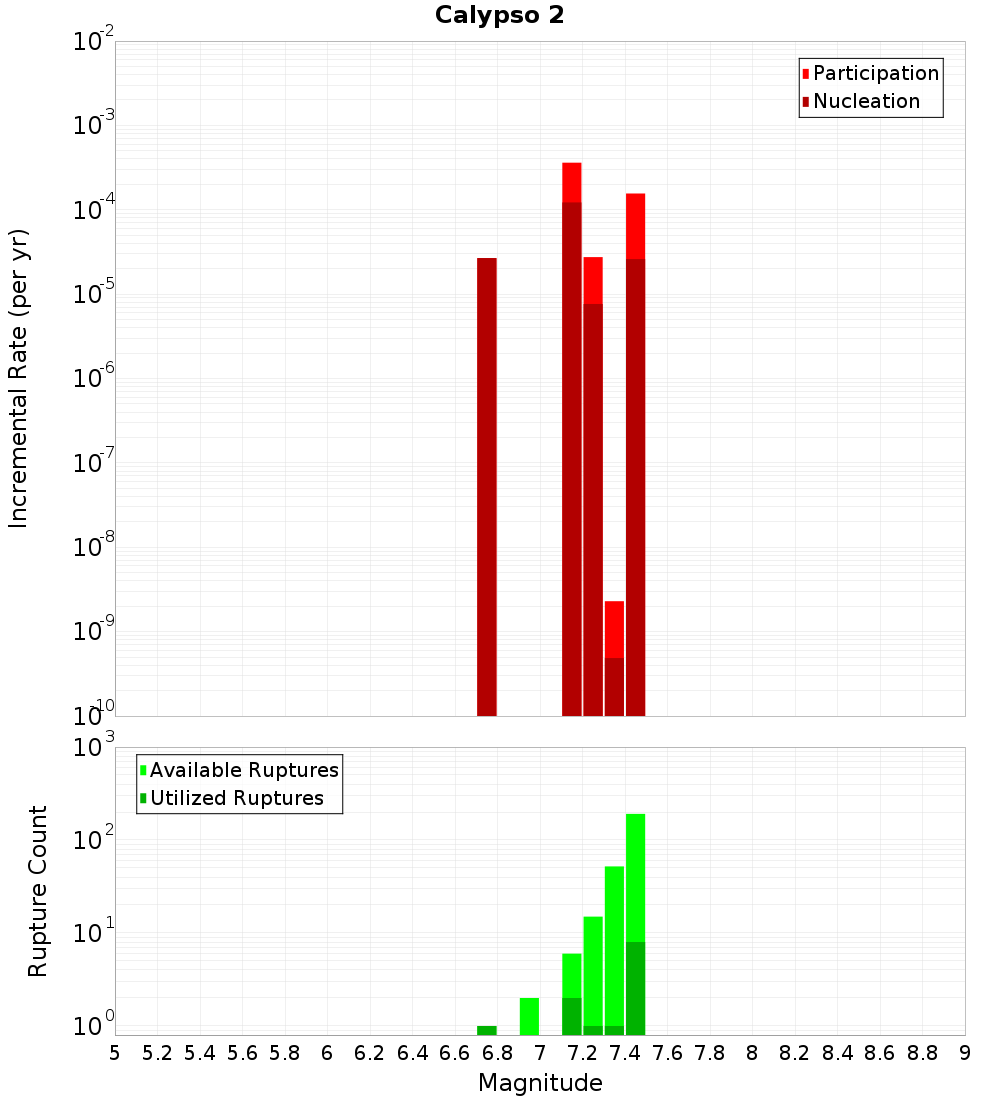

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

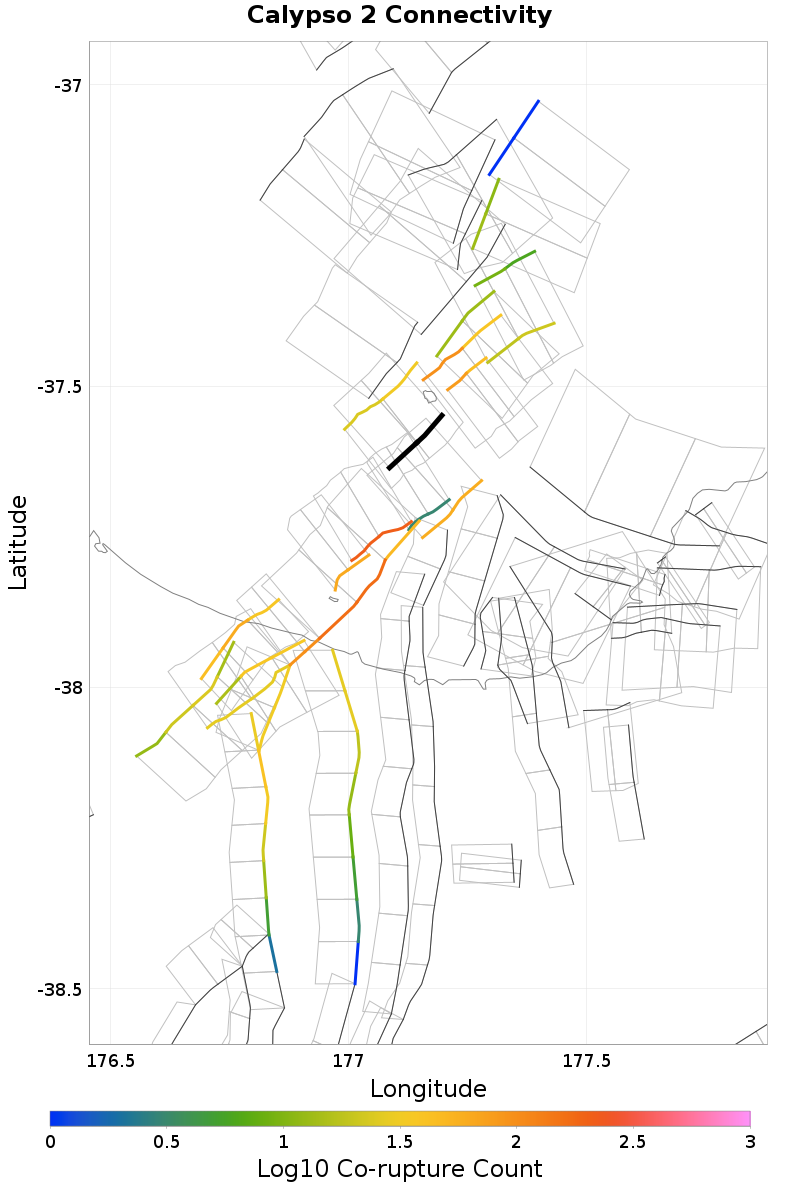

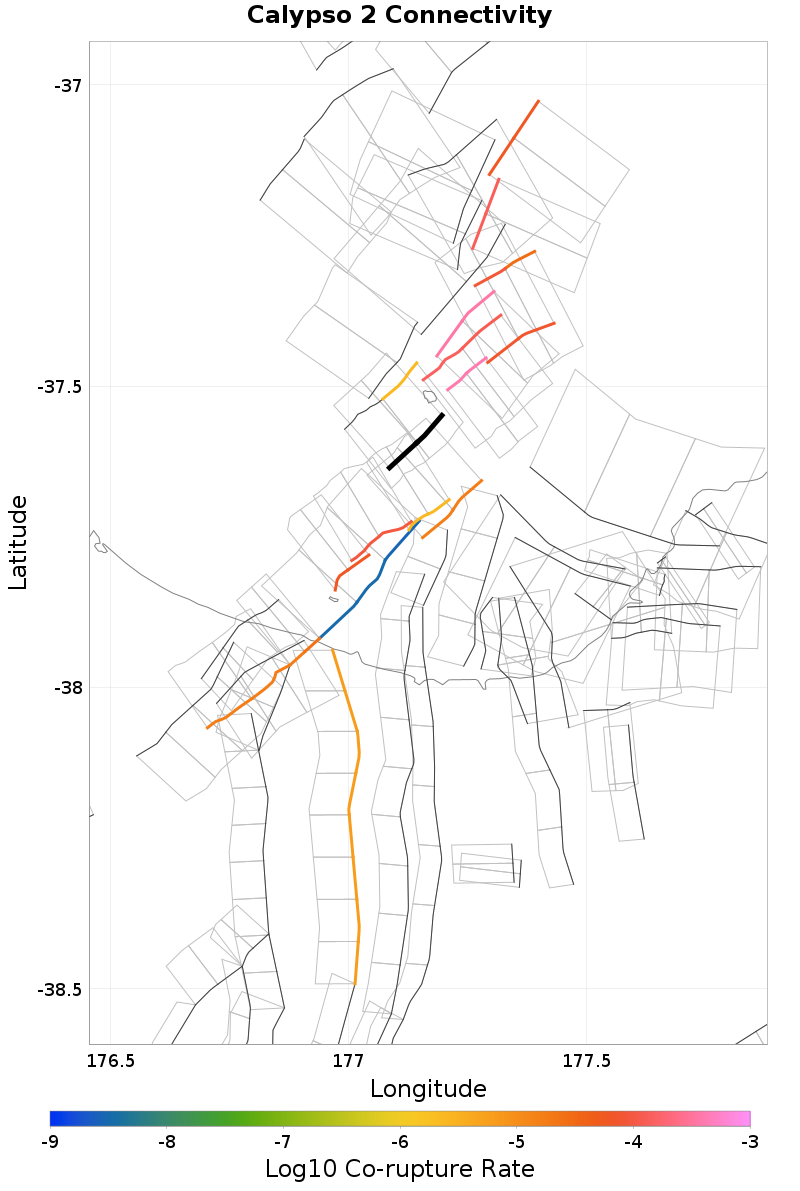

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Whakaari 4, 0.2 km awayVolkner 4, 11.95 km away
Te Arawa 1, 1.54 km awayTuatoru 2, 12.9 km away
Tuatoru 1, 3.86 km awayRangitaiki 1, 14.65 km away
Te Arawa 2, 6.99 km awayWaimanawa - Waikaremoana, 14.96 km away
Rangitaiki 2, 8.01 km awayOpotiki 3, 16.55 km away
Ohiwa 1, 8.32 km awayTuakana 6, 17.76 km away
White Island 1, 8.93 km awayOhae 1, 17.8 km away
Volkner 3, 9.04 km awayTe Arawa 3, 18.58 km away
White Island 2, 10.04 km awayHariki, 18.86 km away

Whakaari 4, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count32
Co-rupture Rate2.4030735E-6

Te Arawa 1, 1.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?true
Co-rupture Count96
Co-rupture Rate1.4451945E-4

Tuatoru 1, 3.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?true
Co-rupture Count79
Co-rupture Rate3.9375183E-4

Te Arawa 2, 6.99 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate3.589317E-4

Rangitaiki 2, 8.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?true
Co-rupture Count210
Co-rupture Rate9.742154E-5

Ohiwa 1, 8.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate2.4030735E-6

White Island 1, 8.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count170
Co-rupture Rate3.215136E-9

Volkner 3, 9.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 2, 10.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count60
Co-rupture Rate1.7356908E-5

Volkner 4, 11.95 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuatoru 2, 12.9 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count21
Co-rupture Rate7.370452E-5

Rangitaiki 1, 14.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count63
Co-rupture Rate5.853352E-5

Waimanawa - Waikaremoana, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 3, 16.55 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tuakana 6, 17.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 1, 17.8 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Arawa 3, 18.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate8.5875545E-5

Hariki, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
