Matata Details

Property	Value
Rupture Count	1,294
Ruptures Above Sect Min Mag	1,293
Ruptures w/ Nonzero Rates	25
Magnitude Range	[6.55, 7.50]
Length Range	[14, 136] km
Total Rate	8.8585337E-4 /yr
Multi-Fault Rate	6.951586E-4 /yr (78.47%)
Directly-Connected Faults	5
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

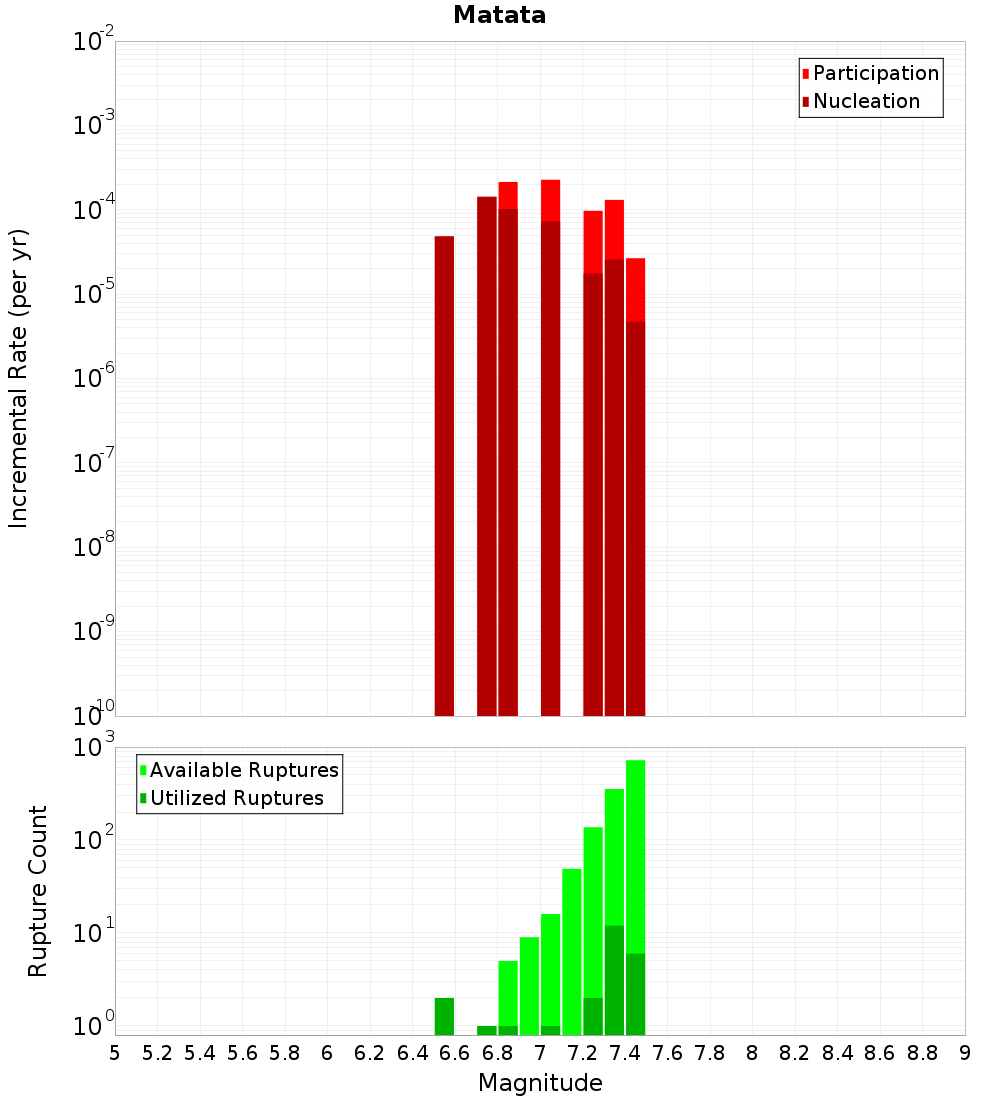

Magnitude-Frequency Distribution

Incremental	Cumulative

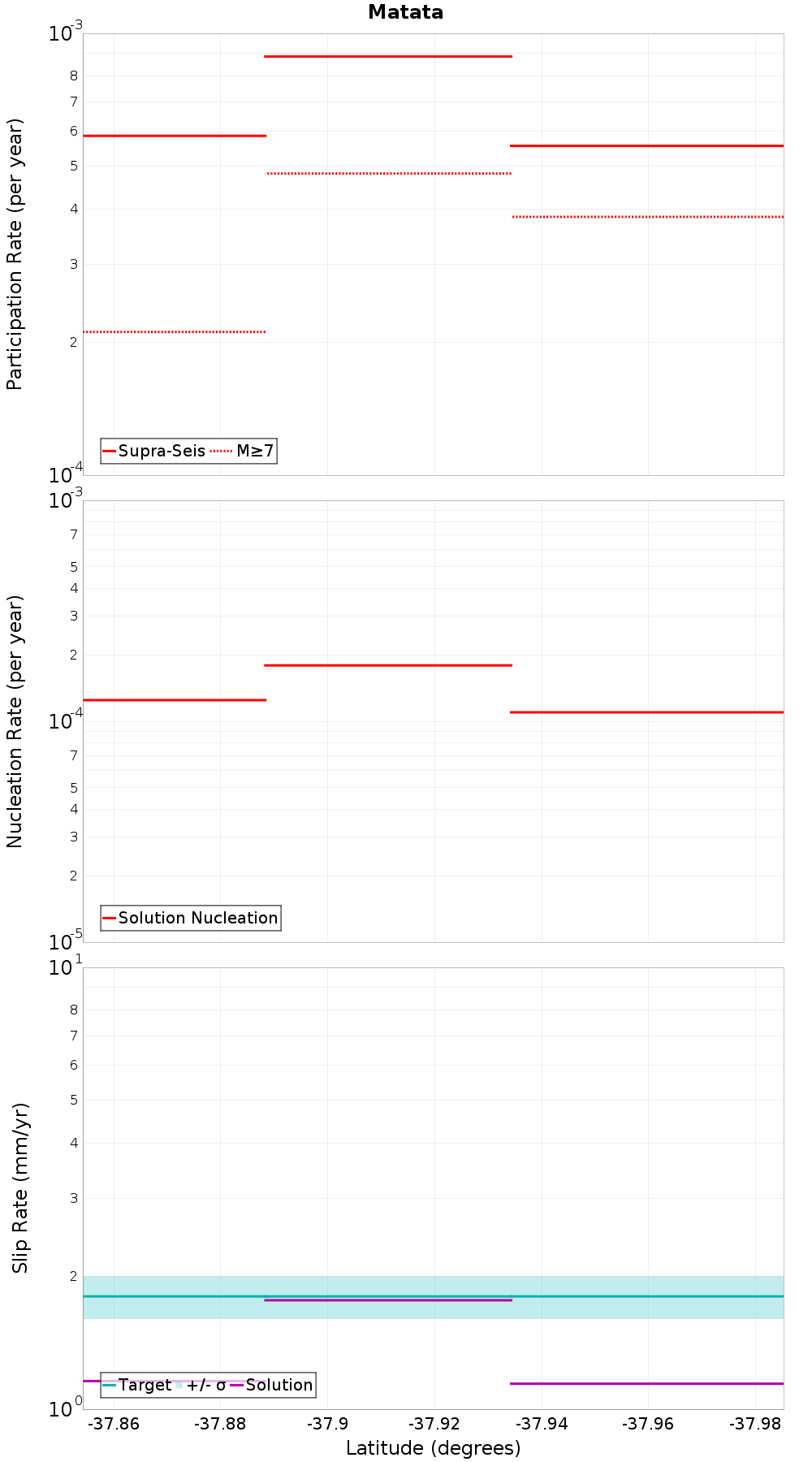

Along-Strike Values

Moment-Rates and b-Values

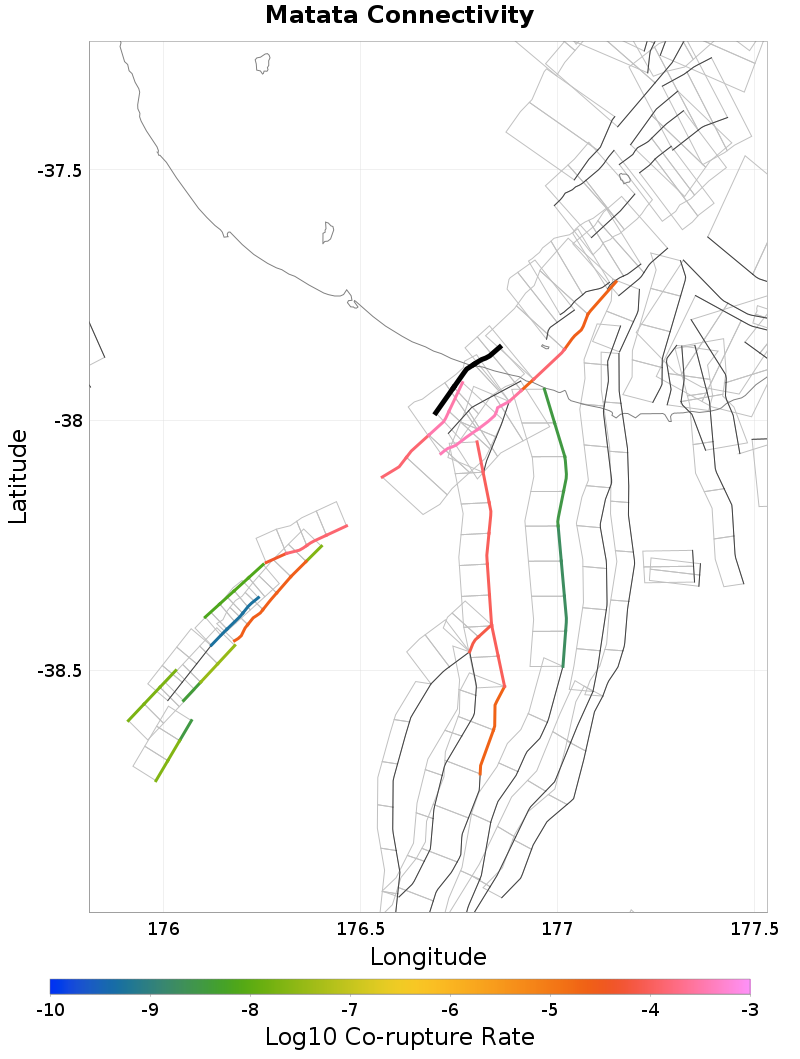

Connectivity

Nearby Sections

Fault Section
Edgecumbe Coastal, 0.14 km away
Awakeri, 0.16 km away
White Island 1, 0.2 km away
Edgecumbe 1987, 0.29 km away
Braemar, 0.98 km away
Whakatane: North, 1.44 km away
Waiohau: North, 2.01 km away
Otakiri, 4.49 km away
Rangitaiki 1, 9.11 km away
Waimana: North, 14.4 km away
Rangitaiki 2, 15.14 km away
Waimanawa - Waikaremoana, 17.19 km away
Waiotahi: North, 18.33 km away

Edgecumbe Coastal, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	414
Co-rupture Rate	2.7057718E-4

Awakeri, 0.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 1, 0.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	764
Co-rupture Rate	1.3539587E-4

Edgecumbe 1987, 0.29 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	false
Co-rupture Count	158
Co-rupture Rate	3.7919378E-4

Braemar, 0.98 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	827
Co-rupture Rate	4.455192E-4

Whakatane: North, 1.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	false
Co-rupture Count	42
Co-rupture Rate	3.2639502E-9

Waiohau: North, 2.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	421
Co-rupture Rate	1.1938633E-4

Otakiri, 4.49 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	23
Co-rupture Rate	0.0

Rangitaiki 1, 9.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	false
Co-rupture Count	98
Co-rupture Rate	0.0

Waimana: North, 14.4 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Rangitaiki 2, 15.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	false
Co-rupture Count	304
Co-rupture Rate	0.0

Waimanawa - Waikaremoana, 17.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
