Puketerata Details

Property	Value
Rupture Count	769
Ruptures Above Sect Min Mag	766
Ruptures w/ Nonzero Rates	84
Magnitude Range	[6.28, 7.50]
Length Range	[10, 139] km
Total Rate	0.0011278677 /yr
Multi-Fault Rate	0.0011278677 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	16

Table Of Contents

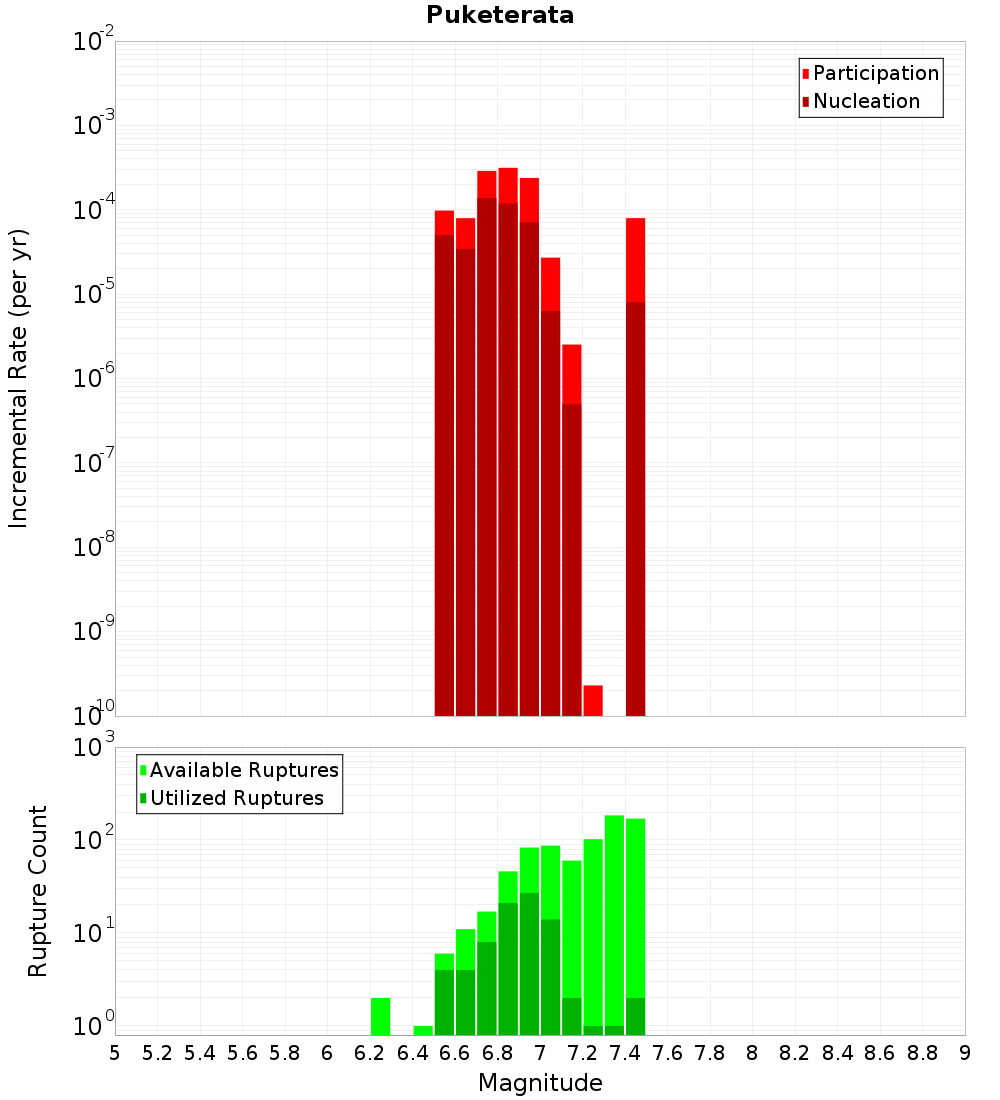

Magnitude-Frequency Distribution

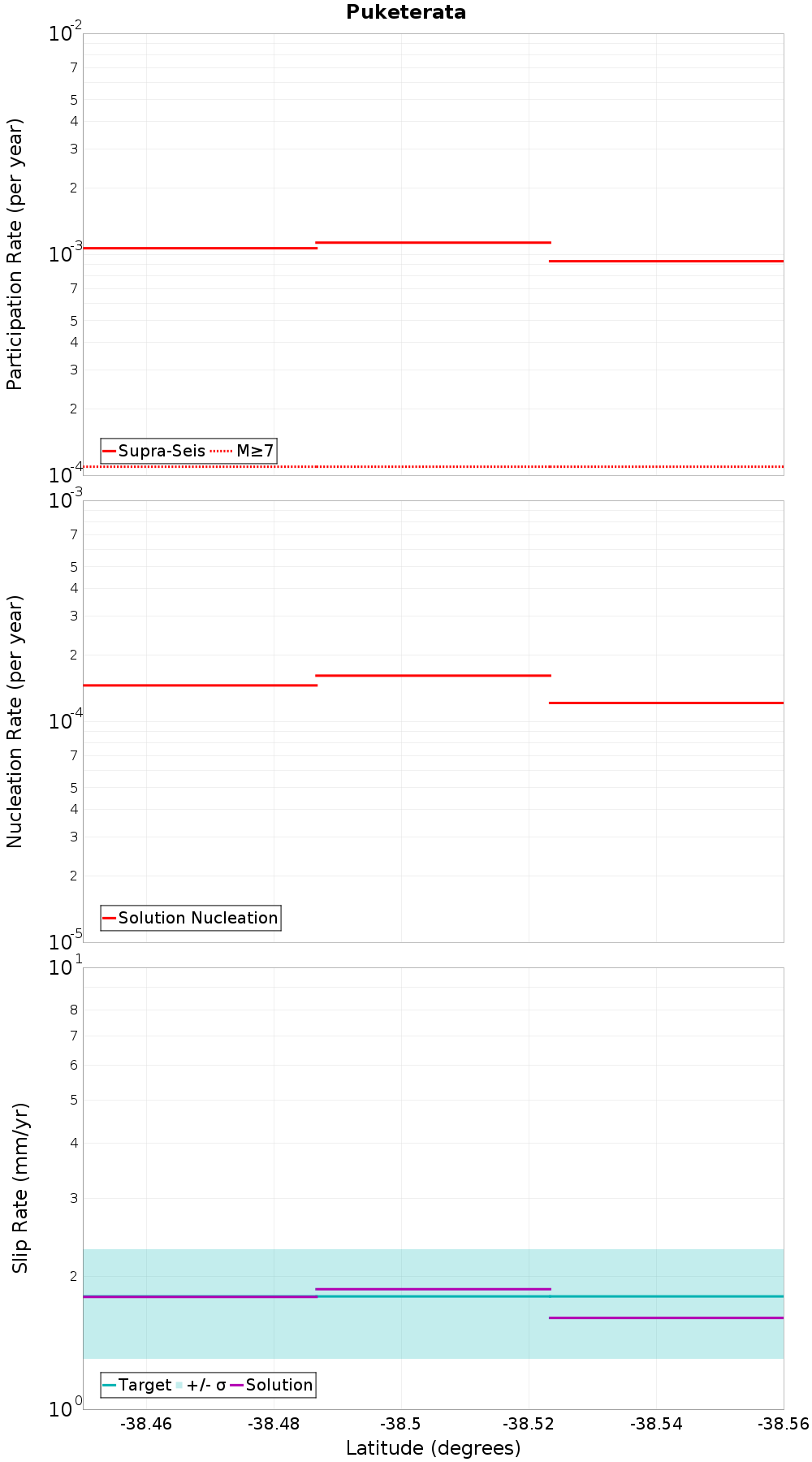

Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Puketerata North, 0.1 km away
Whangamata West, 0.11 km away
Orakeikorako, 2.41 km away
Maleme, 3.56 km away
Paeroa, 5.09 km away
Kaiapo, 5.96 km away

Puketerata North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	351
Co-rupture Rate	2.4889663E-4

Whangamata West, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	277
Co-rupture Rate	3.8552564E-4

Orakeikorako, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	102
Co-rupture Rate	1.7589048E-8

Maleme, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	526
Co-rupture Rate	6.9240463E-4

Paeroa, 5.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	382
Co-rupture Rate	3.873763E-4

Kaiapo, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NTUuMG55d2JO
Connected?	true
Directly Connected?	true
Co-rupture Count	202
Co-rupture Rate	3.223979E-4
