Edgecumbe Coastal Details

Property	Value
Rupture Count	1,844
Ruptures Above Sect Min Mag	1,843
Ruptures w/ Nonzero Rates	175
Magnitude Range	[6.44, 7.50]
Length Range	[7, 136] km
Total Rate	0.0019058195 /yr
Multi-Fault Rate	0.0019058195 /yr (100.00%)
Directly-Connected Faults	8
All Co-Rupturing Faults	36

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

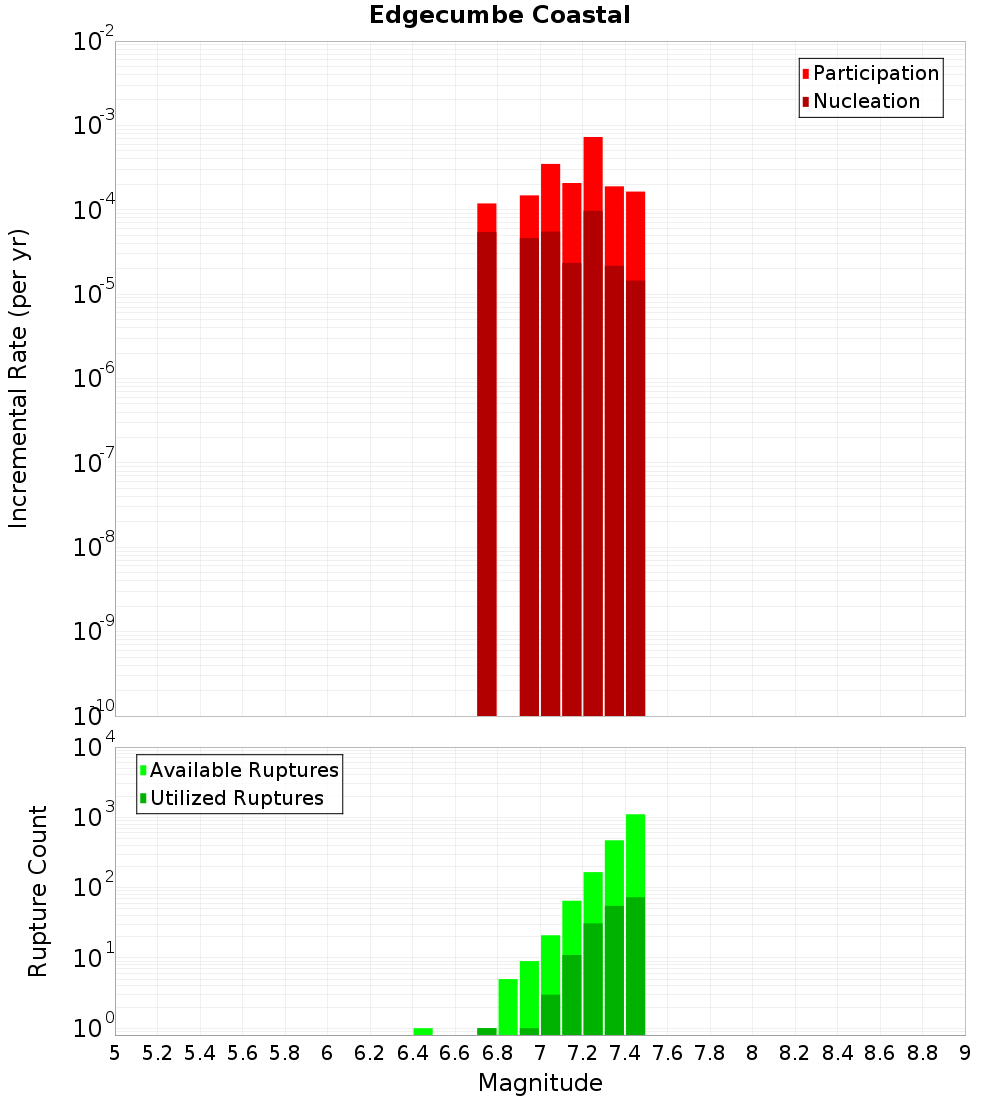

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

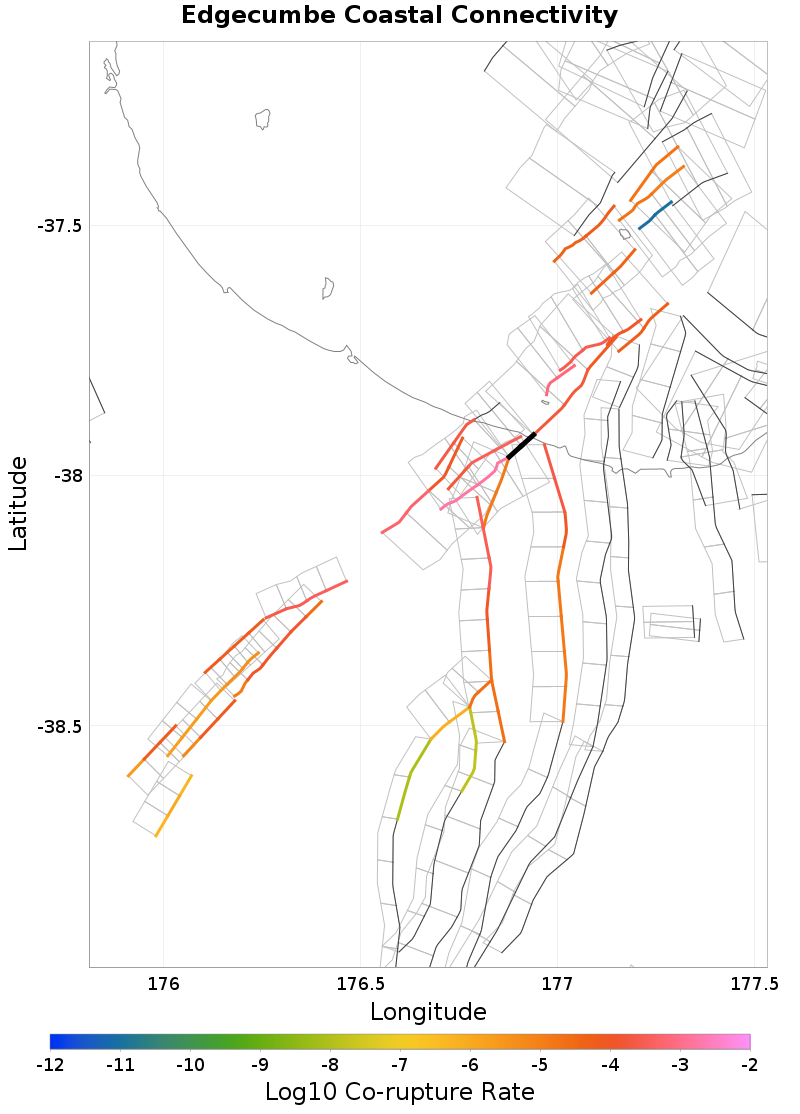

Connectivity

Nearby Sections

Fault Section
White Island 1, 0 km away
Edgecumbe 1987, 0 km away
Awakeri, 0 km away
Otakiri, 0.1 km away
Matata, 0.14 km away
Whakatane: North, 3.09 km away
Braemar, 4.62 km away
Rangitaiki 1, 8.81 km away
Waiohau: North, 11.47 km away
Rangitaiki 2, 14.83 km away
Waimana: North, 15.94 km away
Waiotahi: North, 18.75 km away
Waimanawa - Waikaremoana, 19.37 km away

White Island 1, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	784
Co-rupture Rate	1.9613885E-4

Edgecumbe 1987, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	762
Co-rupture Rate	0.0016084176

Awakeri, 0 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	466
Co-rupture Rate	1.4673945E-5

Otakiri, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	148
Co-rupture Rate	3.4134684E-4

Matata, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	414
Co-rupture Rate	2.223982E-4

Whakatane: North, 3.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	100
Co-rupture Rate	2.2595943E-4

Braemar, 4.62 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	1,079
Co-rupture Rate	5.1126885E-4

Rangitaiki 1, 8.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	true
Co-rupture Count	400
Co-rupture Rate	7.301191E-4

Waiohau: North, 11.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	false
Co-rupture Count	638
Co-rupture Rate	3.2477404E-4

Rangitaiki 2, 14.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	true
Directly Connected?	false
Co-rupture Count	576
Co-rupture Rate	2.9413815E-4

Waimana: North, 15.94 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waiotahi: North, 18.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Waimanawa - Waikaremoana, 19.37 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMEdDTFVh
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
