Waiohau: North Details

PropertyValue
Rupture Count2,780
Ruptures Above Sect Min Mag2,767
Ruptures w/ Nonzero Rates176
Magnitude Range[6.50, 8.27]
Length Range[14, 521] km
Total Rate0.0012022539 /yr
Multi-Fault Rate0.0012022539 /yr (100.00%)
Directly-Connected Faults10
All Co-Rupturing Faults67

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

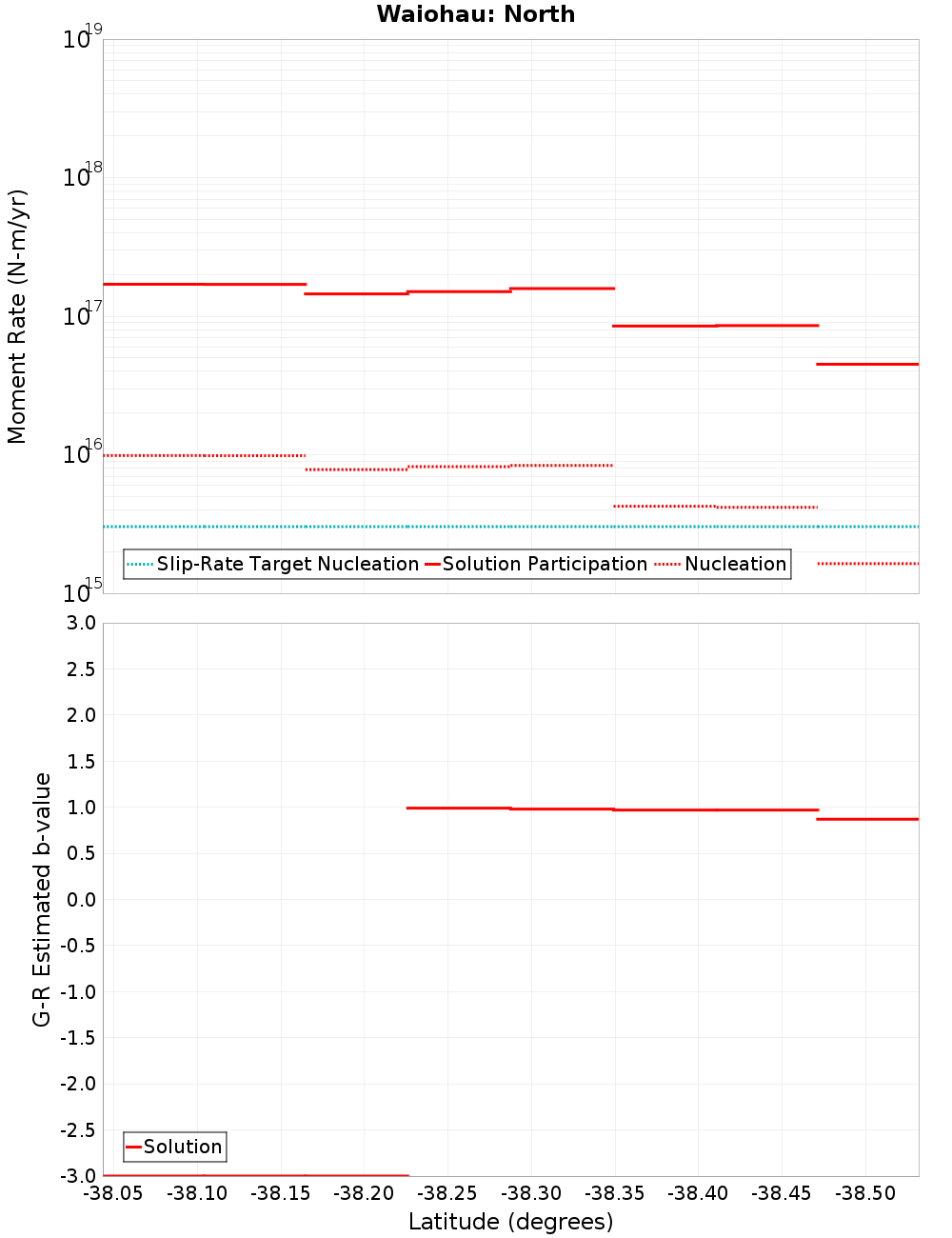

Moment-Rates and b-Values

(top)

Along-strike plot

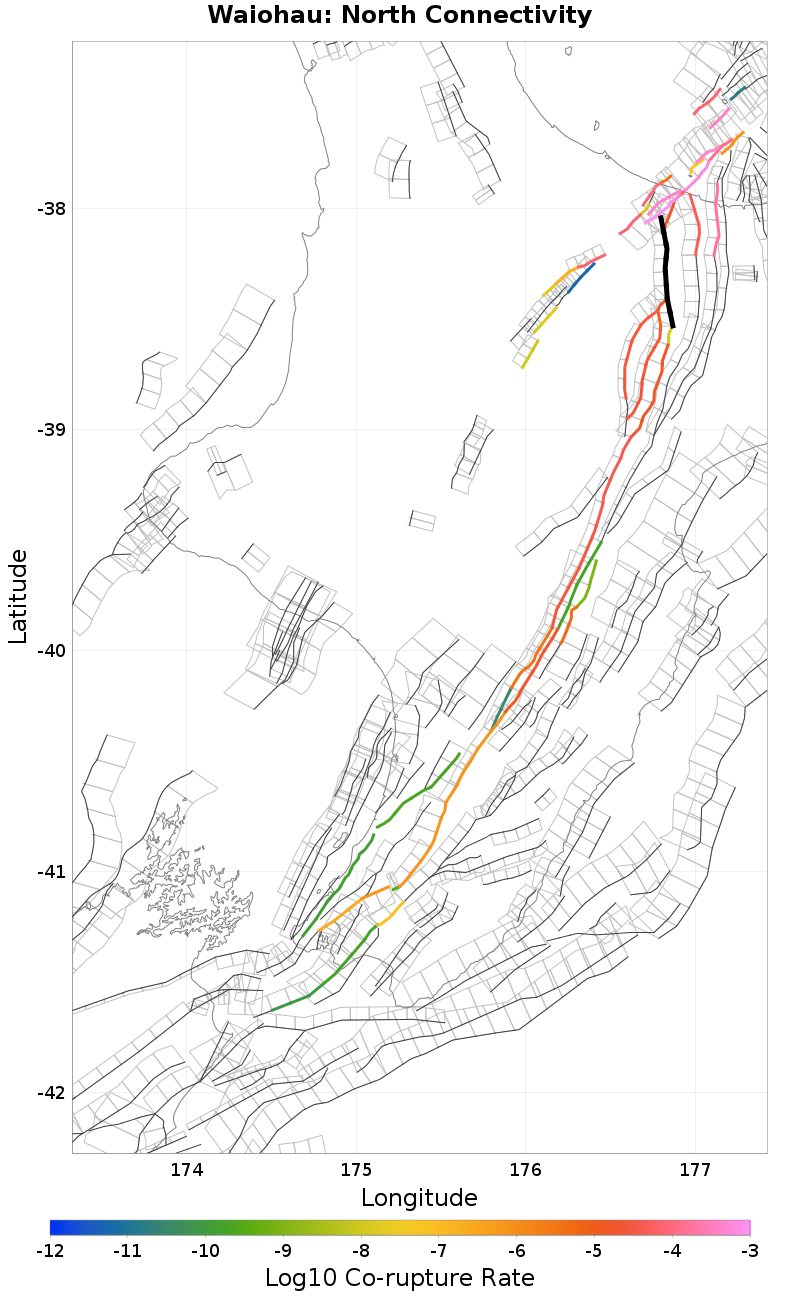

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Waiohau: South, 0 km awayWheao: North, 2.44 km away
Awakeri, 0.13 km awayWhakatane: South, 11.09 km away
Te Whaiti North, 0.16 km awayEdgecumbe Coastal, 11.47 km away
Braemar, 0.22 km awayWheao: South, 11.7 km away
Otakiri, 0.39 km awayWhakatane: North, 12.32 km away
Te Whaiti South, 1.94 km awayWaimana: South, 17.98 km away
Matata, 2.01 km awayWhite Island 1, 18.73 km away
Edgecumbe 1987, 2.18 km awayWaimana: North, 18.89 km away

Waiohau: South, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count699
Co-rupture Rate1.788579E-5

Awakeri, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count431
Co-rupture Rate1.8673036E-5

Te Whaiti North, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate1.1372758E-5

Braemar, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count500
Co-rupture Rate7.688622E-5

Otakiri, 0.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count238
Co-rupture Rate4.4194472E-4

Te Whaiti South, 1.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count893
Co-rupture Rate2.6016869E-5

Matata, 2.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count419
Co-rupture Rate9.937886E-5

Edgecumbe 1987, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count418
Co-rupture Rate8.9284906E-4

Wheao: North, 2.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count106
Co-rupture Rate3.2042502E-5

Whakatane: South, 11.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Edgecumbe Coastal, 11.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?false
Co-rupture Count637
Co-rupture Rate3.7496813E-4

Wheao: South, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?false
Co-rupture Count66
Co-rupture Rate2.8052526E-5

Whakatane: North, 12.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?true
Co-rupture Count111
Co-rupture Rate4.957798E-5

Waimana: South, 17.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

White Island 1, 18.73 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?false
Co-rupture Count514
Co-rupture Rate5.836319E-4

Waimana: North, 18.89 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NjAuMHZQVmNB
Connected?true
Directly Connected?false
Co-rupture Count61
Co-rupture Rate1.891731E-4
