Murphys Creek Details

PropertyValue
Rupture Count61
Ruptures Above Sect Min Mag60
Ruptures w/ Nonzero Rates8
Magnitude Range[6.99, 8.00]
Length Range[22, 209] km
Total Rate1.5810487E-5 /yr
Multi-Fault Rate1.3817288E-5 /yr (87.39%)
Directly-Connected Faults5
All Co-Rupturing Faults16

Table Of Contents

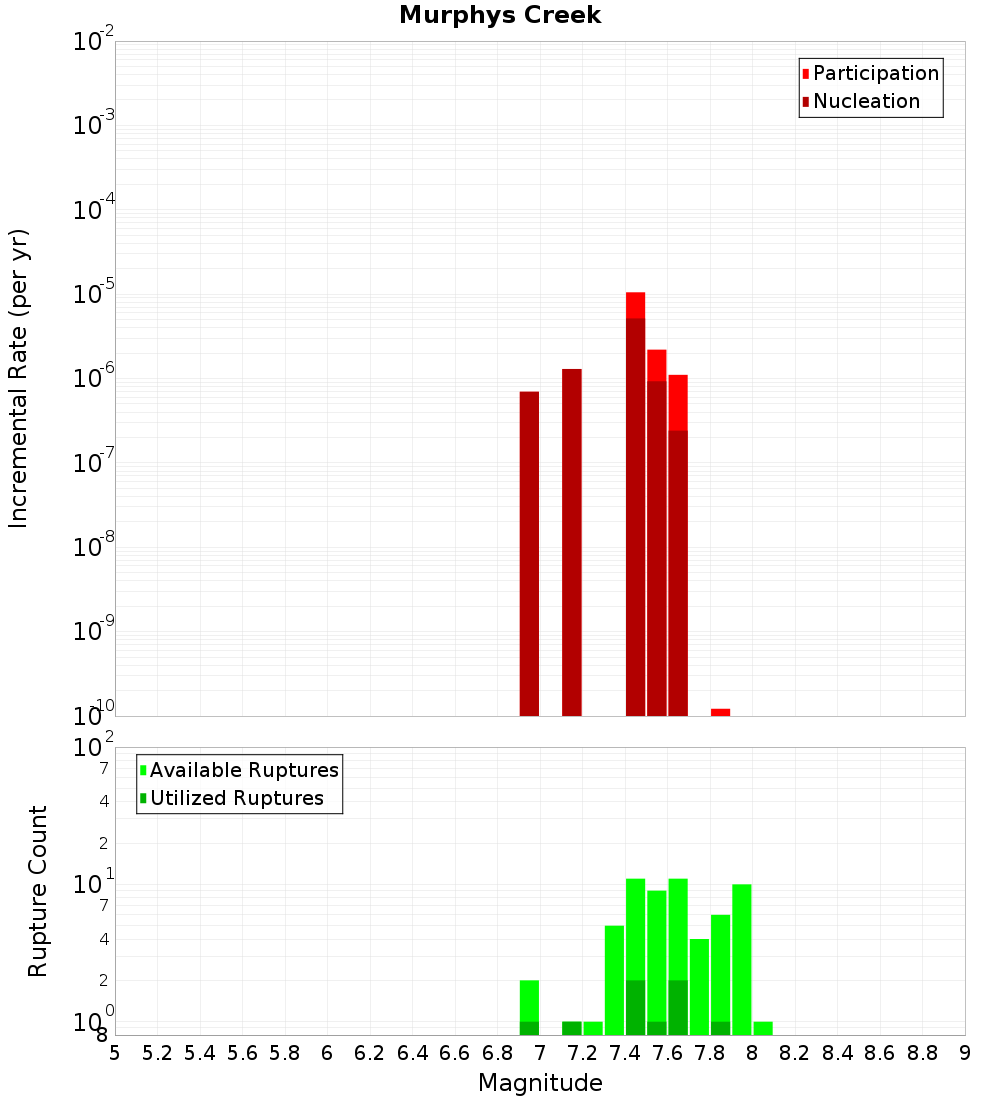

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

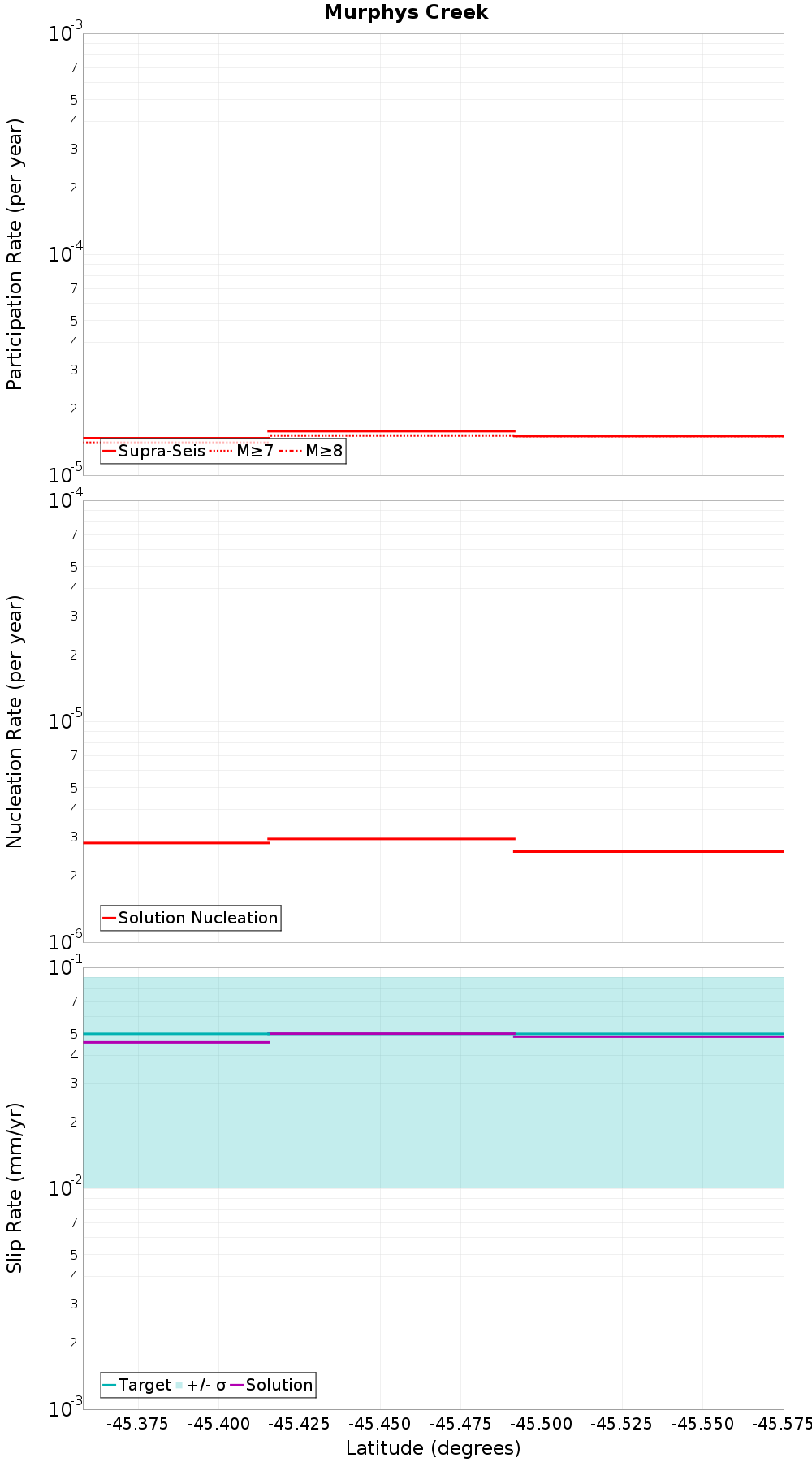

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Waipiata, 0.21 km away
Ranfurly, 0.76 km away
Billys Ridge, 2.04 km away
Dunback Hill, 2.53 km away
Waihemo, 3.71 km away
Logan Burn, 4.58 km away
Horse Flat, 5.19 km away
Pylap, 6.31 km away
Flat Stream - Glenpark, 7.18 km away
Nichols Rock, 7.39 km away
Hyde North, 12.4 km away
Long Valley, 15.93 km away
Sliver Stream - Merton, 16.29 km away
Cross Eden, 16.34 km away
Maungatua - North Taieri, 19.33 km away

Waipiata, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?true
Co-rupture Count5
Co-rupture Rate2.1989333E-6

Ranfurly, 0.76 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?true
Co-rupture Count21
Co-rupture Rate1.1054627E-6

Billys Ridge, 2.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?false
Co-rupture Count12
Co-rupture Rate3.304396E-6

Dunback Hill, 2.53 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?true
Co-rupture Count20
Co-rupture Rate8.439865E-8

Waihemo, 3.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Logan Burn, 4.58 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate7.1203846E-7

Horse Flat, 5.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?true
Co-rupture Count13
Co-rupture Rate1.0821918E-5

Pylap, 6.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?false
Co-rupture Count1
Co-rupture Rate0.0

Flat Stream - Glenpark, 7.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate0.0

Nichols Rock, 7.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?false
Co-rupture Count27
Co-rupture Rate8.439865E-8

Hyde North, 12.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate0.0

Long Valley, 15.93 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sliver Stream - Merton, 16.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Cross Eden, 16.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Maungatua - North Taieri, 19.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4NzkuMDY3THZS
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
