Cheeseman Details

PropertyValue
Rupture Count155
Ruptures Above Sect Min Mag149
Ruptures w/ Nonzero Rates6
Magnitude Range[6.48, 7.99]
Length Range[13, 318] km
Total Rate3.8155787E-5 /yr
Multi-Fault Rate3.8155787E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults17

Table Of Contents

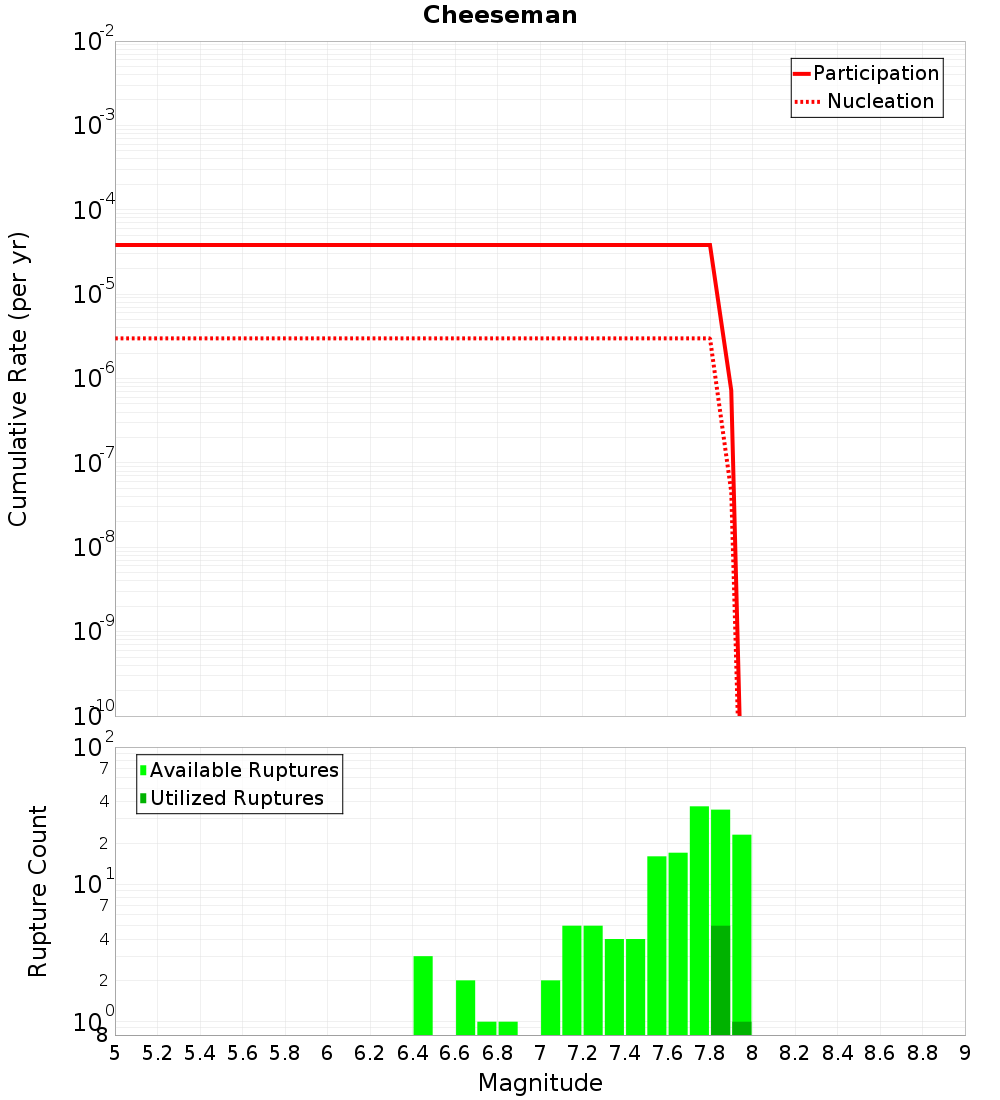

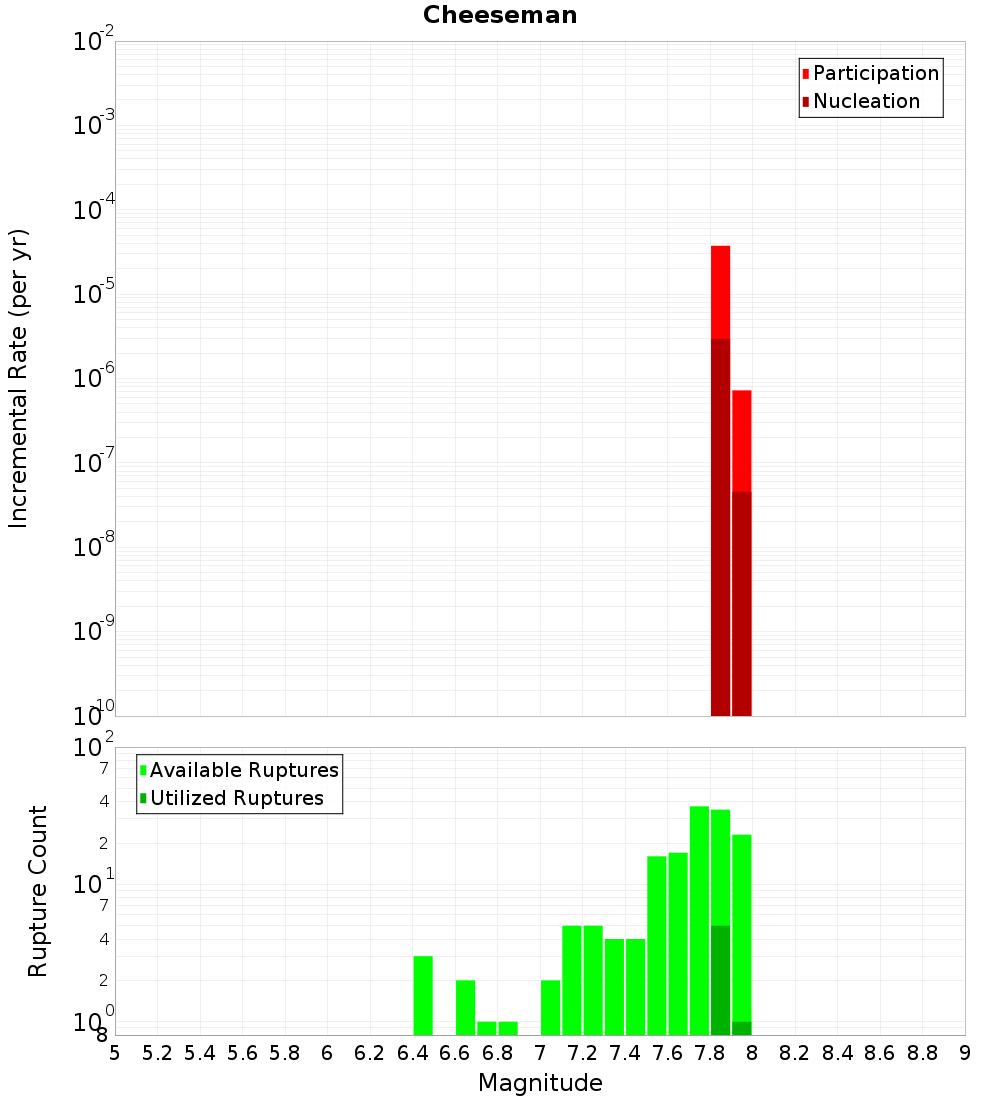

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

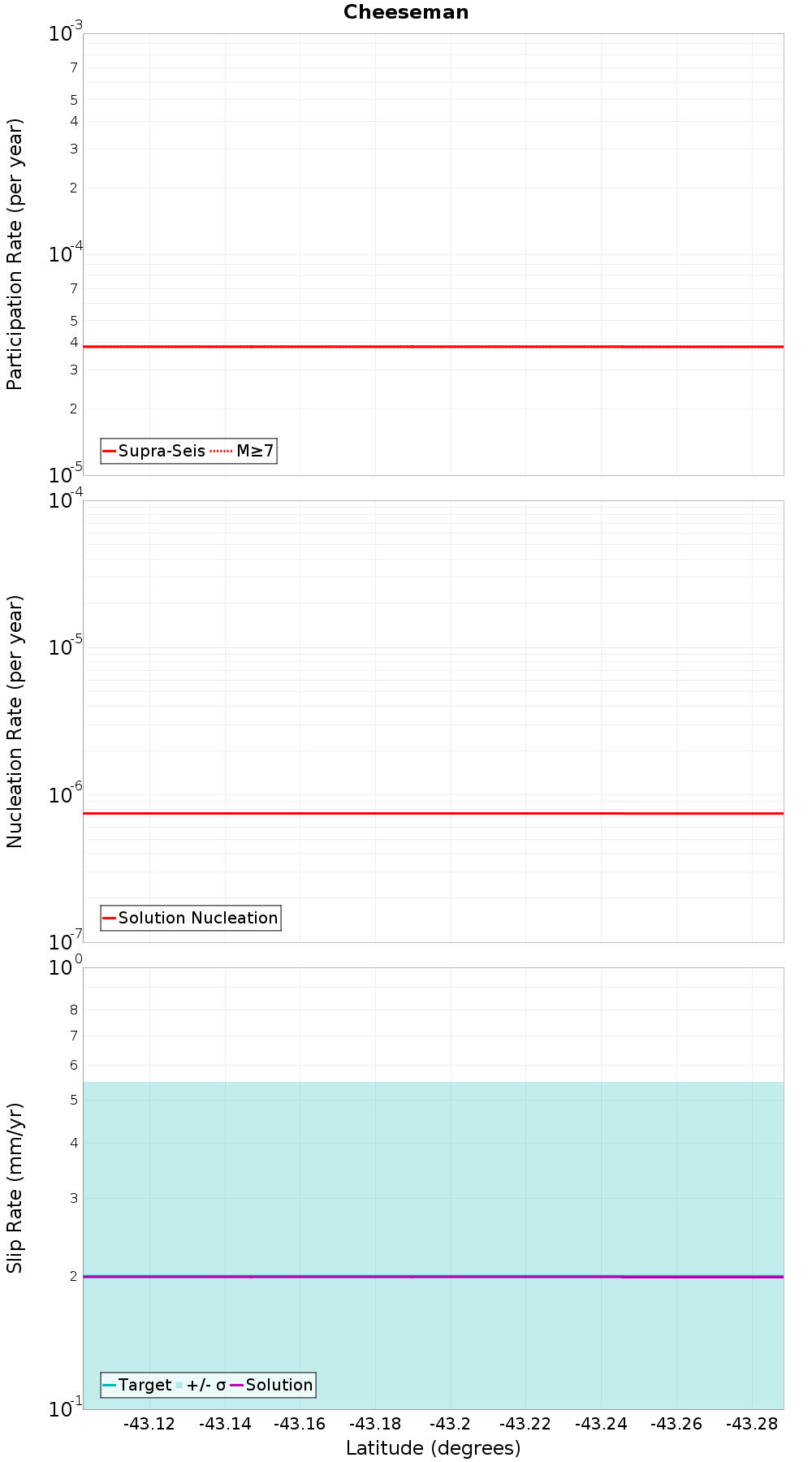

Along-Strike Values

(top)

Along-strike plot

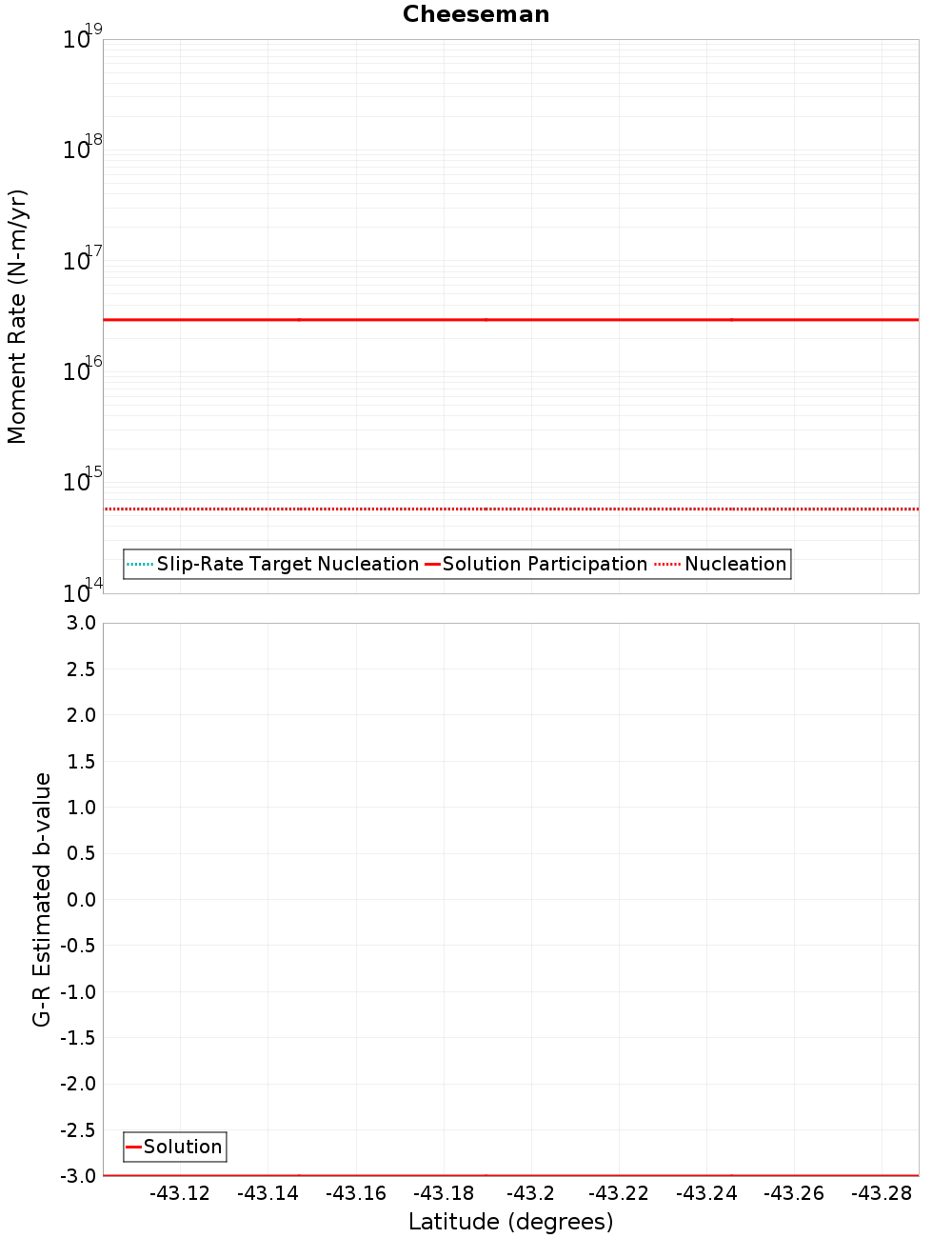

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Torlesse, 0.67 km away
Porters Pass, 3.57 km away
Sailor, 4.42 km away
Hutt Peel, 7.5 km away
Double Hill, 7.96 km away
Big Ben, 9.71 km away
Esk South, 10.29 km away
Poulter, 10.59 km away
Redcliffe, 14.96 km away
Kowai - View Hill, 15.66 km away

Torlesse, 0.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Porters Pass, 3.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Sailor, 4.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hutt Peel, 7.5 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?true
Directly Connected?true
Co-rupture Count52
Co-rupture Rate0.0

Double Hill, 7.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?true
Directly Connected?true
Co-rupture Count4
Co-rupture Rate0.0

Big Ben, 9.71 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Esk South, 10.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 10.59 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?true
Directly Connected?true
Co-rupture Count116
Co-rupture Rate3.8155787E-5

Redcliffe, 14.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kowai - View Hill, 15.66 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4ODguMFdxZmdz
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
