Puketerata Details

Property	Value
Rupture Count	1,265
Ruptures Above Sect Min Mag	1,262
Ruptures w/ Nonzero Rates	54
Magnitude Range	[6.28, 7.85]
Length Range	[10, 215] km
Total Rate	7.63271E-4 /yr
Multi-Fault Rate	7.63271E-4 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	28

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

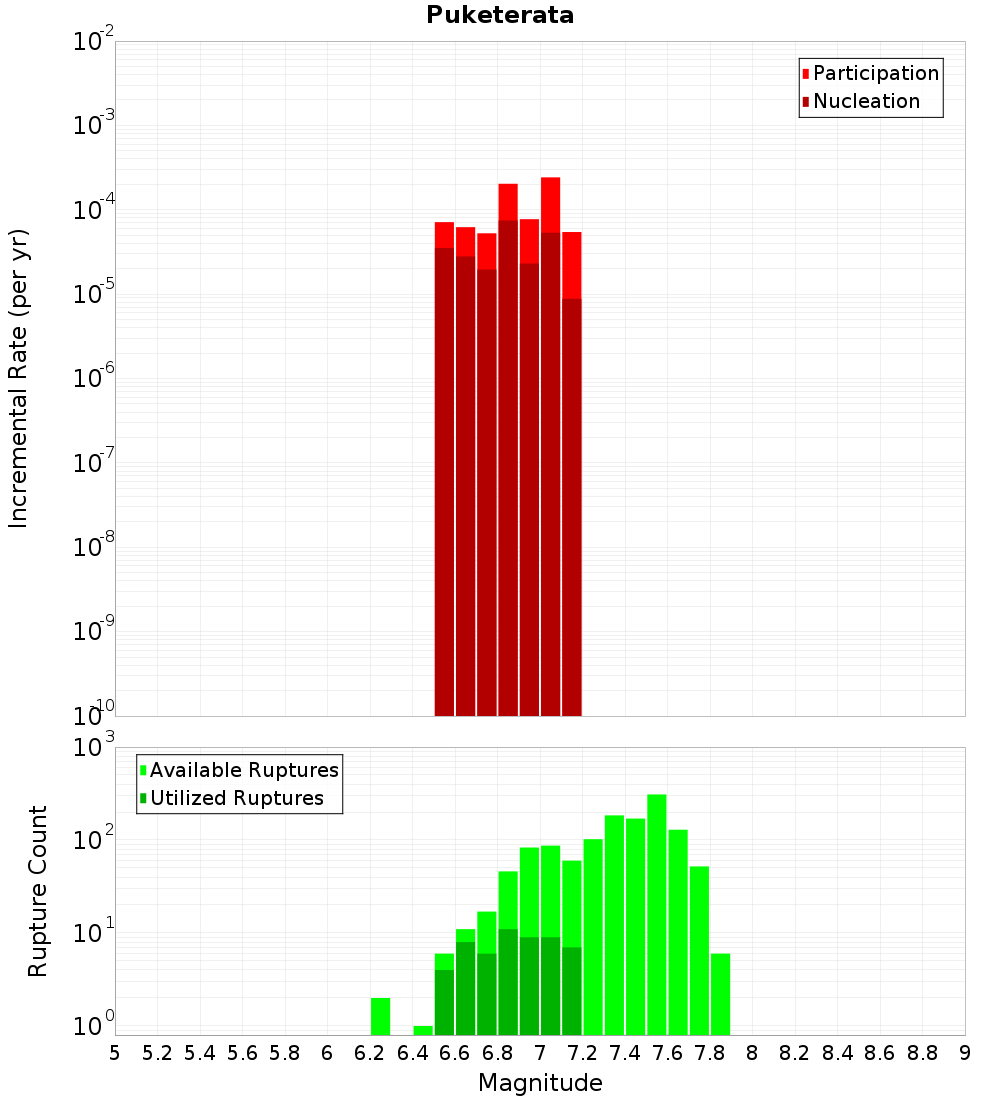

Magnitude-Frequency Distribution

Incremental	Cumulative

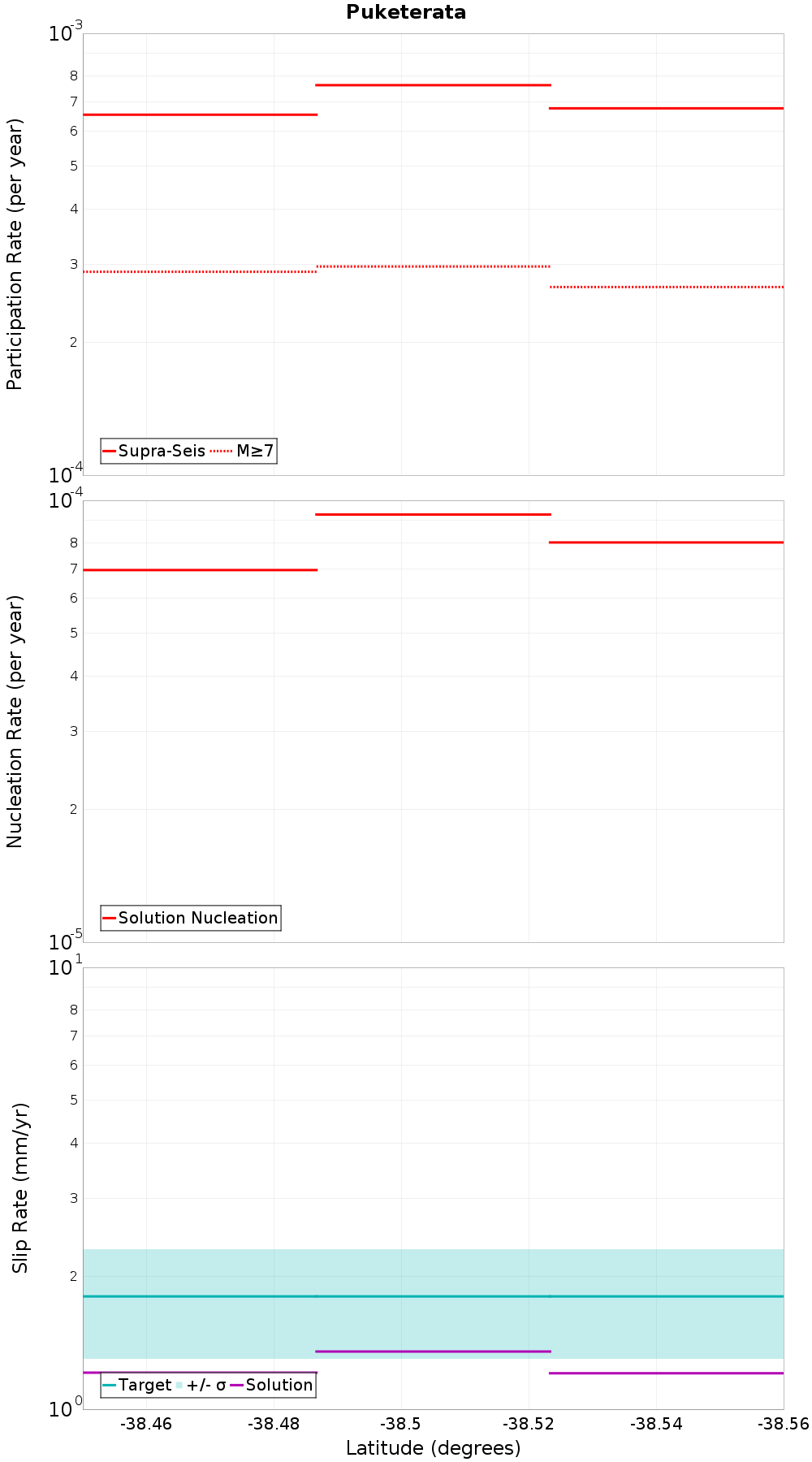

Along-Strike Values

Moment-Rates and b-Values

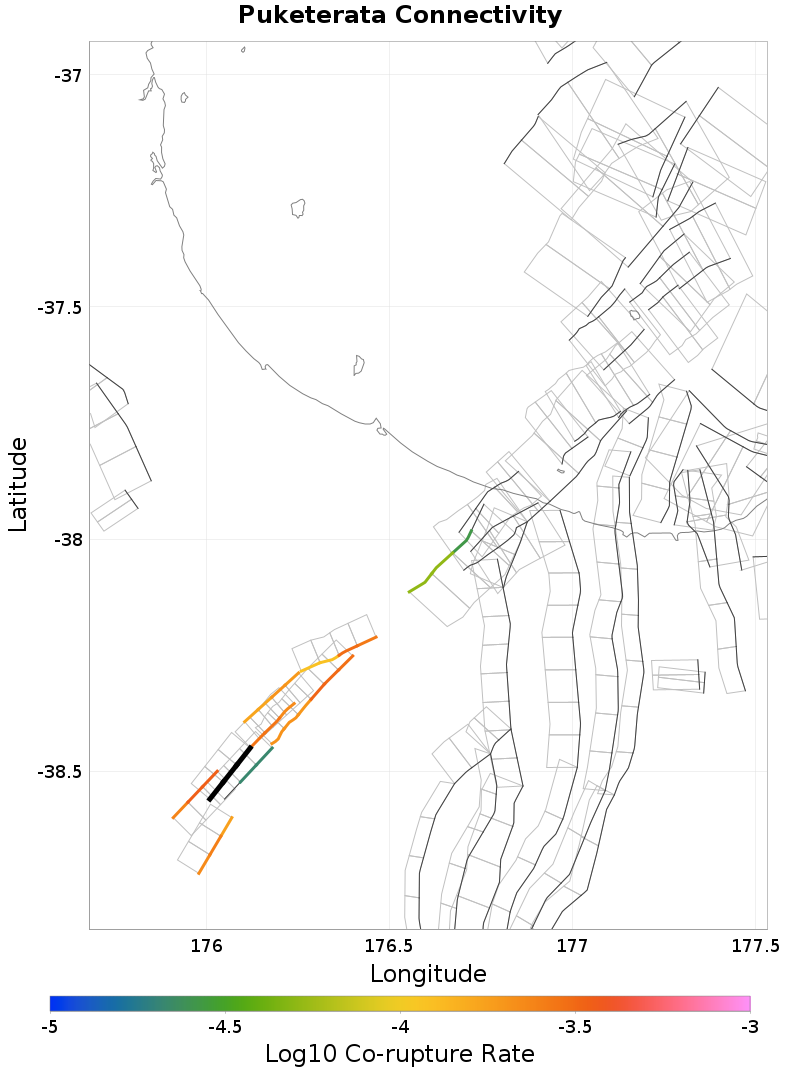

Connectivity

Nearby Sections

Fault Section
Puketerata North, 0.1 km away
Whangamata West, 0.11 km away
Orakeikorako, 2.41 km away
Maleme, 3.56 km away
Paeroa, 5.09 km away
Kaiapo, 5.96 km away

Puketerata North, 0.1 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4OTkuMFQzUm1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	663
Co-rupture Rate	2.831459E-4

Whangamata West, 0.11 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4OTkuMFQzUm1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	509
Co-rupture Rate	3.513218E-4

Orakeikorako, 2.41 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4OTkuMFQzUm1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	119
Co-rupture Rate	2.1246386E-5

Maleme, 3.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4OTkuMFQzUm1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	979
Co-rupture Rate	2.2045907E-4

Paeroa, 5.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4OTkuMFQzUm1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	561
Co-rupture Rate	3.7825567E-4

Kaiapo, 5.96 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM4OTkuMFQzUm1Q
Connected?	true
Directly Connected?	true
Co-rupture Count	276
Co-rupture Rate	2.5251257E-4
