Onepoto Details

Property	Value
Rupture Count	22
Ruptures Above Sect Min Mag	19
Ruptures w/ Nonzero Rates	5
Magnitude Range	[7.08, 7.56]
Length Range	[25, 74] km
Total Rate	1.2974873E-4 /yr
Multi-Fault Rate	3.795634E-5 /yr (29.25%)
Directly-Connected Faults	3
All Co-Rupturing Faults	3

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

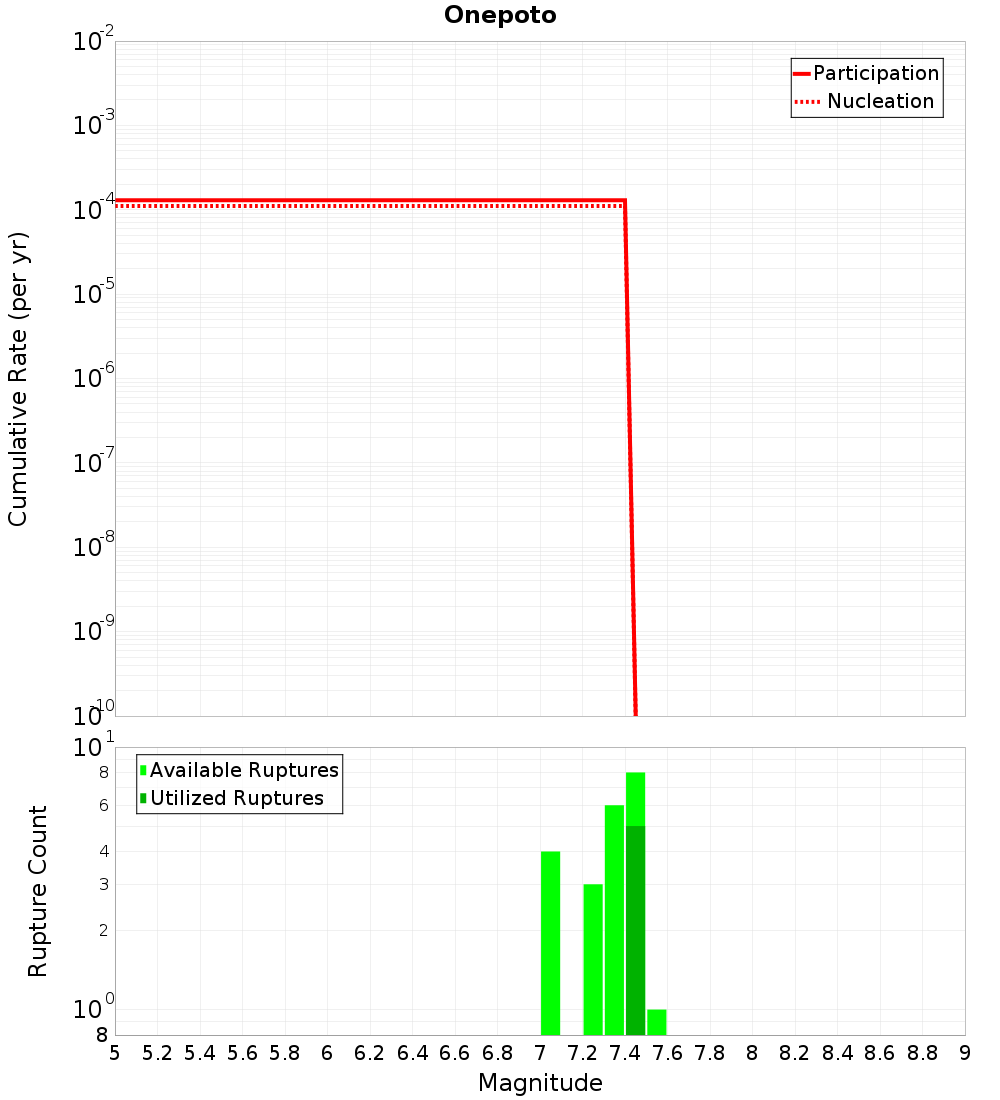

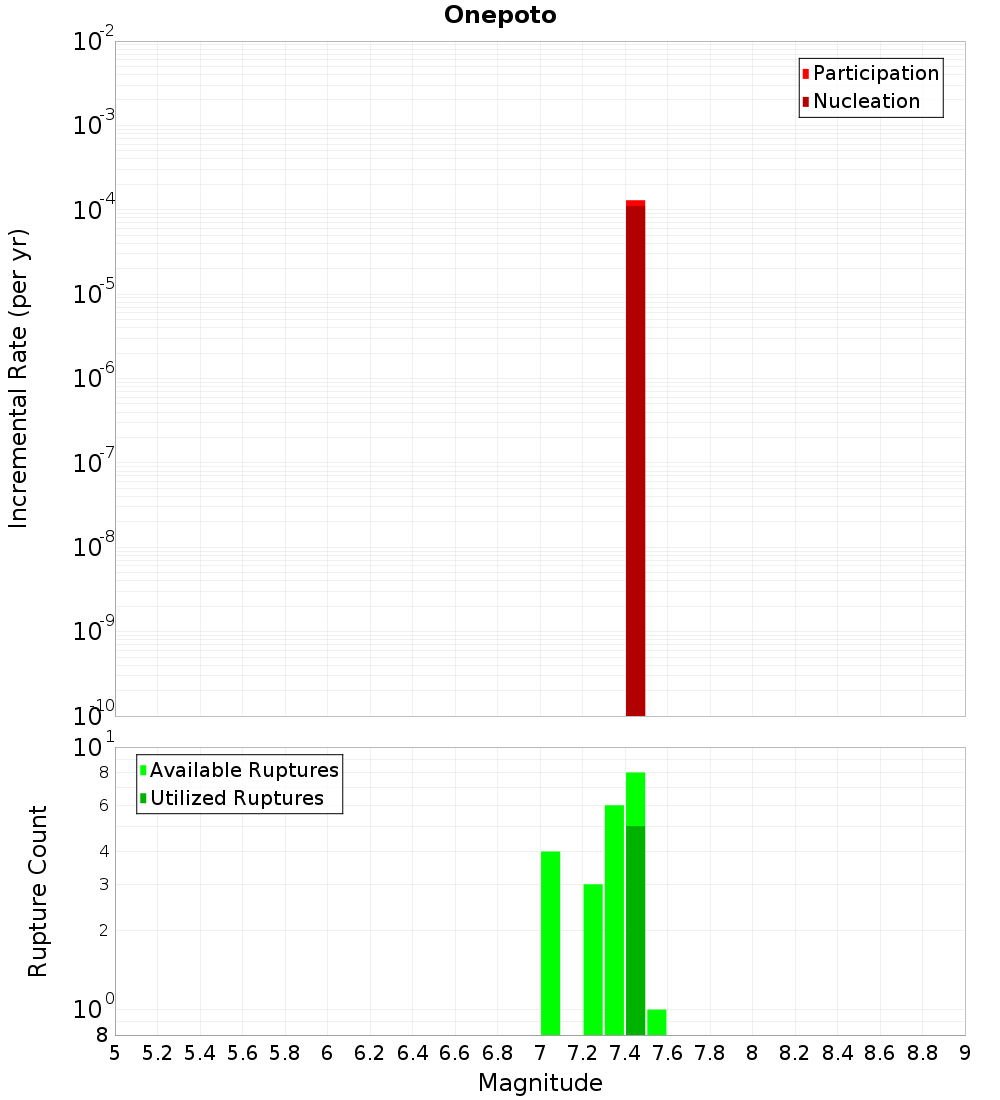

Magnitude-Frequency Distribution

Incremental	Cumulative

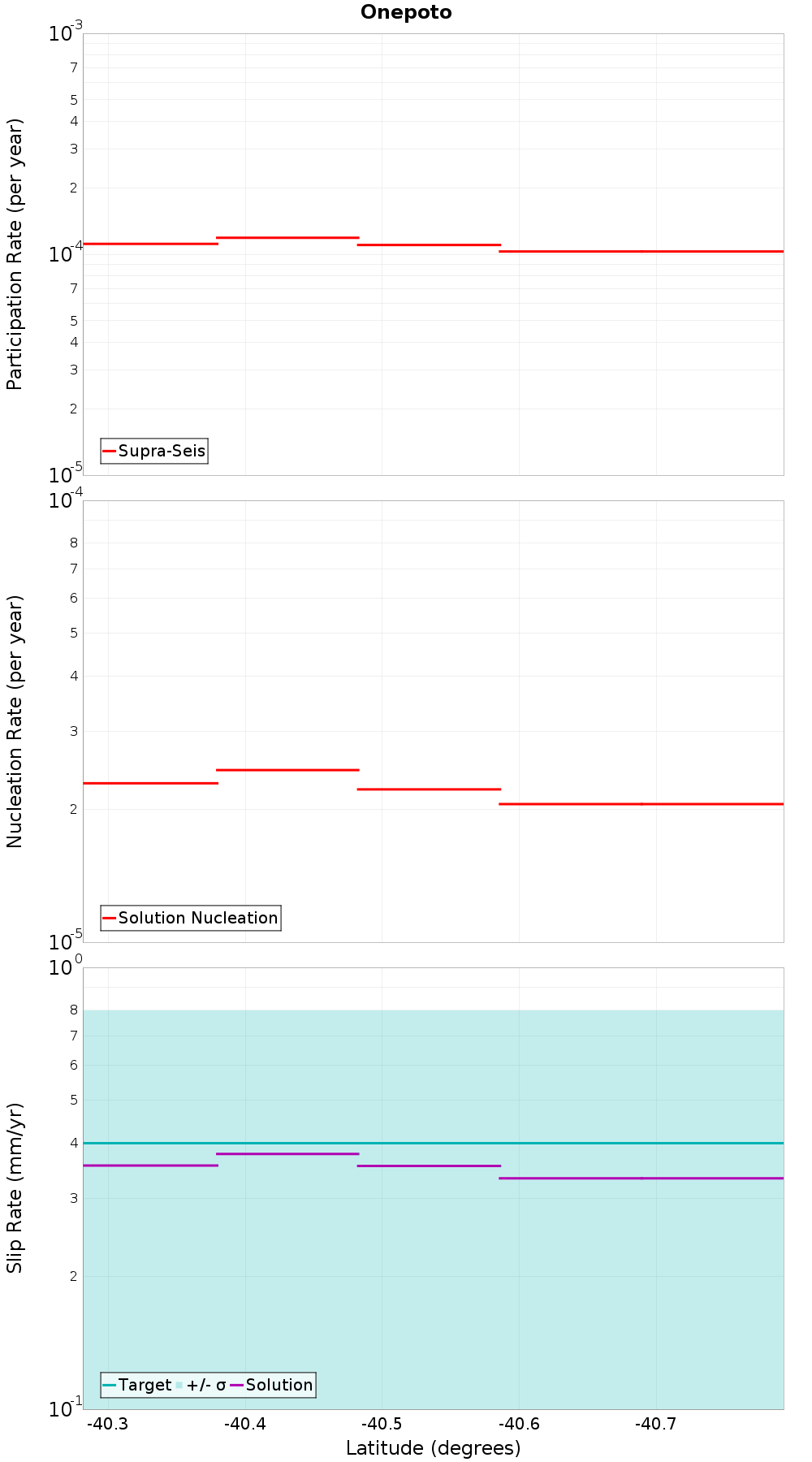

Along-Strike Values

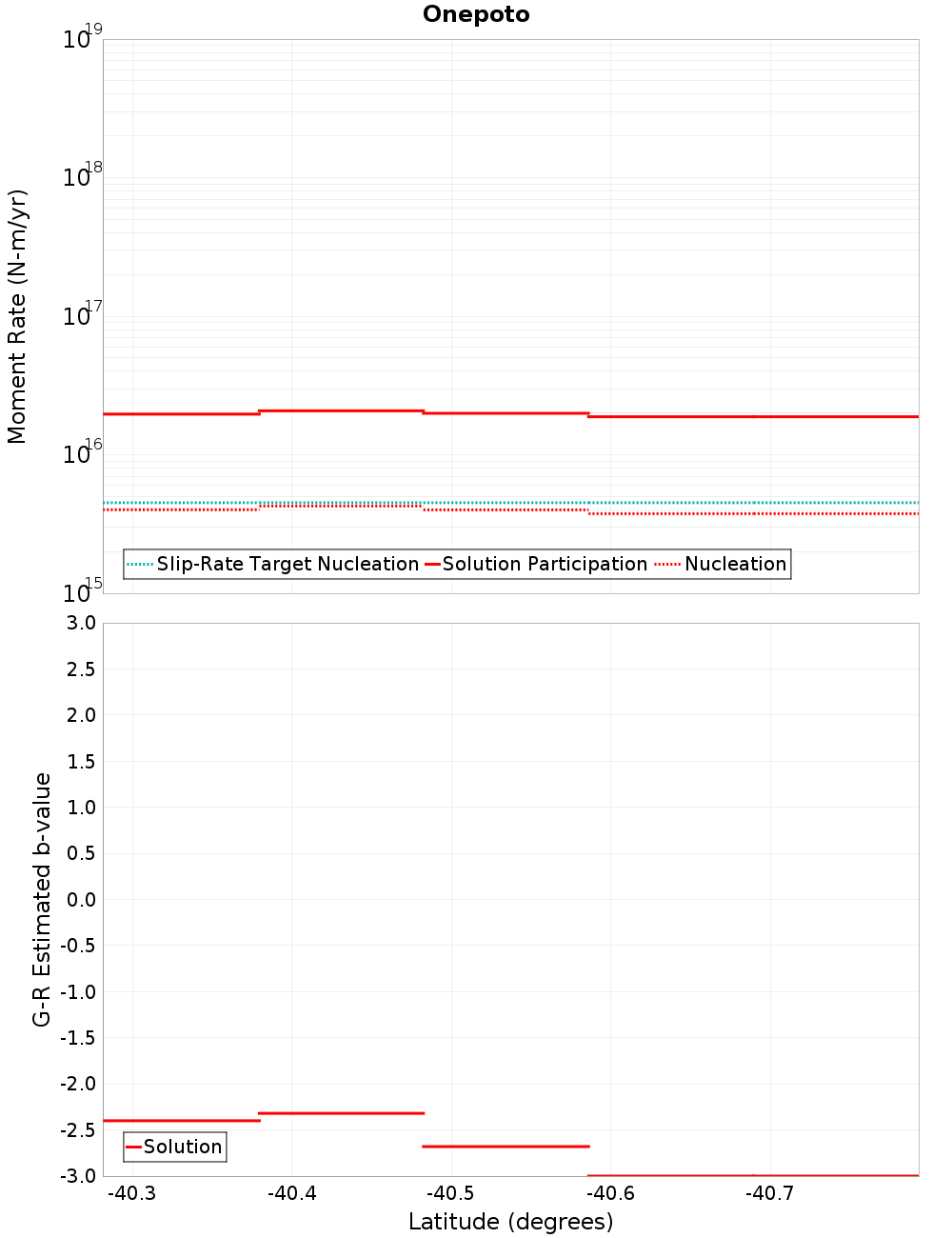

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Mascarin, 0.05 km away
Fisherman 3, 0.22 km away
Otaheke North, 0.47 km away
Rangitikei Offshore 1, 0.76 km away
Fisherman 2, 2.12 km away
Otaheke South, 3.21 km away
Okupe 1, 4.91 km away
Poroutawhao, 5.72 km away
Himatangi, 5.81 km away
Leedstown, 9.01 km away
Mt Stewart, 12.32 km away
Levin Anticline, 13.2 km away
Ohariu, 14.67 km away
Northern Ohariu, 15.04 km away

Mascarin, 0.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	1.20713285E-5

Fisherman 3, 0.22 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	true
Directly Connected?	true
Co-rupture Count	4
Co-rupture Rate	1.4799325E-5

Otaheke North, 0.47 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	true
Directly Connected?	true
Co-rupture Count	6
Co-rupture Rate	1.1085683E-5

Rangitikei Offshore 1, 0.76 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Fisherman 2, 2.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otaheke South, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Okupe 1, 4.91 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Poroutawhao, 5.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Himatangi, 5.81 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Leedstown, 9.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Mt Stewart, 12.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Levin Anticline, 13.2 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohariu, 14.67 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Northern Ohariu, 15.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5MzUuMEdOWnll
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
