Leader: North Details

PropertyValue
Rupture Count399
Ruptures Above Sect Min Mag397
Ruptures w/ Nonzero Rates2
Magnitude Range[6.47, 8.42]
Length Range[10, 743] km
Total Rate3.909778E-5 /yr
Multi-Fault Rate3.909778E-5 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults57

Table Of Contents

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

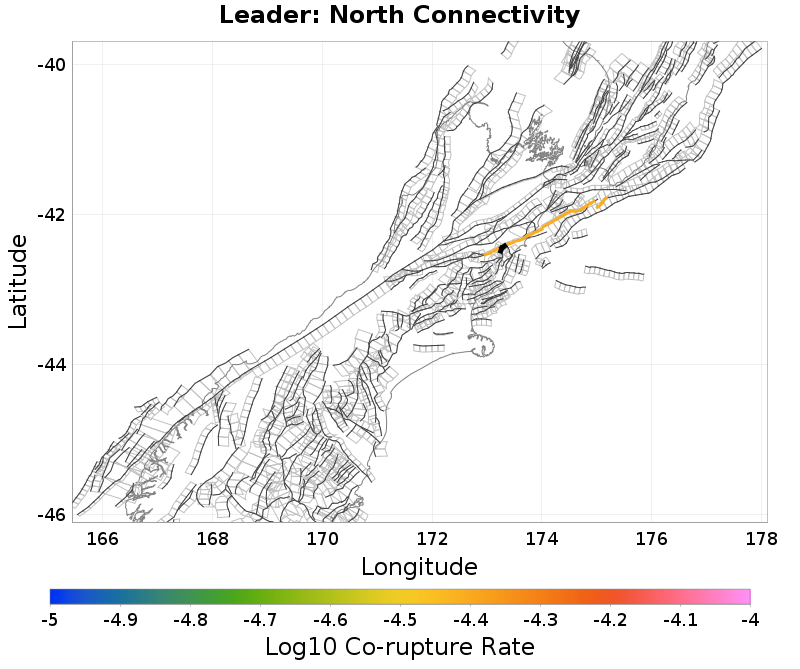

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Leader: Central, 0 km away
Hope: Conway, 0.2 km away
StoneJug, 0.61 km away
Leader: South, 7.47 km away
The Humps, 9.77 km away
Kaiwara North, 10.78 km away
Elliott, 10.96 km away
Hundalee, 12.74 km away
Hope: Hamner SE, 17.4 km away
Hawkswood, 18.36 km away
Clarence: Central, 19.78 km away

Leader: Central, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?true
Co-rupture Count64
Co-rupture Rate0.0

Hope: Conway, 0.2 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?true
Co-rupture Count310
Co-rupture Rate3.909778E-5

StoneJug, 0.61 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Leader: South, 7.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?false
Co-rupture Count13
Co-rupture Rate0.0

The Humps, 9.77 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?false
Co-rupture Count17
Co-rupture Rate0.0

Kaiwara North, 10.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?false
Co-rupture Count2
Co-rupture Rate0.0

Elliott, 10.96 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?true
Co-rupture Count90
Co-rupture Rate0.0

Hundalee, 12.74 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate0.0

Hope: Hamner SE, 17.4 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?true
Directly Connected?false
Co-rupture Count250
Co-rupture Rate0.0

Hawkswood, 18.36 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Clarence: Central, 19.78 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDQuMHhLODZh
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
