Alpine: Springs Junction to Tophouse Details

PropertyValue
Rupture Count31,734
Ruptures Above Sect Min Mag31,730
Ruptures w/ Nonzero Rates138
Magnitude Range[7.00, 8.63]
Length Range[24, 1,119] km
Total Rate0.0035001875 /yr
Multi-Fault Rate0.0025976151 /yr (74.21%)
Directly-Connected Faults9
All Co-Rupturing Faults137

Table Of Contents

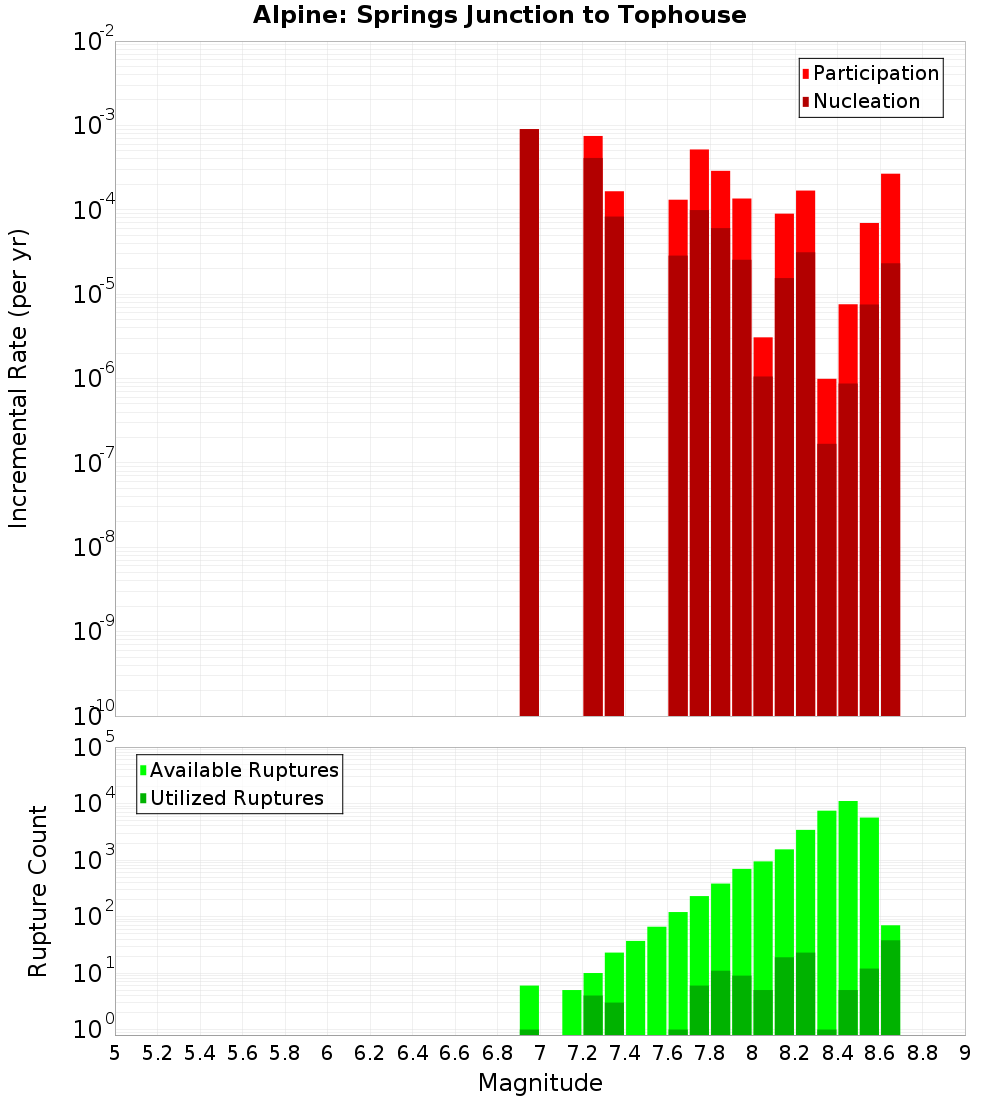

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

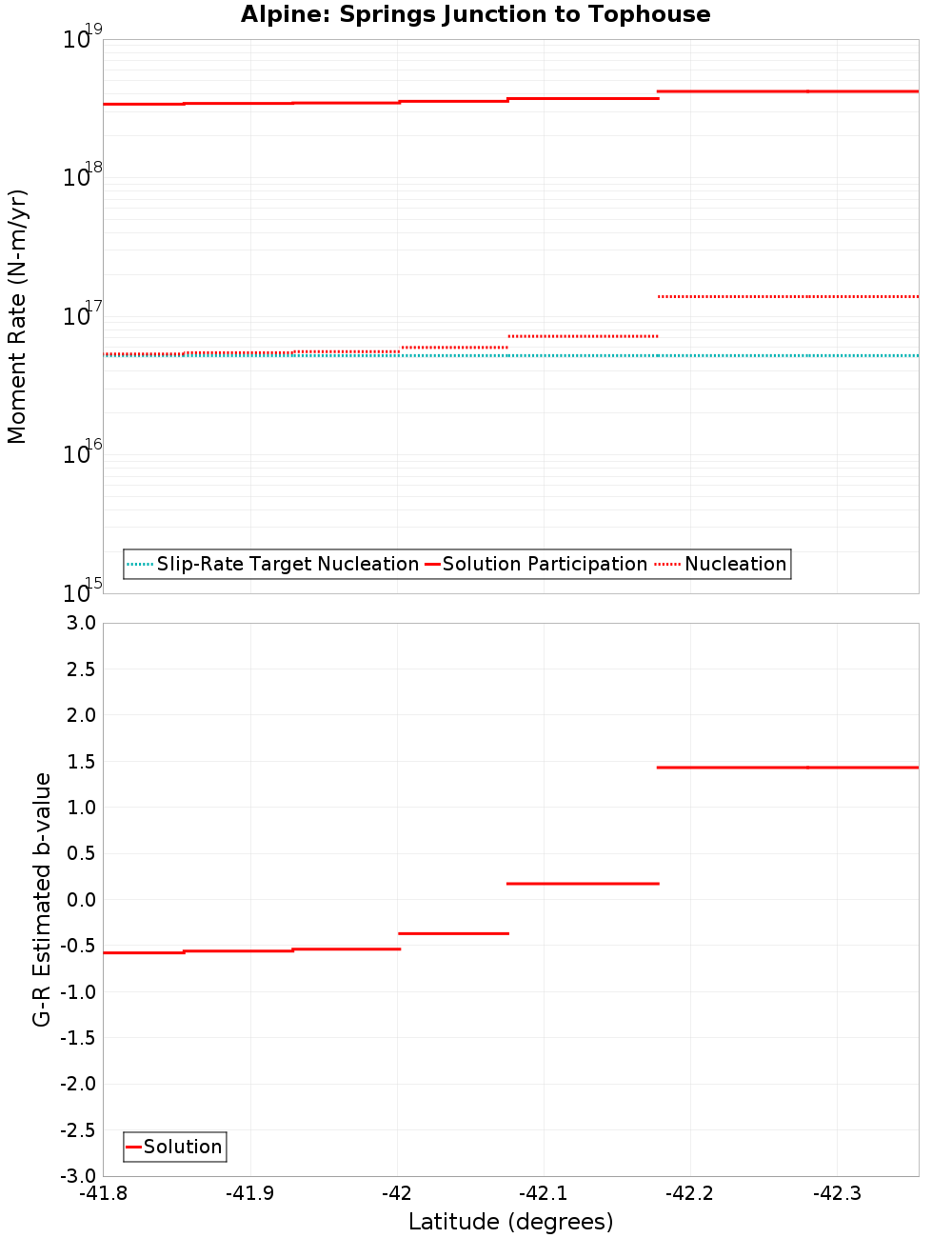

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Alpine: Kaniere to Springs Junction, 0 km away
Whangamoa, 0 km away
Awatere: Southwest, 0 km away
Wairau, 0 km away
Tutaki, 0.13 km away
Fowlers, 0.19 km away
Flaxmore - Waimea - Tahunanui, 0.45 km away
Clarence: Southwest, 5.57 km away
Hope: Hope River, 13.43 km away
Esk North, 15.07 km away
Elliott, 18.86 km away

Alpine: Kaniere to Springs Junction, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count28,991
Co-rupture Rate0.0017796941

Whangamoa, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count609
Co-rupture Rate2.1344762E-5

Awatere: Southwest, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count1,337
Co-rupture Rate5.6112785E-4

Wairau, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count25,103
Co-rupture Rate5.32559E-4

Tutaki, 0.13 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count85
Co-rupture Rate7.083108E-5

Fowlers, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count24
Co-rupture Rate4.3823515E-5

Flaxmore - Waimea - Tahunanui, 0.45 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count4,389
Co-rupture Rate5.9367638E-5

Clarence: Southwest, 5.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count37
Co-rupture Rate3.8310467E-5

Hope: Hope River, 13.43 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?true
Co-rupture Count162
Co-rupture Rate1.0382808E-4

Esk North, 15.07 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Elliott, 18.86 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NDkuMFRhUUR6
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate3.8310467E-5
