Little Hillfoot Details

Property	Value
Rupture Count	38
Ruptures Above Sect Min Mag	37
Ruptures w/ Nonzero Rates	4
Magnitude Range	[6.99, 8.07]
Length Range	[21, 239] km
Total Rate	9.383269E-6 /yr
Multi-Fault Rate	9.383269E-6 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	13

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

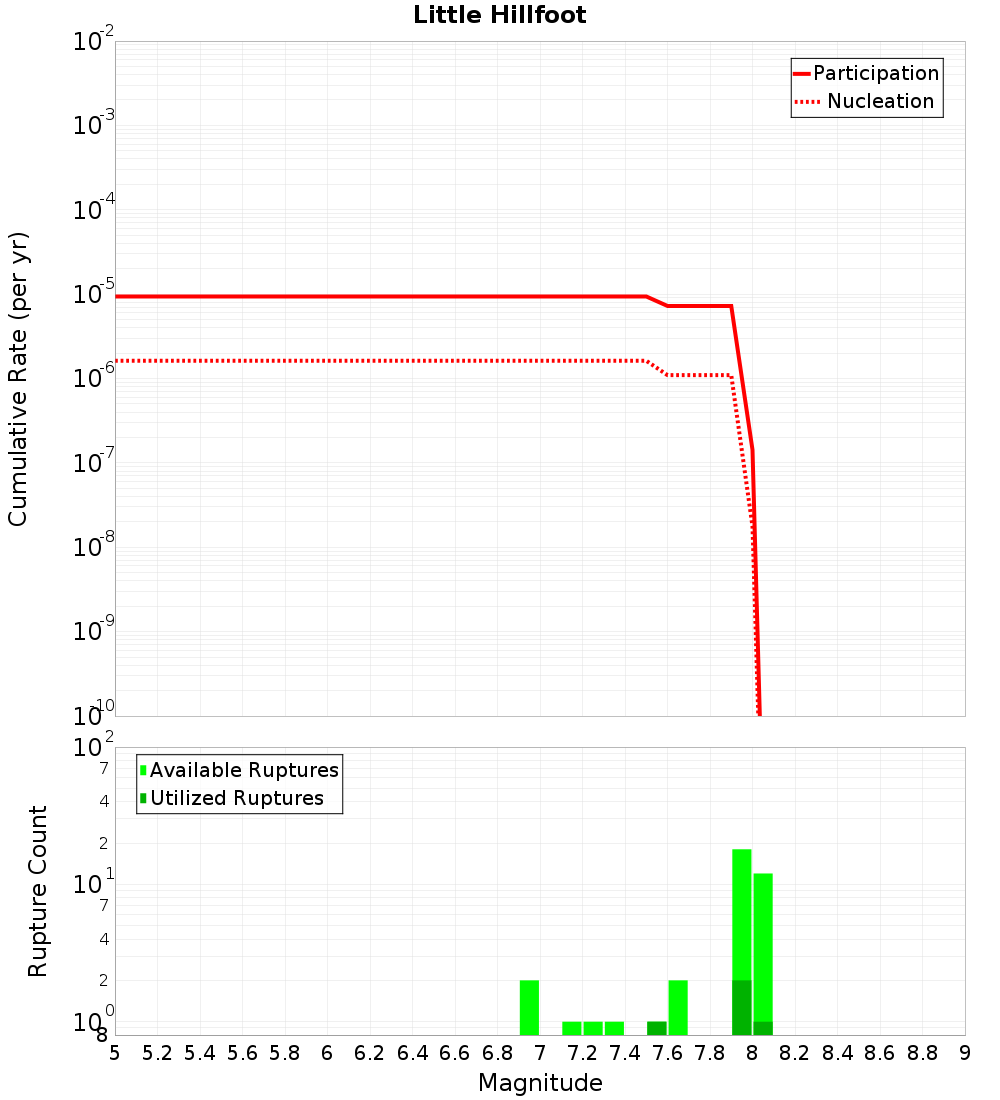

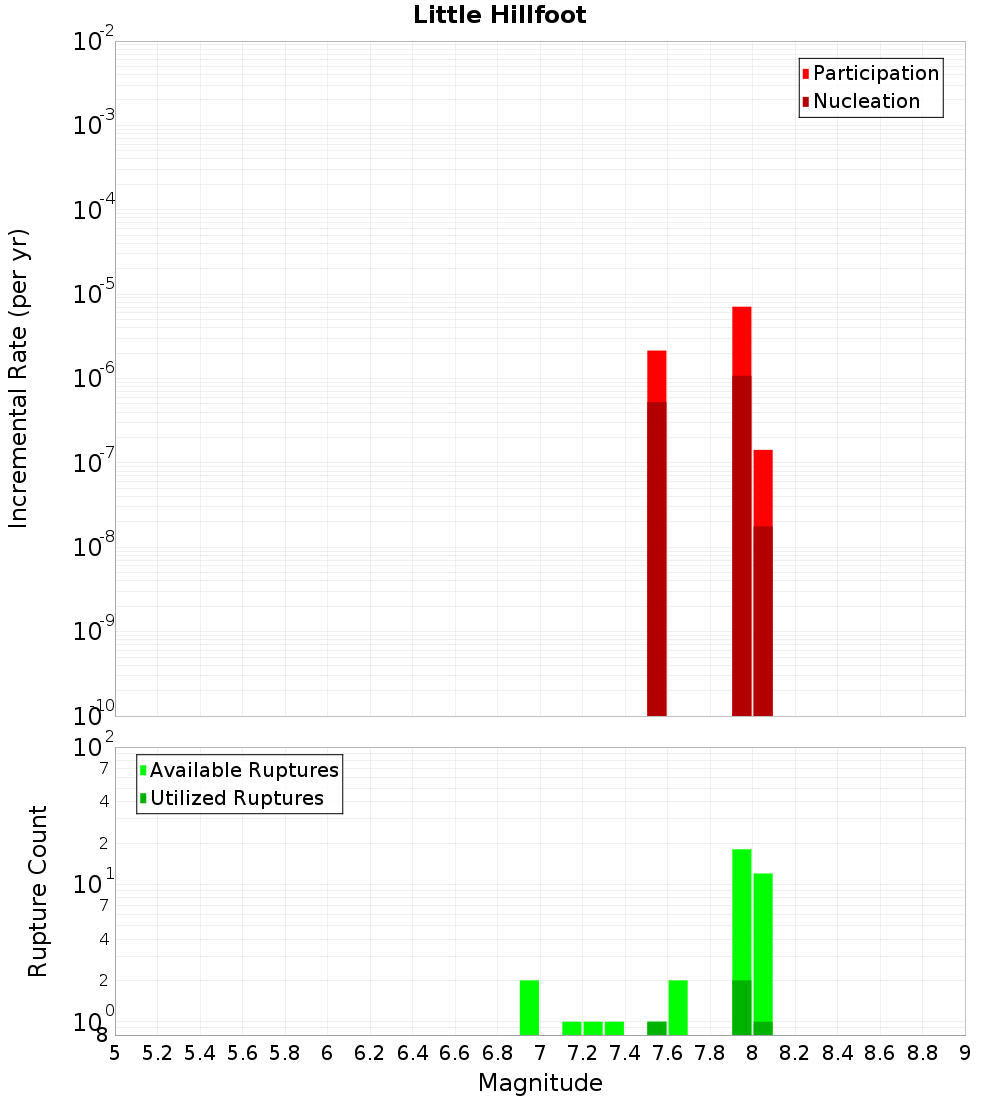

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

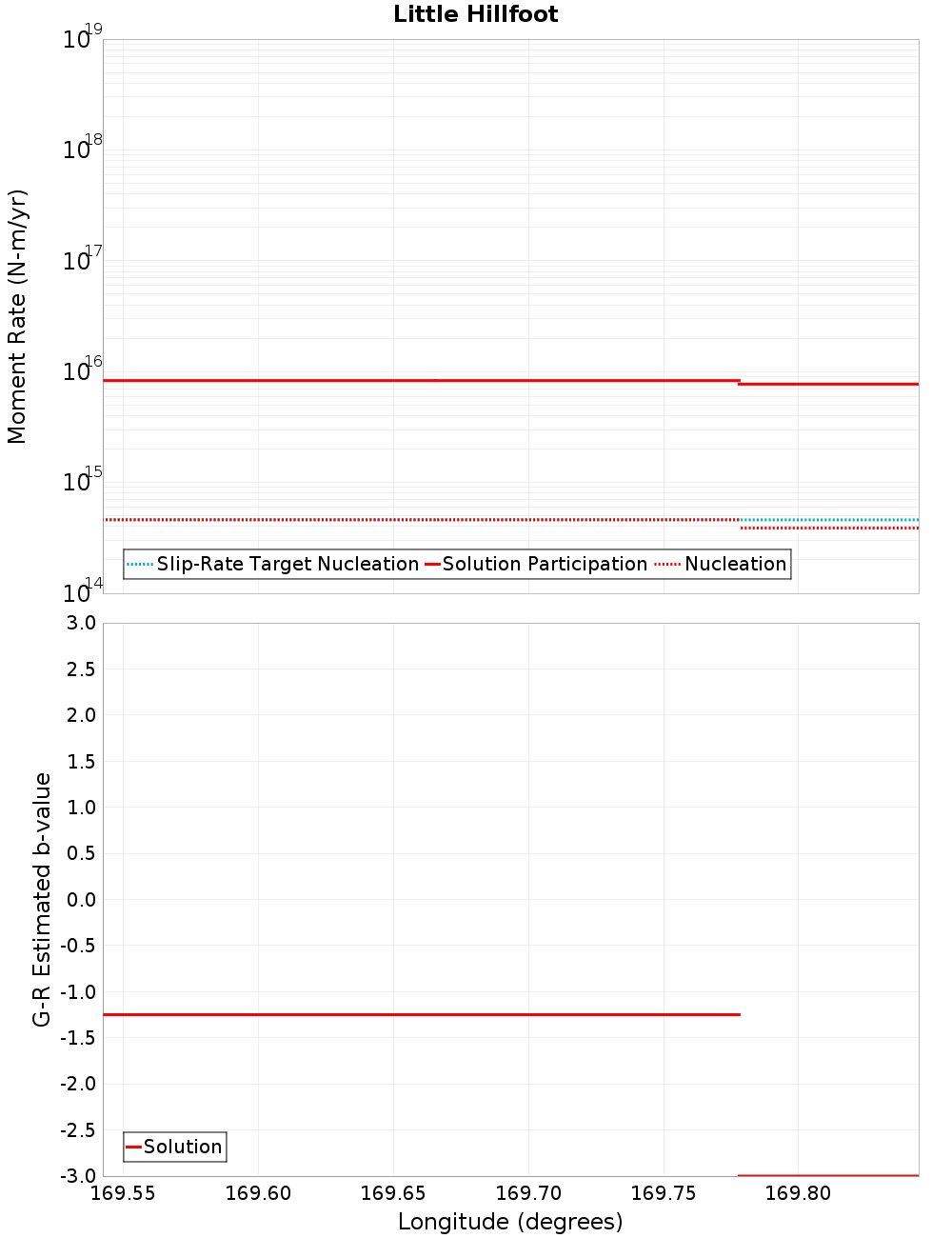

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Settlement, 0.3 km away
Hillfoot, 0.55 km away
Otanomomo, 1.78 km away
Titri South, 5.15 km away
Clifton, 8.06 km away
Beacon Hill, 10.39 km away
Blue Mountain, 14.21 km away
Akatore, 16.66 km away

Settlement, 0.3 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Hillfoot, 0.55 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otanomomo, 1.78 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Titri South, 5.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Clifton, 8.06 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Beacon Hill, 10.39 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	true
Directly Connected?	true
Co-rupture Count	35
Co-rupture Rate	9.383269E-6

Blue Mountain, 14.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	true
Directly Connected?	false
Co-rupture Count	32
Co-rupture Rate	7.239514E-6

Akatore, 16.66 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
