Raukumara 16 Details

Property	Value
Rupture Count	2
Ruptures Above Sect Min Mag	1
Ruptures w/ Nonzero Rates	1
Magnitude Range	[6.62, 7.33]
Length Range	[9, 41] km
Total Rate	5.1294428E-5 /yr
Multi-Fault Rate	5.1294428E-5 /yr (100.00%)
Directly-Connected Faults	1
All Co-Rupturing Faults	1

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

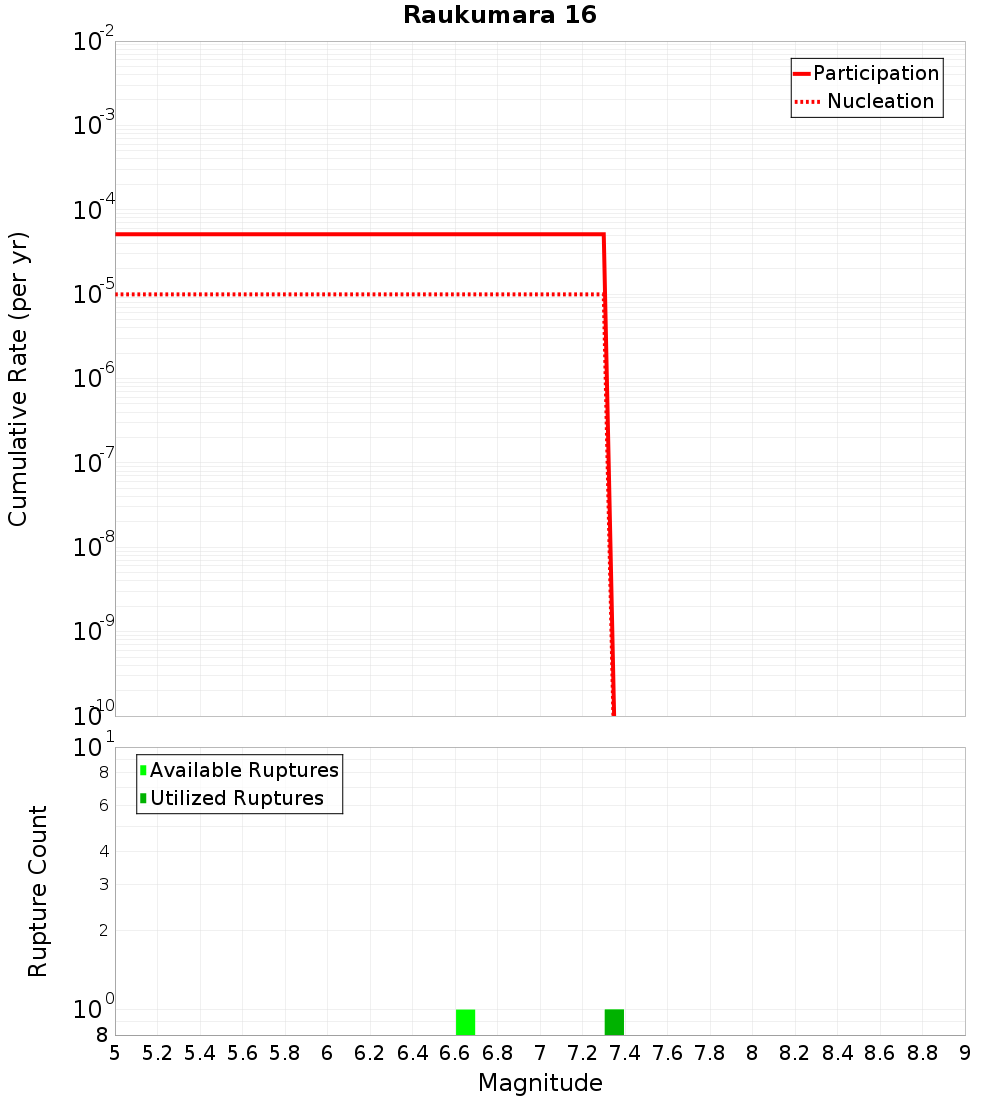

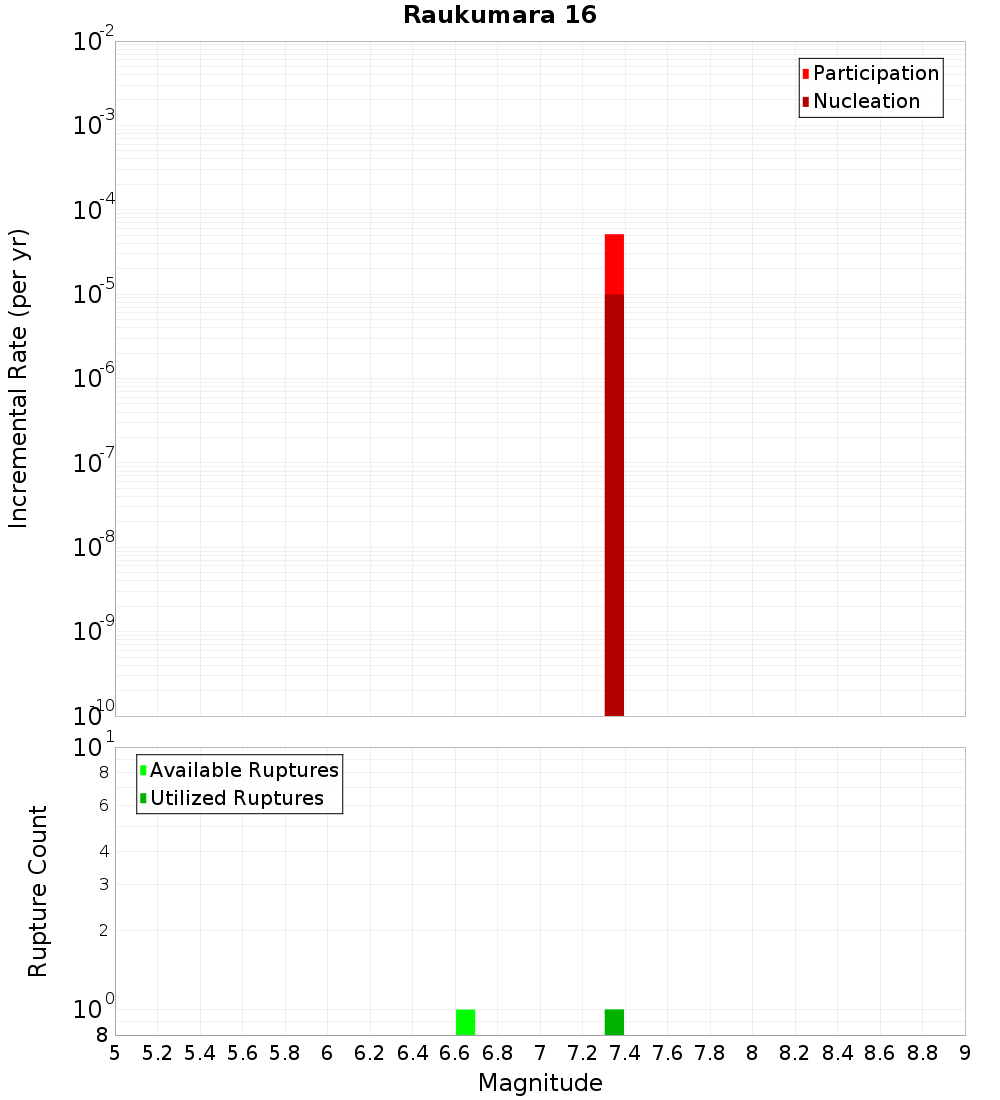

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

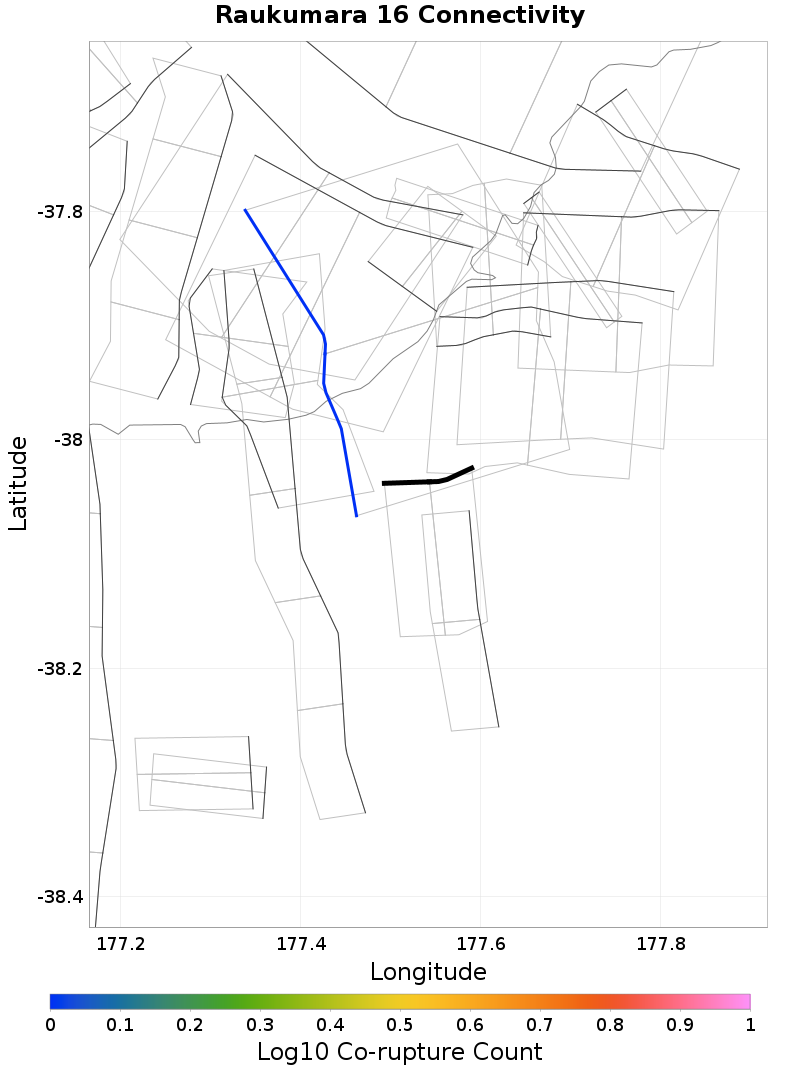

Connectivity

Nearby Sections

Fault Section
Motu, 0.14 km away
Opape 1, 0.44 km away
Tirohanga, 7.99 km away
Kotare - Moutuhora, 8.71 km away
Raukumara 17, 12.04 km away
Raukumara 18, 12.68 km away
Motu River, 15.27 km away
Ohae 3, 15.64 km away
Ohae 2, 16.24 km away
Opotiki 2, 19.14 km away

Motu, 0.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 0.44 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	true
Directly Connected?	true
Co-rupture Count	1
Co-rupture Rate	5.1294428E-5

Tirohanga, 7.99 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Kotare - Moutuhora, 8.71 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 17, 12.04 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 18, 12.68 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 15.27 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 3, 15.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 2, 16.24 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 2, 19.14 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
