Wheao: South Details

PropertyValue
Rupture Count19,771
Ruptures Above Sect Min Mag19,766
Ruptures w/ Nonzero Rates9
Magnitude Range[6.78, 8.39]
Length Range[19, 692] km
Total Rate6.408539E-5 /yr
Multi-Fault Rate6.408539E-5 /yr (100.00%)
Directly-Connected Faults2
All Co-Rupturing Faults89

Table Of Contents

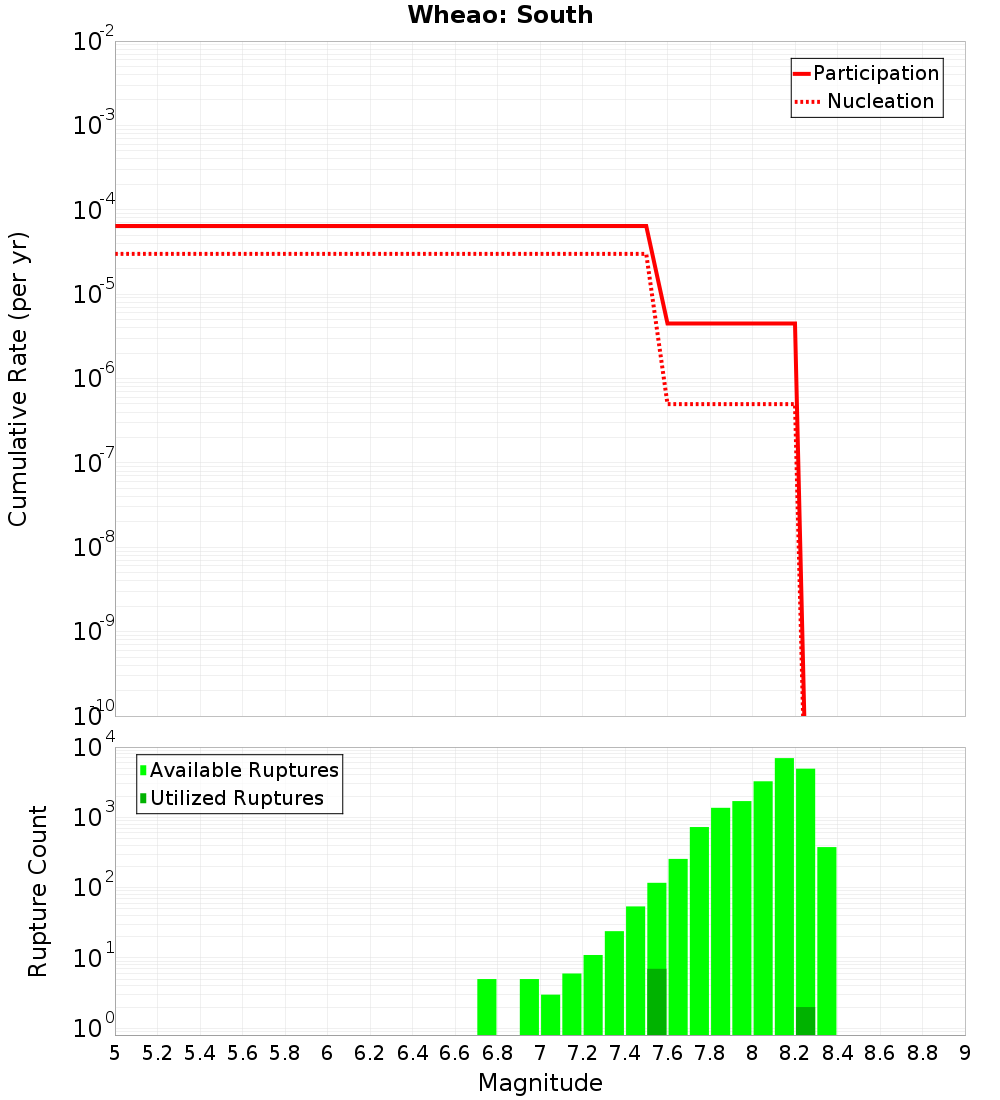

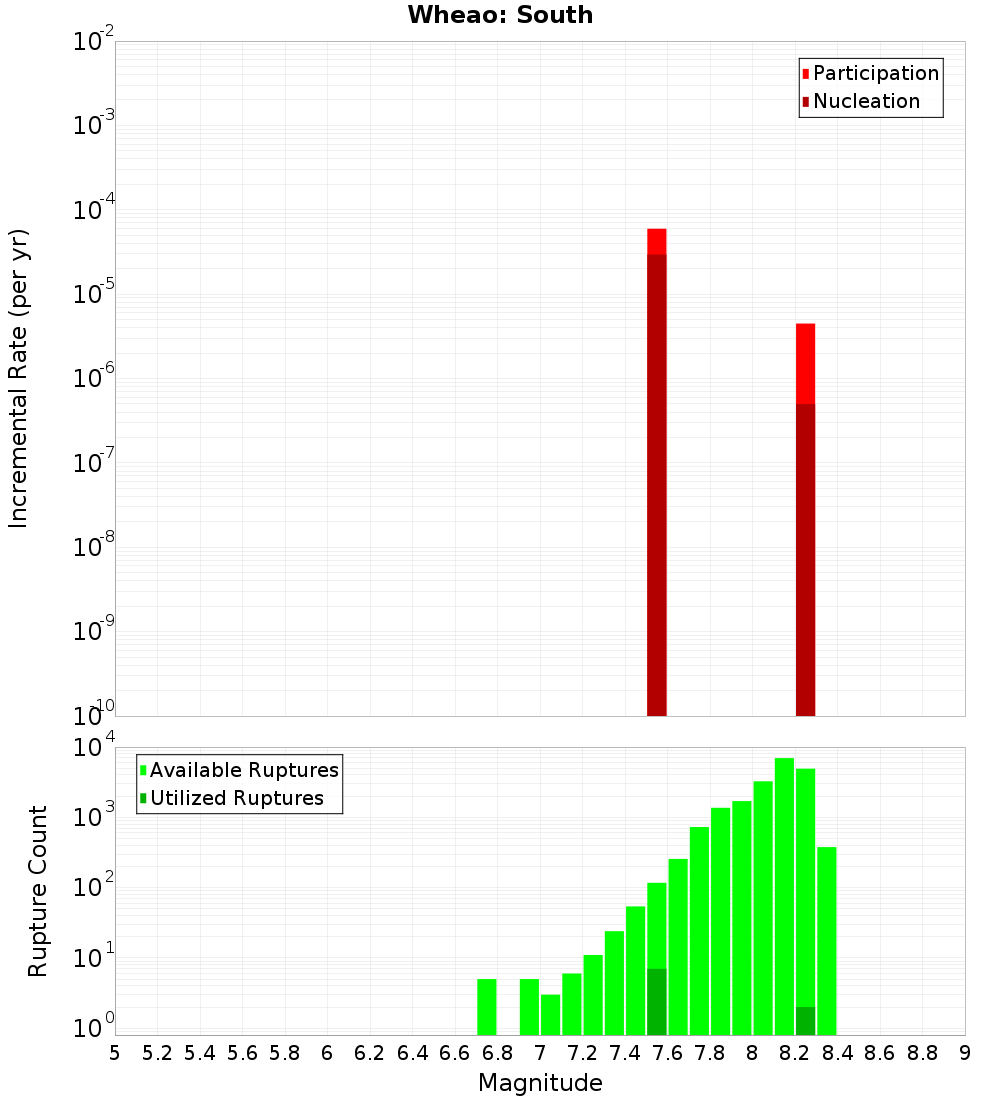

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

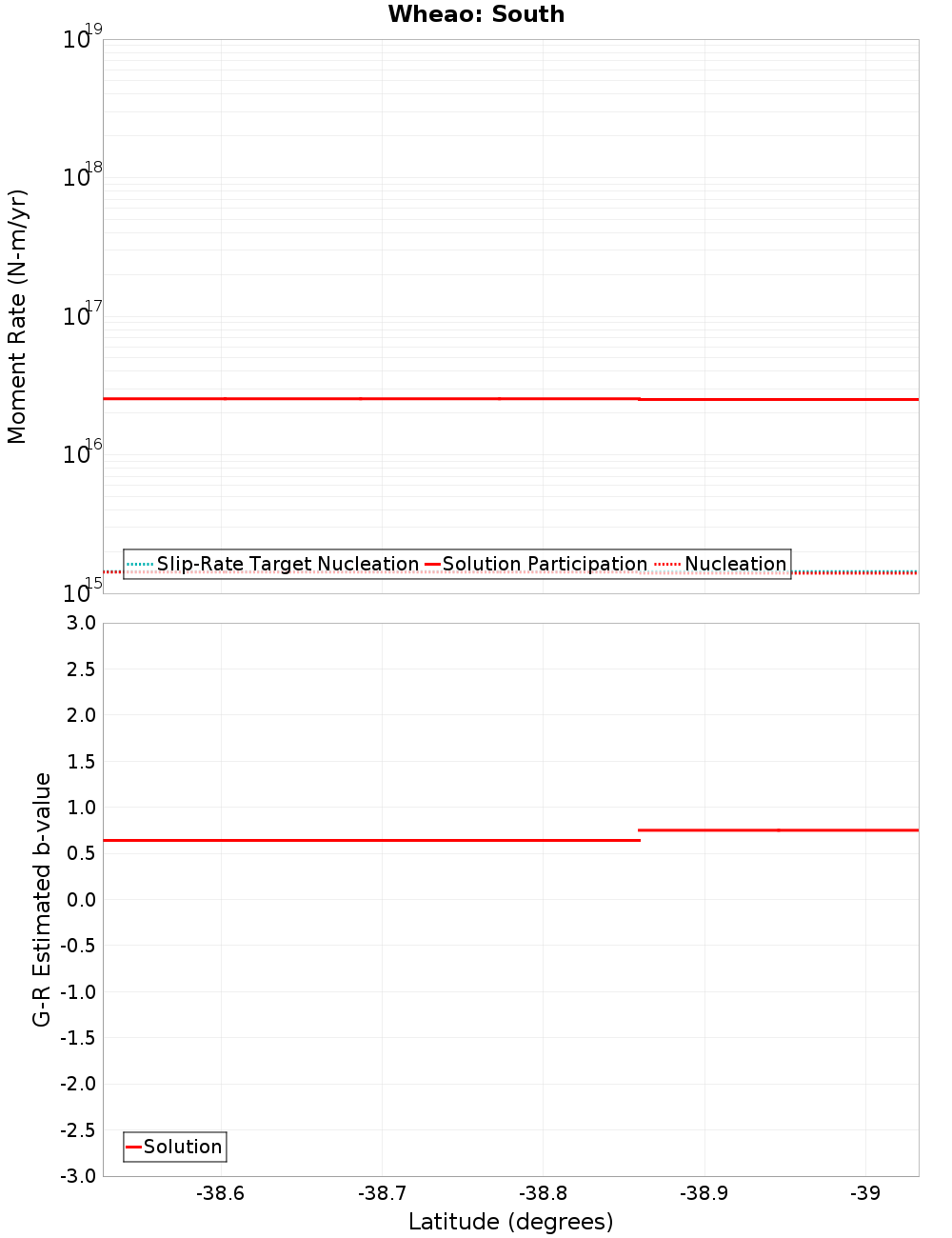

Moment-Rates and b-Values

(top)

Along-strike plot

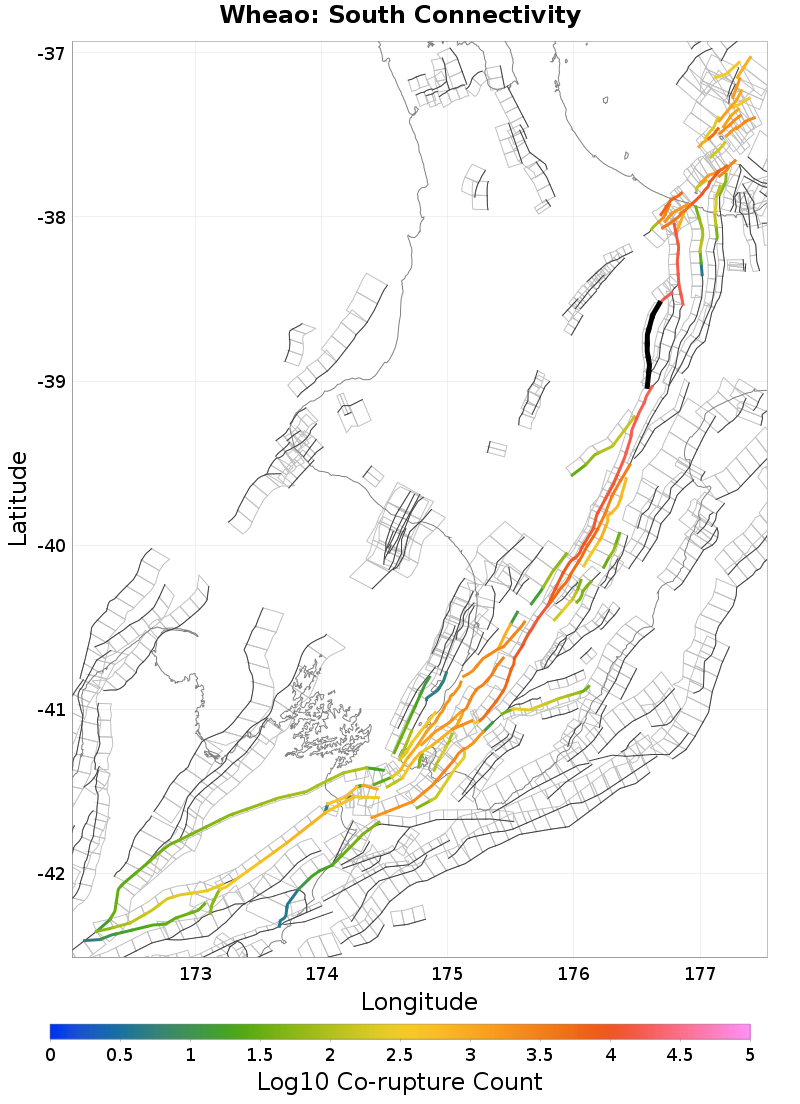

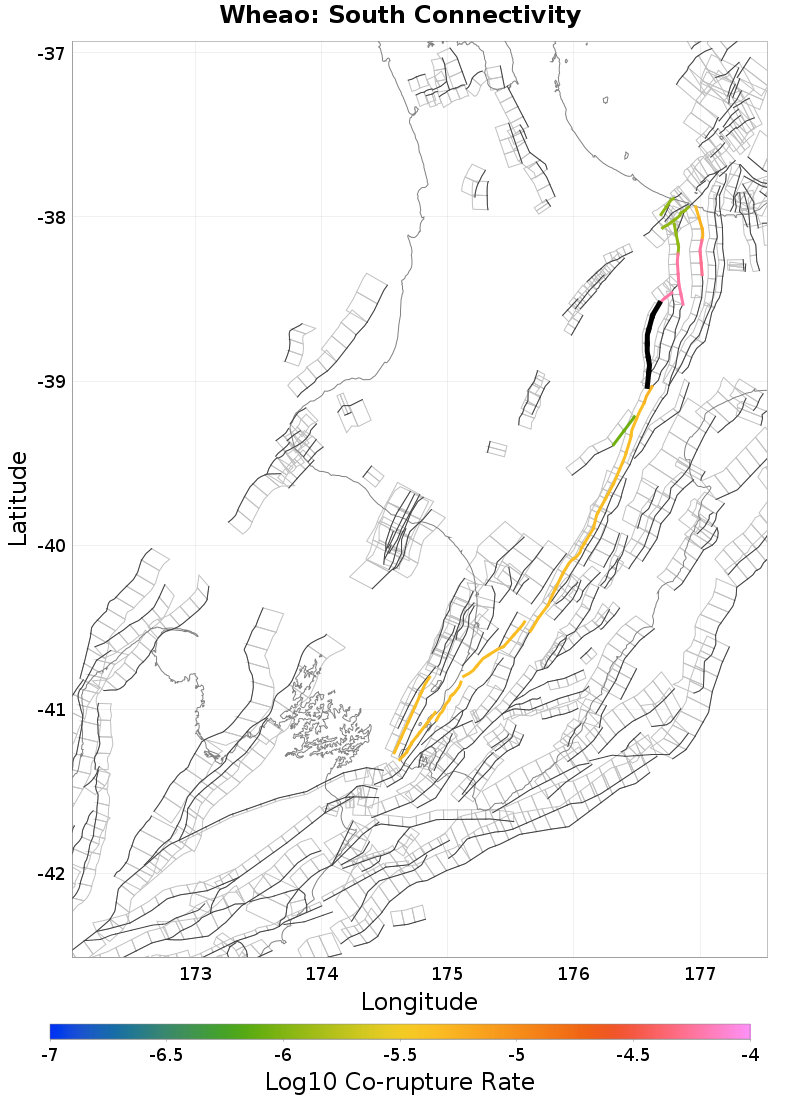

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Wheao: North, 0 km away
Waiohau: South, 0.22 km away
Te Whaiti South, 0.44 km away
Ruahine: North, 2.68 km away
Te Whaiti North, 11.11 km away
Waiohau: North, 11.7 km away
Mohaka: North, 13.51 km away
Whakatane: South, 14.52 km away
Waimana: South, 14.54 km away
Kaweka, 19.18 km away

Wheao: North, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?true
Directly Connected?true
Co-rupture Count16,570
Co-rupture Rate5.9604245E-5

Waiohau: South, 0.22 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Te Whaiti South, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ruahine: North, 2.68 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?true
Directly Connected?true
Co-rupture Count17,937
Co-rupture Rate5.326598E-6

Te Whaiti North, 11.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waiohau: North, 11.7 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?true
Directly Connected?false
Co-rupture Count16,023
Co-rupture Rate5.9604245E-5

Mohaka: North, 13.51 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Whakatane: South, 14.52 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Waimana: South, 14.54 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Kaweka, 19.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTMuMEx1d1BX
Connected?true
Directly Connected?false
Co-rupture Count140
Co-rupture Rate8.452833E-7
