Ostler North Details

Property	Value
Rupture Count	1,782
Ruptures Above Sect Min Mag	1,781
Ruptures w/ Nonzero Rates	15
Magnitude Range	[7.08, 8.47]
Length Range	[24, 838] km
Total Rate	3.271497E-4 /yr
Multi-Fault Rate	3.271497E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	64

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

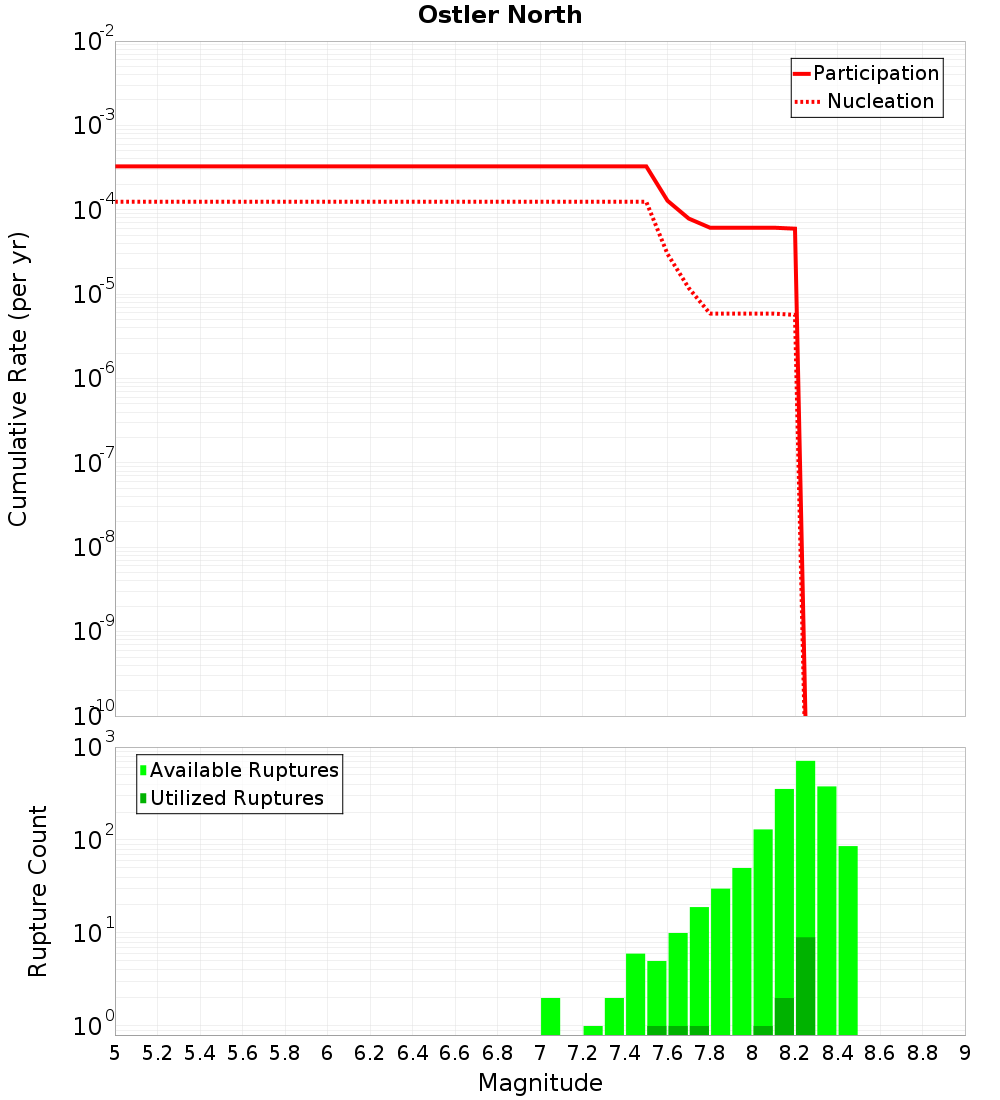

Magnitude-Frequency Distribution

Incremental	Cumulative

Along-Strike Values

Moment-Rates and b-Values

Connectivity

Nearby Sections

Fault Section
Ostler South, 1.89 km away
Barrier Range, 2.09 km away
Hopkins, 4.64 km away
Irishman Creek, 8.16 km away
Huxley, 10.38 km away
Falstone, 11.42 km away
Alpine: Jacksons to Kaniere, 14.33 km away
Dingle, 18.89 km away

Ostler South, 1.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,208
Co-rupture Rate	3.271497E-4

Barrier Range, 2.09 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	true
Directly Connected?	true
Co-rupture Count	11
Co-rupture Rate	0.0

Hopkins, 4.64 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	true
Directly Connected?	true
Co-rupture Count	1,643
Co-rupture Rate	7.44704E-5

Irishman Creek, 8.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Huxley, 10.38 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Falstone, 11.42 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Alpine: Jacksons to Kaniere, 14.33 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	true
Directly Connected?	false
Co-rupture Count	1,593
Co-rupture Rate	5.712393E-5

Dingle, 18.89 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5NTcuMHhTUXA2
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
