Kakapo Details

PropertyValue
Rupture Count18,735
Ruptures Above Sect Min Mag18,733
Ruptures w/ Nonzero Rates29
Magnitude Range[6.86, 8.59]
Length Range[20, 1,146] km
Total Rate6.7103625E-4 /yr
Multi-Fault Rate6.7103625E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults86

Table Of Contents

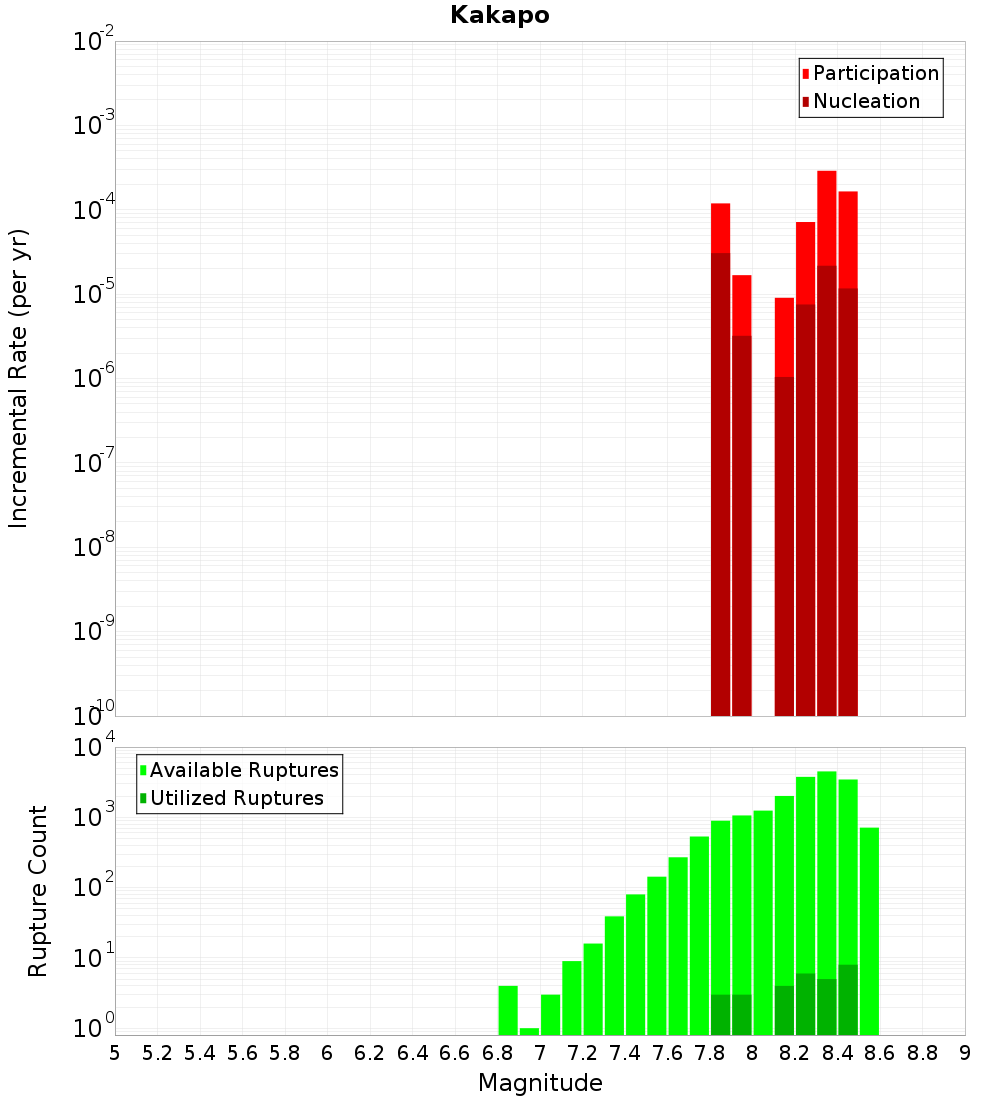

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

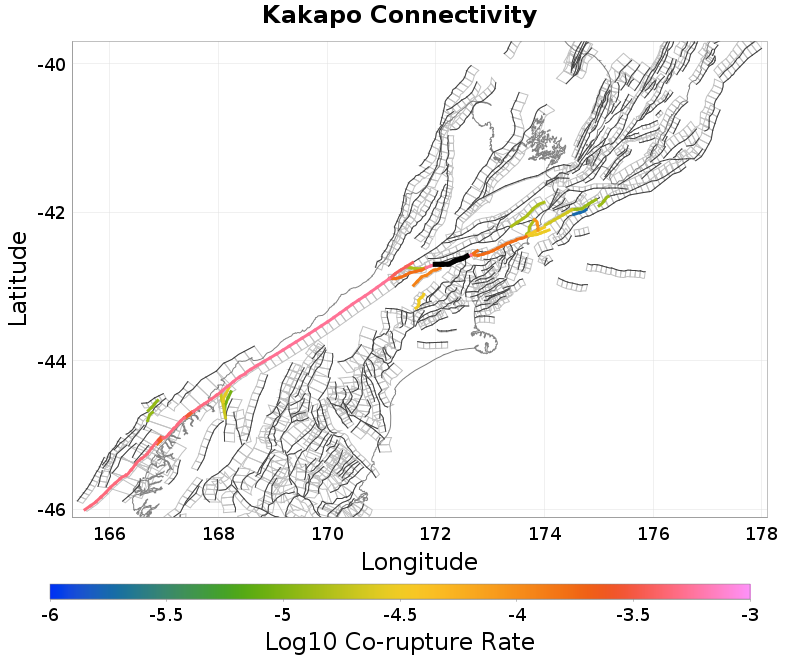

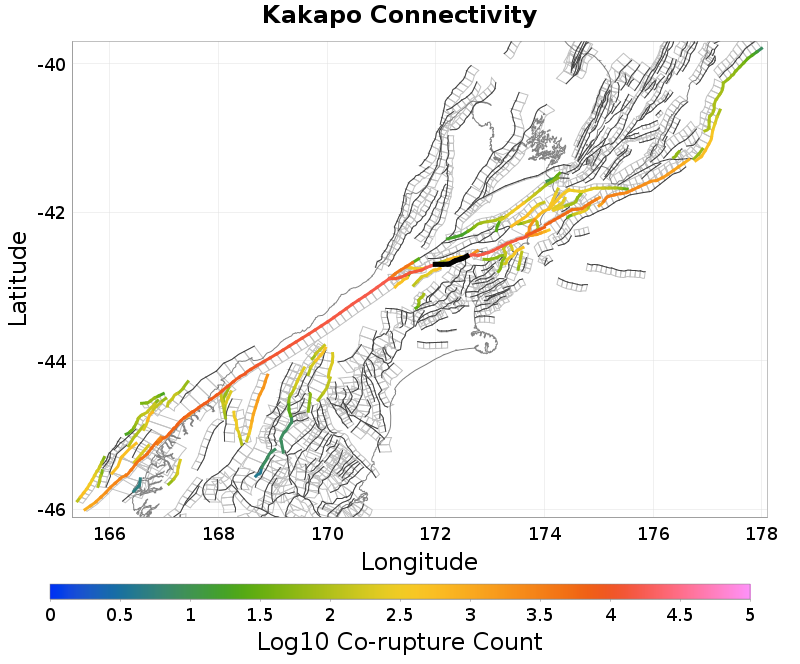

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Hope: Kakapo-2-Hamner, 0 km awayAlpine: Kaniere to Springs Junction, 6.32 km away
Hope: Hurunui, 0 km awayClarence: Southwest, 8.64 km away
Hope: Hope River, 0 km awayHanmer, 12.92 km away
Esk North, 0.09 km awayHope: Taramakau, 14.38 km away
Poulter, 5.65 km awayKelly, 14.38 km away
Hurunui Peak, 5.94 km awayBalmoral, 15.34 km away
Hope: Hanmer NW, 6.3 km awayHope: Hamner SE, 16.57 km away
Hope: Hamner SW, 6.3 km awayMt Culverden, 17.08 km away

Hope: Kakapo-2-Hamner, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count16,492
Co-rupture Rate5.280033E-4

Hope: Hurunui, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count17,390
Co-rupture Rate5.35287E-4

Hope: Hope River, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count589
Co-rupture Rate0.0

Esk North, 0.09 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poulter, 5.65 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count561
Co-rupture Rate1.3574919E-4

Hurunui Peak, 5.94 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hanmer NW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count1,902
Co-rupture Rate1.6489603E-4

Hope: Hamner SW, 6.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count14,046
Co-rupture Rate1.4835037E-4

Alpine: Kaniere to Springs Junction, 6.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count4,296
Co-rupture Rate3.7039103E-4

Clarence: Southwest, 8.64 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hanmer, 12.92 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Taramakau, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count327
Co-rupture Rate1.4993678E-5

Kelly, 14.38 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count13,321
Co-rupture Rate1.6489603E-4

Balmoral, 15.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hope: Hamner SE, 16.57 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count15,337
Co-rupture Rate1.7695584E-4

Mt Culverden, 17.08 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
