Waimate Details
| Property | Value |
|---|---|
| Rupture Count | 5 |
| Ruptures Above Sect Min Mag | 3 |
| Ruptures w/ Nonzero Rates | 2 |
| Magnitude Range | [6.75, 7.15] |
| Length Range | [19, 46] km |
| Total Rate | 2.8047923E-5 /yr |
| Multi-Fault Rate | 5.9703723E-7 /yr (2.13%) |
| Directly-Connected Faults | 1 |
| All Co-Rupturing Faults | 1 |
Table Of Contents

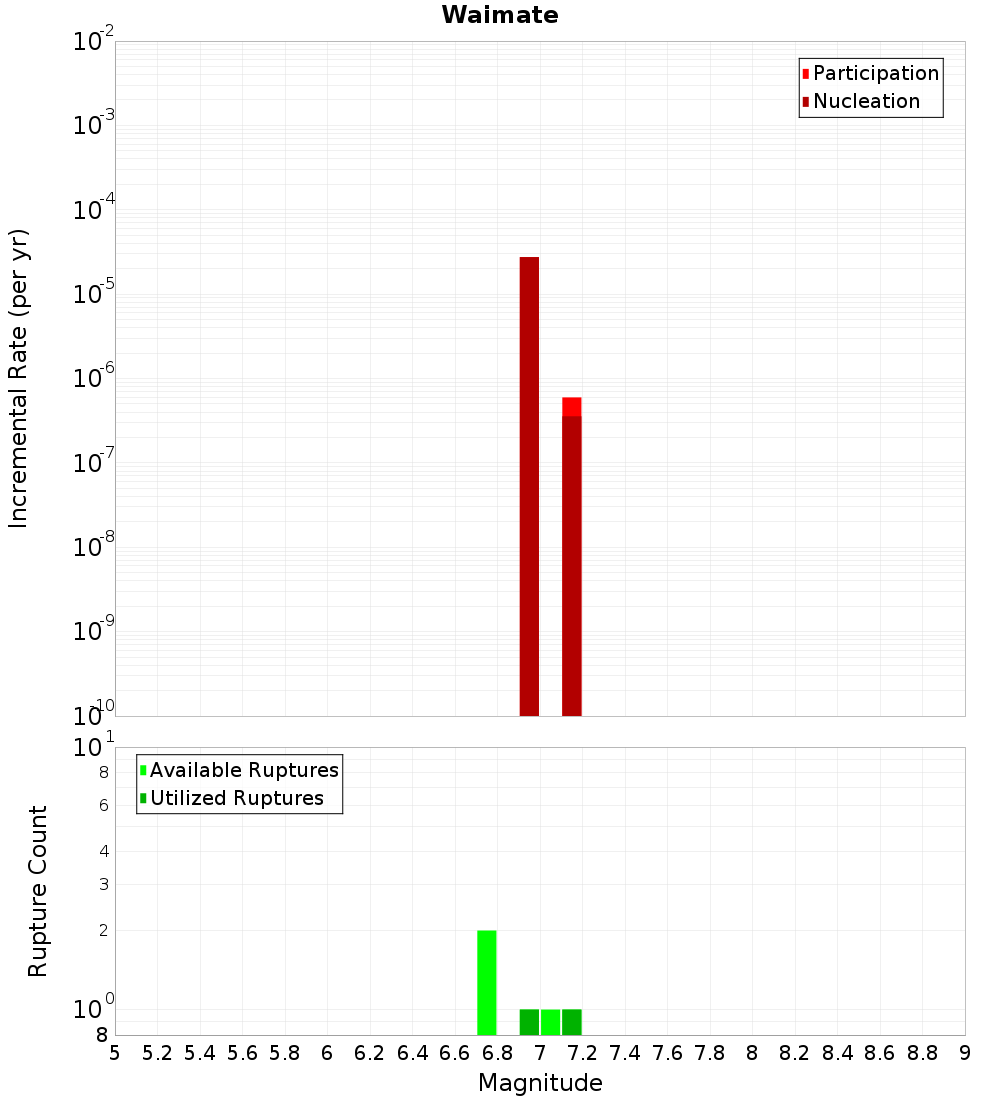

Magnitude-Frequency Distribution

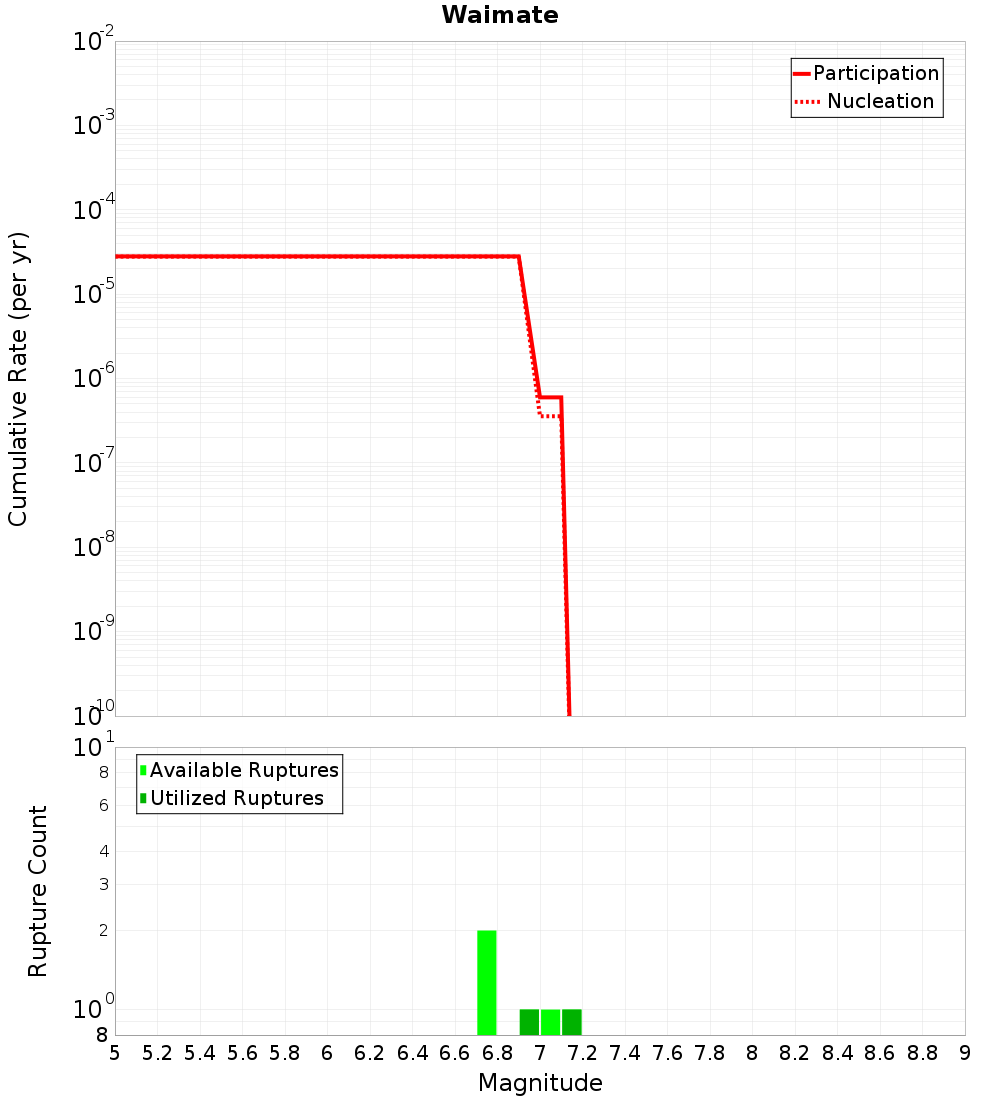

| Incremental | Cumulative |
|---|---|
 |  |

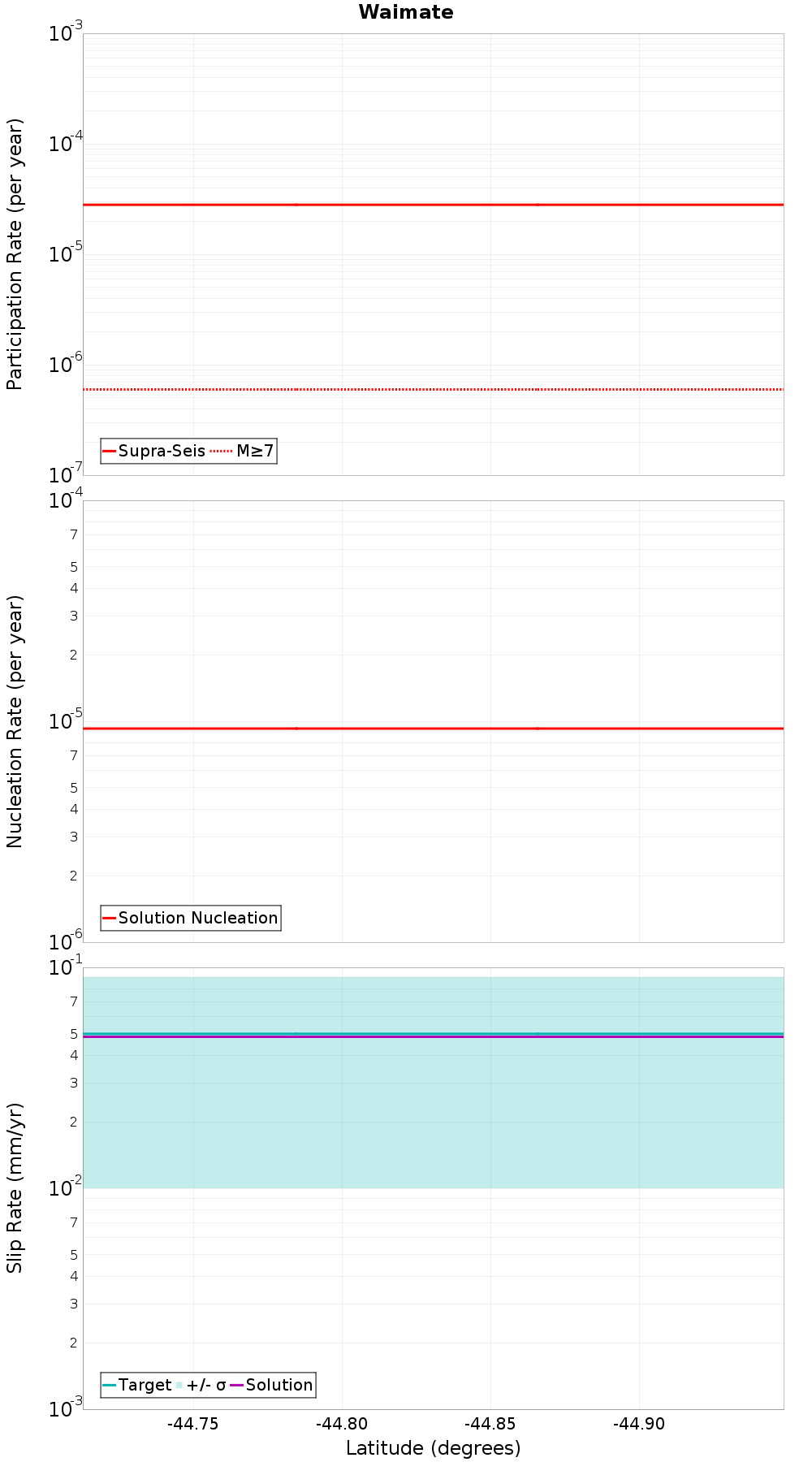

Along-Strike Values
Moment-Rates and b-Values
Connectivity
 |  |
|---|
Nearby Sections
Stonewall, 0.35 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hunters, 0.59 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Waitaki, 8.23 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 2 |
| Co-rupture Rate | 5.9703723E-7 |
Awamoa, 8.62 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Black Hill, 11.81 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Maungati, 13.4 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Campbell Hills, 14.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Chamberlain, 19.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
