Whangamata West Details

PropertyValue
Rupture Count1,837
Ruptures Above Sect Min Mag1,834
Ruptures w/ Nonzero Rates65
Magnitude Range[6.29, 7.81]
Length Range[10, 210] km
Total Rate4.6498957E-4 /yr
Multi-Fault Rate4.6498957E-4 /yr (100.00%)
Directly-Connected Faults3
All Co-Rupturing Faults27

Table Of Contents

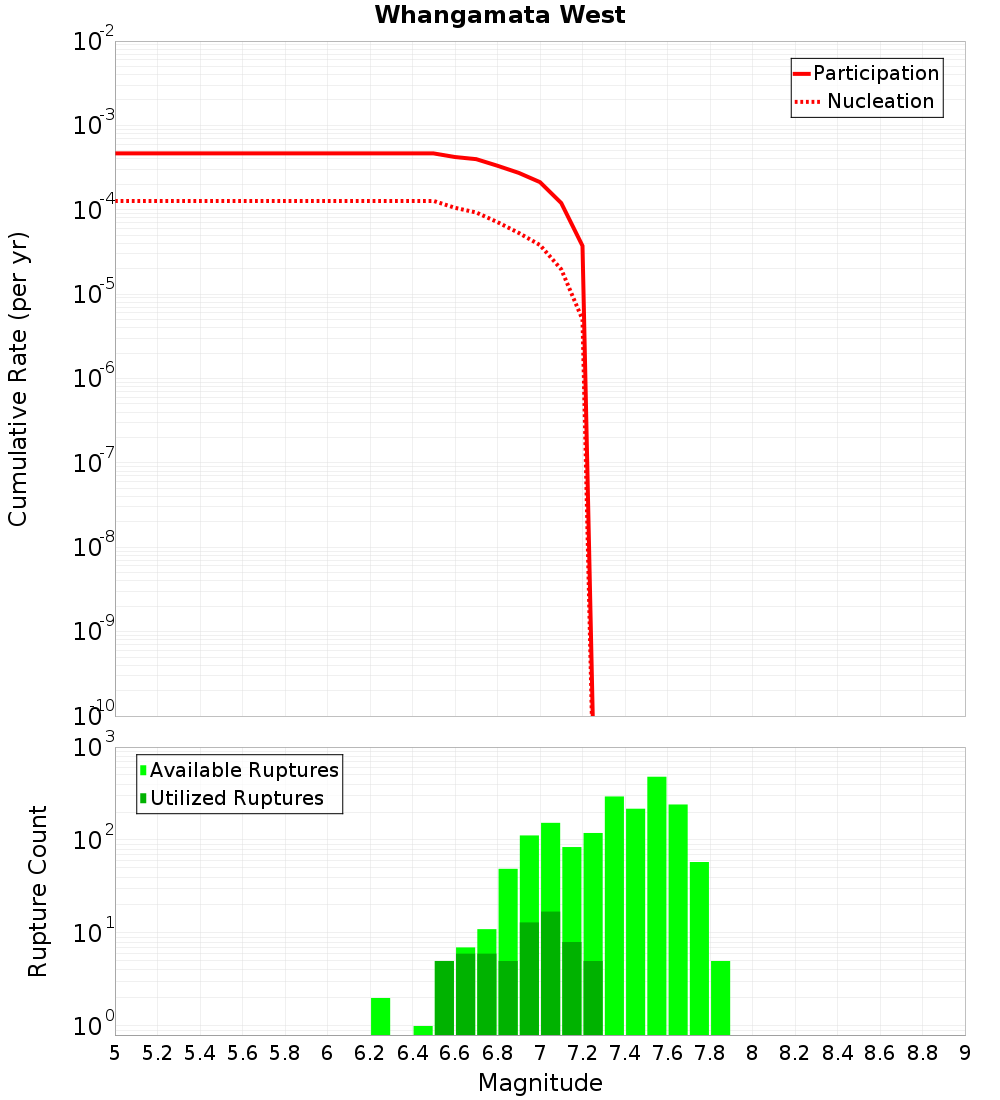

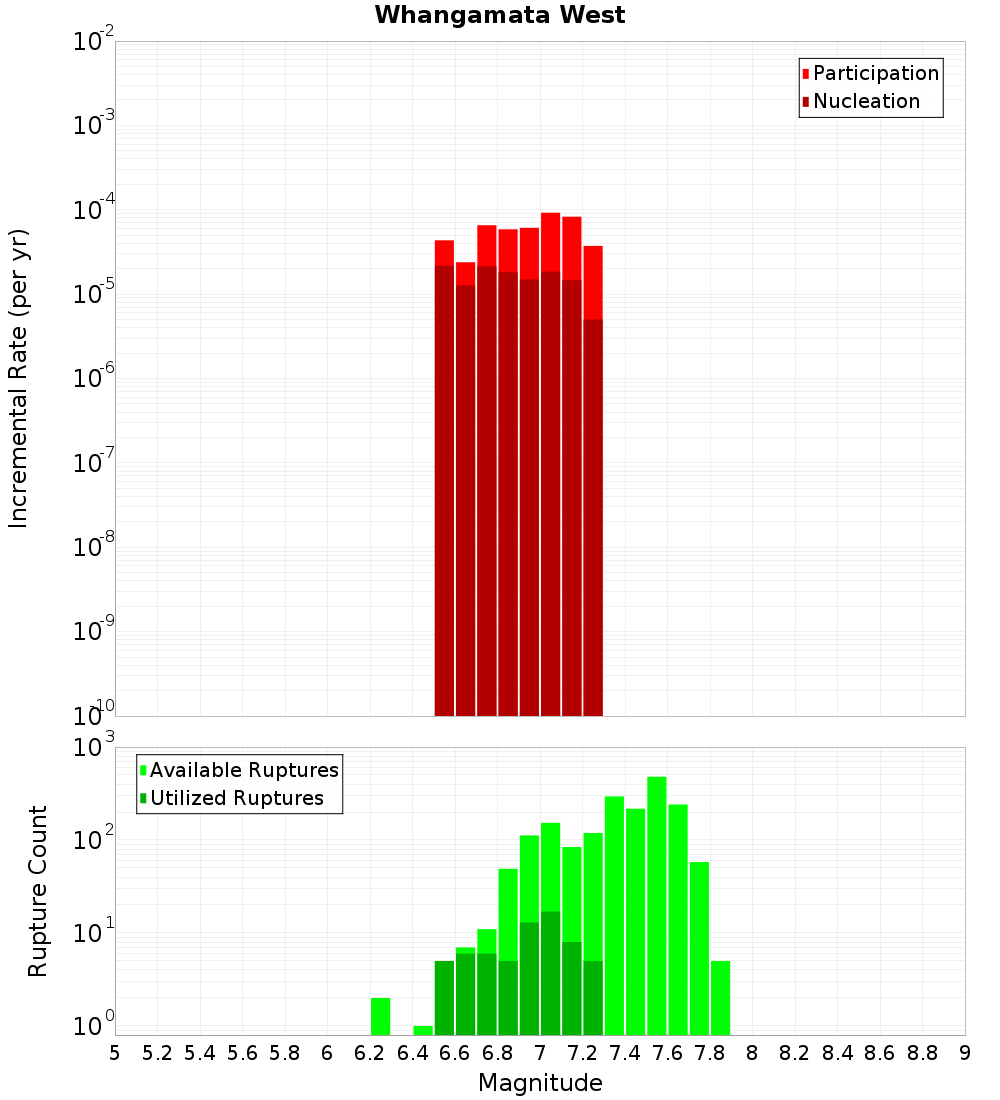

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

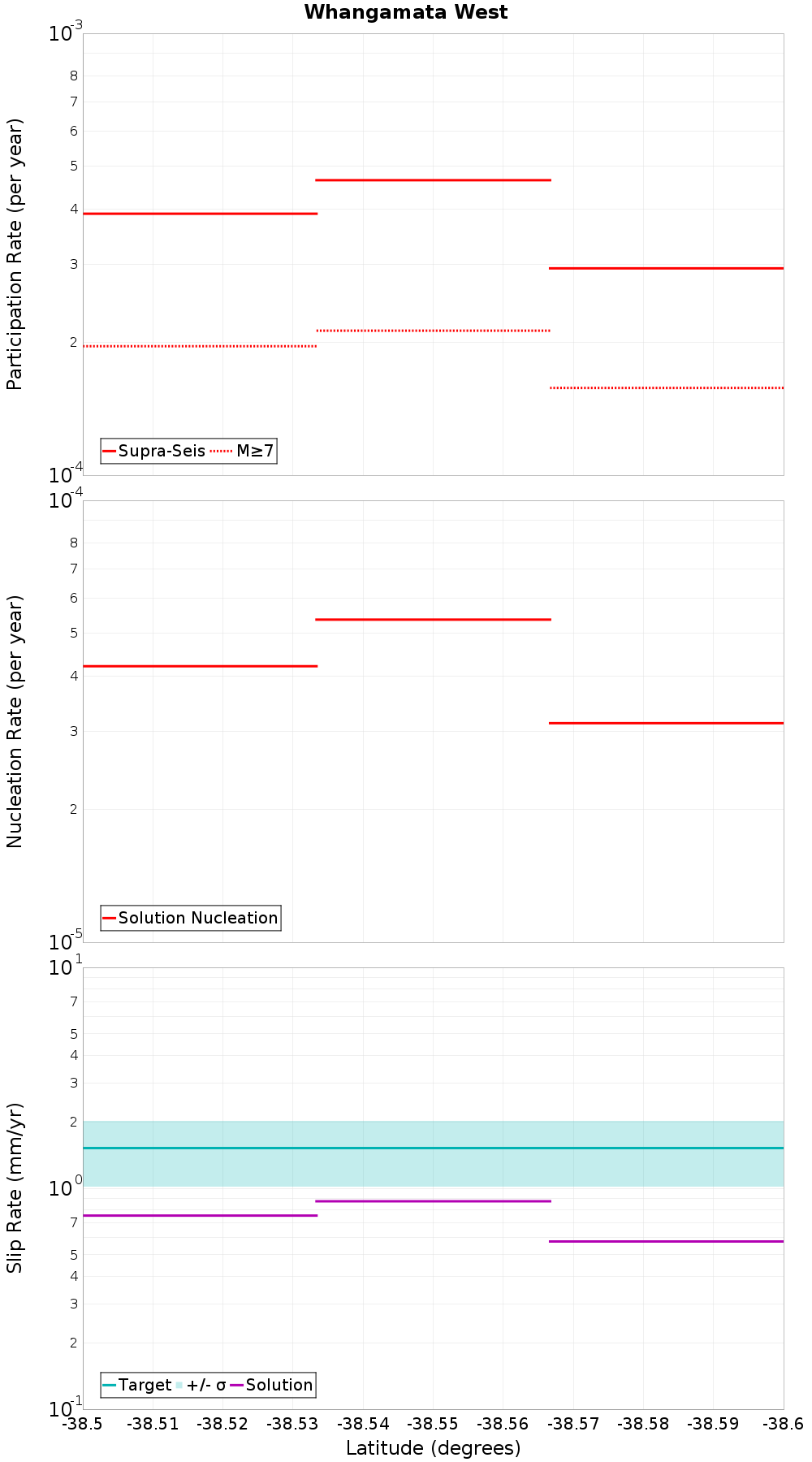

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Puketerata, 0.11 km away
Orakeikorako, 0.23 km away
Kaiapo, 0.25 km away
Puketerata North, 9.6 km away
Maleme, 12.98 km away
Paeroa, 13.84 km away

Puketerata, 0.11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count509
Co-rupture Rate1.3069883E-4

Orakeikorako, 0.23 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count1,321
Co-rupture Rate2.9085134E-4

Kaiapo, 0.25 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?true
Co-rupture Count738
Co-rupture Rate1.7369849E-4

Puketerata North, 9.6 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count615
Co-rupture Rate1.2910238E-4

Maleme, 12.98 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count1,368
Co-rupture Rate2.1611301E-4

Paeroa, 13.84 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjM5OTYuMG9RY1ZB
Connected?true
Directly Connected?false
Co-rupture Count787
Co-rupture Rate2.7288584E-4
