Motu o Kura East Details
| Property | Value |
|---|---|
| Rupture Count | 7,672 |
| Ruptures Above Sect Min Mag | 7,657 |
| Ruptures w/ Nonzero Rates | 8 |
| Magnitude Range | [6.71, 8.57] |
| Length Range | [18, 1,127] km |
| Total Rate | 1.8567868E-4 /yr |
| Multi-Fault Rate | 1.8567868E-4 /yr (100.00%) |
| Directly-Connected Faults | 3 |
| All Co-Rupturing Faults | 63 |
Table Of Contents

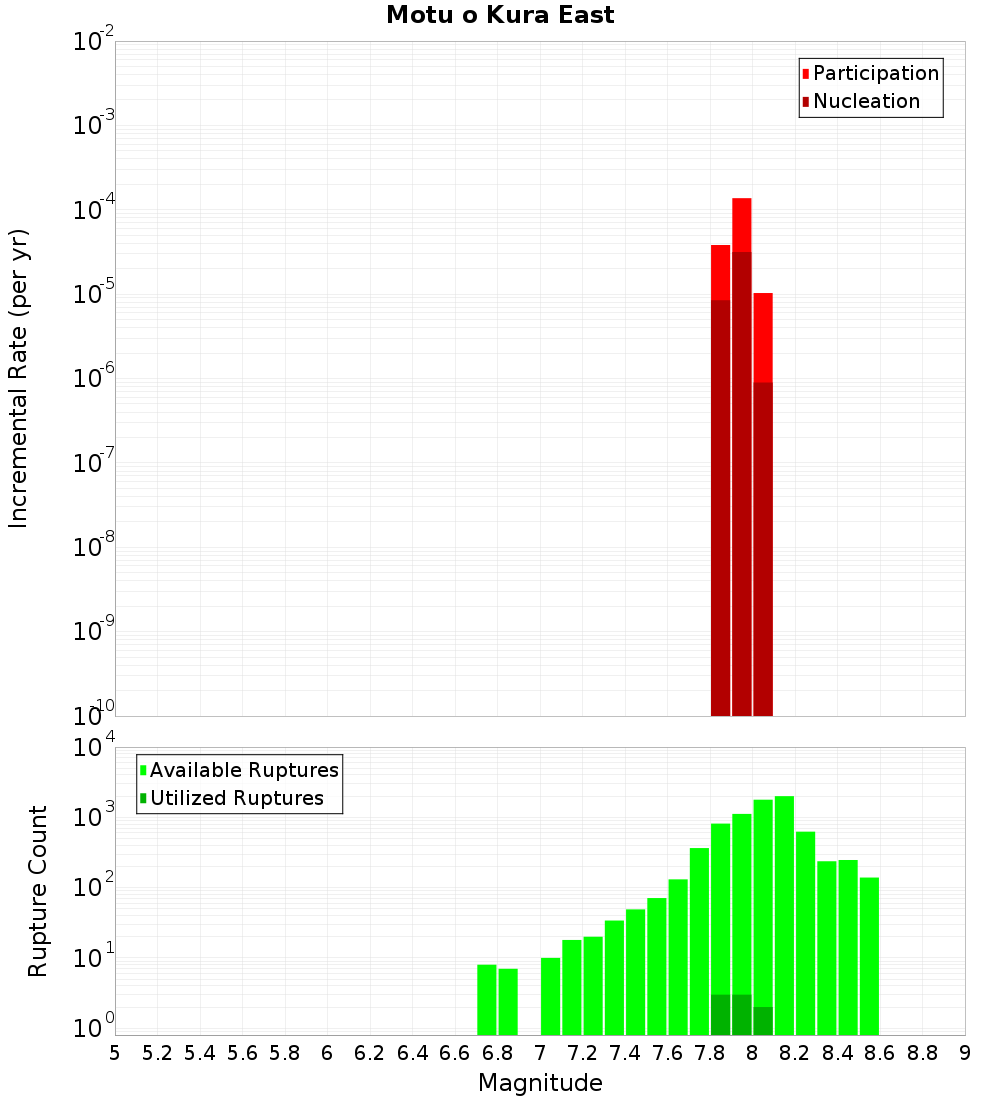

Magnitude-Frequency Distribution
| Incremental | Cumulative |
|---|---|
 |  |
Along-Strike Values
Moment-Rates and b-Values

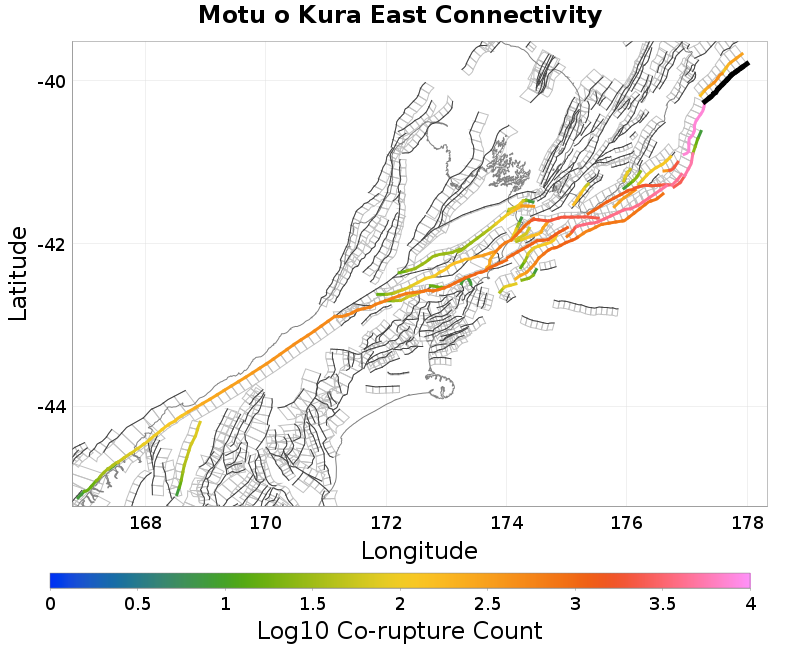

Connectivity
 |  |
|---|
Nearby Sections
| Fault Section |
|---|
| Madden Banks, 0.5 km away |
| Motu o Kura Ridge, 6.46 km away |
| Motuokura North, 7.07 km away |
Madden Banks, 0.5 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 7,570 |
| Co-rupture Rate | 1.8567868E-4 |
Motu o Kura Ridge, 6.46 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 444 |
| Co-rupture Rate | 1.392483E-4 |
Motuokura North, 7.07 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 306 |
| Co-rupture Rate | 1.2965885E-4 |
