Ngatoro South 2 Details

Property	Value
Rupture Count	24
Ruptures Above Sect Min Mag	24
Ruptures w/ Nonzero Rates	11
Magnitude Range	[6.99, 7.87]
Length Range	[24, 185] km
Total Rate	1.132504E-4 /yr
Multi-Fault Rate	1.132504E-4 /yr (100.00%)
Directly-Connected Faults	3
All Co-Rupturing Faults	19

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

Magnitude-Frequency Distribution

Incremental	Cumulative

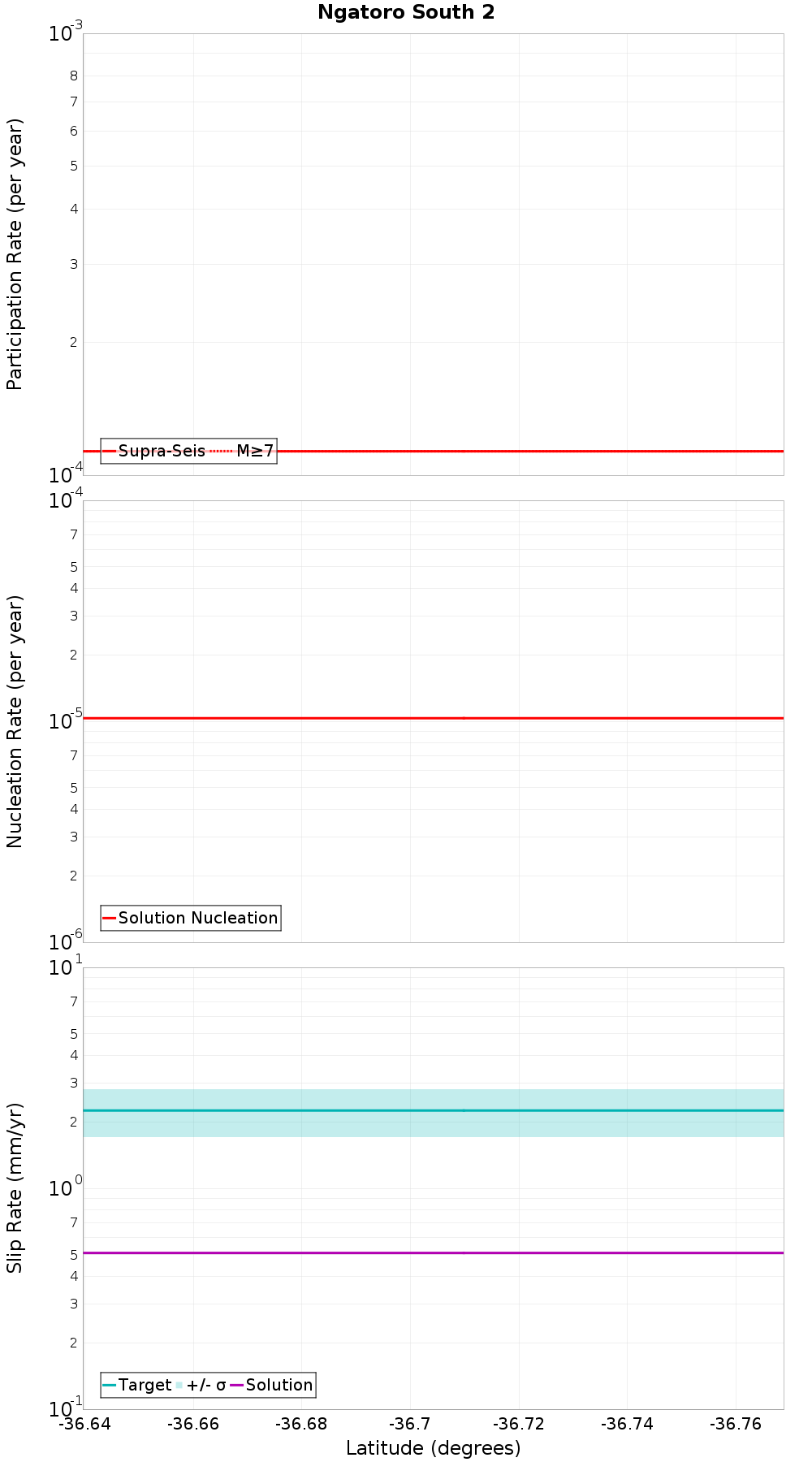

Along-Strike Values

Moment-Rates and b-Values

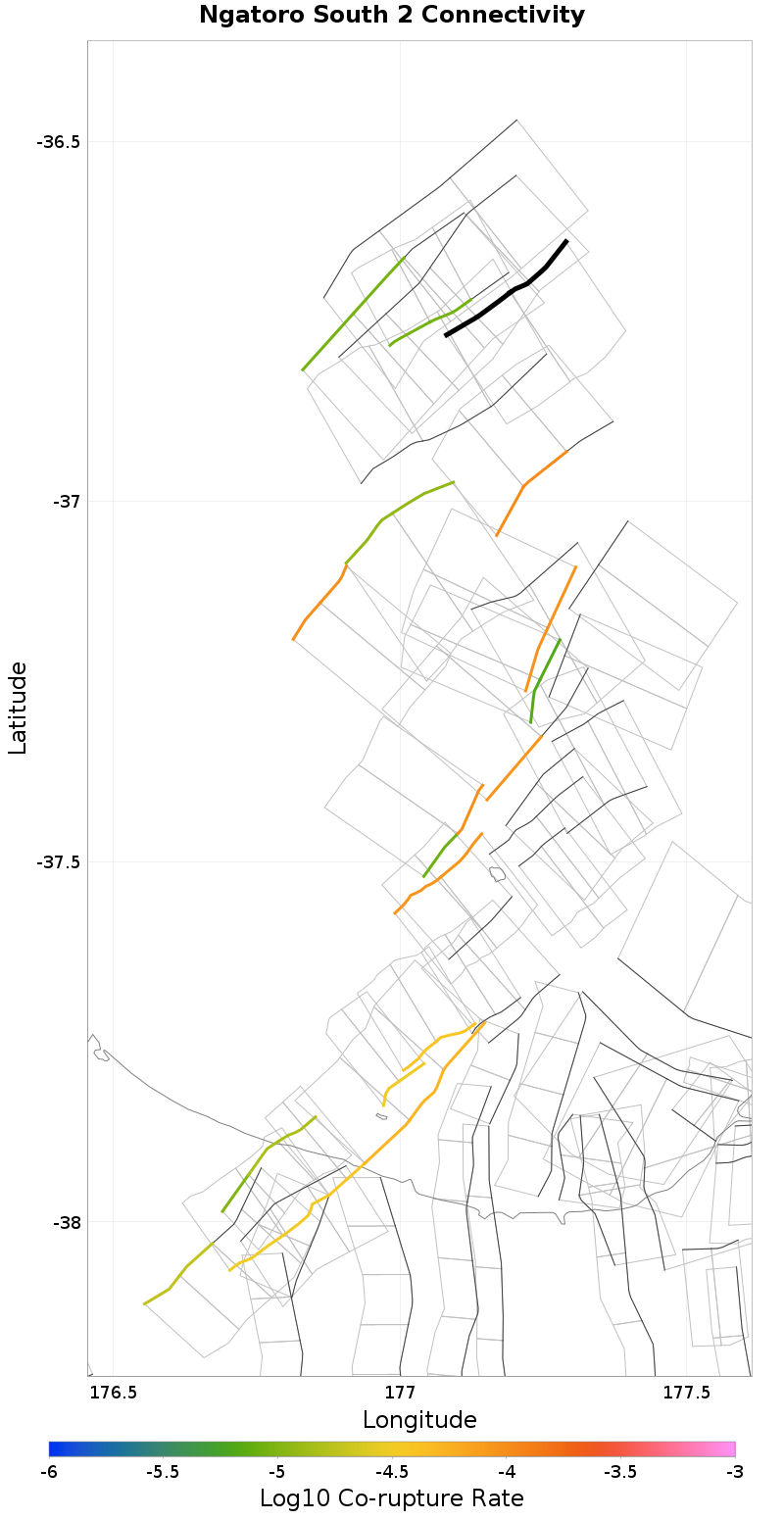

Connectivity

Nearby Sections

Fault Section
Tauranga Trough West 2, 0.18 km away
Tauranga Trough East 2, 0.25 km away
Ngatoro South 5, 2.58 km away
Ohena 2, 6.63 km away
Ohena 3, 9.72 km away
Ohena 4, 14.7 km away
Otara West 2, 15.56 km away
Tuakana 7, 19.01 km away

Tauranga Trough West 2, 0.18 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	true
Co-rupture Count	2
Co-rupture Rate	0.0

Tauranga Trough East 2, 0.25 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	true
Co-rupture Count	18
Co-rupture Rate	1.0433939E-4

Ngatoro South 5, 2.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	8.910999E-6

Ohena 2, 6.63 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Ohena 3, 9.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	8.910999E-6

Ohena 4, 14.7 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara West 2, 15.56 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	false
Co-rupture Count	13
Co-rupture Rate	9.281984E-5

Tuakana 7, 19.01 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?	true
Directly Connected?	false
Co-rupture Count	4
Co-rupture Rate	1.1519554E-5
