Raukumara 17 Details

PropertyValue
Rupture Count30
Ruptures Above Sect Min Mag26
Ruptures w/ Nonzero Rates6
Magnitude Range[6.73, 7.73]
Length Range[11, 117] km
Total Rate3.5437206E-5 /yr
Multi-Fault Rate3.5437206E-5 /yr (100.00%)
Directly-Connected Faults5
All Co-Rupturing Faults9

Table Of Contents

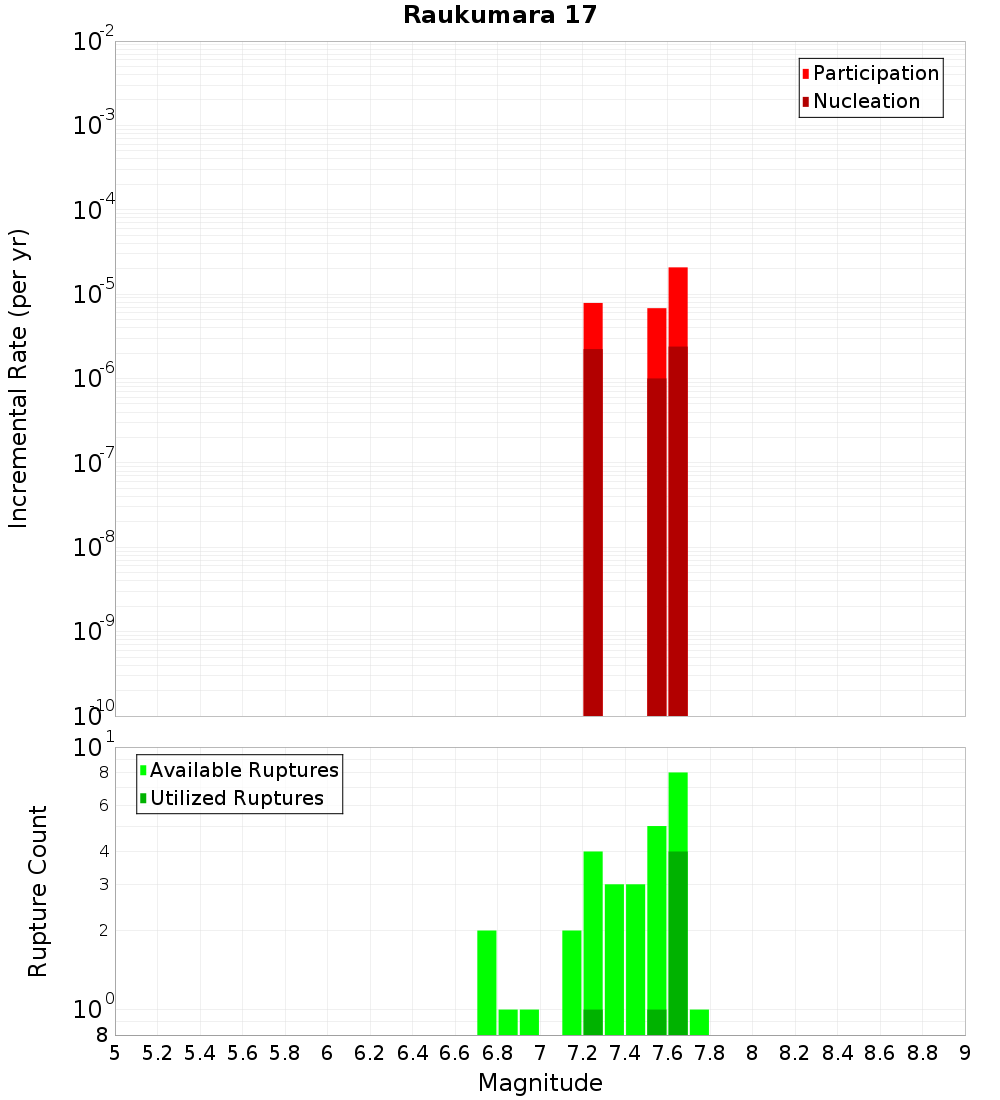

Magnitude-Frequency Distribution

(top)

IncrementalCumulative

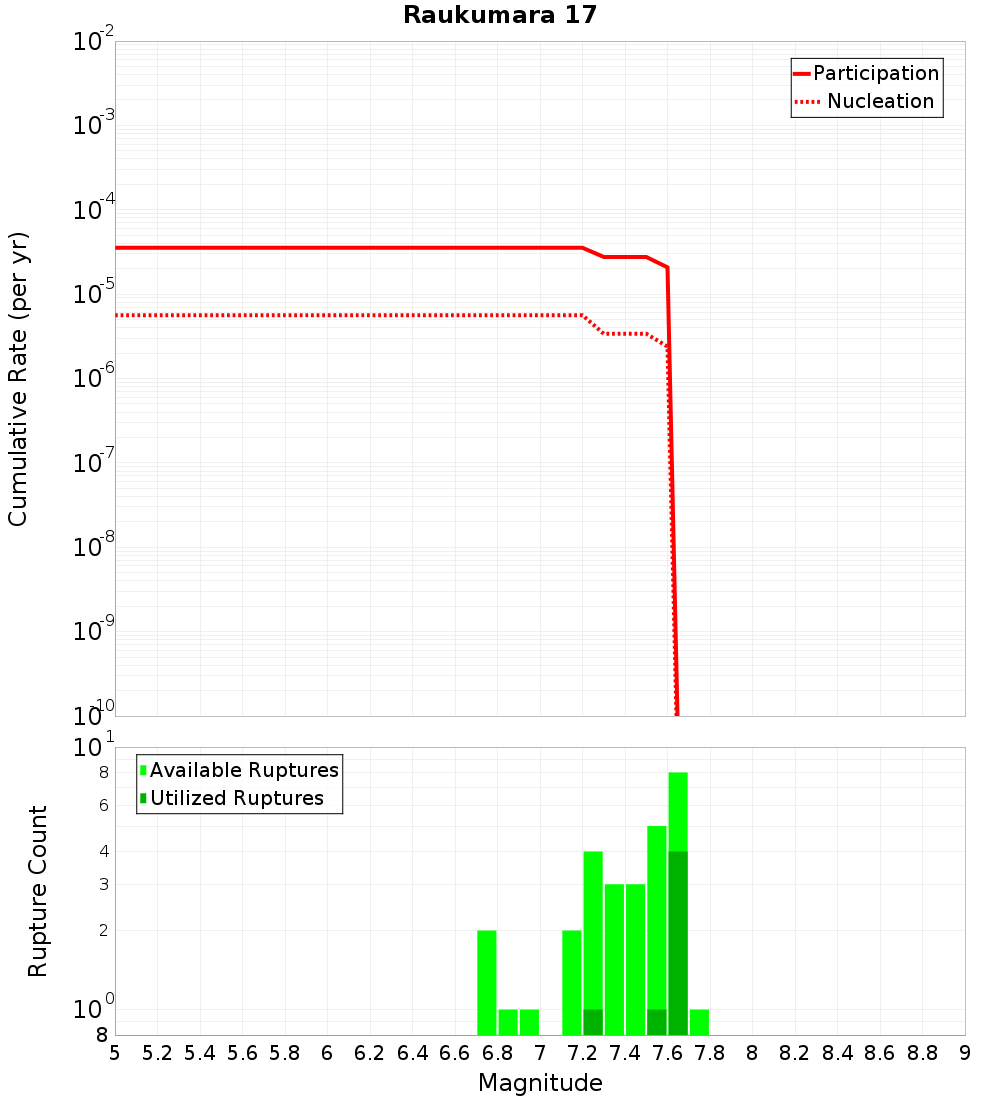

Incremental PlotCumulative Plot

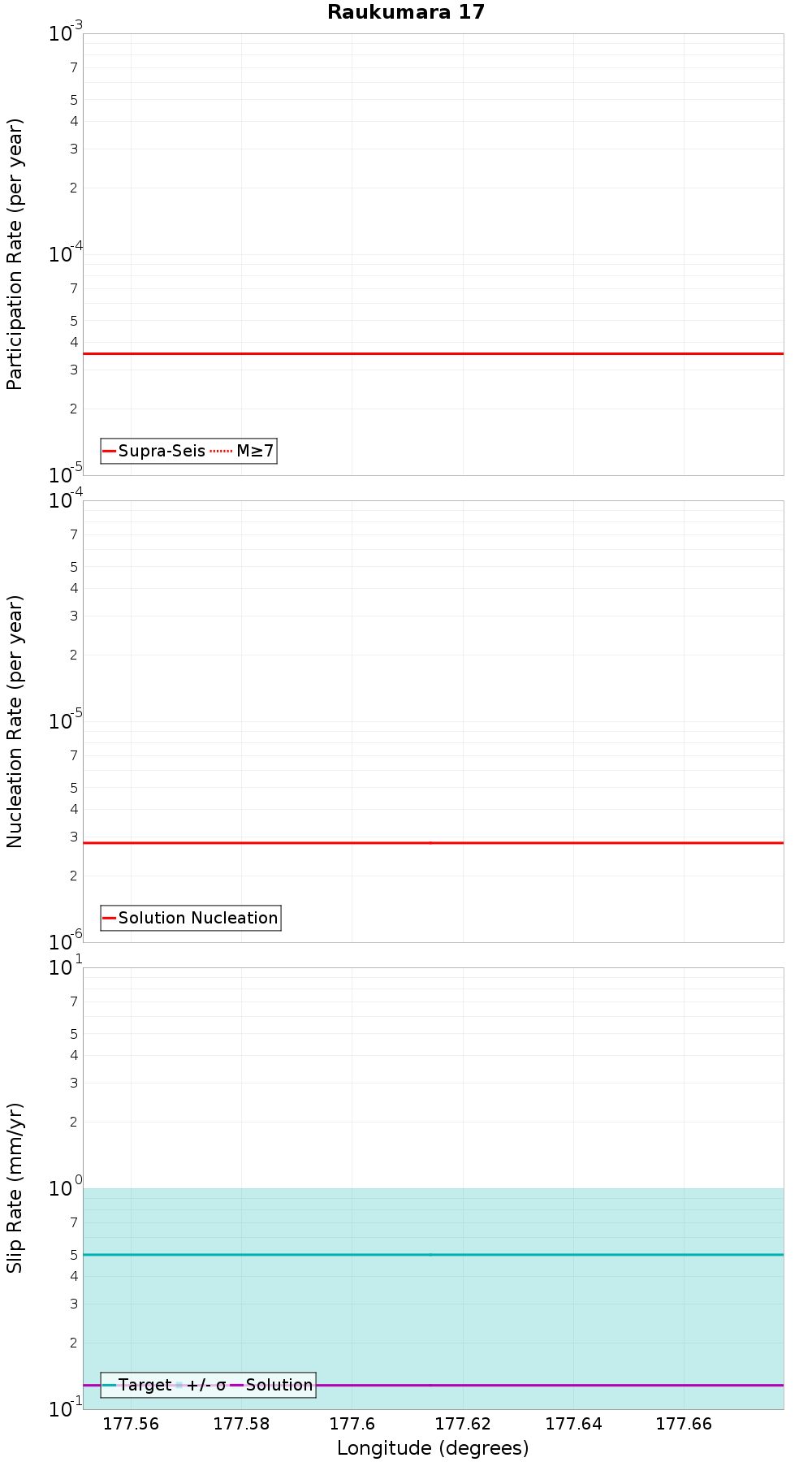

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

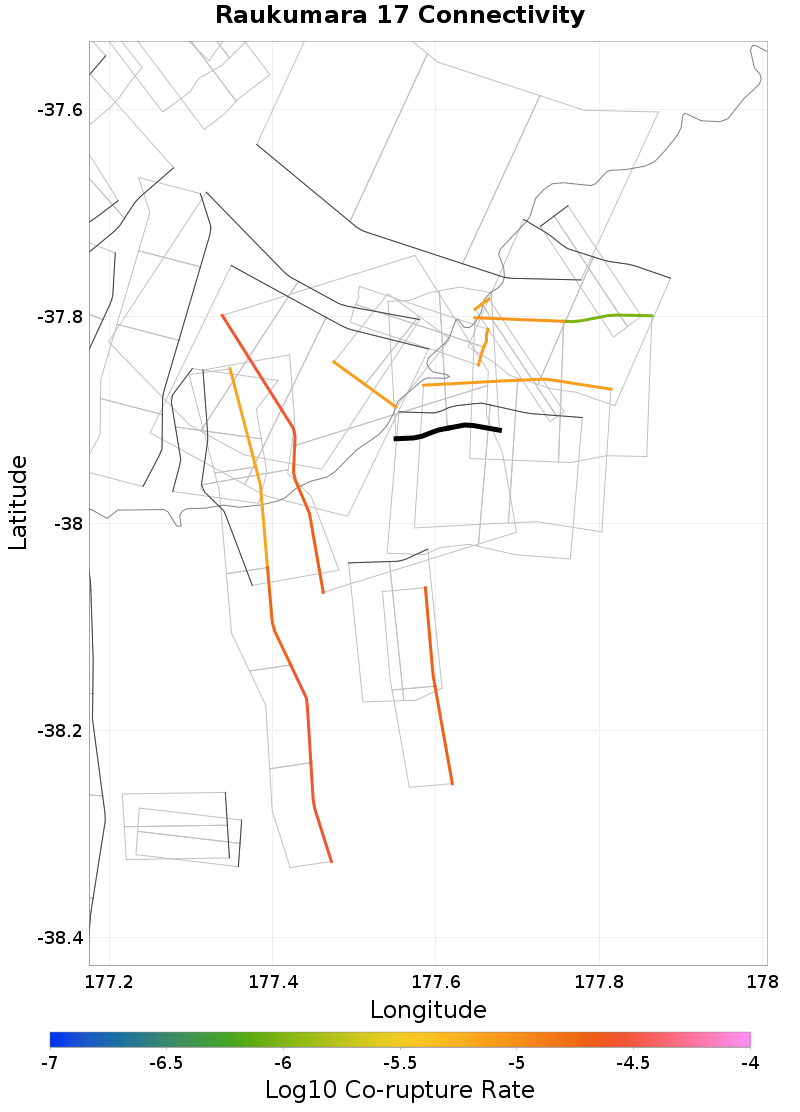

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault SectionFault Section
Ohae 3, 0.15 km awayOhae 1, 1.67 km away
Motu River, 0.16 km awayRaukumara 24, 11 km away
Raukumara 18, 0.21 km awayTirohanga, 11.85 km away
Ohae 2, 0.31 km awayRaukumara 16, 12.04 km away
Opape 1, 0.33 km awayOpotiki 2, 14.02 km away
Raukumara 21, 0.34 km awayHariki, 14.19 km away
Kereu, 0.44 km awayKotare - Moutuhora, 15.37 km away
Raukumara 20, 0.82 km awayMotu, 16.14 km away
Raukumara 25, 1.63 km away

Ohae 3, 0.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?true
Co-rupture Count6
Co-rupture Rate7.859895E-6

Motu River, 0.16 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?true
Co-rupture Count2
Co-rupture Rate7.859895E-6

Raukumara 18, 0.21 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Ohae 2, 0.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opape 1, 0.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?true
Co-rupture Count17
Co-rupture Rate2.757731E-5

Raukumara 21, 0.34 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?true
Co-rupture Count11
Co-rupture Rate8.854222E-6

Kereu, 0.44 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 20, 0.82 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?false
Co-rupture Count3
Co-rupture Rate7.906943E-6

Raukumara 25, 1.63 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?true
Co-rupture Count10
Co-rupture Rate7.555717E-6

Ohae 1, 1.67 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 24, 11 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Tirohanga, 11.85 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Raukumara 16, 12.04 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Opotiki 2, 14.02 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Hariki, 14.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?false
Co-rupture Count5
Co-rupture Rate0.0

Kotare - Moutuhora, 15.37 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?false
Co-rupture Count9
Co-rupture Rate2.757731E-5

Motu, 16.14 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwMTQuMGRvSlNt
Connected?true
Directly Connected?false
Co-rupture Count11
Co-rupture Rate2.0762336E-5
