Edgecumbe 1987 Details

PropertyValue
Rupture Count14,314
Ruptures Above Sect Min Mag14,313
Ruptures w/ Nonzero Rates140
Magnitude Range[6.79, 8.34]
Length Range[20, 608] km
Total Rate3.240503E-4 /yr
Multi-Fault Rate3.240503E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults86

Table Of Contents

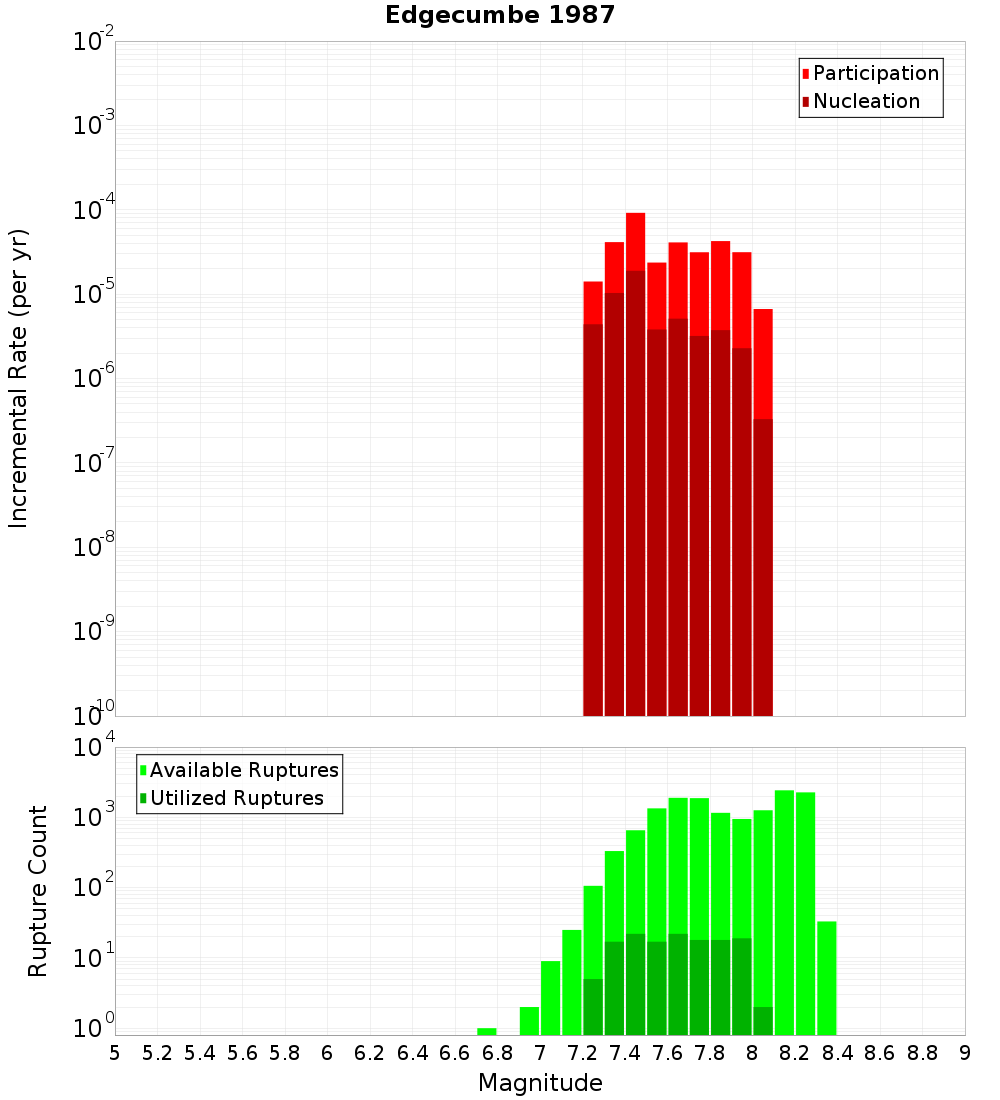

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

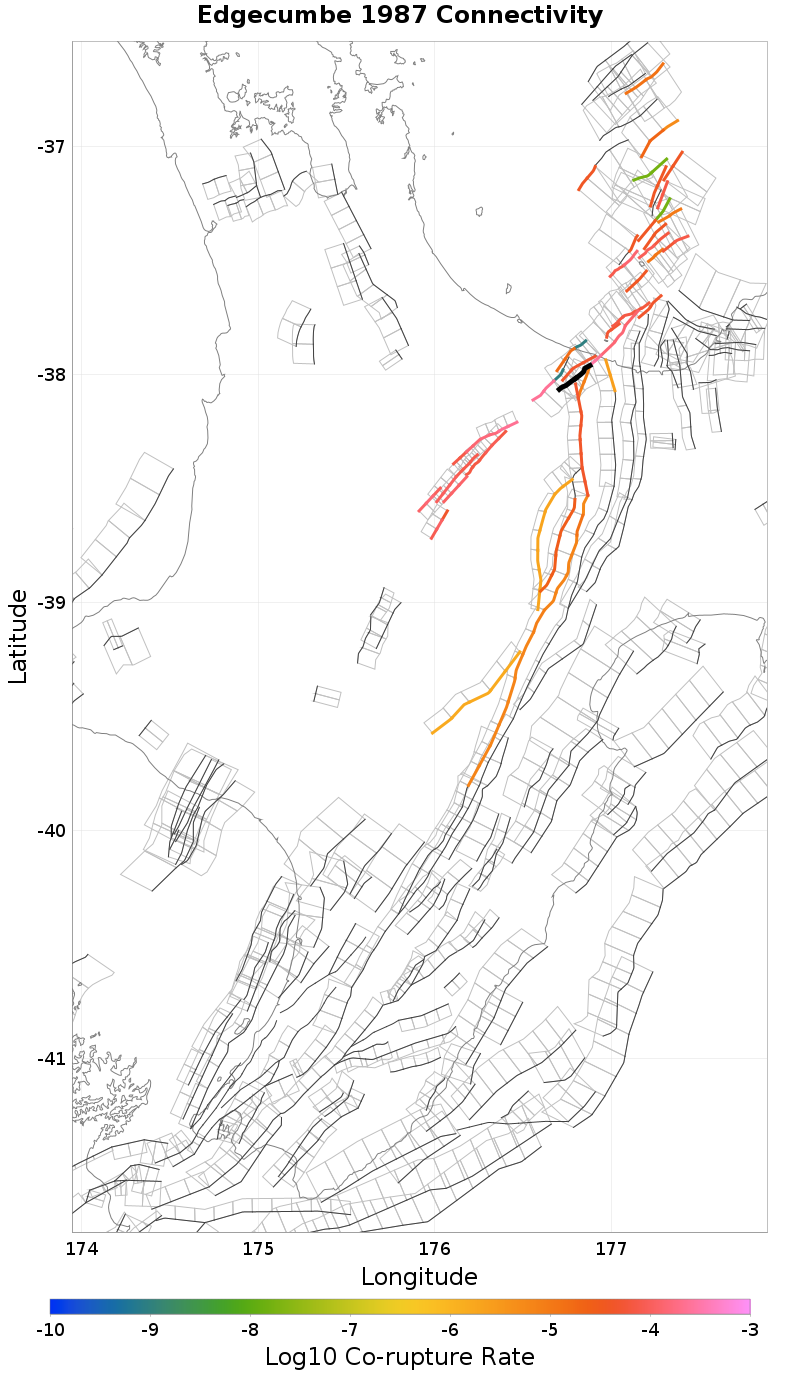

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Awakeri, 0 km away
Edgecumbe Coastal, 0 km away
Otakiri, 0.19 km away
Matata, 0.29 km away
Braemar, 0.32 km away
Waiohau: North, 2.18 km away
White Island 1, 4.49 km away
Whakatane: North, 7.15 km away
Rangitaiki 1, 15.01 km away

Awakeri, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?false
Co-rupture Count658
Co-rupture Rate8.14323E-6

Edgecumbe Coastal, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?true
Co-rupture Count11,626
Co-rupture Rate2.9068484E-4

Otakiri, 0.19 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?false
Co-rupture Count114
Co-rupture Rate4.8473525E-5

Matata, 0.29 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?false
Co-rupture Count558
Co-rupture Rate1.6541977E-5

Braemar, 0.32 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?true
Co-rupture Count2,874
Co-rupture Rate2.3845091E-4

Waiohau: North, 2.18 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?true
Co-rupture Count11,698
Co-rupture Rate4.695019E-5

White Island 1, 4.49 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?true
Co-rupture Count11,570
Co-rupture Rate1.4339972E-4

Whakatane: North, 7.15 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?false
Co-rupture Count36
Co-rupture Rate2.4221931E-6

Rangitaiki 1, 15.01 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNDQuMDczY1NW
Connected?true
Directly Connected?false
Co-rupture Count762
Co-rupture Rate5.113737E-5
