Hariki Details

Property	Value
Rupture Count	390
Ruptures Above Sect Min Mag	389
Ruptures w/ Nonzero Rates	1
Magnitude Range	[7.11, 8.19]
Length Range	[26, 407] km
Total Rate	1.556748E-5 /yr
Multi-Fault Rate	1.556748E-5 /yr (100.00%)
Directly-Connected Faults	6
All Co-Rupturing Faults	31

Table Of Contents

Magnitude-Frequency Distribution
Along-Strike Values
- Moment-Rates and b-Values
Connectivity
- Nearby Sections

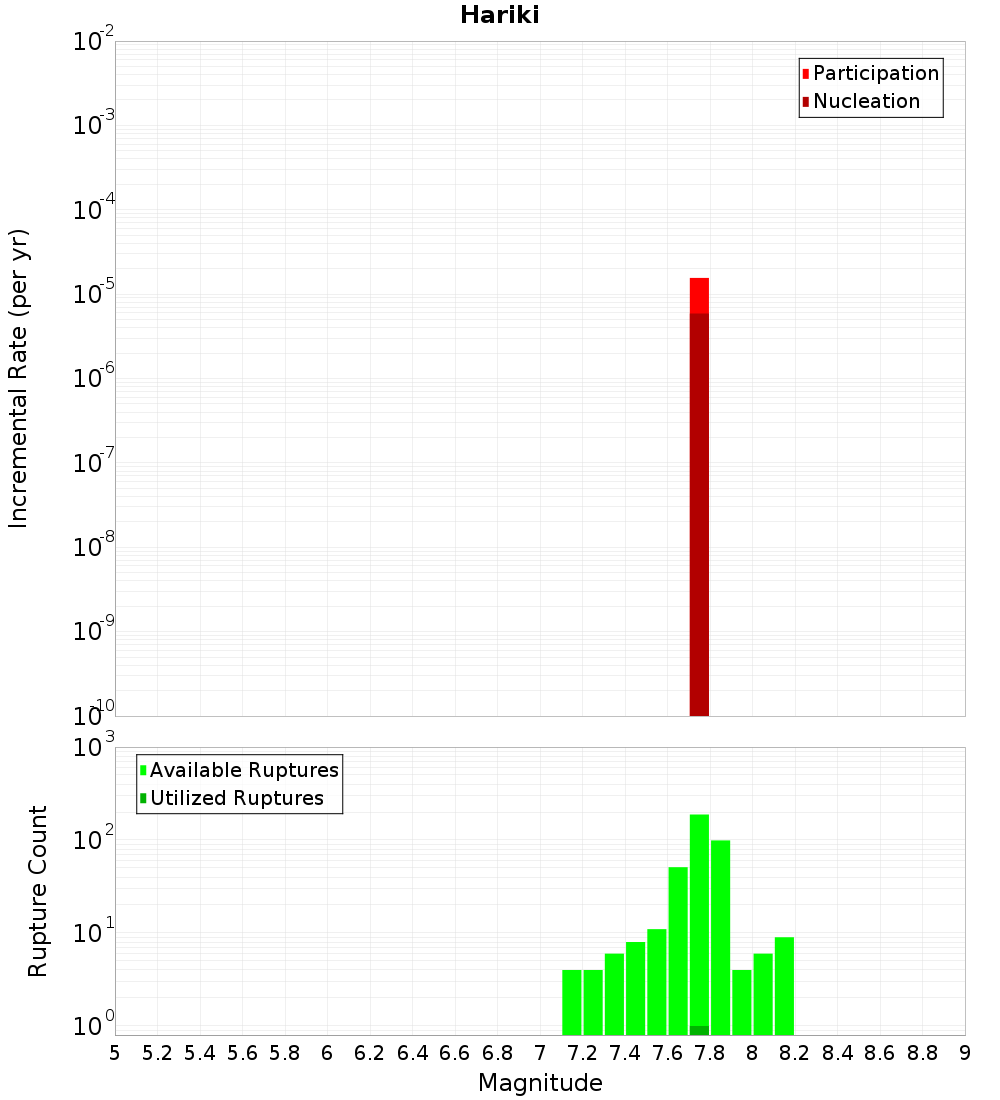

Magnitude-Frequency Distribution

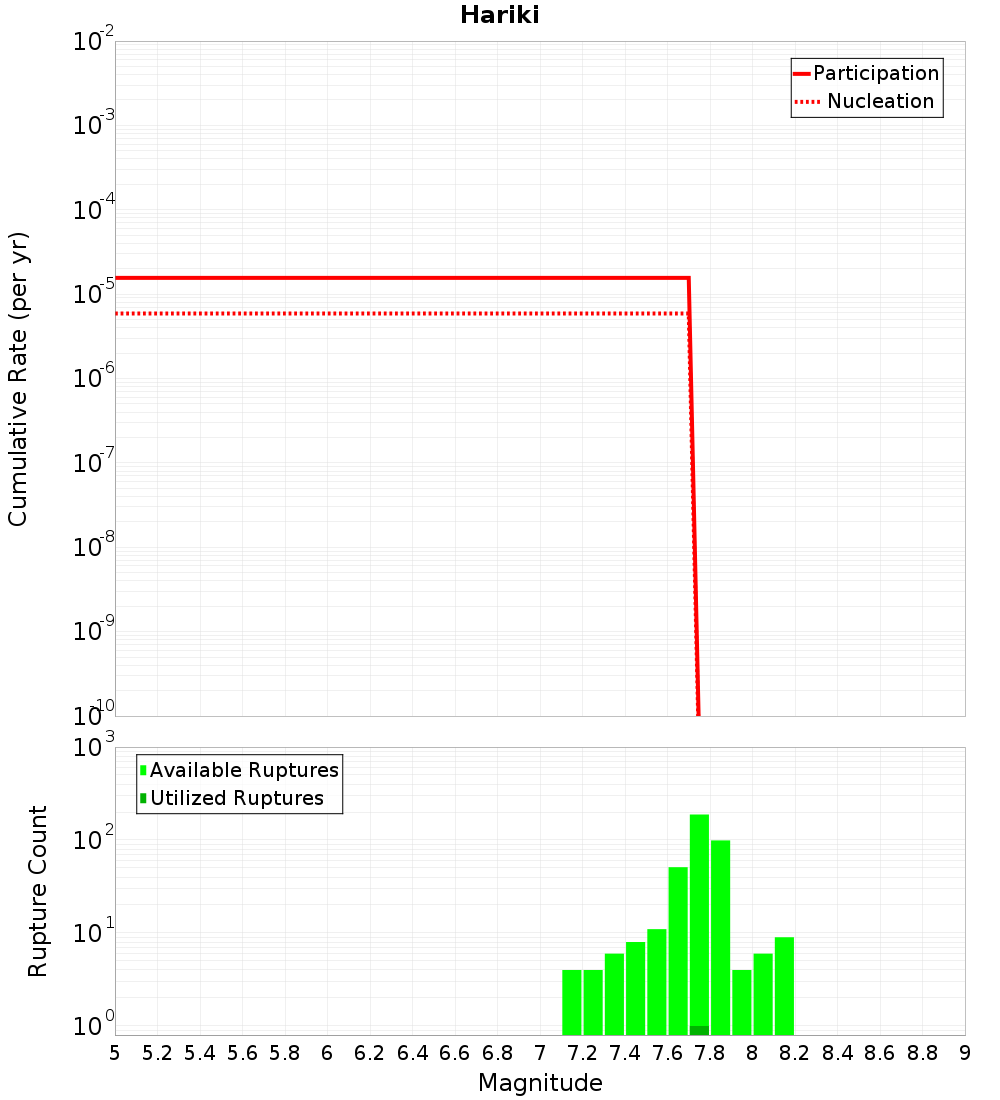

Incremental	Cumulative

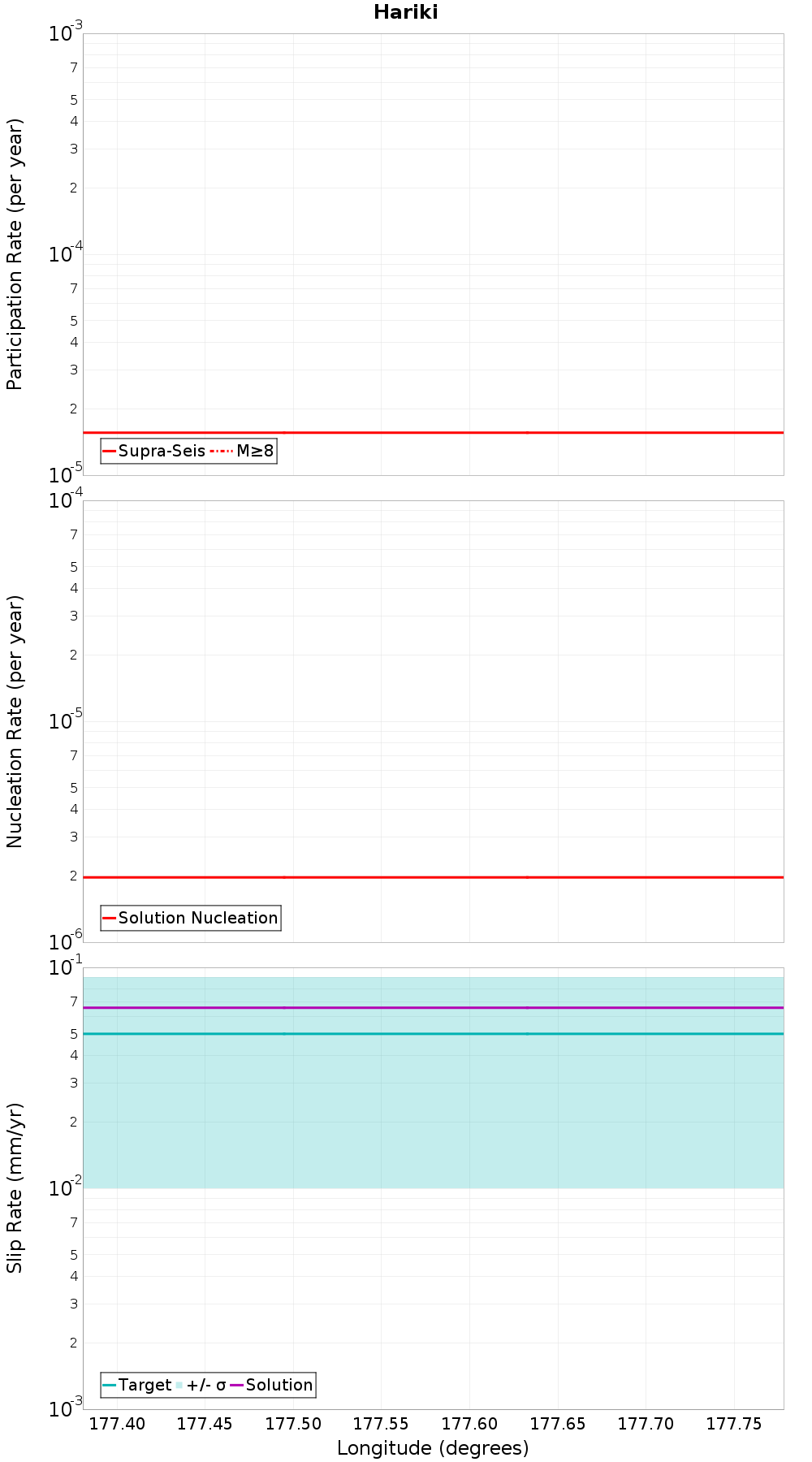

Along-Strike Values

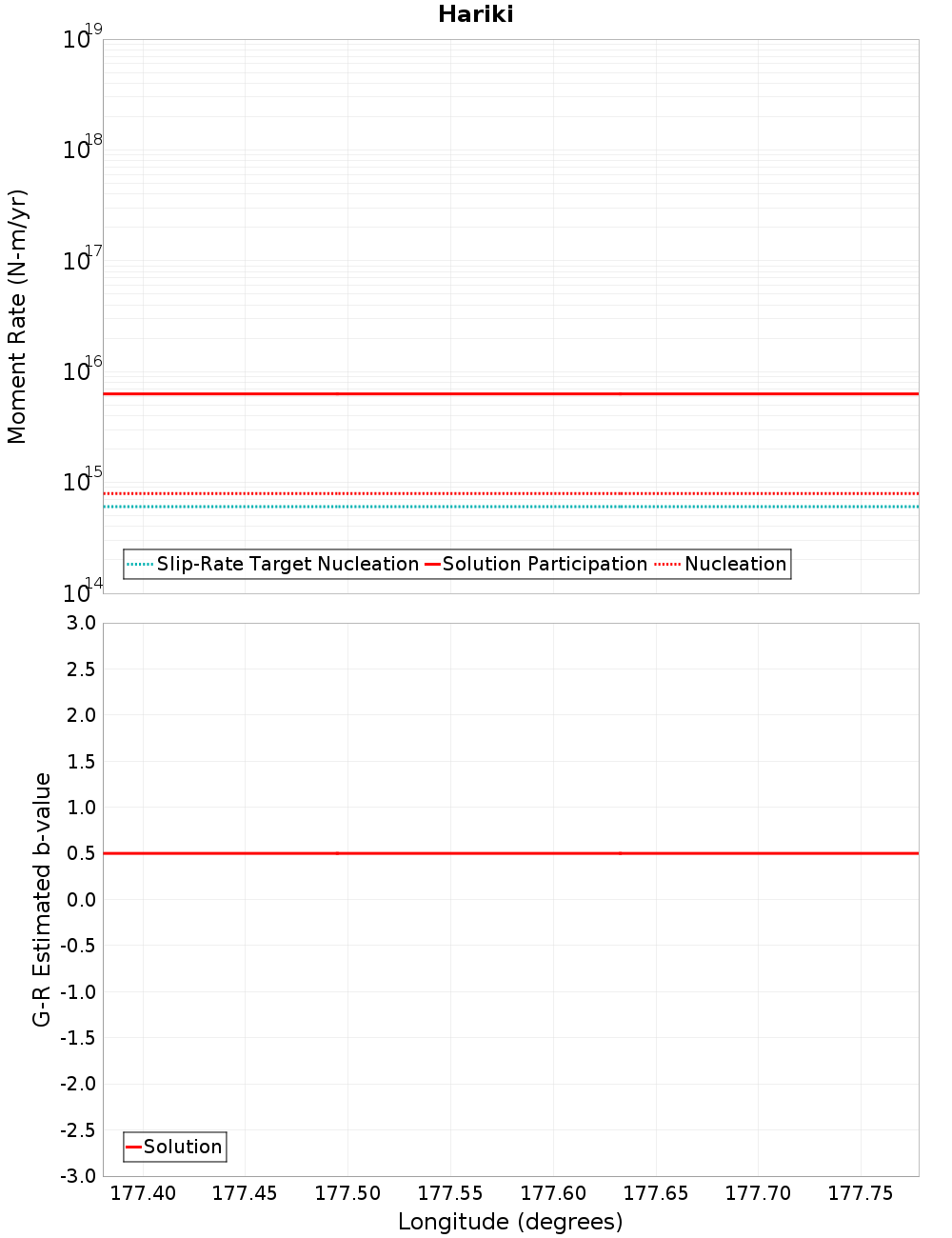

Moment-Rates and b-Values

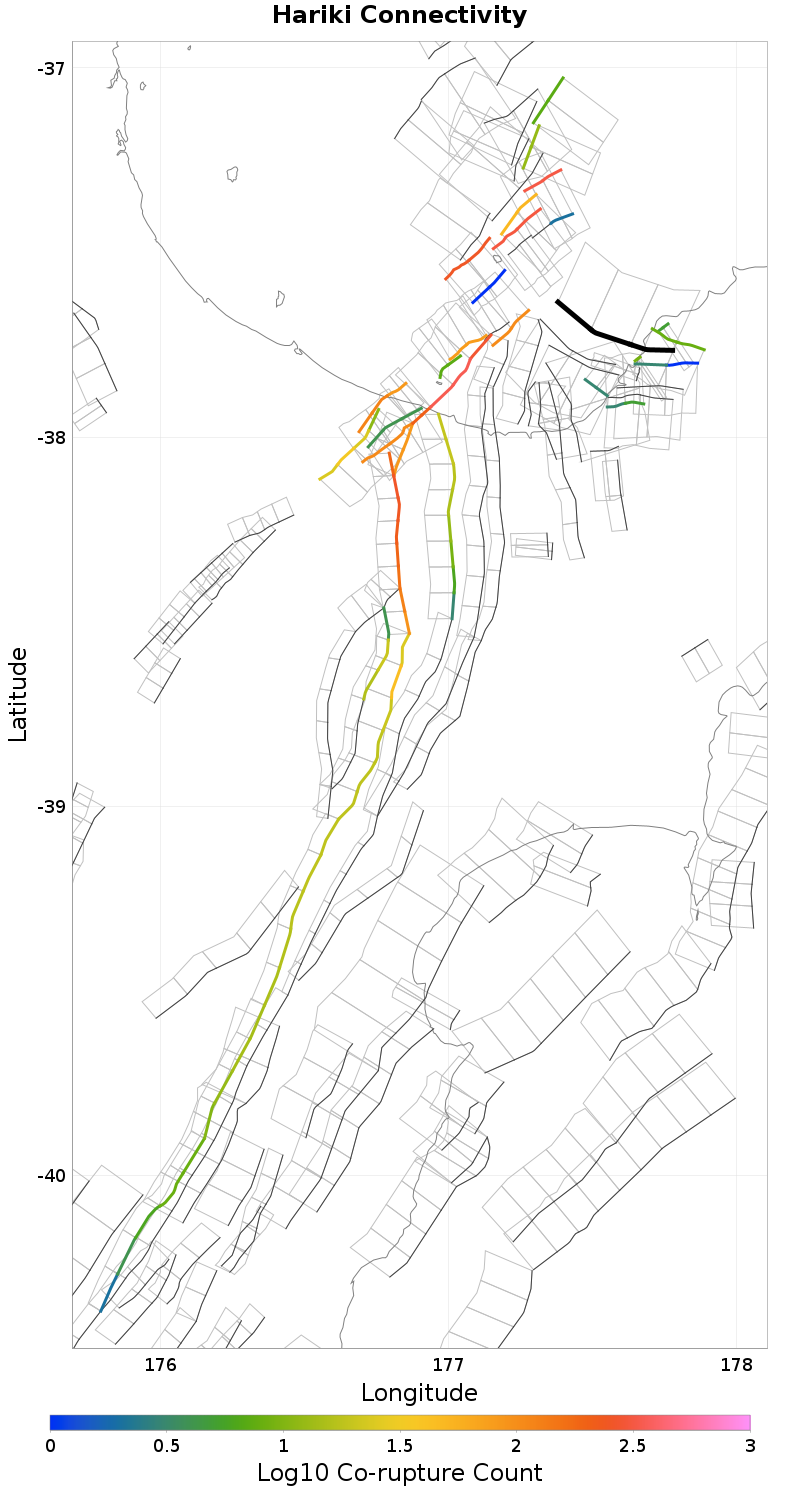

Connectivity

Nearby Sections

Fault Section	Fault Section
Kereu, 0.32 km away	Ohae 2, 9.85 km away
Raukumara 24, 0.34 km away	Motu River, 10.75 km away
Raukumara 25, 2.72 km away	Opape 1, 13.53 km away
Te Arawa 1, 2.72 km away	Ohae 3, 13.58 km away
Te Arawa 3, 3.21 km away	Raukumara 18, 13.74 km away
Raukumara 21, 4.31 km away	Otara East 1, 14.16 km away
Te Arawa 2, 5.17 km away	Raukumara 17, 14.19 km away
Tuatoru 1, 5.5 km away	Ohiwa 1, 16.12 km away
Raukumara 20, 5.83 km away	Whakaari 4, 17.21 km away
Ohae 1, 7.15 km away	Tuatoru 2, 18.73 km away
Opotiki 3, 8.05 km away	Calypso 2, 18.86 km away
White Island 2, 9.31 km away	Waimanawa - Waikaremoana, 19.19 km away

Kereu, 0.32 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	true
Co-rupture Count	8
Co-rupture Rate	1.556748E-5

Raukumara 24, 0.34 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	true
Co-rupture Count	5
Co-rupture Rate	1.556748E-5

Raukumara 25, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	true
Co-rupture Count	9
Co-rupture Rate	0.0

Te Arawa 1, 2.72 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	308
Co-rupture Rate	0.0

Te Arawa 3, 3.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	true
Co-rupture Count	323
Co-rupture Rate	1.556748E-5

Raukumara 21, 4.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	true
Co-rupture Count	3
Co-rupture Rate	0.0

Te Arawa 2, 5.17 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	true
Co-rupture Count	51
Co-rupture Rate	0.0

Tuatoru 1, 5.5 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Raukumara 20, 5.83 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 1, 7.15 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opotiki 3, 8.05 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

White Island 2, 9.31 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	104
Co-rupture Rate	0.0

Ohae 2, 9.85 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Motu River, 10.75 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Opape 1, 13.53 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Ohae 3, 13.58 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	3
Co-rupture Rate	0.0

Raukumara 18, 13.74 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Otara East 1, 14.16 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	12
Co-rupture Rate	1.556748E-5

Raukumara 17, 14.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	5
Co-rupture Rate	0.0

Ohiwa 1, 16.12 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A

Whakaari 4, 17.21 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	251
Co-rupture Rate	0.0

Tuatoru 2, 18.73 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	2
Co-rupture Rate	0.0

Calypso 2, 18.86 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	true
Directly Connected?	false
Co-rupture Count	1
Co-rupture Rate	0.0

Waimanawa - Waikaremoana, 19.19 km away

(back to table)

	Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNTAuMFE5M1M0
Connected?	false
Directly Connected?	false
Co-rupture Count	0
Co-rupture Rate	N/A
