Barn Details
| Property | Value |
|---|---|
| Rupture Count | 24 |
| Ruptures Above Sect Min Mag | 22 |
| Ruptures w/ Nonzero Rates | 5 |
| Magnitude Range | [7.27, 7.91] |
| Length Range | [34, 171] km |
| Total Rate | 1.3555914E-4 /yr |
| Multi-Fault Rate | 5.3340773E-5 /yr (39.35%) |
| Directly-Connected Faults | 2 |
| All Co-Rupturing Faults | 2 |
Table Of Contents

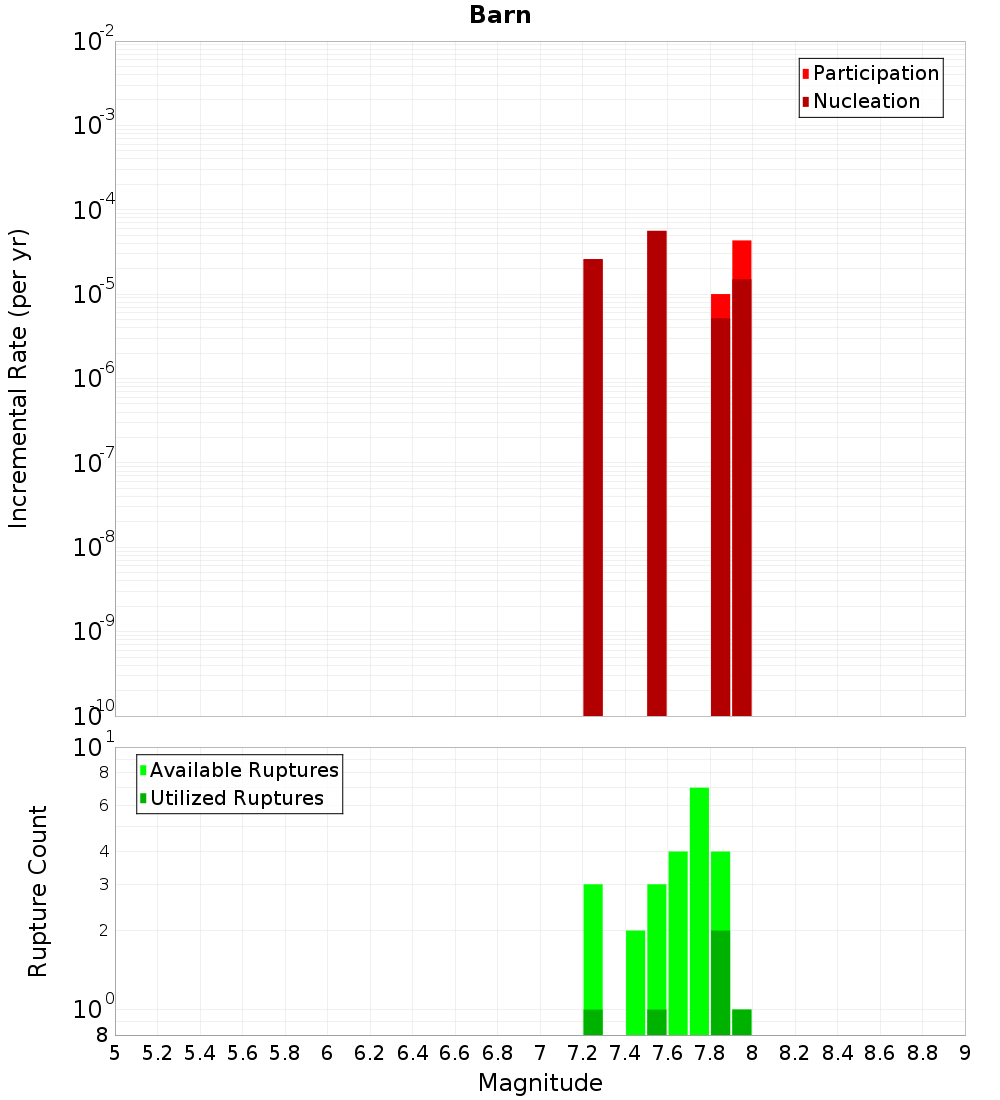

Magnitude-Frequency Distribution

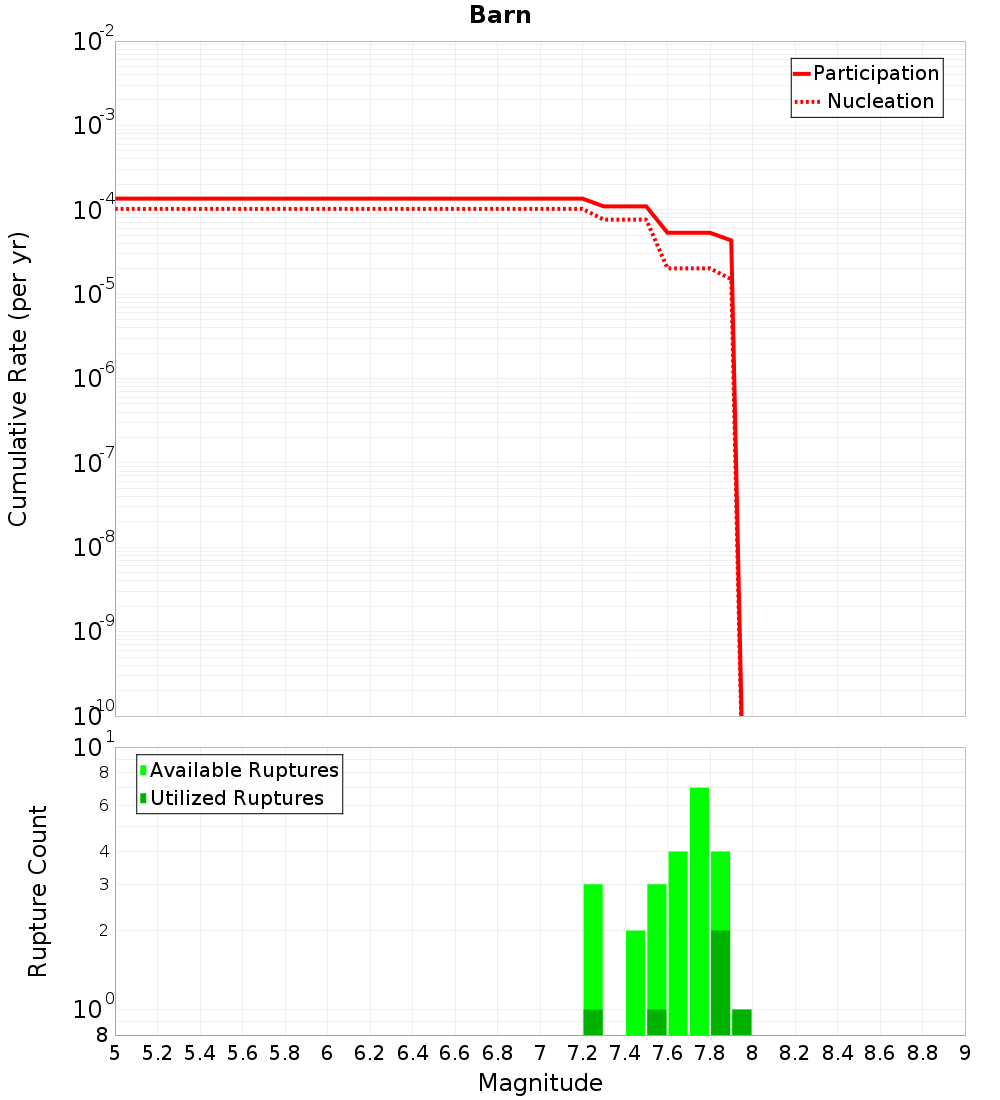

| Incremental | Cumulative |
|---|---|
 |  |

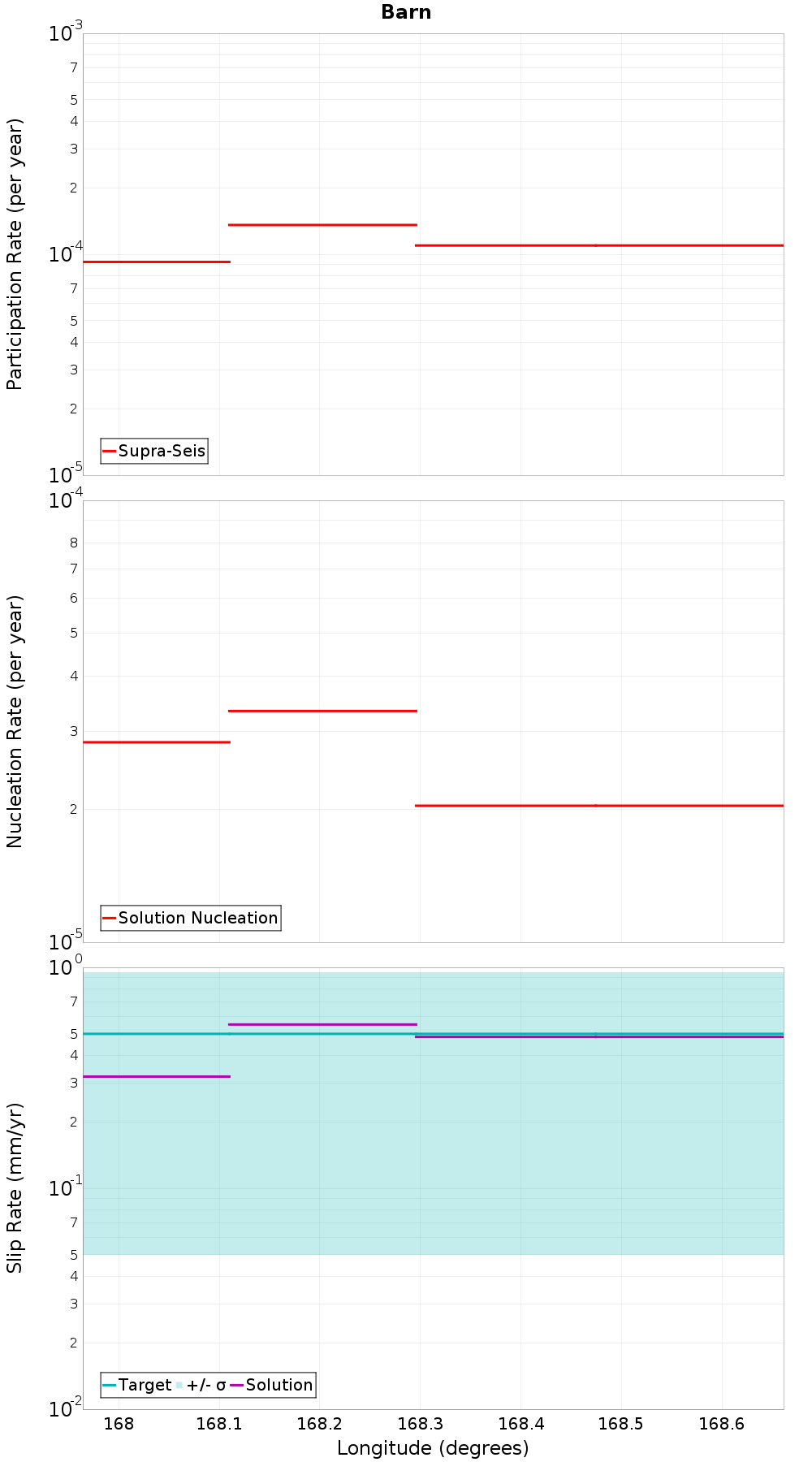

Along-Strike Values
Moment-Rates and b-Values

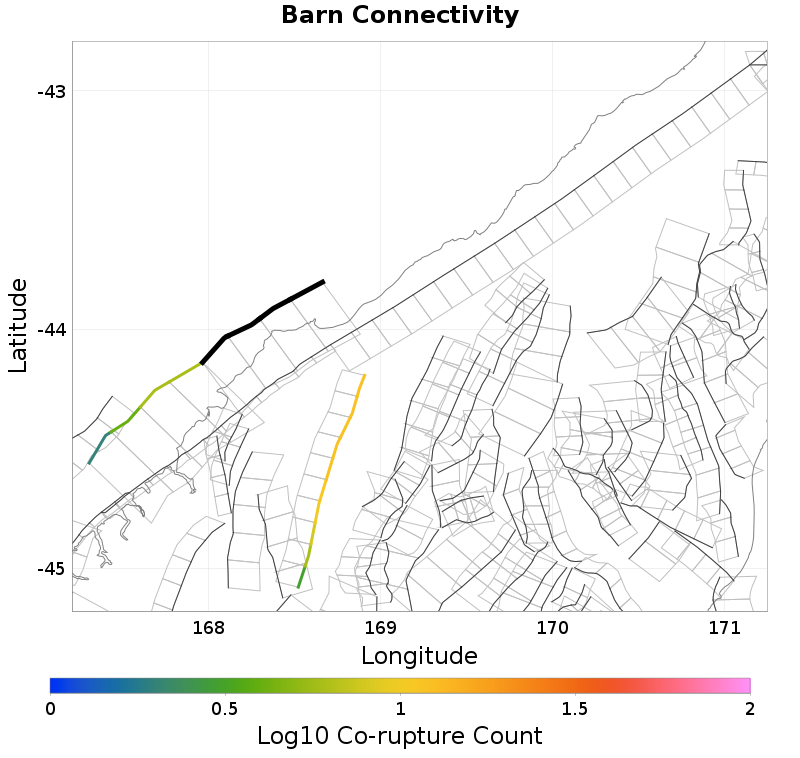

Connectivity
 |  |
|---|
Nearby Sections
Madagascar, 0 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 6 |
| Co-rupture Rate | 4.332457E-5 |
Alpine: George to Jacksons, 0.78 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Skippers, 2.55 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Hollyford, 5.52 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Alpine: Jacksons to Kaniere, 8.94 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
Moonlight North, 10.72 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | true |
| Directly Connected? | true |
| Co-rupture Count | 12 |
| Co-rupture Rate | 1.0016202E-5 |
Darran, 18.47 km away
| Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjYuMFdlVHIy | |
|---|---|
| Connected? | false |
| Directly Connected? | false |
| Co-rupture Count | 0 |
| Co-rupture Rate | N/A |
