Otaki Forks: 2 Details

PropertyValue
Rupture Count19,861
Ruptures Above Sect Min Mag19,858
Ruptures w/ Nonzero Rates16
Magnitude Range[6.82, 8.31]
Length Range[19, 554] km
Total Rate1.6654668E-4 /yr
Multi-Fault Rate1.6654668E-4 /yr (100.00%)
Directly-Connected Faults4
All Co-Rupturing Faults84

Table Of Contents

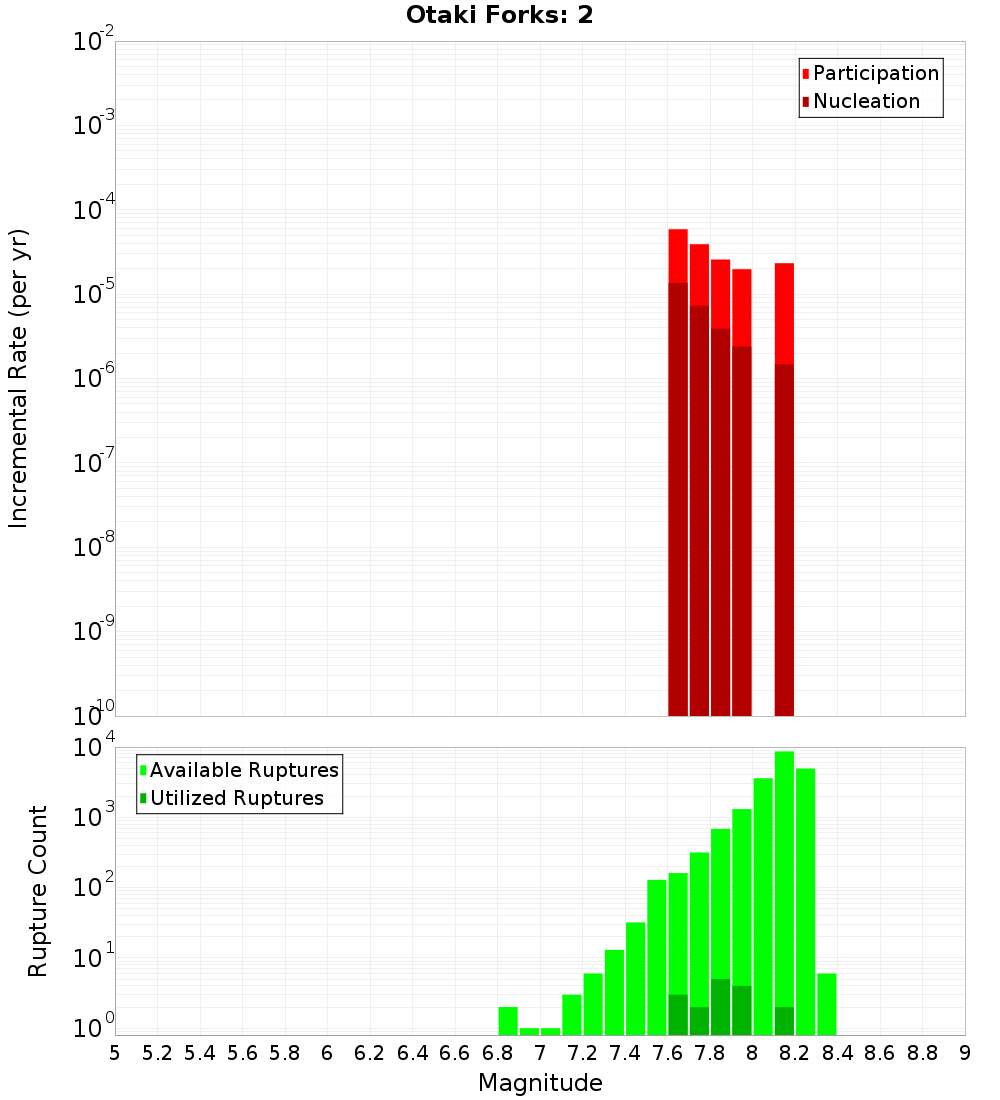

Magnitude-Frequency Distribution

(top)

IncrementalCumulative
Incremental PlotCumulative Plot

Along-Strike Values

(top)

Along-strike plot

Moment-Rates and b-Values

(top)

Along-strike plot

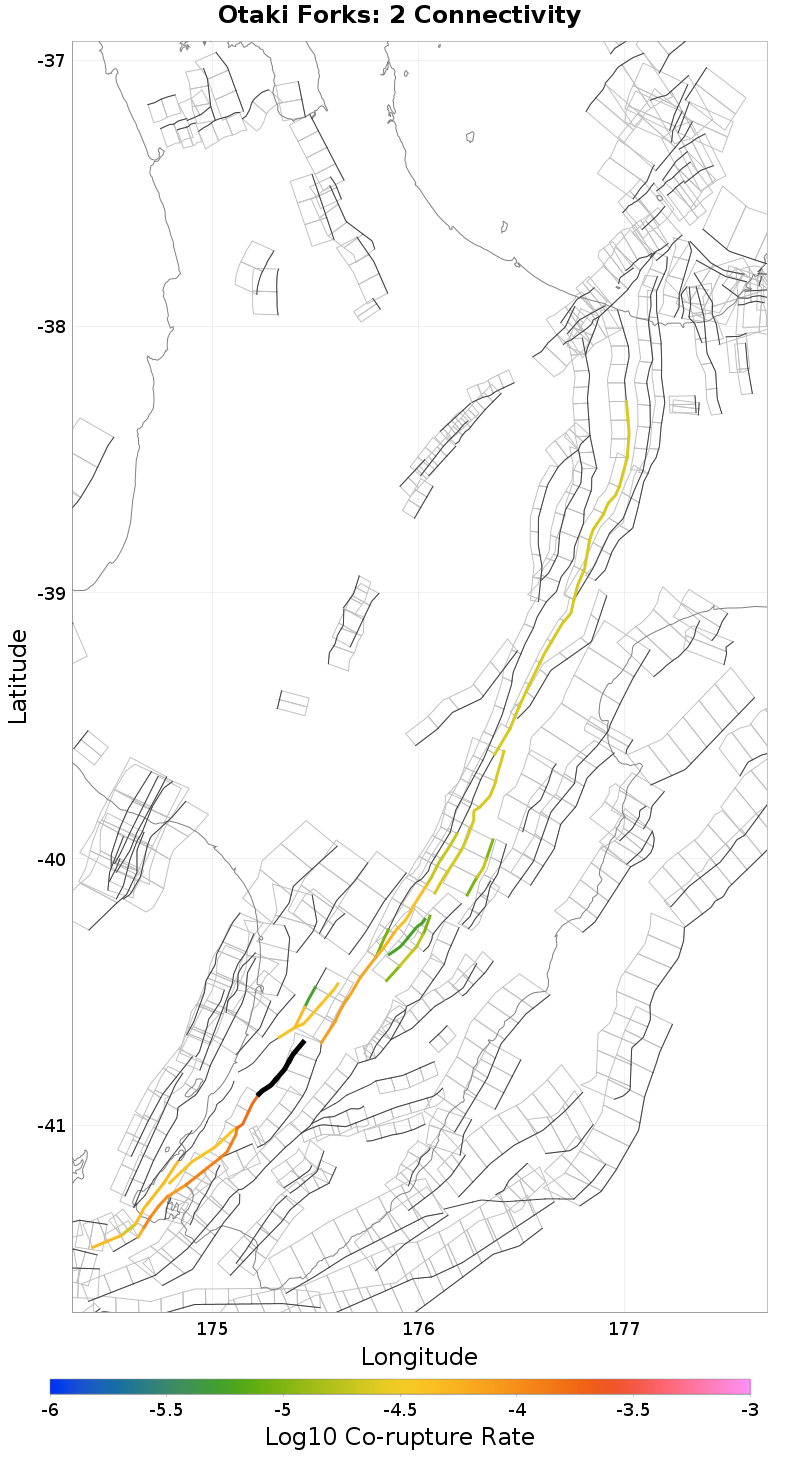

Connectivity

(top)

MapMap

Nearby Sections

(top)

Fault Section
Otaki Forks: 1, 0 km away
Wellington: Tararua 3, 0.3 km away
Tokomaru, 3.91 km away
Wellington: Pahiatua, 4.69 km away
Wellington: Tararua 2, 6.42 km away
Northern Ohariu, 7.03 km away
Ohariu, 11.39 km away
Wellington: Tararua 1, 13.31 km away
Levin Anticline, 14.48 km away
Wairarapa: 3, 16.33 km away
Akatarawa, 16.75 km away
Moonshine, 16.75 km away
Wairarapa: 2, 17.26 km away
Poroutawhao, 17.47 km away

Otaki Forks: 1, 0 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?true
Co-rupture Count17,076
Co-rupture Rate1.6654668E-4

Wellington: Tararua 3, 0.3 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?true
Co-rupture Count139
Co-rupture Rate0.0

Tokomaru, 3.91 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?true
Co-rupture Count5,115
Co-rupture Rate4.6238594E-5

Wellington: Pahiatua, 4.69 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?true
Co-rupture Count19,661
Co-rupture Rate7.8446166E-5

Wellington: Tararua 2, 6.42 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Northern Ohariu, 7.03 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?false
Co-rupture Count28
Co-rupture Rate4.0688858E-5

Ohariu, 11.39 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?false
Co-rupture Count1,889
Co-rupture Rate4.7411657E-5

Wellington: Tararua 1, 13.31 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Levin Anticline, 14.48 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Wairarapa: 3, 16.33 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Akatarawa, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?false
Co-rupture Count8,165
Co-rupture Rate1.2729036E-4

Moonshine, 16.75 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?true
Directly Connected?false
Co-rupture Count11,069
Co-rupture Rate3.9924813E-5

Wairarapa: 2, 17.26 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A

Poroutawhao, 17.47 km away

(back to table)

Solution Diagnostics: SW52ZXJzaW9uU29sdXRpb246MjMwNjkuMFdMSk5N
Connected?false
Directly Connected?false
Co-rupture Count0
Co-rupture RateN/A
